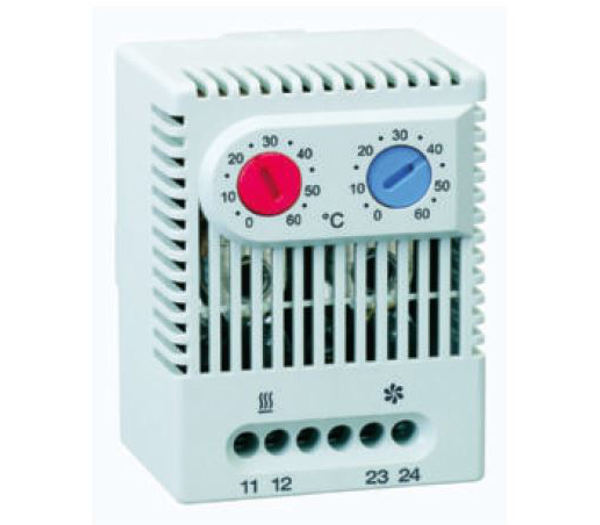

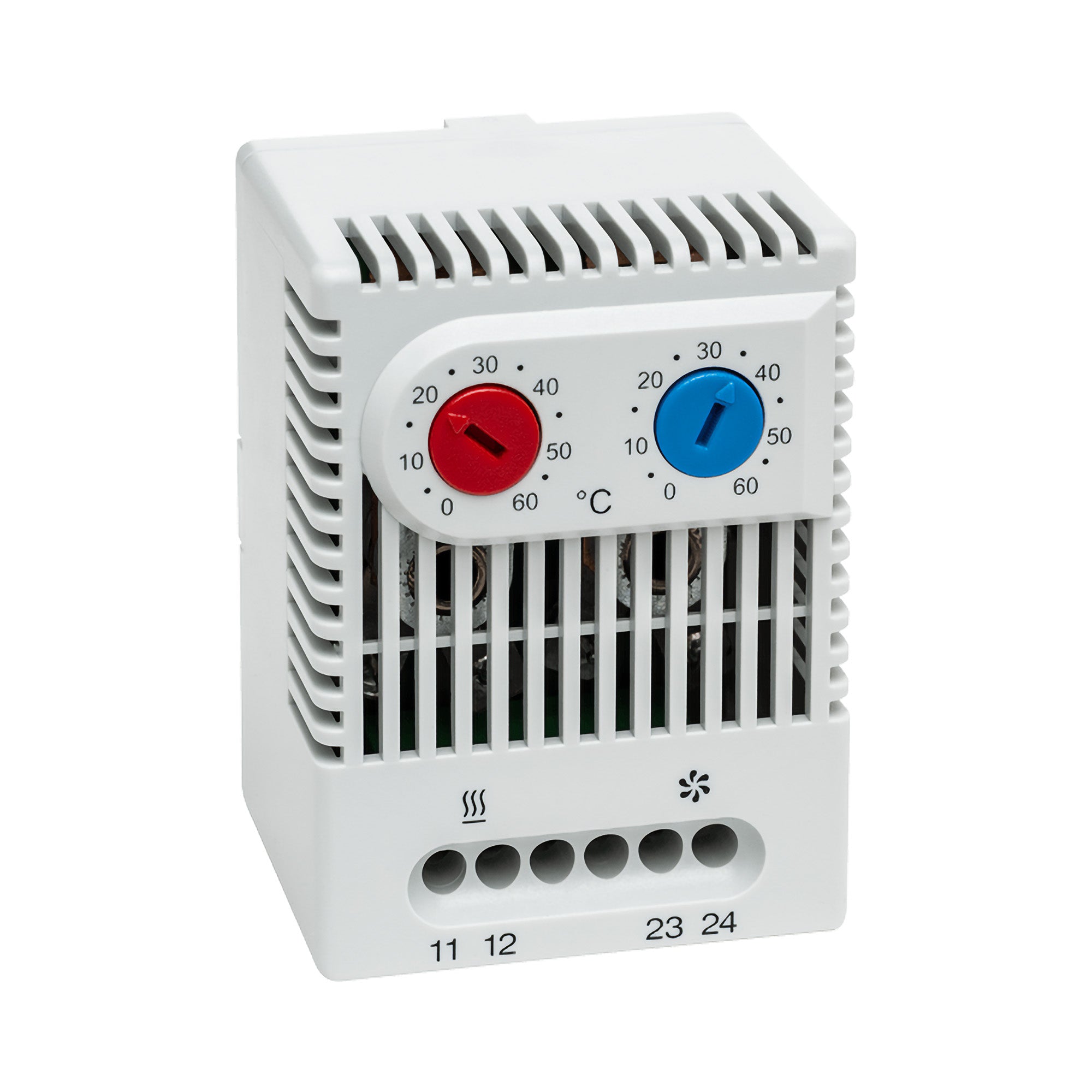

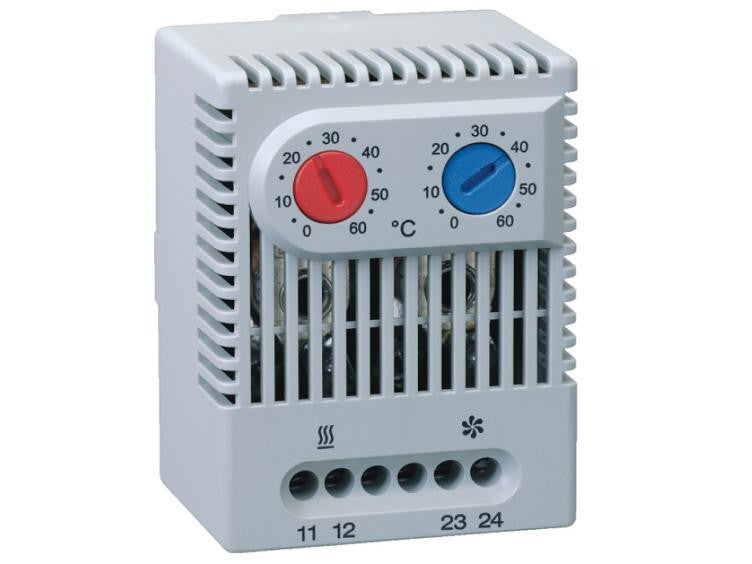

ZR011 Dual Thermostat

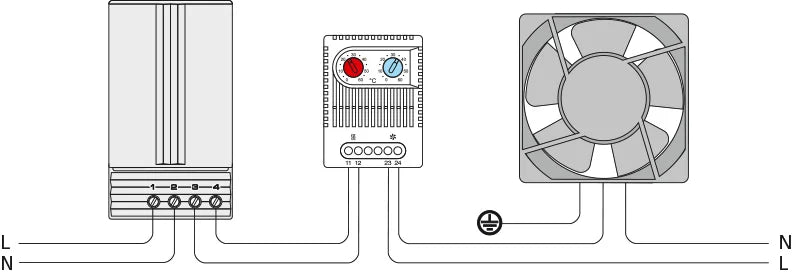

Dual Thermostat offers Heating normally closed (NC) and Cooling normally open (NO) thermostats in one housing. Two independent switch settings with two separate outputs. This allows heating and cooling devices to be switched in different temperature ranges.

Features

• Normally closed (NC, heating) and normally open (NO, cooling) in one product
• Snap-action contact enables independent switching
• Temperatures can be adjusted separately
• High switching capacity
• DIN rail clip mounting - 35mm
• Dual heating control and dual cooling control also available
• UL, CSA, VDE, CE, ROHS approvals

Specifications

• Sensor Element Thermostatic bi-metal
• Switching Difference (Hysteresis) 7 ºC ± 4 ºC
• Maximum Tolerance ± 4 K
• Switching Capacity (Max. Load)

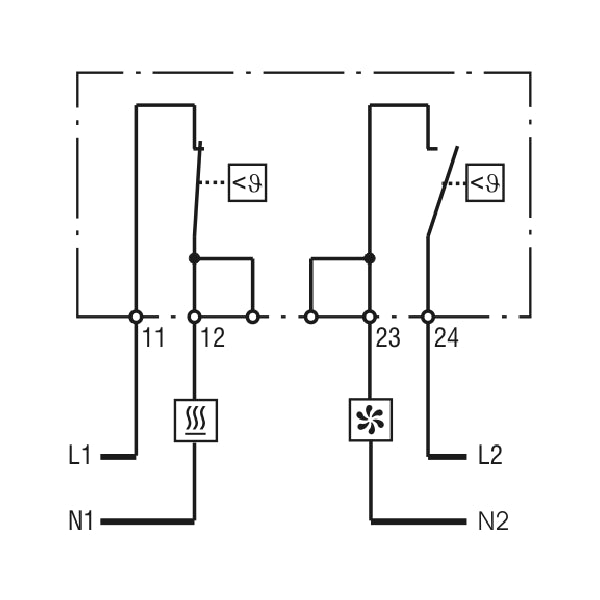

  NC: 10 A resistive/2 A inductive at 250 VAC
  NO: 5 A resistive/2 A inductive at 250 VAC
  DC 30W
• Minimum Load 20 mA (all voltages)
• EMI/EMC Compliance EN 55014-1-2, EN 61000-3-2, EN 61000-3-3
• Connection 4-pole terminal for AWG 14 max. (2.5 mm²)
• Mounting Clip for 35 mm DIN rail (EN 60 715)

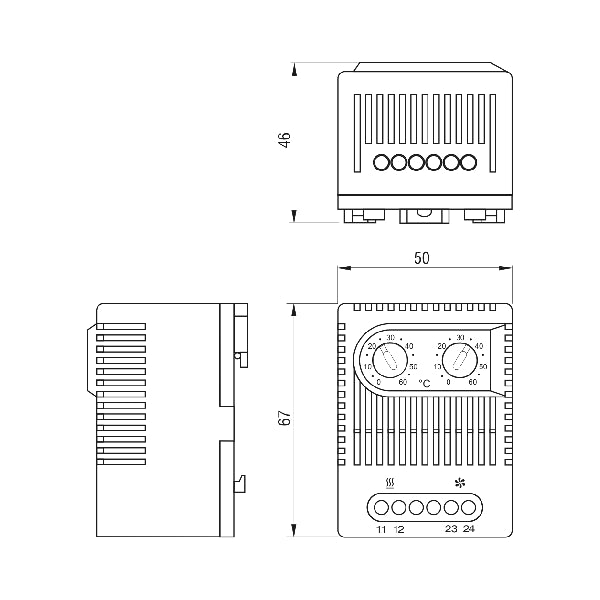

• Dimensions (H x W x D) 2.6 x 2.0 x 1.8 inches (67 x 50 x 46 mm)
• Housing Plastic, UL 94V-0, light gray
• Weight 3.2 Oz (90 g)
• Operating/Storage Temperature -49 to 158 ºF (-45 to 70 ºC)
• Protection Type IP20

Model Numbers

• 01172.0-00    Heat 0 to +60 ° C, Cool 0 to +60 ° C

• 01172.0-01    Heat 32 to +140 ° F, Cool 32 to +140 ° F

• 01175.0-00    Heat -10 to +50 ° C, Cool 20 to +80 ° C

• 01175.0-01    Heat 14 to 122 ° F, Cool 68 to +176 ° F

• 01176.0-00    Cool 0 to +60 ° C, Cool 0 to +60 ° C

• 01176.0-01    Cool 32 to +140 ° F, Cool 32 to +140 ° F
