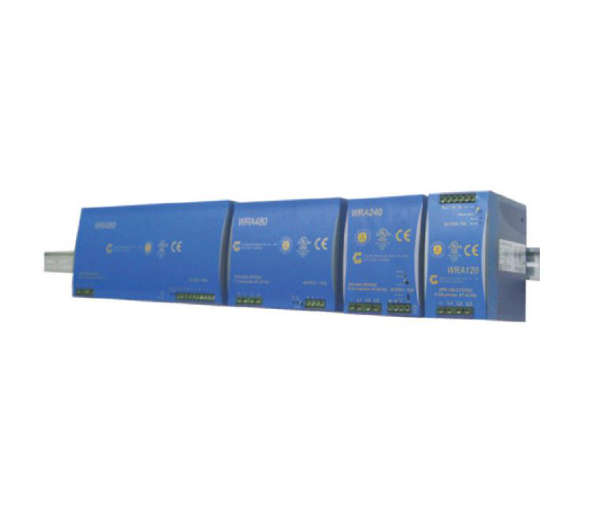

WRA 120 - 960 Three Phase DIN Rail Enclosure AC/DC Power Supply

A rugged family of Industrial DIN Rail mounted DC Power Supplies with PWM design. These are UL Class I with operating temperatures from -40 to 159°F (-40 to 71°C). The three phase models accept a wide universal input range 340-575V AC with Active Power Factor Correction and paralleling control. All models feature touch-proof screw terminations for input & output wire connections.

Features

Specifications

• Available Power Ratings: 5 / 10 / 18 / 30 / 60 / 100 / 120 / 240 / 480 Watts

• Output Voltage: 15 VDC
• Adjustable Output Range (5–18 W): 13.5–17.2 V
• Input Voltage Range: 100–240 VAC
• Input Frequency: 47–63 Hz
• Mounting Type: DIN Rail
• Terminal Type (5–18 W): Spring Clamp
• DC ON Indicator: Green LED
• DC Low Indicator: Red LED (5, 10, 18 W models)
• Relay Output: Not available on 5–18 W models
• Overload Protection: Yes
• Overvoltage Protection: Yes
• Short Circuit Protection: Yes
• No Load Protection: Yes
• Input Protection: Line fuse, filter, and inrush current limiter
• Isolation Voltage: 3 kV (Transformer Isolation)
• Efficiency Class: UL 1310 Class 2 (5–18 W)
• UL Certification: UL 1310, UL 508 (E222875)
• Approvals UL508, cUL, TUV, CE
• Power Factor Correction: Not applicable (Only on 240–480 W models)
• Parallel Operation Capability: Not applicable (Only on 120–480 W models)
• Housing Material: Plastic


Model Numbers

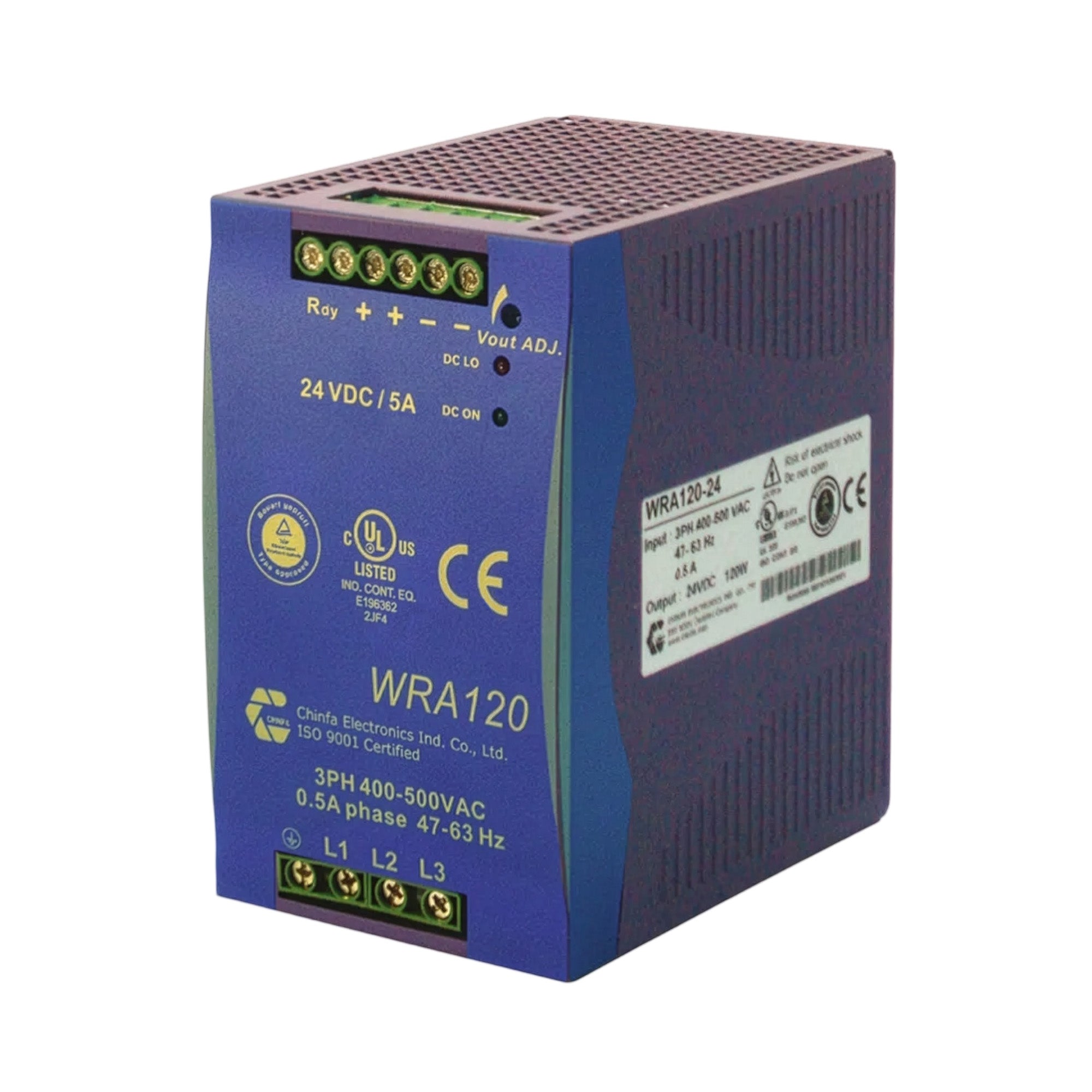

• WRA120-12A - Three Phase DIN Rail 120W DC Power Supply 12V/10A
• WRA120-24A - Three Phase DIN Rail 120W DC Power Supply 24V/5A

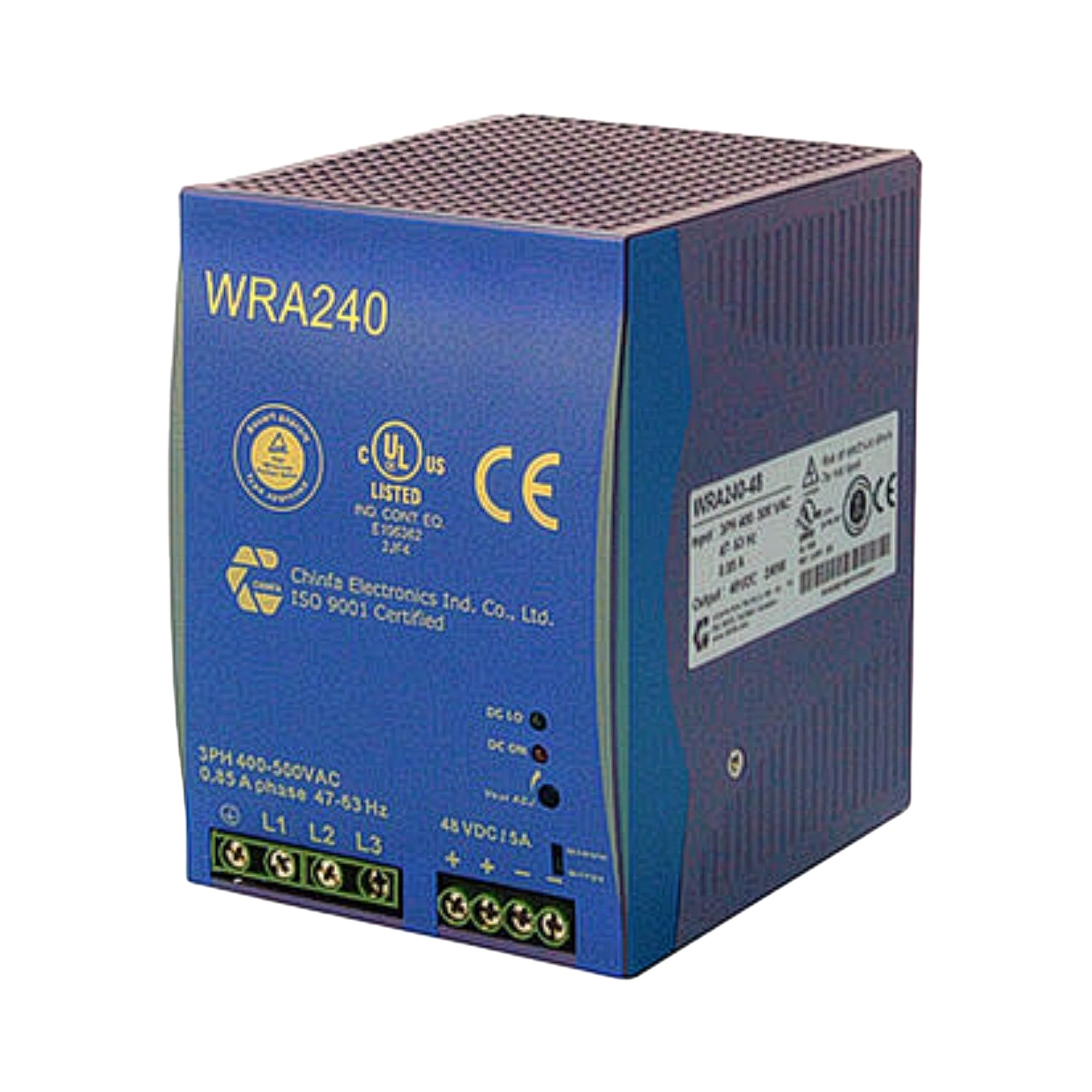

• WRA240-24A - Three Phase DIN Rail 240W DC Power Supply 24V/10A
• WRA240-48A - Three Phase DIN Rail 240W DC Power Supply 48V/5A

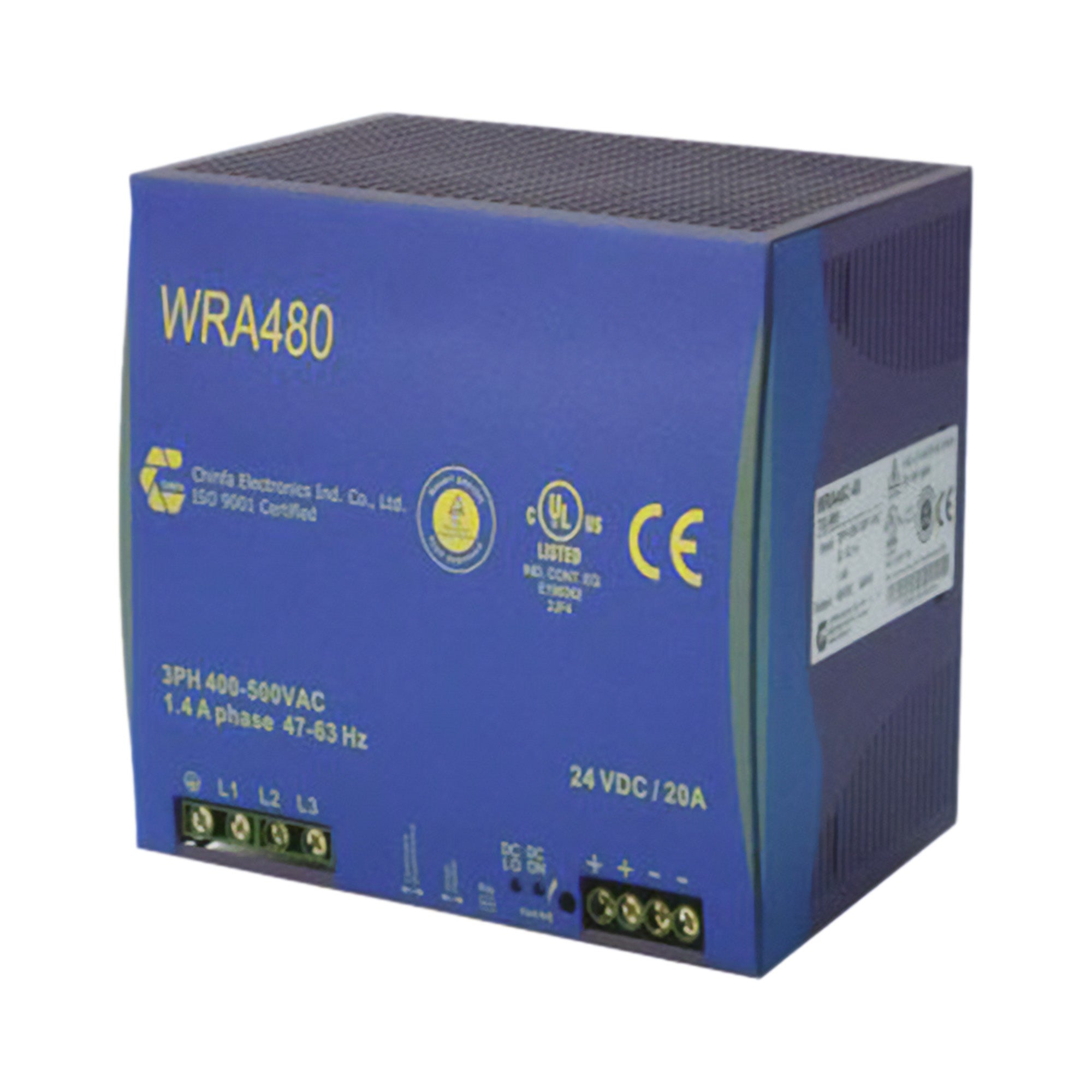

• WRA480-24A - Three Phase DIN Rail 480W DC Power Supply 24V/20A
• WRA480-48A - Three Phase DIN Rail 480W DC Power Supply 48V/10A

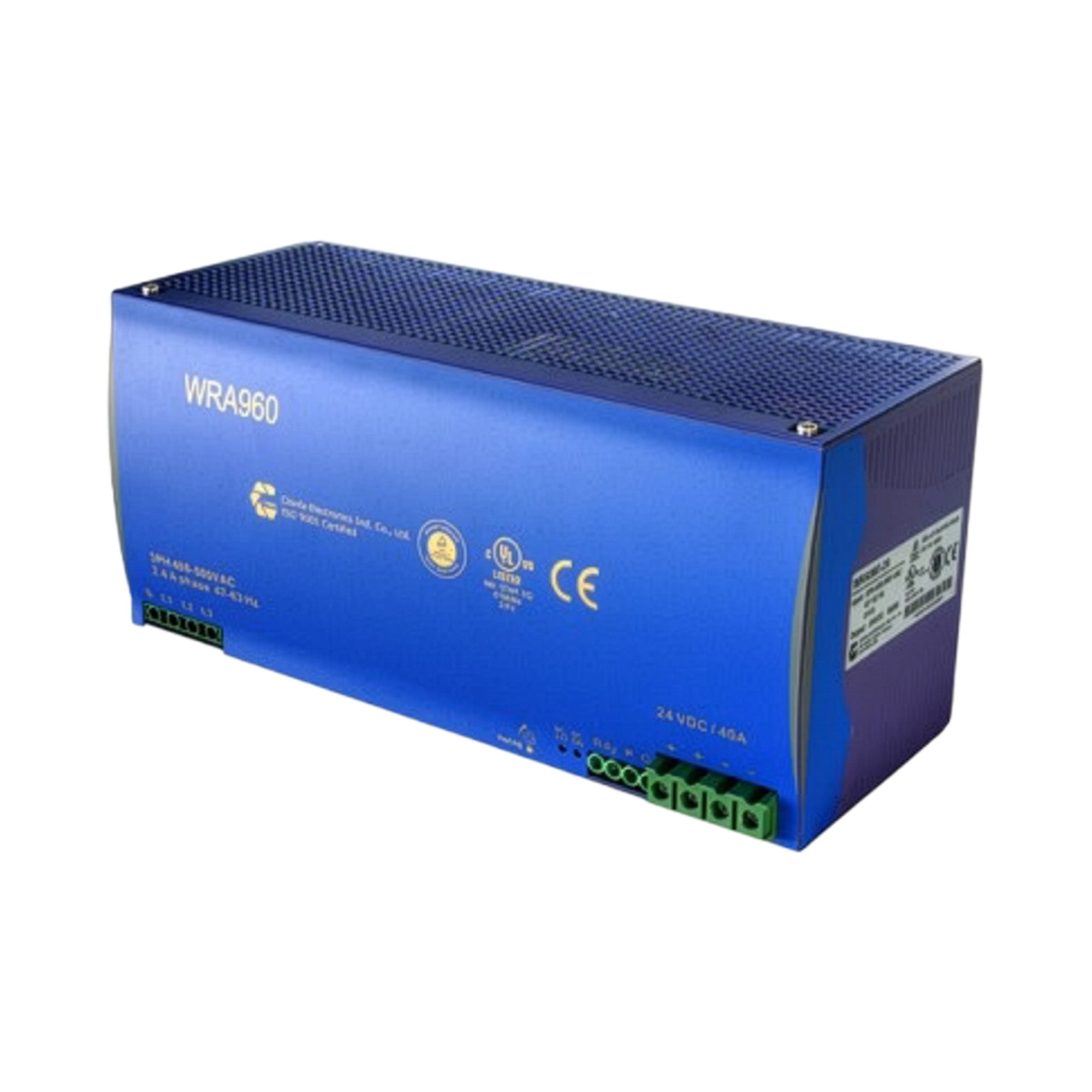

• WRA960-24A - Three Phase DIN Rail 960W DC Power Supply 24V/40A
• WRA960-48A - Three Phase DIN Rail Power DC Power Supply 48V/20A
