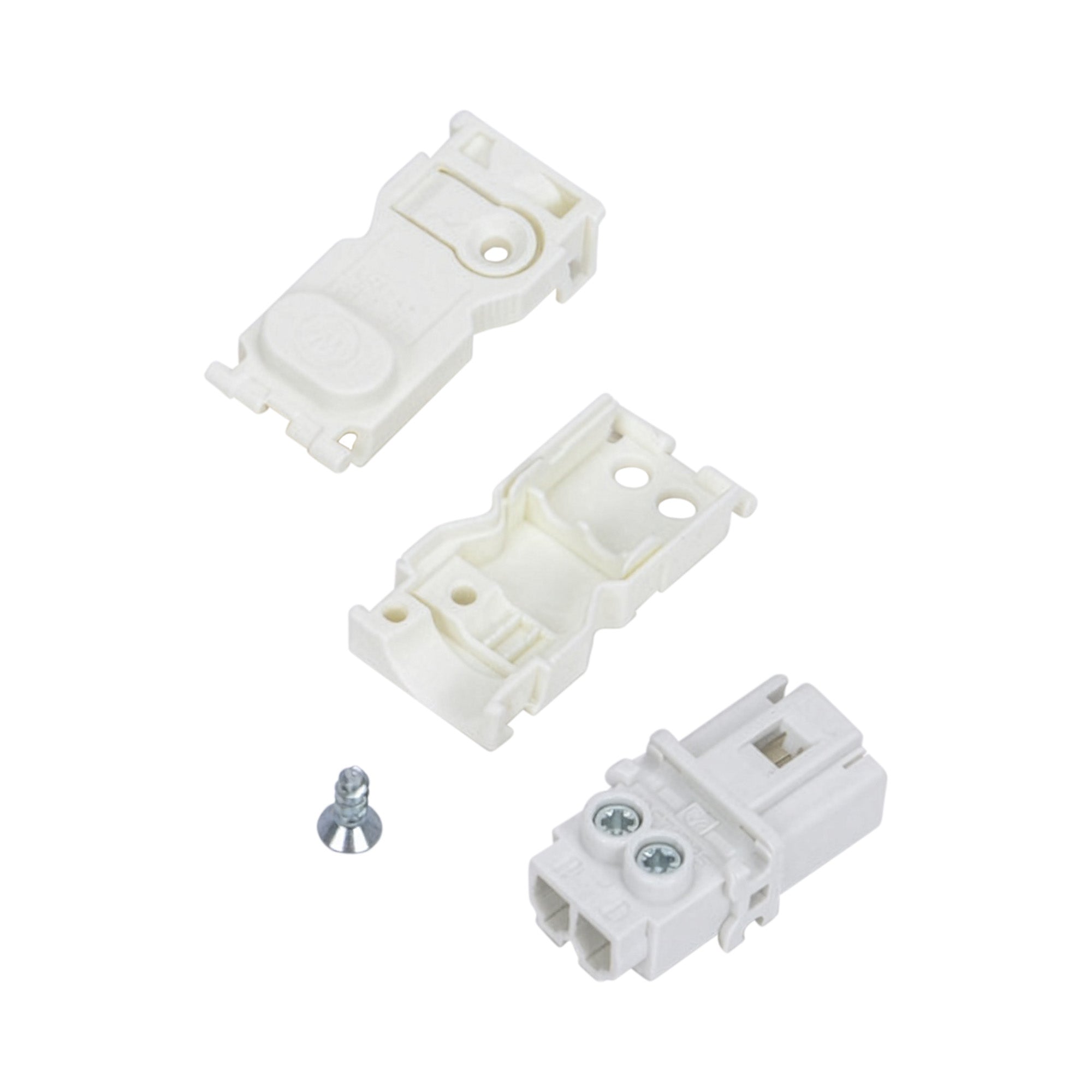

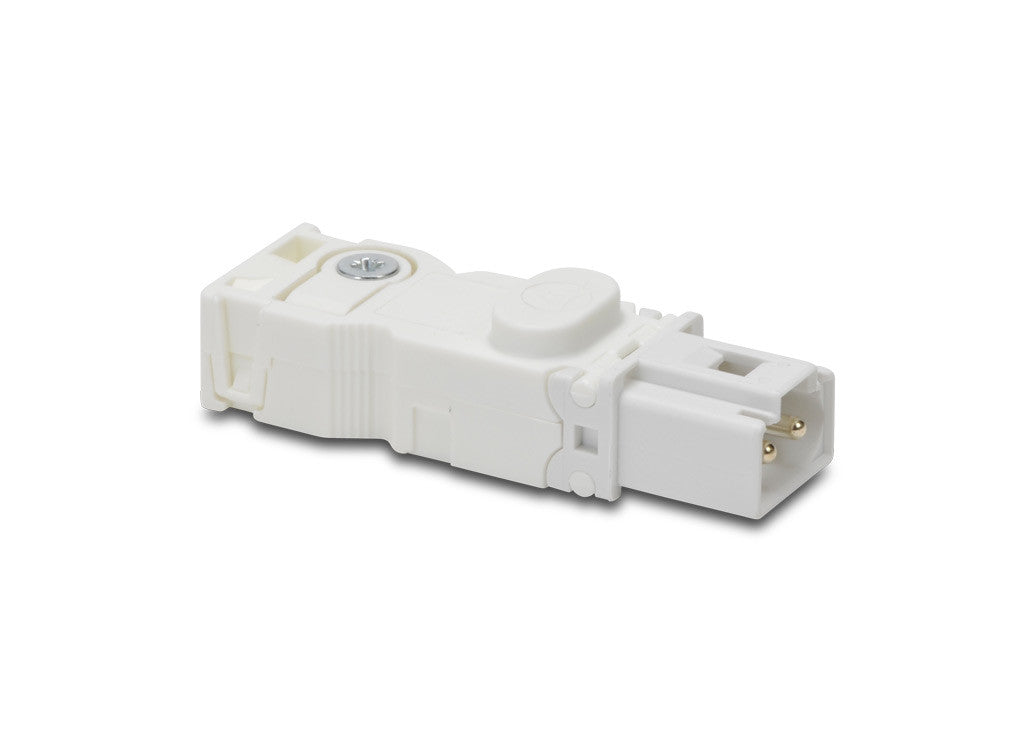

White Male Connector for LED Enclosure Lights 100/240V

White, male connector for STEGO LED 025 Enclosure Lights. With our connector cables and connectors, you can daisy chain up to 10 LED lights to meet your enclosure needs.

Specifications

• Model / Description: Output connector (LED 025 light)

• Operating Voltage: AC

• Color: White

• Approvals: UL, VDE

• Mounting: Magnet, M5 screws (Not included), or clip (M6 screws); torque 2 Nm max.

• Accessories: Input and output connector, cable for supply or daisy chain

• Power Consumption (Associated LED light): max. 5 W (~75 W Incandescent bulb)

• Luminosity (Associated LED light): 400 Lm at 120° (1,200 Lm at 360° or equivalent 95 W light bulb)

• Lamp Type (Associated LED light): LED, 120° angle of radiation; light color – daylight; color temperature 6,000 to 7,000 K

• Service Life (Associated LED light): 60,000 Hrs at 68 °F (20 °C)

• Connection: 2‑pole plug with snap lock; AC: max. 2.5 A / AC 240 V, white connector; DC: max. 2.5 A / DC 60 V, blue connector

• Housing (associated LED light): Plastic, transparent

• Operating Temperature (Associated LED light): ‑22 to +140 °F (‑30 to +60 °C)

• Storage Temperature (Associated LED light): ‑40 to +185 °F (‑40 to +85 °C)

• Operating / Storage Humidity (Associated LED light): max. 90 % RH (Non‑condensing)

• Dimensions (Associated LED light): See drawings

• Protection Type / Protection Class (Associated LED light): IP20 / II (Double insulated)

Compatible with the following LED 025 models

• LED 025 Enclosure Light Multi Wide Voltage (Model #025-5X)
• LED 025 Enclosure Light AC or DC (Model #025-4X)

Other Accessories

• 2M Extension Cable with Female Connector and Open End (Model #244357)
• 2M Extension Cable with 2 Connectors (Model #244359)
