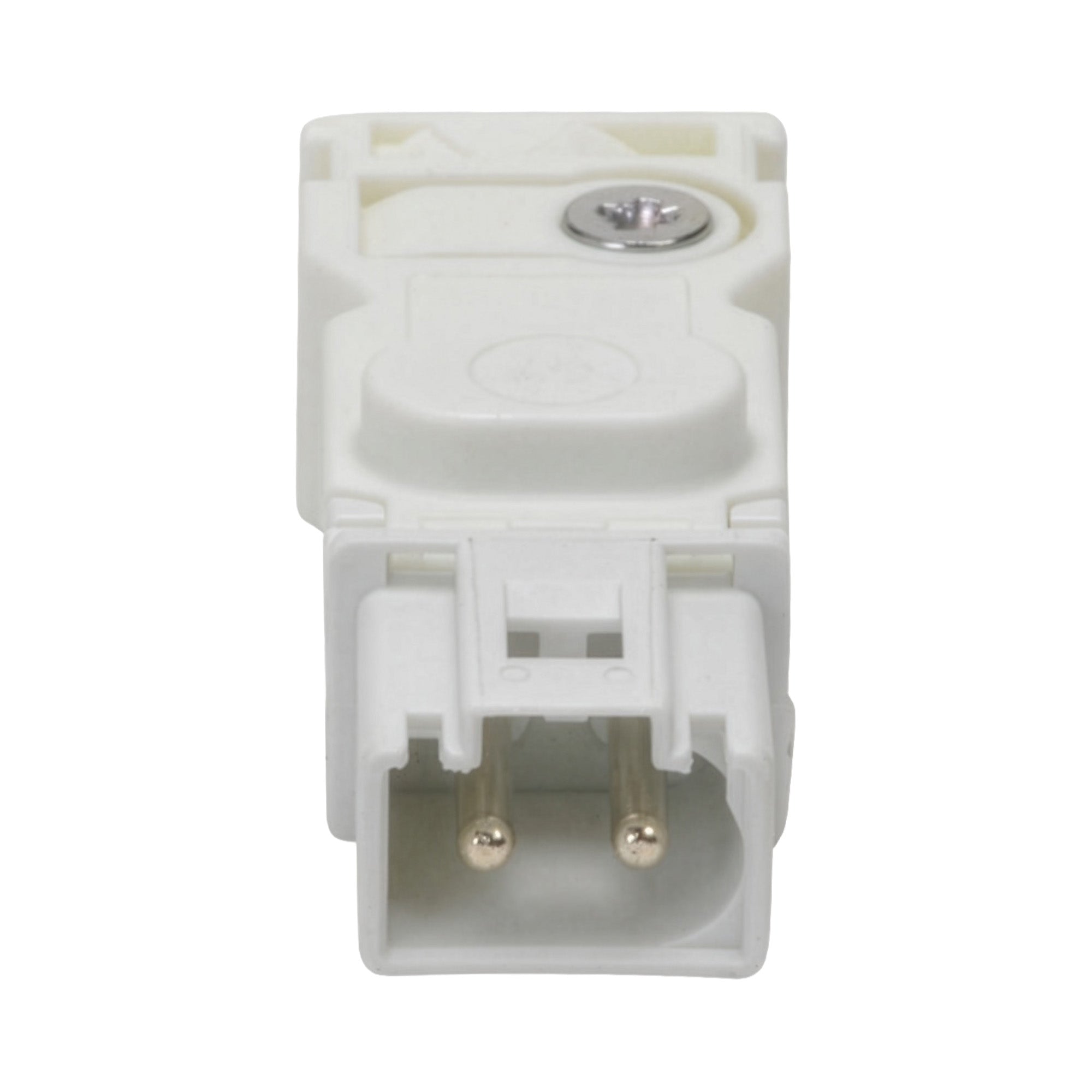

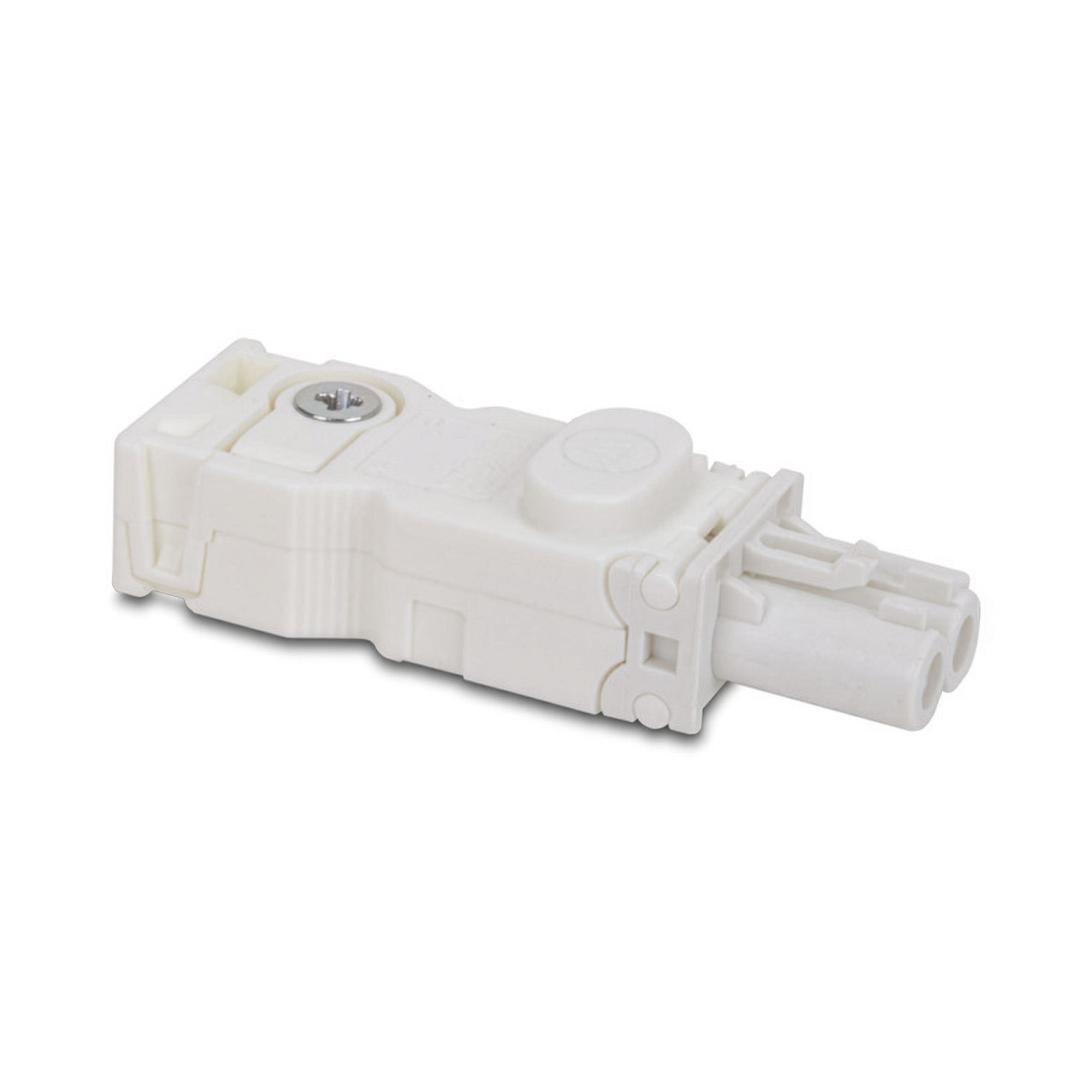

White Female Connector for LED Enclosure Lights 100/240V

White, female connector for STEGO LED 025 Enclosure Lights. With our connector cables and connectors, you can daisy chain up to 10 LED lights to meet your enclosure needs.

Specifications

• Model / Description: Input connector for LED 025 light

• Operating Voltage: AC (for LED 025 system)

• Color: White

• Approvals: UL, VDE

• Mounting: Magnet, M5 screws (not included), or clip (M6 screws); torque 2 Nm max.

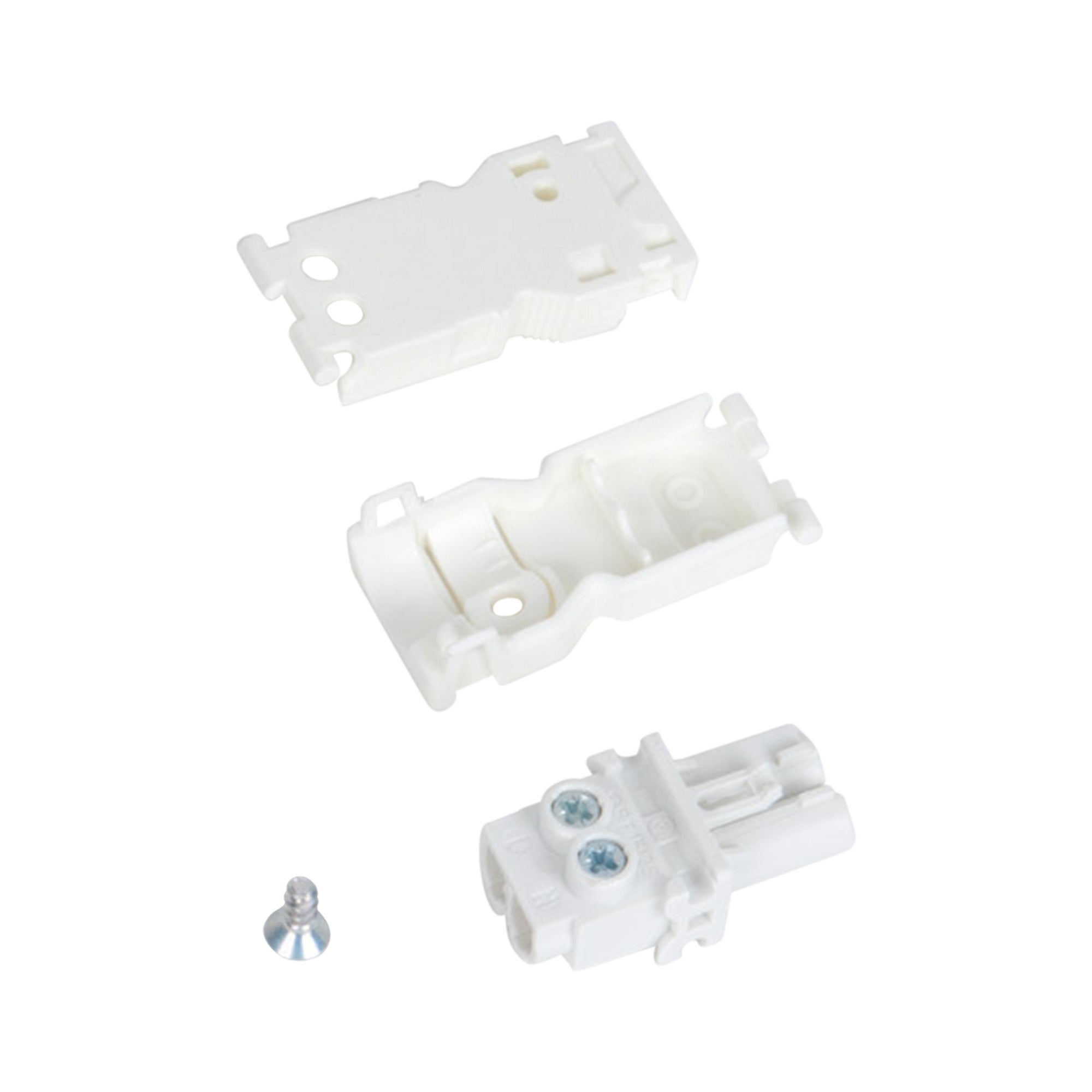

• Accessories Included: Input and output connector; cable for supply or daisy chain

• Power Consumption (Associated LED 025): max. 5 W (~75 W Incandescent bulb)

• Luminosity (Associated LED 025): 400 Lm at 120° (1,200 Lm at 360° or equivalent 95 W)

• Lamp Type (Associated LED 025): LED, 120° angle of radiation; light color – daylight; color temperature 6,000 – 7,000 K

• Service Life (Associated LED 025): 60,000 hrs at 68 °F (20 °C)

• Connection (Associated LED 025): 2‑pole plug with snap lock; AC: max. 2.5 A / AC 240 V (white); DC: max. 2.5 A / DC 60 V (blue)

• Housing (associated LED 025): Plastic, transparent

• Operating Temperature (Associated LED 025): ‑22 to +140 °F (‑30 to +60 °C)

• Storage Temperature (Associated LED 025): ‑40 to +185 °F (‑40 to +85 °C)

• Operating/Storage Humidity (Associated LED 025): Max. 90 % RH (Non‑condensing)

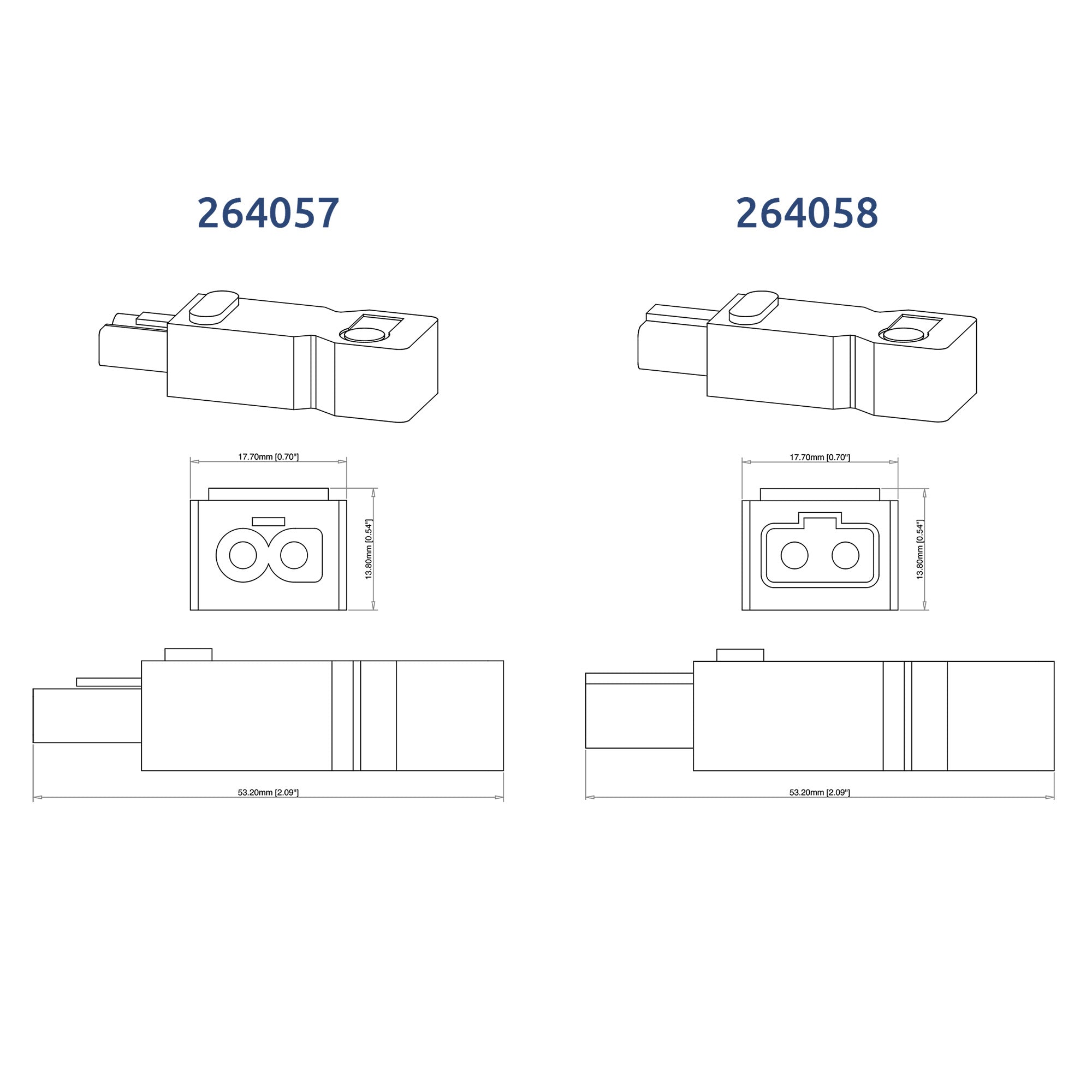

• Dimensions (Associated LED 025): See drawings

• Protection Type / Protection Class (Associated LED 025): IP20 / II (Double insulated)

Compatible with the following LED 025 models

• LED 025 Enclosure Light Multi Wide Voltage (Model #025-5X)
• LED 025 Enclosure Light AC or DC (Model #025-4X)

Other Accessories

• 2M Extension Cable with Female Connector and Open End (Model #244357)
• 2M Extension Cable with 2 Connectors (Model #244359)
