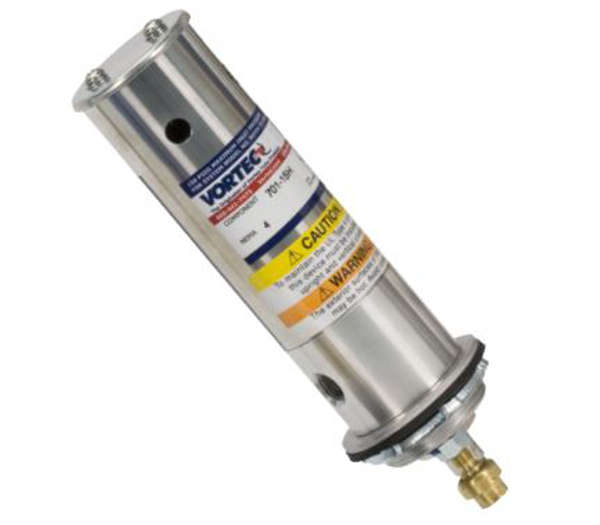

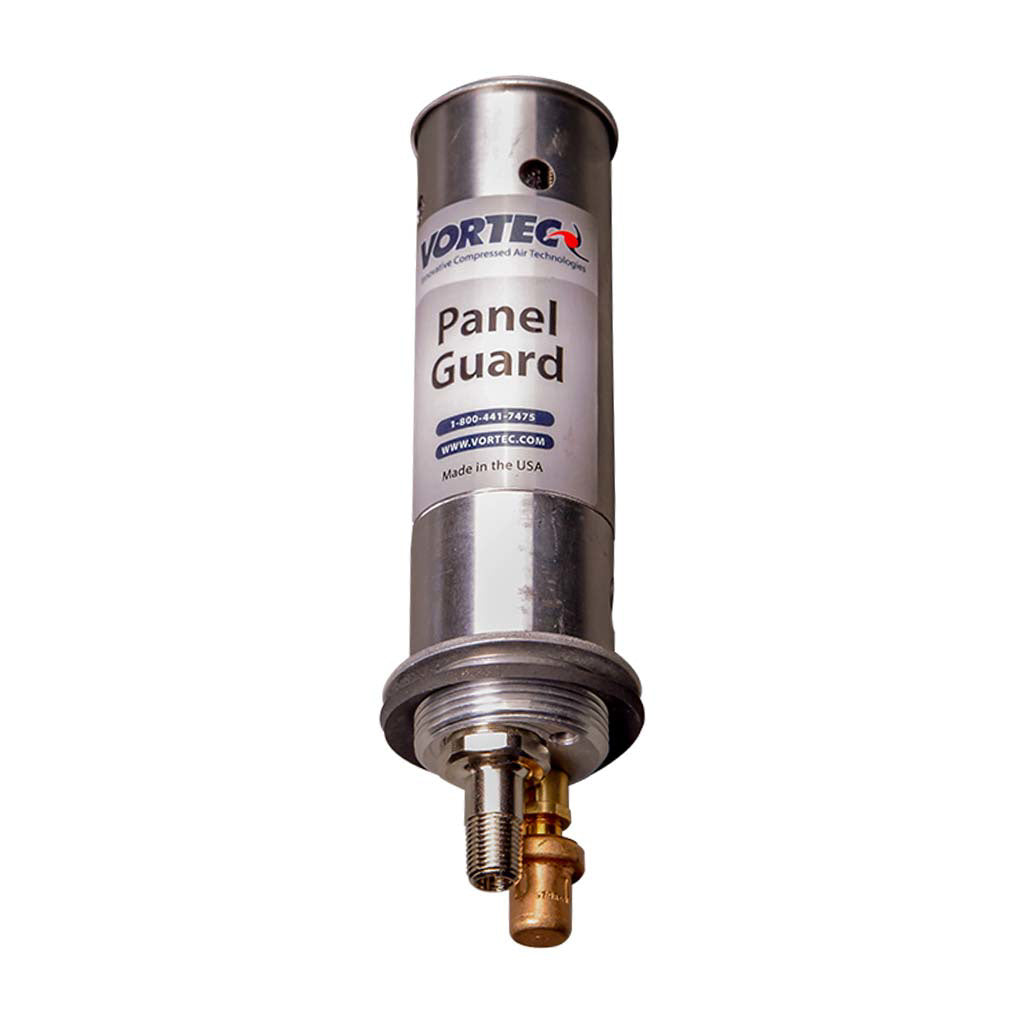

Vortex Panel Guard Enclosure Coolers Mechanical Thermostat NEMA 4 Outdoor Use

• Panel Guard Enclosure Coolers enhance the benefits of Vortex coolers for enclosure cooling by adding a mechanical thermostat for optimum temperature control without the need for wiring. Standard Vortex Coolers utilize an electrical thermostat with a solenoid, so installation must include running wiring from the cabinet to the Cooler.

Panel Guard models do not require wiring so installation is quick and easy and the energy use reduction advantages of using a thermostat are maintained. Panel Guard Enclosure Coolers are available in 3 different cooling capacities and are rated for NEMA 4 enclosures.

Features

• Small footprint to fit on all enclosures and in confined areas
• Top mount
• Mechanical thermostat maintain temperature between 75-100deg F 24-

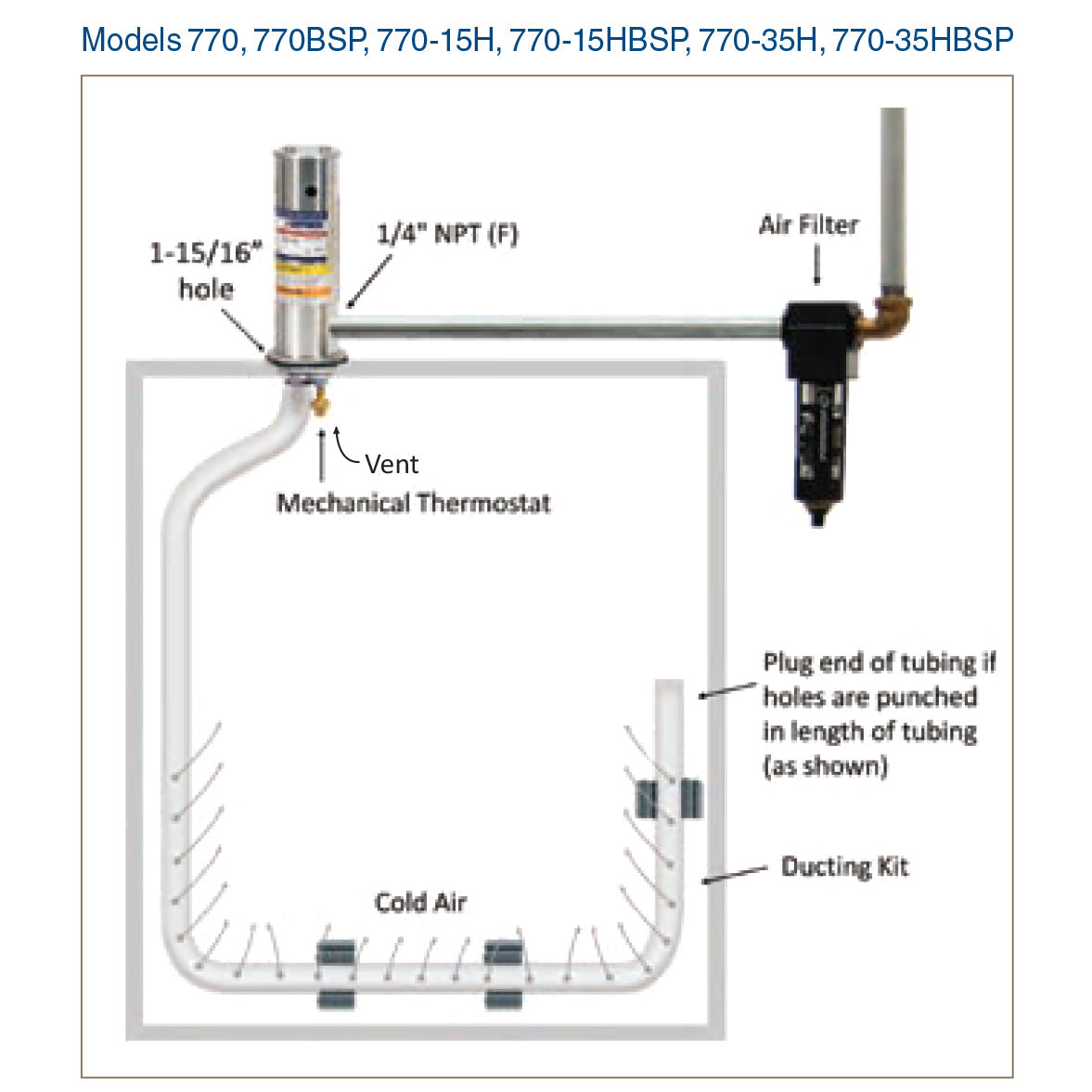

• Supplied with air filter and ducting kit
• Panel cooler maintains slight pressurization in the enclosure

Benefits

• Easy to install in about 5 minutes
• No wiring required to install
• Thermostatically controlled to maintain enclosure temperatures within ideal range
• Highly reliable, with full 10 year warranty
• No ambient, dirty or humid air enters the cabinet
• Can be used on all NEMA 4 cabinets, even in tight spaces
• Operates in environments up to 175 degrees F
• Low cost, compared to Freon air conditioners
• Thermostatically controlled models reduce operating cost
• Multiple cooling capacities available, to optimize performance and operating cost
• Little maintenance required, as compared to Freon A/C and fans
• Use no refrigerants

Specifications

• Product Series: Vortec Panel Guard Vortex Coolers

• Product Type: Compressed-air powered enclosure cooler with mechanical thermostat
• Cooling Method: Vortex tube cooling (no refrigerant; compressed air driven)
• Compressed Air Requirement: Clean, dry, filtered compressed air at ~100 psig
• Thermostat Type: Mechanical thermostat
  Installation Orientation: Top mount on enclosure
  Enclosure Protection Rating: NEMA 4 (Weatherproof/washdown)
• Cooling Capacity (BTU/hr): 900 / 1500 / 2500 (Varies by model)
• Cooling Capacity (Watts): 264 / 440 / 733 (Varies by model)
• Air Consumption (scfm): 15 / 25 / 35 (Varies by model)
• System or Cooler Only: Cooler Only (701, 701-15H, 701-35H) or Complete Kit (770, 770-15H, 770-35H)
• Sound Level (typical): ~60–79 dBA @ 6 ft (model dependent)

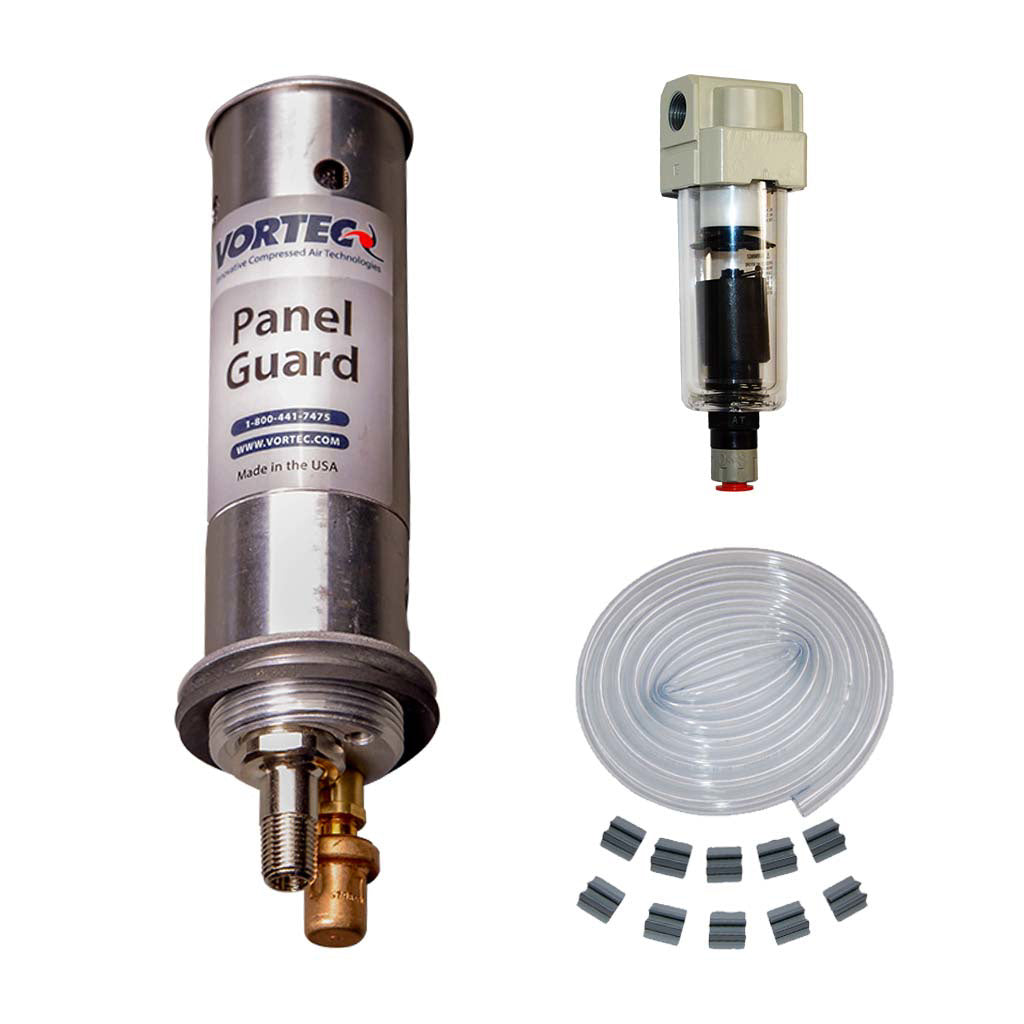

• Includes: Preset thermostat, air filter, and ducting kit on complete kits (770 series)
• Installation Hole Size: 1-15/16 in (49 mm) diameter cutout required
• Compressed Air Inlet: 1/4″ NPT (standard)
• Maximum Operating Pressure: 150 psig recommended maximum (Compressed air)
• Maximum Inlet Air Temperature: ~110 °F (43 °C) recommended max (Compressed air)
• Typical Applications: Industrial electrical panels, control cabinets, washdown environments
• Warranty: 10-year limited manufacturer warranty (Coolers and kits)

Model Numbers

• 701 - 1500 BTU 25 SCFM Preset Thermostat Cooler Only

• 770-15H - 900 BTU 15 SCFM Complete Kit with Thermostat
• 770-35H - 2500 BTU 35 SCFM Complete Kit with Thermostat
• 701-15H - 900 BTU 15 SCFM Preset Thermostat Cooler Only
• 701-35H - 2500 BTU 35 SCFM Preset Thermostat Cooler Only
• 770 - 1500 Btu 25 SCFM Thermostat UL Complete Kit
