Vortex Enclosure Coolers Thermostat Controlled NEMA 4X Corrosion Resistant

Standard Vortex Enclosure Coolers are available in NEMA 12, NEMA 4, and NEMA 4X versions, and can be purchased with an electric thermostat or without a thermostat (constant run). The electrical cabinet cooling thermostat model maintains tight control on the temperature setpoint of +/- 3 degrees F. Vortex electric enclosure cooling systems are available in cooling capacities ranging from 400 BTU/hr to 5000 BTU/hr.

Enclosure Air Coolers keep Electrical and Electronic Enclosures cool, clean, and protected and are a low-cost alternative to expensive, high-maintenance air conditioners; and avoid contamination with dirty, humid air caused by fans.

Today’s small, compact multi-function electronic controls, variable speed drives, servos, and programmable logic controllers are extremely sensitive to heat and contamination. Smaller cabinet sizes make temperature control difficult and prone to premature failures. Excessive heat will cause digital displays to misread, controls to drift, and breakers to trip below-rated loads. The result is productivity lost due to machine or line shutdowns.

Vortex Enclosure Coolers maintain a slight pressurization in the cabinet to keep electrical and electronic components clean and dry, and most are thermostatically controlled to maintain enclosure temperatures within a specified temperature range.

Features

• Small footprint to fit on all enclosures and in confined areas
• Electrical thermostat models can be set to desired temperature +/- 3 degree F
• Supplied with air filter and ducting kit
• Maintains slight pressurization in the enclosure

Benefits

• Thermostatically controlled models maintain enclosure temperatures within ideal range
• No ambient, dirty or humid air enters the cabinet
• Can be used on all cabinets, even in tight spaces
• No wiring required to install most models
• Operates in environments up to 175 degrees F
• Low cost, compared to Freon air conditioners
• Thermostatically controlled models reduce operating cost
• Multiple cooling capacities available, to optimize performance and operating cost
• Little maintenance required, as compared to Freon A/C and fans
• Use no refrigerants

Specifications

• Product Series: Vortec 7×7SS
• Product Type: Compressed air–powered vortex cooler
• Cooling Method: Vortex tube cooling (No refrigerants)
• Power Source: Compressed air
• Electrical Power Requirement: None (Except optional thermostat / solenoid)
• Enclosure Protection Rating: UL Type 4X
• Mounting Location: Top-mounted on enclosure
• Mounting Orientation: Vertical only
• Installation Cutout Size: 1-15/16 in (49 mm) diameter
• Cooling Control Options: Can be used with or without electric thermostat and solenoid valve
• Compressed Air Supply Requirement: Clean, dry, filtered compressed air
• Recommended Filtration: 5 micron or smaller air filter
• Maximum Compressed Air Pressure: 150 psig (10.3 bar)
• Maximum Compressed Air Temperature: 110 °F (43 °C)
• Cold Air Distribution: Internal ducting kit with cold air muffler
• Hot Air Exhaust: Automatically vented to ambient through built-in relief valve
• Housing Material: Stainless steel
• Cabinet Venting Requirement: All enclosure vents must be sealed
• Maintenance: No moving parts; unit can be disassembled for cleaning
• Safety Considerations: Do not direct compressed air toward personnel; eye protection required
• Certifications: UL Type 4X compliant installation
• Warranty: 10-year limited manufacturer warranty
• Typical Applications: Electrical enclosures, control cabinets, harsh or washdown environments

Model Numbers

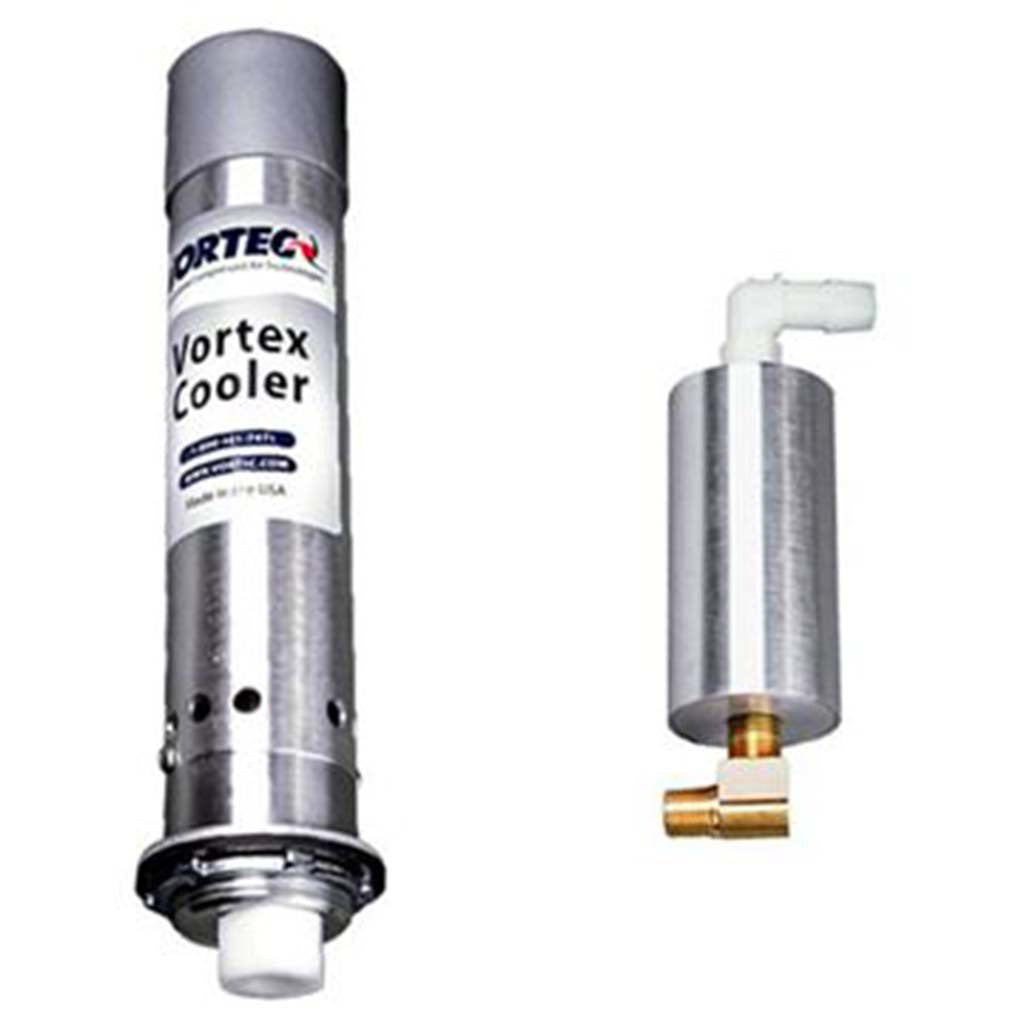

• Vortec 727SS-15H - 900 BTU 15 SCFM Cooler Only

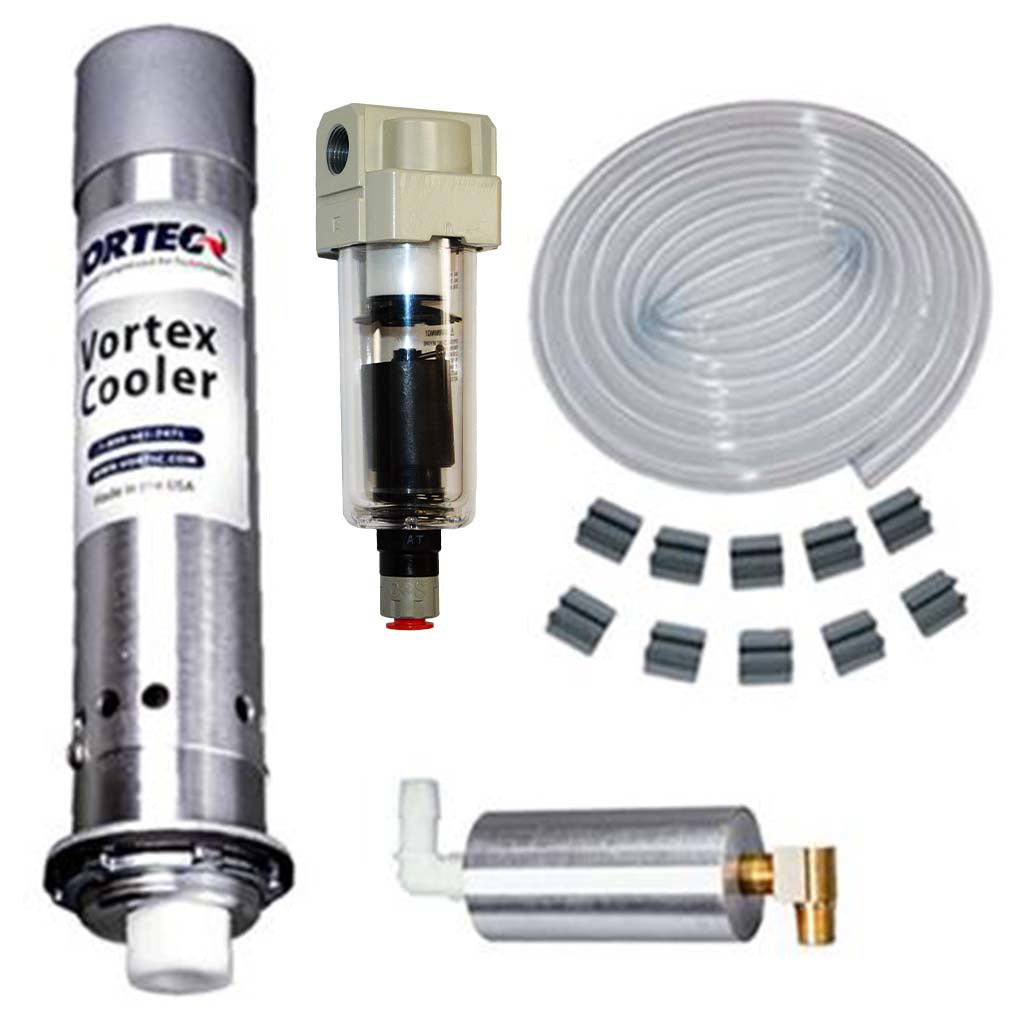

• Vortec 737SS - 900 BTU 15 SCFM Complete Kit No Thermostat

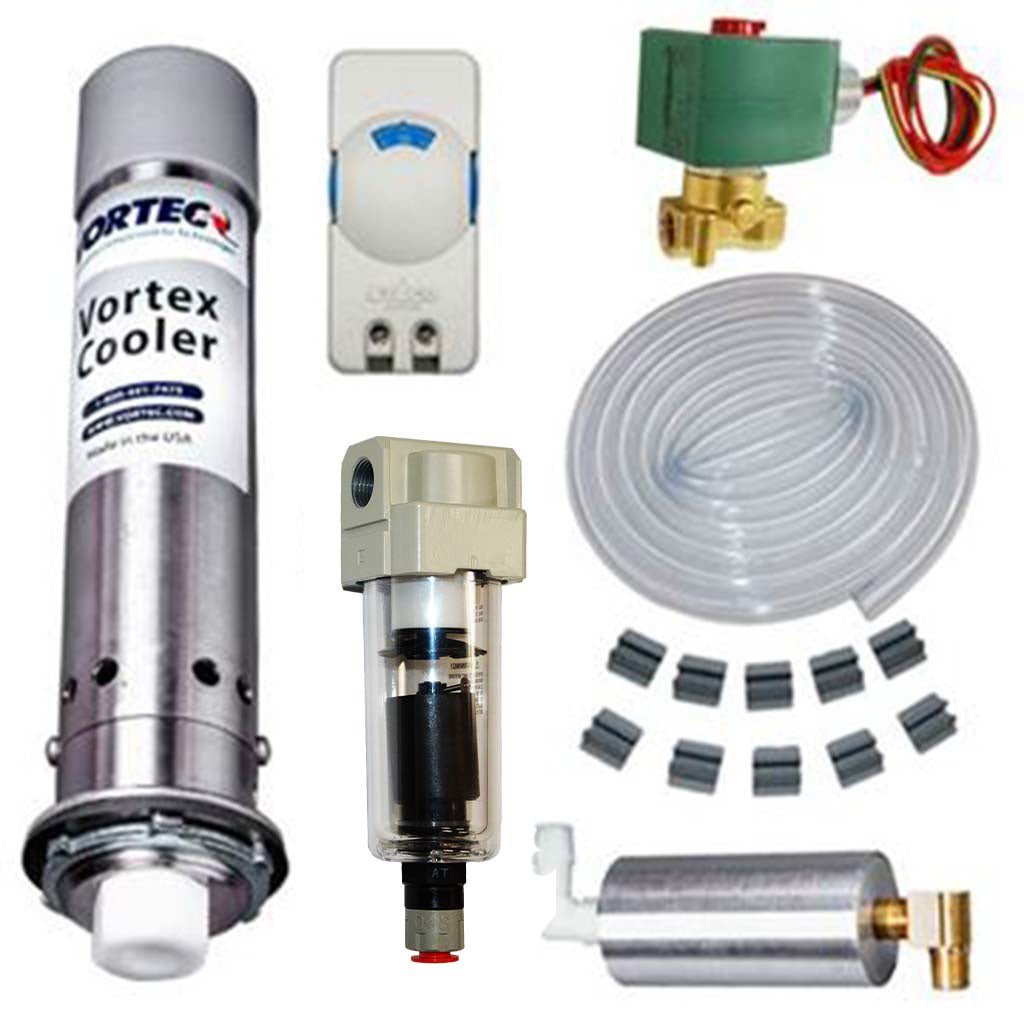

• Vortec 747SS - 900 BTU 15 SCFM Complete Kit with Thermostat
• Vortec 727SS - 1700 BTU 25 SCFM Cooler Only
• Vortec 787SS - 1700 BTU 25 SCFM Complete Kit No Thermostat
• Vortec 797SS - 1700 BTU 25 SCFM Complete Kit with Thermostat
• Vortec 727SS-35H - 2500 BTU 35 SCFM Cooler Only
• Vortec 787SS-35H - 2500 BTU 35 SCFM Complete Kit No Thermostat
• Vortec 797SS-35H - 2500 BTU 35 SCFM Complete Kit with Thermostat
• Vortec 7875SS - 5000 BTU 70 SCFM Complete Kit No Thermostat
• Vortec 7975SS - 5000 BTU 70 SCFM Complete Kit with Thermostat
