Vortex A/C Enclosure Cooler NEMA 4/4X Ultra Quiet Easy Installation 900 to 5000 BTU

Vortex A/C Coolers are ultra quiet, simple to install, and incorporate the most up-to-date features into Vortec’s line of highly reliable, cost-effective enclosure cooling systems.

• Sleek, modern design
• Noise reduction of 78%, when compared to other vortex enclosure coolers
• Energy use reduction through its integral mechanical thermostat
• Quick and easy installation in about 5 minutes
• Flexible installation: top, side or front (door) mount

The Vortex A/C is available in four different cooling capacities, and ratings of NEMA 12, NEMA 4/4X.

All of Vortec’s Enclosure Air Conditioning units keep Electrical and Electronic Enclosures cool, clean and protected and are a low-cost alternative to expensive, high maintenance air conditioners; and avoid contamination with dirty, humid air caused by fans.

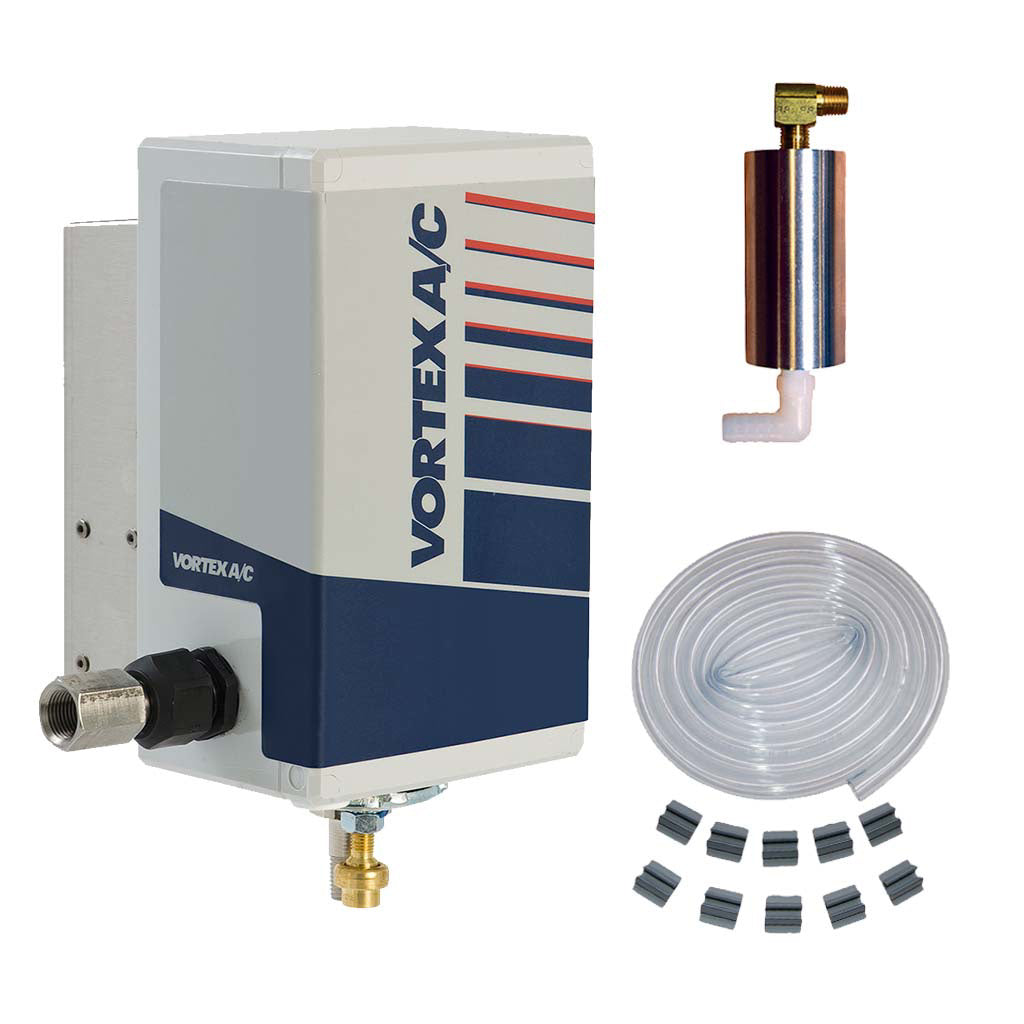

Cooler Only: Includes Vortex A/C unit, Cold End Muffler Kit, and Cold Air Ducting Kit

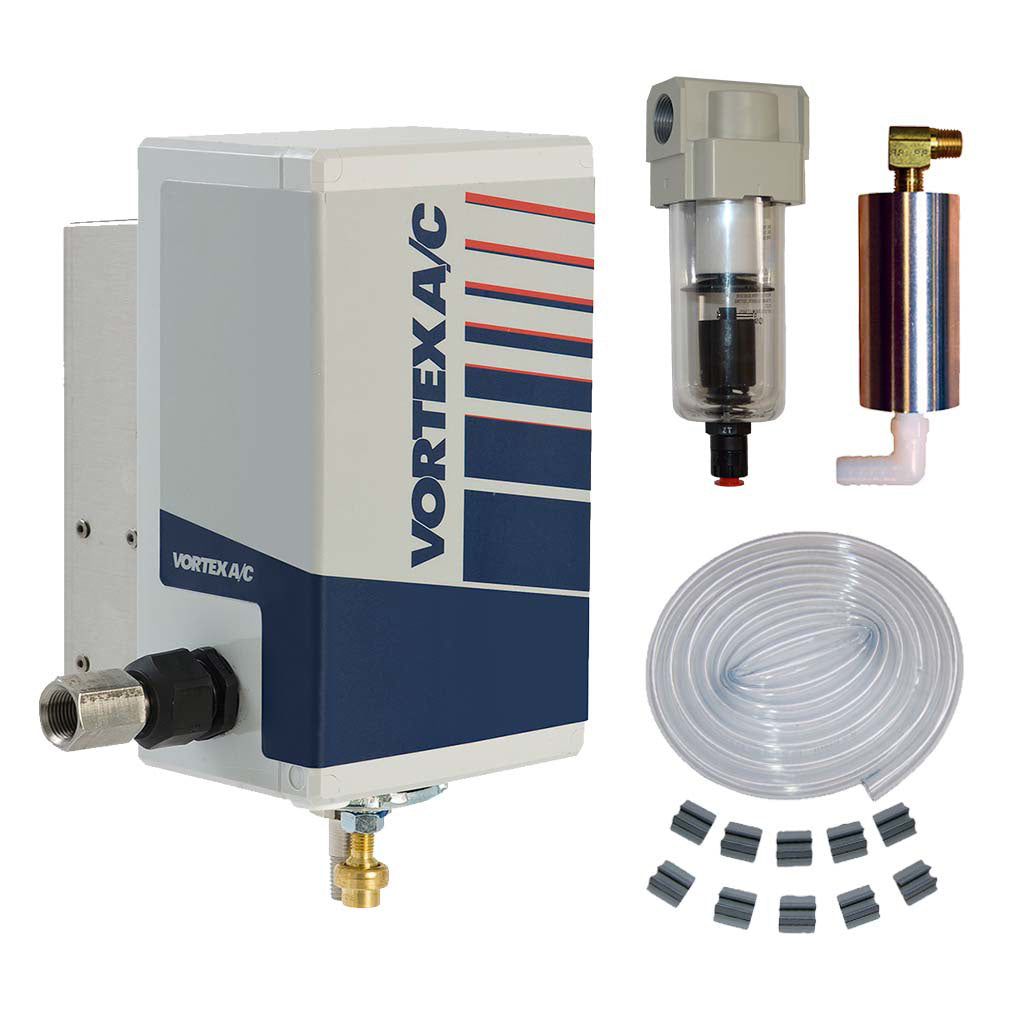

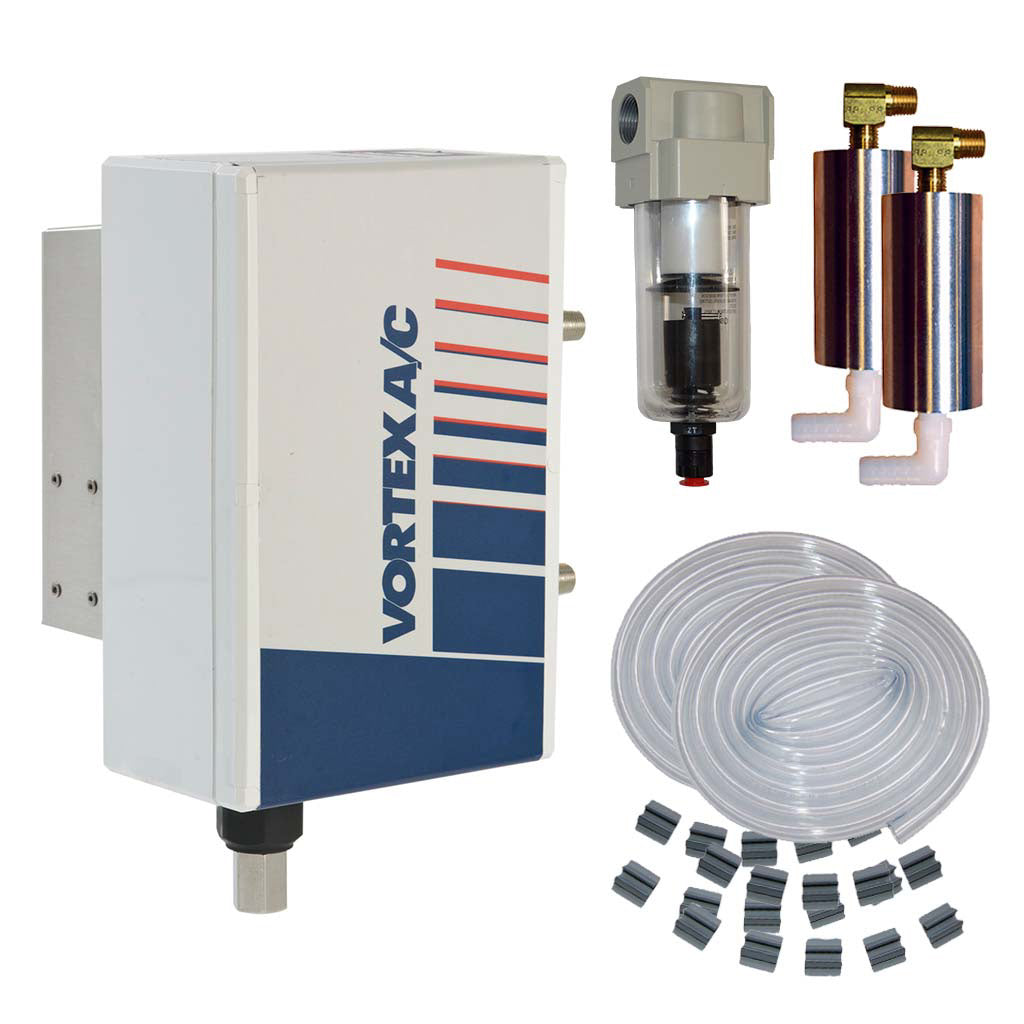

Complete Kit: Includes Cooler Only contents plus Auto Drain Filter

Features

• Small footprint to fit on all enclosures and in confined areas
• Top, side or front (door) mount models available
• Maintain temperature between 75 – 90°F
• Supplied with air filter and ducting kit
• Maintains slight pressurization in the enclosure
• UL Listed

Benefits

• Thermostatically controlled to maintain enclosure temperatures within ideal range
• Highly reliable, with full 10-year warranty
• No ambient, dirty or humid air enters the cabinet
• Can be used on all cabinets, even in tight spaces
• Easy to install, takes about 5 minutes
• No wiring required to install
• Operates in environments up to 175°F
• Low cost, compared to Freon air conditioners
• Reduce operating costs with mechanical thermostat turning the unit on only when necessary
• Very quiet, 62 dBA operation, 78% quieter than typical vortex coolers
• Multiple cooling capacities available, to optimize performance and operating cost

Specifications

• Product Series: Vortec Vortex A/C 70x5 / 77x5
• Product Type: Compressed air enclosure cooler
• Cooling Method: Vortex tube cooling (No refrigerants)
• Power Source: Compressed air
• Electrical Power Requirement: None
• Cooling Capacity Range: 900 to 2500 BTU/hr (Varies by model)
• Enclosure Protection Rating: UL Type 4 / Type 4X
• Mounting Type: Top-mounted or side-mounted on enclosure
• Mounting Orientation: Vertical
• Installation Cutout Size: 1-15/16 in (49 mm) diameter
• Compressed Air Supply: Clean, dry, filtered compressed air
• Required Filtration: 5 micron maximum (oil removal optional at 0.01 micron)
• Operating Air Pressure: 90–100 psig recommended
• Maximum Air Pressure: 150 psig (10.3 bar)
• Maximum Inlet Air Temperature: 110 °F (43 °C)
• Internal Enclosure Pressure: Approximately 35 in. water column at 100 psig
• Thermostat Type: Built-in mechanical thermostat (no electricity required)
• Cooling Control: Automatic on/off cycling via thermostat
• Cold Air Distribution: Internal ducting with cold air muffler
• Hot Air Exhaust: Automatically vented to ambient
• Housing Material: Stainless steel
• Maintenance Requirement: Filter element replacement only
• Moving Parts: None (Except mechanical thermostat/valve)
• Noise Level: Comparable to normal speech
• Cabinet Sealing Requirement: All enclosure vents must be sealed
• Installation Seal: Integrated gasket, locknut-mounted
• Certifications: UL Type 4 / 4X compliant installation
• Warranty: 10-year limited manufacturer warranty
• Typical Applications: Electrical enclosures, control cabinets, harsh and washdown environments

Model Numbers

• Vortec 7015 - NEMA 4/4X Vortex AC 900 BTU 15 SCFM Cooler Only
• Vortec 7025 - NEMA 4/4X Vortex AC 1500 BTU 25 SCFM Cooler Only
• Vortec 7035 - NEMA 4/4X Vortex AC 2500 BTU 35 SCFM Cooler Only
• Vortec 7070 - NEMA 4/4X Vortex AC 5000 BTU 70 SCFM Cooler Only
• Vortec 7715 - NEMA 4/4X Vortex AC 900 BTU 15 SCFM Complete Kit
• Vortec 7725 - NEMA 4/4X Vortex AC 1500 BTU 25 SCFM Complete Kit
• Vortec 7735 - NEMA 4/4X Vortex AC 2500 BTU 35 SCFM Complete Kit
• Vortec 7770 - NEMA 4/4X Vortex AC 5000 BTU 70 SCFM Complete Kit
