Vortex A/C Enclosure Cooler NEMA 12 Ultra Quiet Easy Installation 900 to 5000 BTU

Vortex A/C Coolers are ultra quiet, simple to install, and incorporate the most up-to-date features into Vortec’s line of highly reliable, cost-effective enclosure cooling systems.

• Sleek, modern design
• Noise reduction of 78%, when compared to other vortex enclosure coolers
• Energy use reduction through its integral mechanical thermostat
• Quick and easy installation in about 5 minutes
• Flexible installation: top, side or front (door) mount

The Vortex A/C is available in four different cooling capacities, and ratings of NEMA 12, NEMA 4/4X.

All of Vortec’s Enclosure Air Conditioning units keep Electrical and Electronic Enclosures cool, clean and protected and are a low-cost alternative to expensive, high maintenance air conditioners; and avoid contamination with dirty, humid air caused by fans.

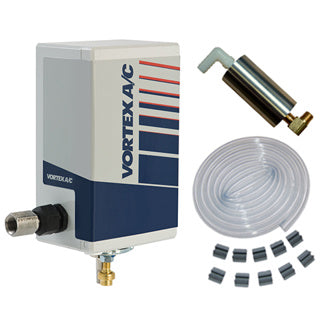

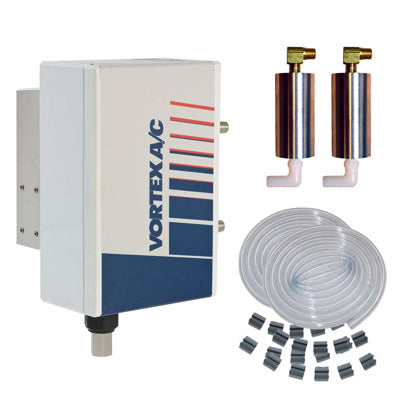

Cooler Only: Includes Vortex A/C unit, Cold End Muffler Kit, and Cold Air Ducting Kit

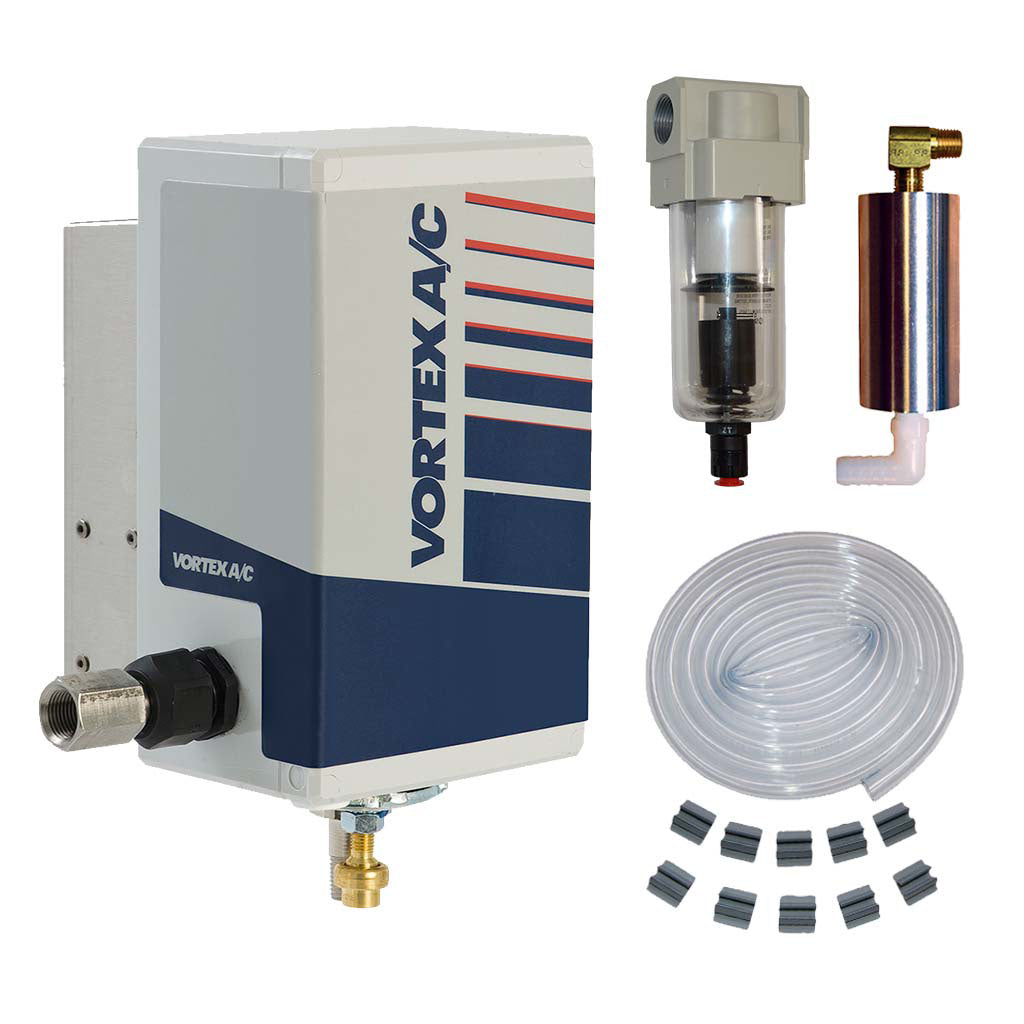

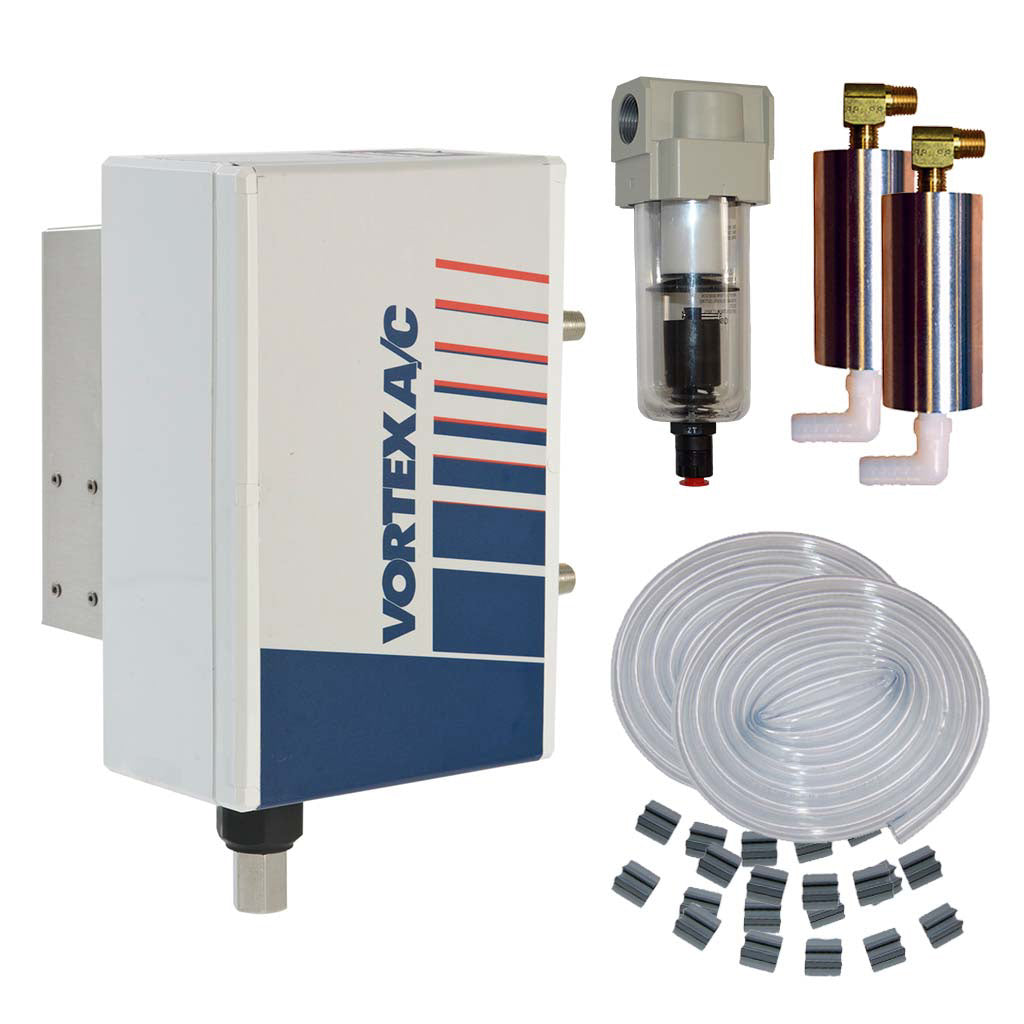

Complete Kit: Includes Cooler Only contents plus Auto Drain Filter

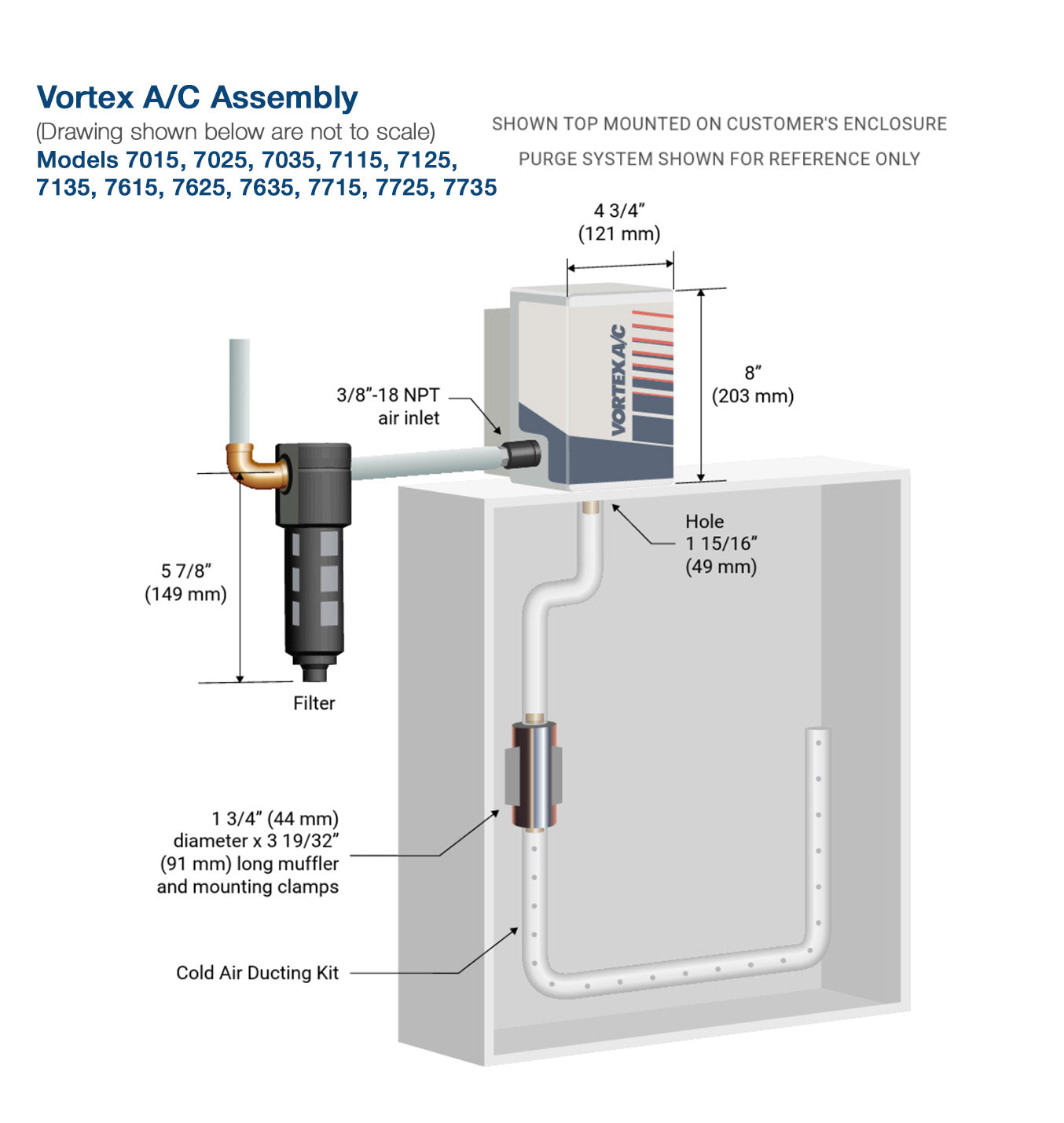

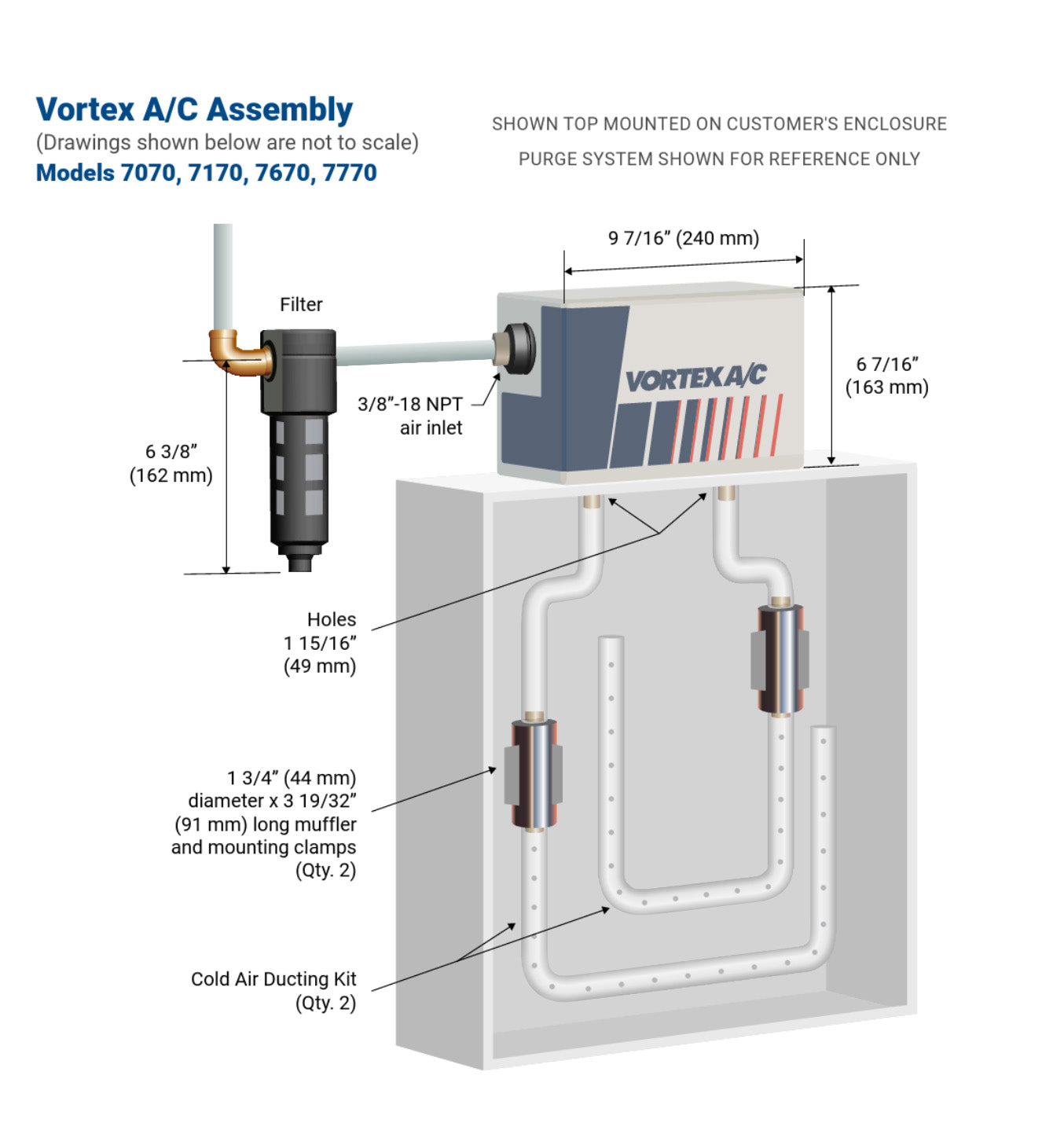

VENT / AIR DETAILS

• Muffler and mounting clamps: 1-3/4" (44 mm) diameter × 3-19/32" (91 mm) long
• Filter: 4-3/4" (121 mm)
• Louvered Hot Air Outlet: 8" (203 mm)
• Cold Air Outlet: 1/4" NPT (Male)
• Mechanical Thermostat
• Compressed Air Inlet: 3/8" NPT (Female)
• Gasket: 1/8" Buna-N
• Hole: 1-15/16" (49 mm)

DIMENSIONS (selected)

• 5-7/8" (149 mm)
• 3-9/16" (90 mm)
• 1-13/16" (46 mm)
• 2-3/8" (60 mm)
• 6-3/4" (171 mm)

Features

• Small footprint to fit on all enclosures and in confined areas
• Top, side or front (door) mount models available
• Maintain temperature between 75 – 90°F
• Supplied with air filter and ducting kit
• Maintains slight pressurization in the enclosure
• UL Listed

Benefits

• Thermostatically controlled to maintain enclosure temperatures within ideal range
• Highly reliable, with full 10-year warranty
• No ambient, dirty or humid air enters the cabinet
• Can be used on all cabinets, even in tight spaces
• Easy to install, takes about 5 minutes
• No wiring required to install
• Operates in environments up to 175°F
• Low cost, compared to Freon air conditioners
• Reduce operating costs with mechanical thermostat turning the unit on only when necessary
• Very quiet, 62 dBA operation, 78% quieter than typical vortex coolers
• Multiple cooling capacities available, to optimize performance and operating cost

Specifications

• Product Series: Vortec Vortex A/C 71x5 / 76x5
• Product Type: Compressed air enclosure cooler
• Cooling Method: Vortex tube cooling (no refrigerants)
• Power Source: Compressed air
• Electrical Power Requirement: None
• Cooling Capacity Range: 900 to 2500 BTU/hr (model dependent)
• Enclosure Protection Rating: UL Type 12
• Mounting Type: Top-mounted or side-mounted on enclosure
• Mounting Orientation: Vertical
• Installation Cutout Size: 1-15/16 in (49 mm) diameter
• Cooling Control: Built-in mechanical thermostat (no electricity required)
• Compressed Air Supply: Clean, dry, filtered compressed air
• Required Filtration: 5 micron maximum (0.01 micron oil removal optional)
• Recommended Operating Pressure: 90–100 psig
• Maximum Air Pressure: 150 psig (10.3 bar)
• Maximum Inlet Air Temperature: 110 °F (43 °C)
• Internal Enclosure Pressure: Approximately 35 in. water column at 100 psig
• Cold Air Distribution: Internal ducting with cold air muffler
• Hot Air Exhaust: Vented to ambient through rear louver
• Housing Material: Stainless steel
• Maintenance Requirement: Filter element replacement only
• Moving Parts: Mechanical thermostat/valve only
• Noise Level: Comparable to normal speech
• Cabinet Sealing Requirement: All enclosure vents must be sealed
• Certifications: UL Type 12 compliant installation
• Warranty: 10-year limited manufacturer warranty
• Typical Applications: Electrical enclosures, control cabinets, industrial environments

*Specifications are for 100 psig (6.9 bar) compressed air

*Cold Air Ducting Kits and Cold Air Mufflers included with 76x5 and 71x5

Model Numbers

• Vortec 7115 - NEMA 12 Vortex AC 900 BTU 15 SCFM Cooler Only
• Vortec 7125 - NEMA 12 Vortex AC 1500 BTU 25 SCFM Cooler Only
• Vortec 7135 - NEMA 12 Vortex AC 2500 BTU 35 SCFM Cooler Only
• Vortec 7170 - NEMA 12 Vortex AC 5000 BTU 70 SCFM Cooler Only
• Vortec 7615 - NEMA 12 Vortex AC 900 BTU 15 SCFM Complete Kit
• Vortec 7625 - NEMA 12 Vortex AC 1500 BTU 25 SCFM Complete Kit
• Vortec 7635 - NEMA 12 Vortex AC 2500 BTU 35 SCFM Complete Kit
• Vortec 7670 - NEMA 12 Vortex AC 5000 BTU 70 SCFM Complete Kit
