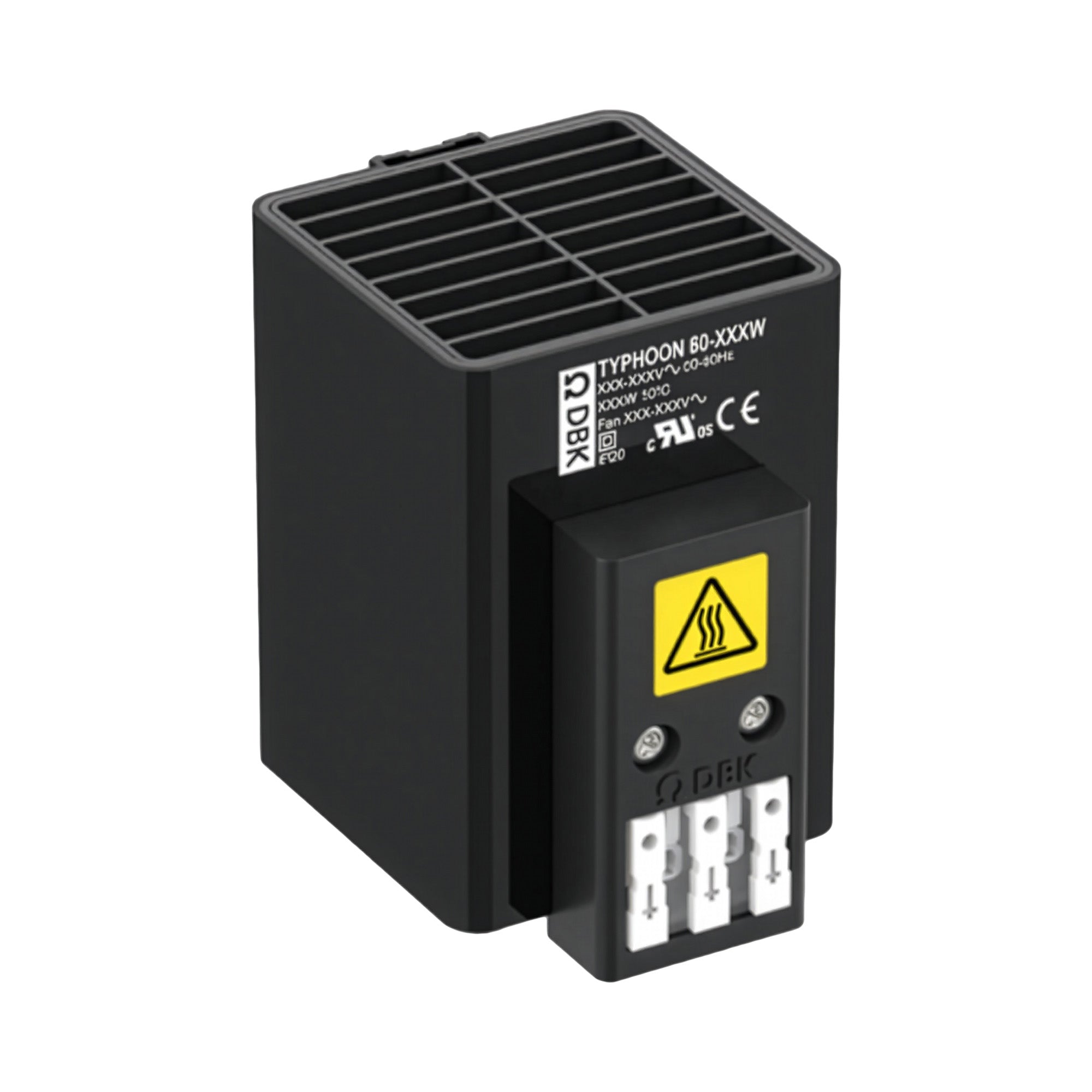

Typhoon 60 - PTC Fan Heater

PTC Fan Heaters of the Typhoon series are powerful heaters for targeted air heating in all kinds of electrical housings. They consist of a PTC heating element and an axial fan, installed in a compact housing made of plastic. Their DIN clip and terminal block allows for easy and space-saving integration into the customer application. PTC fan heaters are particularly often used in control cabinets, where they protect electronic components from moisture and frost.

Typhoon 60 is available in the power version of 500W. A special feature of the Typhoon 60 is the separate power supply for the fan (24V DC) and heating element (115/230V). The forced convection heater is equipped with a push in terminal and DIN clip for easy installation.

PTC Fan Heaters come with all advantages of the PTC heating technology. Thanks to the PTC effect, the heating elements dynamically adjust their power without exceeding a maximum temperature. High operational reliability and energy efficiency without any additional switching elements.

Specifications

• Model: ⠀Cirrus 60

• Manufacturer: ⠀DBK Group – Industrial Thermal Management

• Heating Type: ⠀PTC fan heater with independent fan circuit

• Features: ⠀High power‑to‑size ratio; lightweight; easy to fit; three power settings; independent fan circuit for cooling with heater off or directional heating with fan on:

  • Nominal Power (at 10 °C) – 400 W: ⠀400 W

  • Nominal Power (at 10 °C) – 300 W: ⠀300 W

  • Nominal Power (at 10 °C) – 200 W: ⠀200 W

• Typical Peak Inrush Current – 230 V AC (400 W / 300 W / 200 W): ⠀10 A / 8 A / 4 A

• Typical Peak Inrush Current – 115 V AC (400 W / 300 W / 200 W): ⠀5 A / 3.5 A / 1.75 A

• Max. Body Temperature (at 40 °C ambient) – 400 W / 300 W / 200 W: ⠀55 °C / 50 °C / 45 °C

• Electrical Protection Class: ⠀Class II (insulated)

• Ingress Protection: ⠀IP20

• Operating Temperature Range: ⠀‑10 °C to +50 °C

• Storage Temperature Range: ⠀‑40 °C to +70 °C

• Fan Volumetric Flow – 50 Hz (230 V AC): ⠀10 m³/h

• Fan Volumetric Flow – 60 Hz (115 V AC): ⠀13 m³/h

• Fan Lifetime – L10 at 40 °C: ⠀49 000 h

• Nominal Input Voltage (Depending on variant): ⠀115 V AC / 230 V AC

• Dimensions Cross Section: ⠀71 × 70 mm

• Length: ⠀98.2 mm

• Harness Length: ⠀240 mm

• Weight: ⠀275–310 g (add 35 g for bracket)

• Finger Guards: ⠀Yes (integrated at inlet and outlet)

FEATURES

• High power to size ratio

• Power version 500W in stock, other Powers available on request

• Voltage versions 115V or 230V

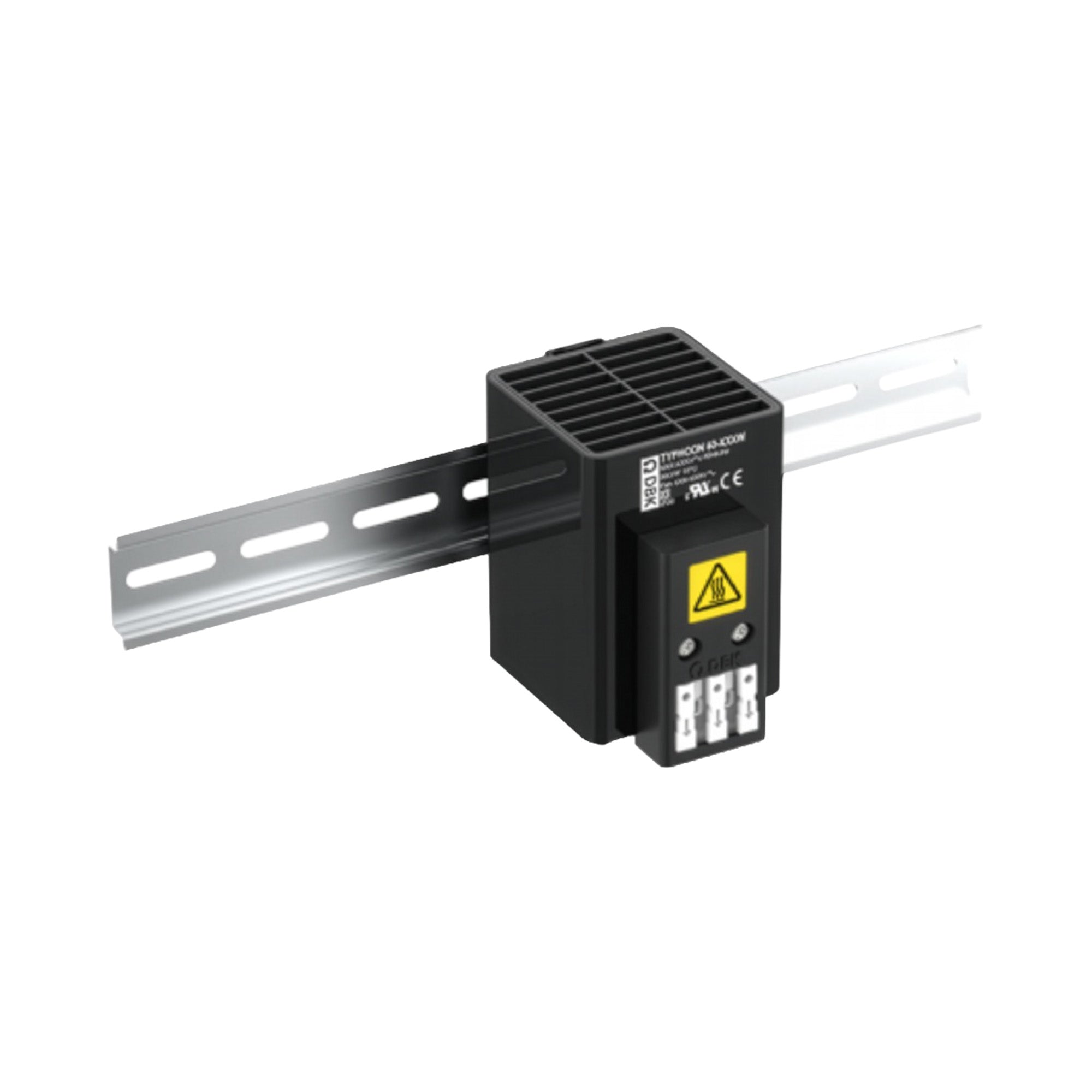

• Stainless steel 35 mm DIN-rail mount

• Build in finger guard (flush fitting)

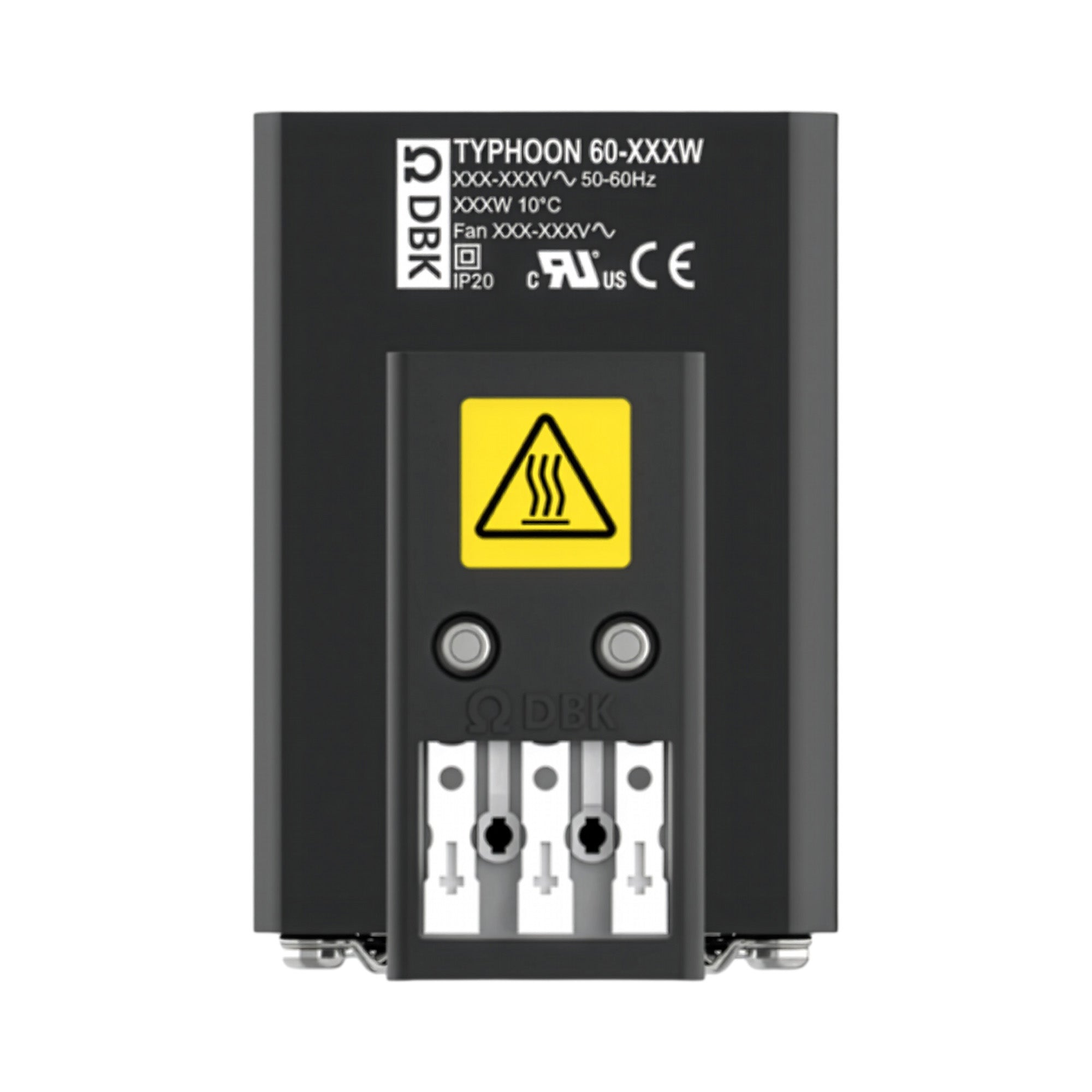

• Push In Terminal for easy connection

• Lightweight

Applications

PTC Fan Heaters of the Typhoon series are widely used in the electrical cabinet, payment & access system, telecom and renewable energy industries.

Enclosure heater, heating of outdoor cabinets, CCTV, webcam heater, display heater, frost protection in ATMs / ticket machines / parking ticket machines, frost protection of mechanical components in wind turbines, heating of fuel dispensers, energy ports, etc.
