SL 025 Slimline Enclosure Light

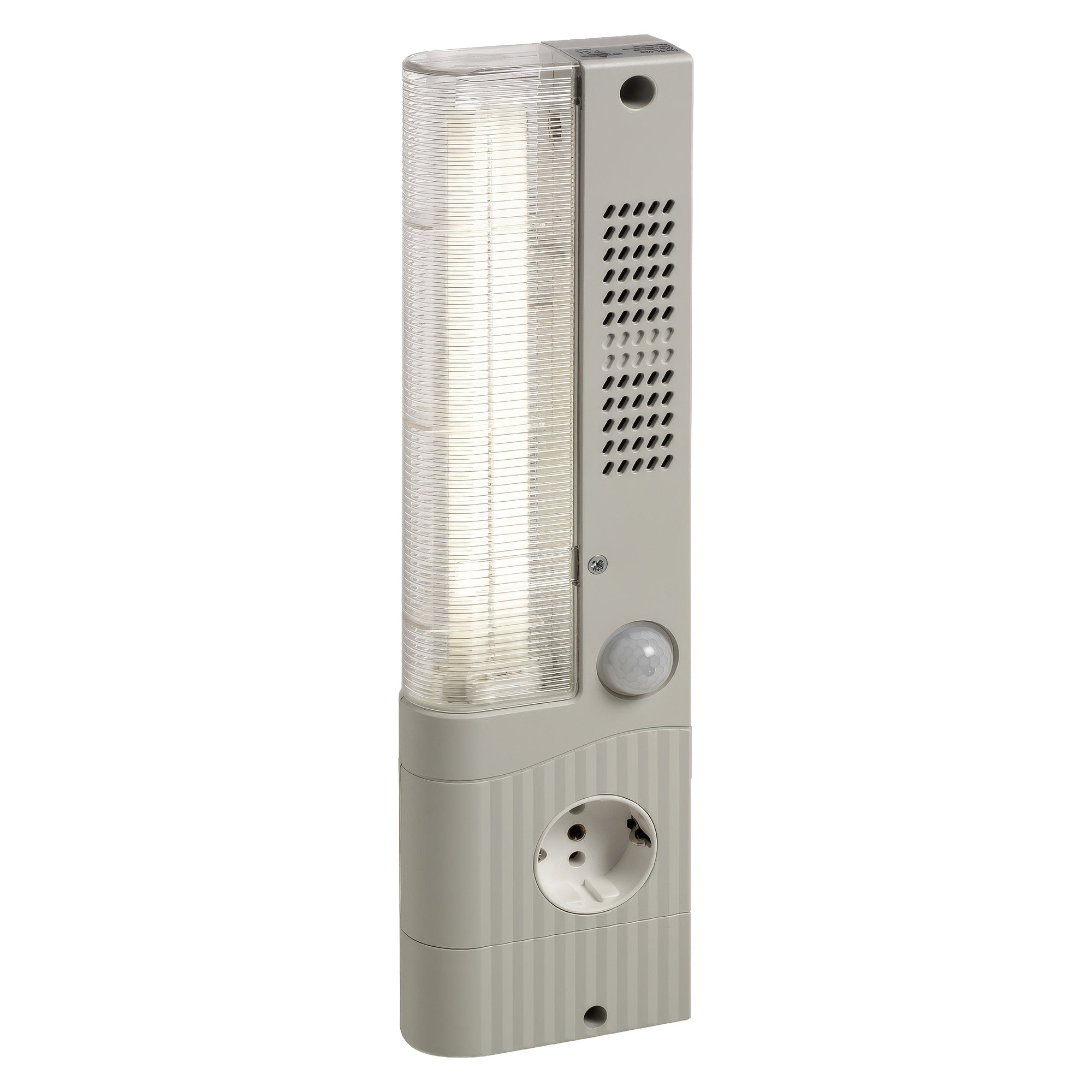

The SL 025 light was designed to fit in tight spaces in enclosures. It features an optional integrated receptacle so that electrical devices (e.g. power tools) can be easily plugged in when needed. The standard light can be screw mounted in a variety of positions, or the light can be fitted with an available magnet mount. The motion sensor version was designed to eliminate the need for a door switch.

Features

Compact Design
Electronic Ballast
Optional integrated receptacle
Screw or magnet mount
Long-life energy saving lamp
On/Off switch or Motion Sensor Switch
Protection: I Class (grounded) for all Receptacle Units
Protection: II Class (Double insulated) for all none Receptacle Units
Dimensions 13.6 x 3.6 x 1.6''
24VDC to 48VDC available on request

Specifications

Operating Voltage: ⠀230 VAC
Switch: ⠀On/off (For light only)
Receptacle Type: ⠀Germany
Mounting: ⠀Screw
Agency Approvals: ⠀VDE
Mounting (Technical): ⠀M5 screws (not included), 11.8″ (300 mm) hole distance
Type: ⠀Light with on/off switch
Lamp: ⠀Compact fluorescent light bulb
Power: ⠀11 W
Incandescent Bulb Equivalent: ⠀75 W
Base: ⠀2G7, electronic ballast
Luminosity: ⠀900 lm
Service Life: ⠀10,000 h
Receptacle (Technical): ⠀max. AC 250 V / 16 A
Connection: ⠀3‑pole screw terminal for AWG 14 max. (2.5 mm²) (Includes cable strain relief)

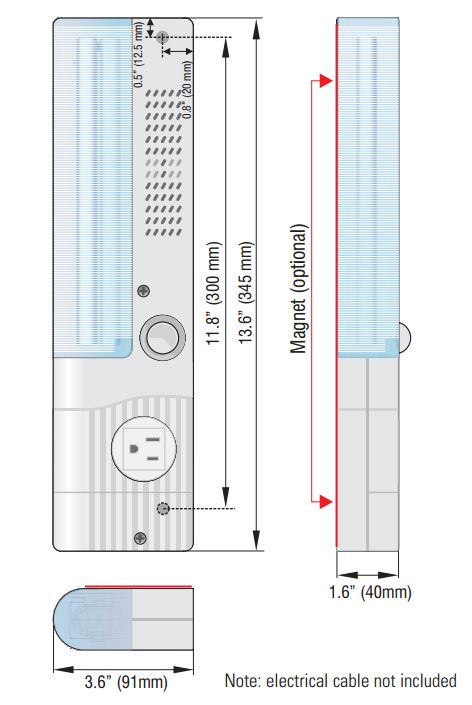

Dimensions (L × W × D): ⠀13.6 × 3.6 × 1.6 inches (345 × 91 × 40 mm)
Housing: ⠀Plastic, UL 94V‑0
Weight (Approx.): ⠀0.9 lb (0.4 kg)
Operating Temperature: ⠀‑4 to 122 °F (‑20 to 50 °C)
Storage Temperature: ⠀‑49 to 158 °F (‑45 to 70 °C)
Protection Type: ⠀IP20
Protection Class: ⠀I (Grounded)

Model Numbers

02523.0-03 230VAC Light, UK/Ireland, Screw Mount, Motion Sensor

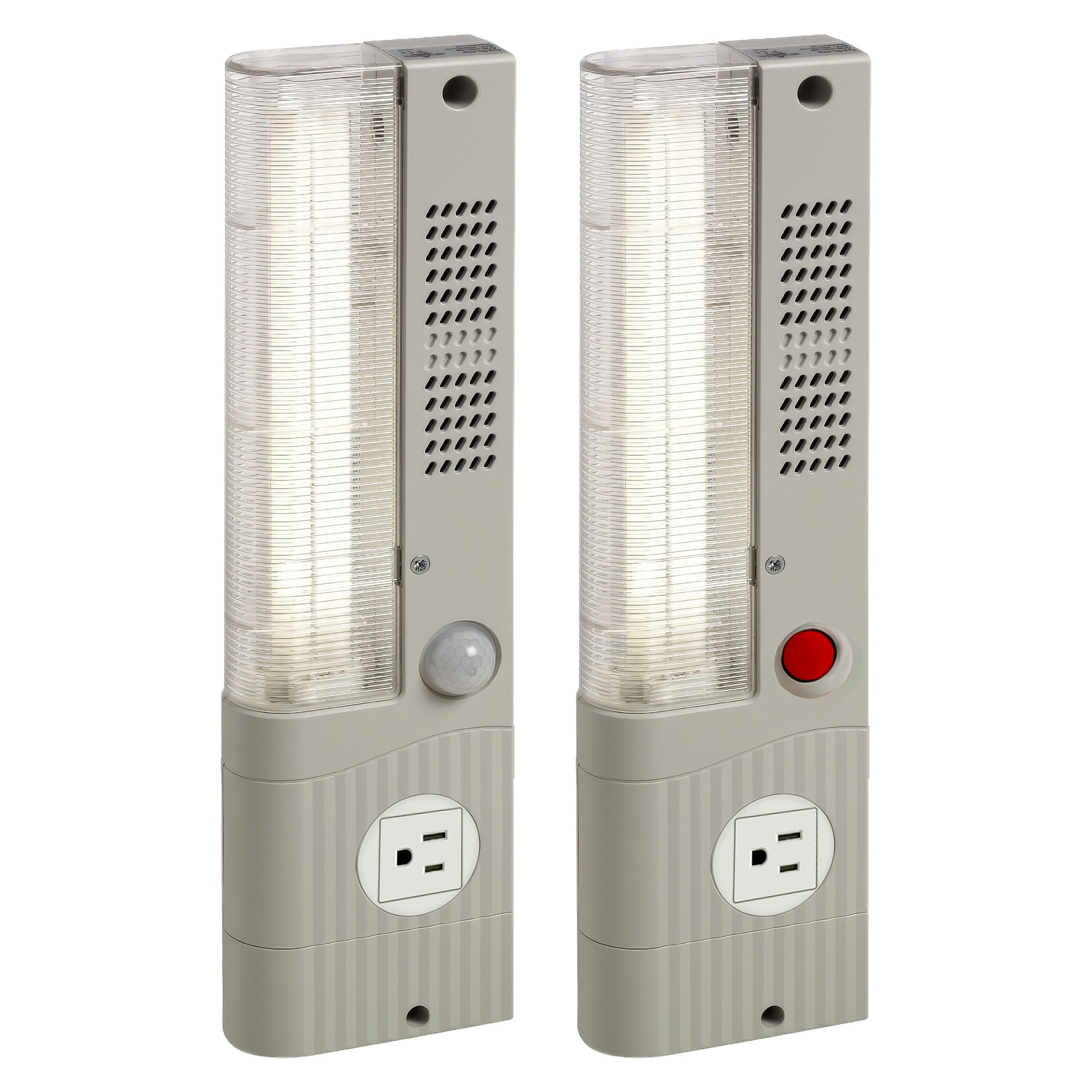

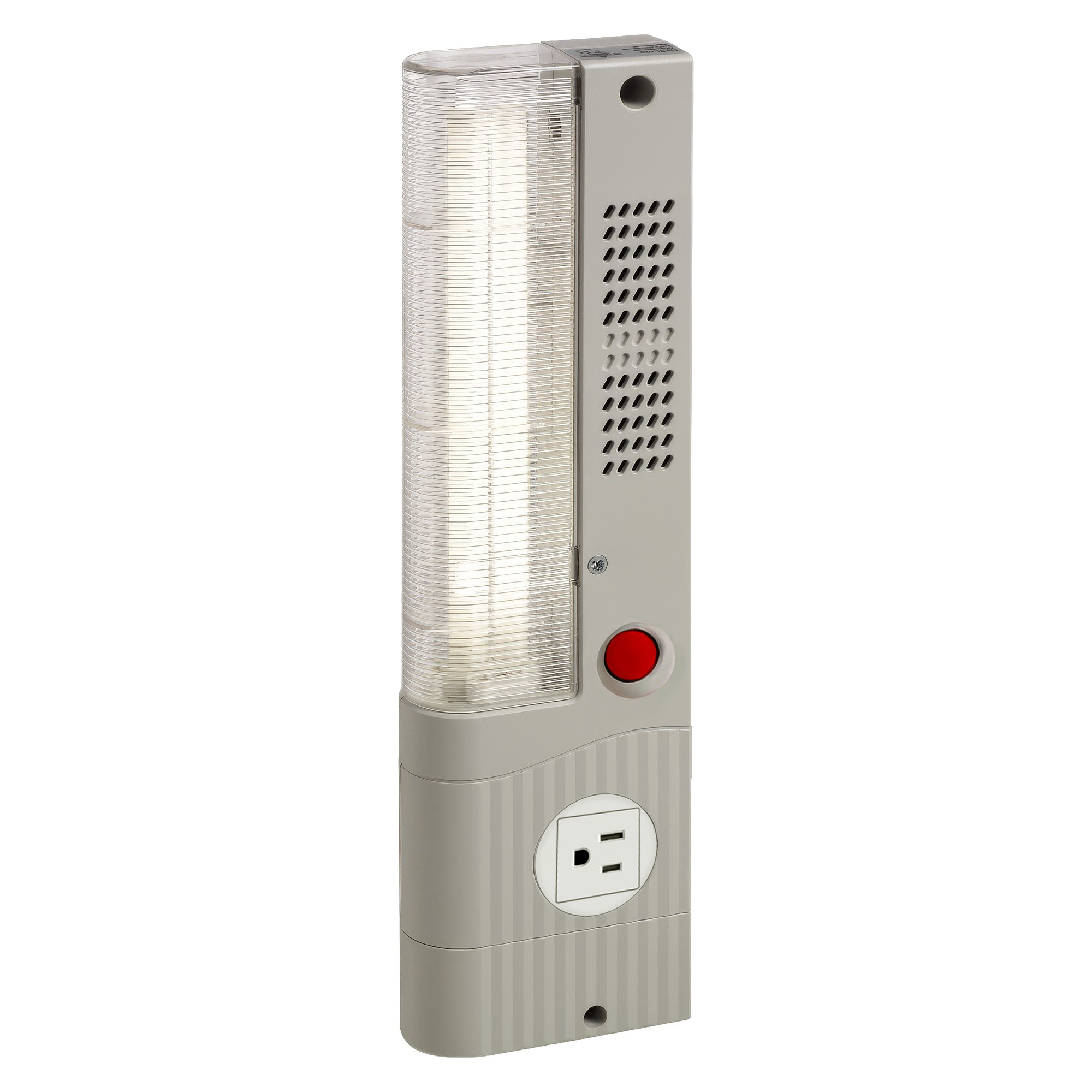

02524.1-01 120VAC Light, USA/Canada, Magnet Mount, On/Off Switch

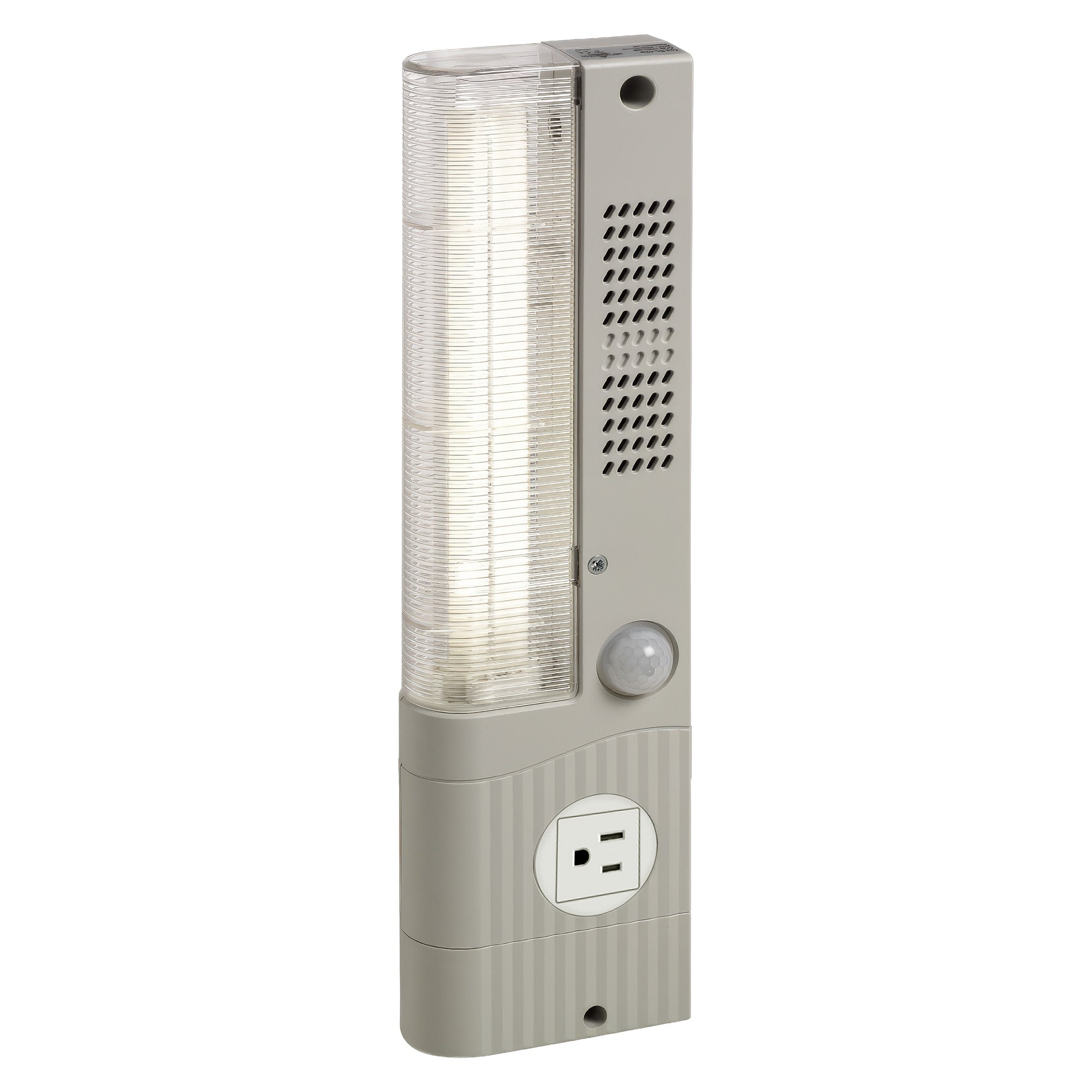

02524.1-04 120VAC Light, USA/Canada, Magnet Mount, Motion Sensor
02525.0-03 24-48V DC Light, No Receptacle, Screw Mount, On/Off Switch
02527.0-04 230VAC Light, No Receptacle, Screw Mount, Motion Sensor
02527.1-04 230VAC Light, No Receptacle, Magnet Mount, Motion Sensor
02527.1-12 120VAC Light, No Receptacle, Magnet Mount, Motion Sensor
