SL 025 LED Enclosure Light On/Off and Motion Detector

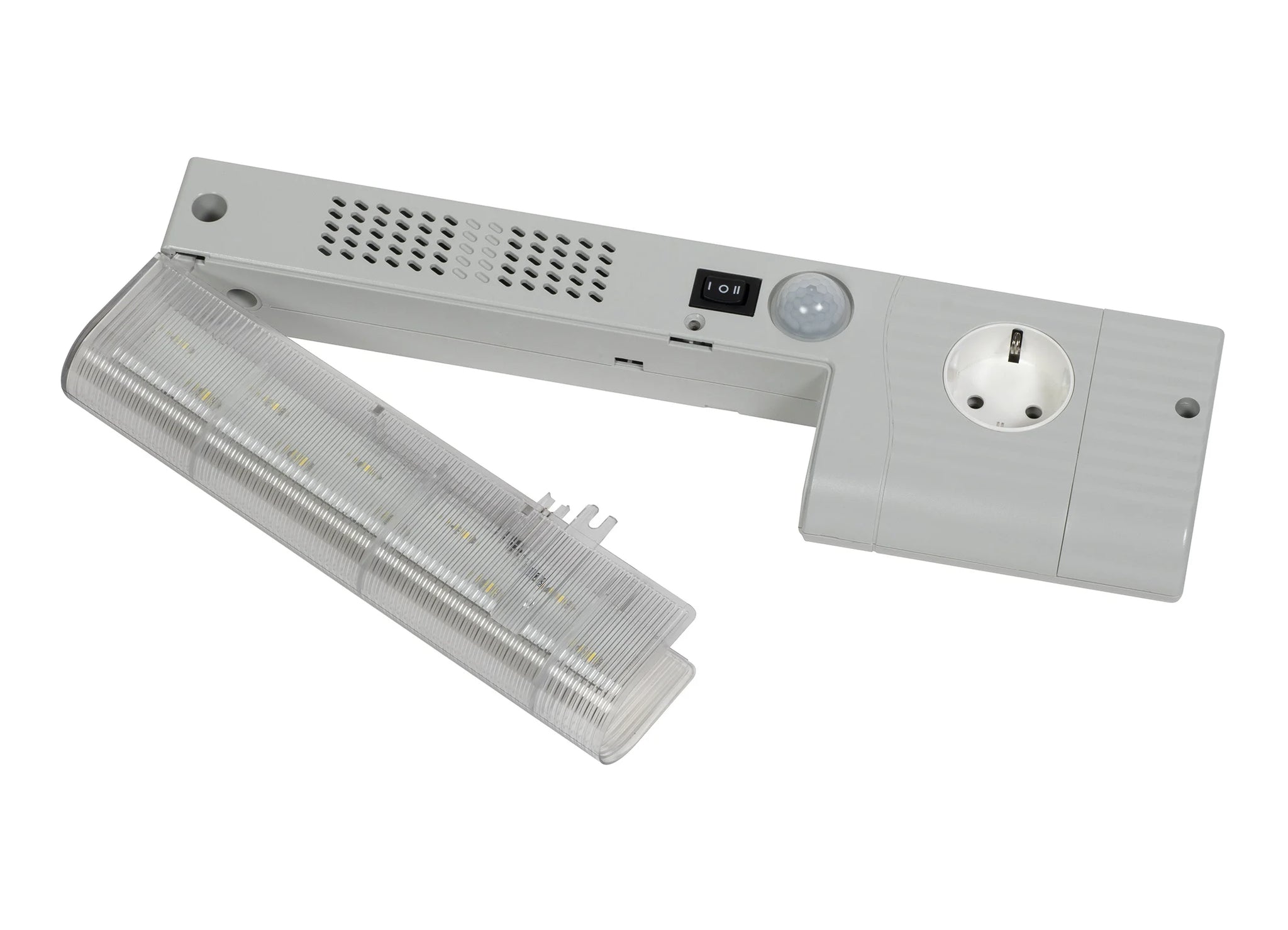

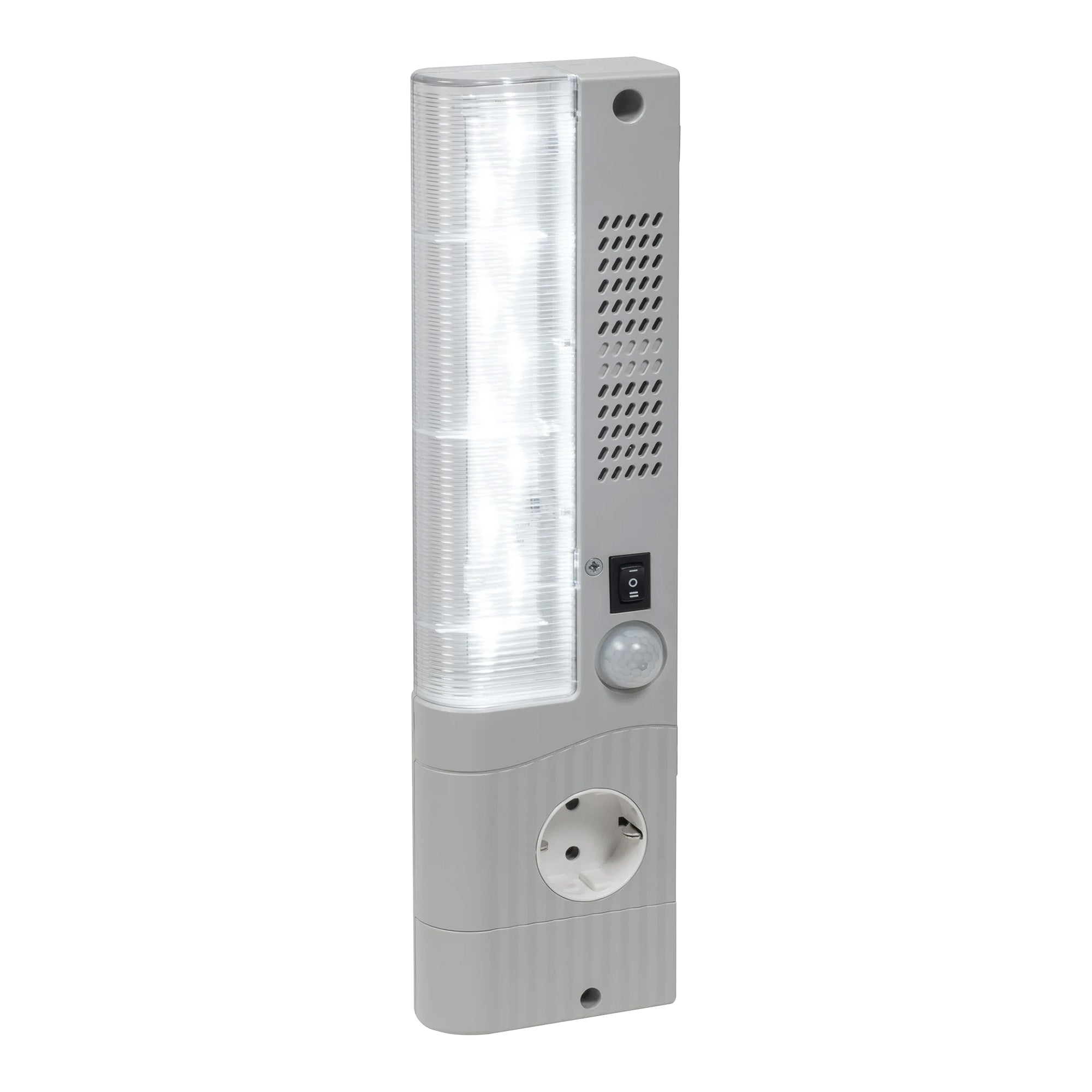

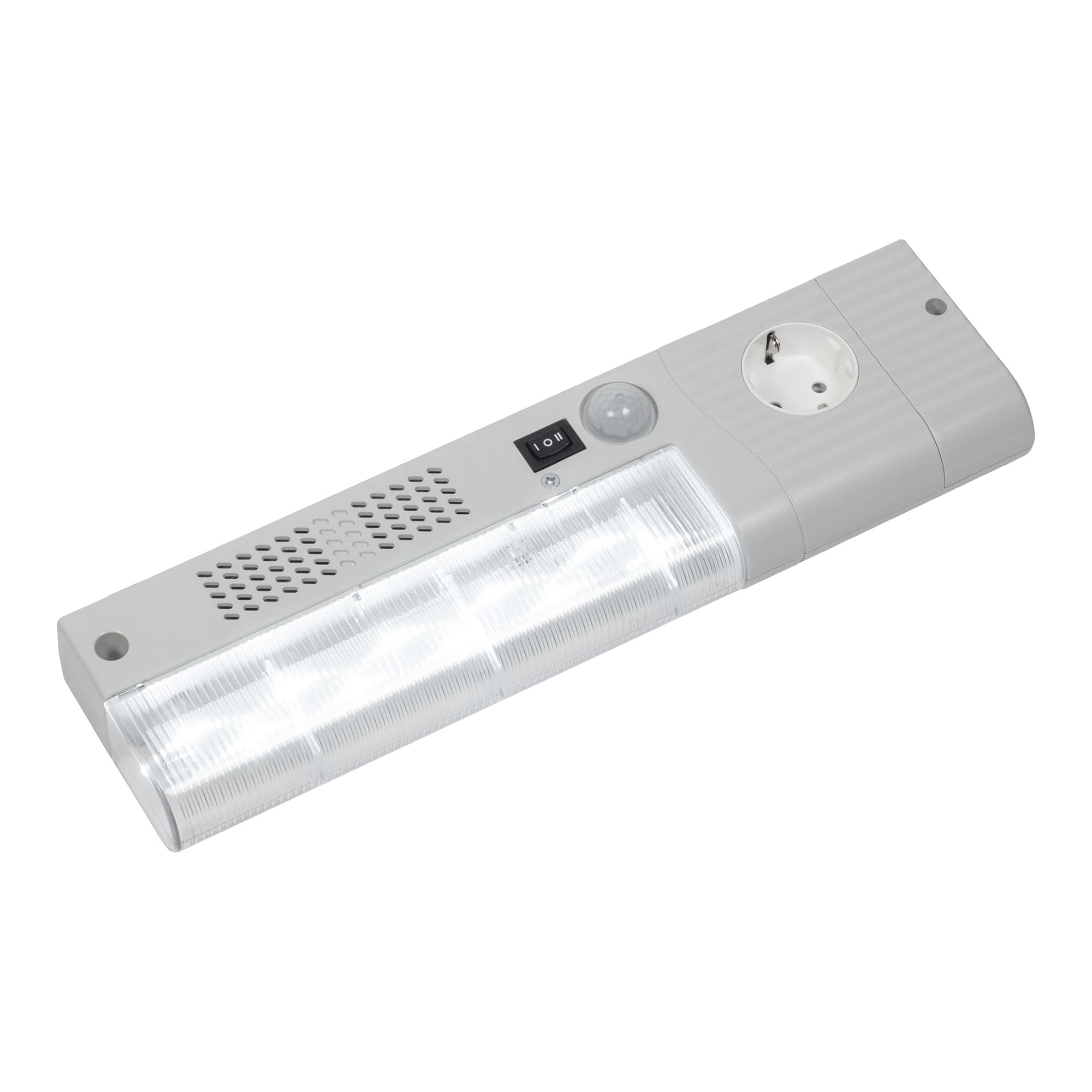

The flat LED light SL 025 with on/off switch and motion detector is ideal for use in cabinets and casings with electrical/electronic components with a high component density. It can be mounted narrow-sided or wide-sided with screws, or with magnet fixing at any desired position in steel cabinets without installation effort. Thanks to its integrated socket, the SL025 enables the operation of additional electrical devices. The integrated motion detector also replaces a door switch.

Features

• Flat casing
• Wide voltage range
• Light with socket
  Screw and magnet fixing
• LED lighting element
• Switch and motion detector in one device
• Can be used worldwide certified

Specifications

• Switch: On/off switch and motion detector

• Protection class: I

• Protection type: IP20

• Casing: Plastic to UL94 V‑0, light grey

• AC/DC: AC

• Frequency: 50;60 Hz

• Power consumption: 4 W

• Luminous color: 6000 – 7000 K

• Luminous flux: 560 Lm

• Service life: >60000 h

• Operating temperature: ‑40 °F to 140 °F

• Operating humidity: ≤90 % rF

• Storage humidity: ≤90 % rF

• Storage temperature: ‑40 °F to 185 °F

• Torque: 0.8 Nm max.

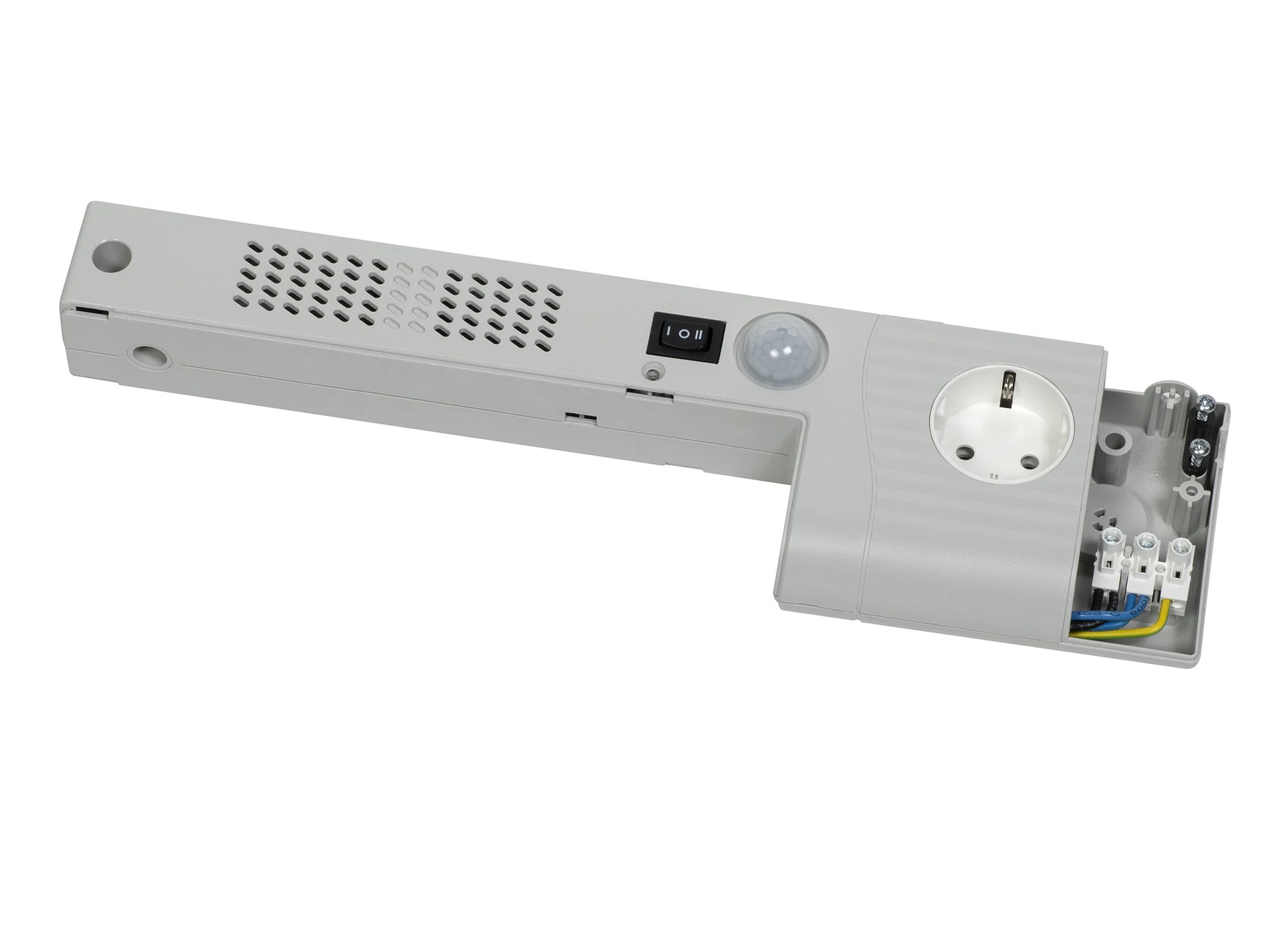

• Connection: Clamp 2.5 mm² with strain relief, torque 0.8 Nm max.

• Mounting: Screw / magnet

• Installation position: Variable

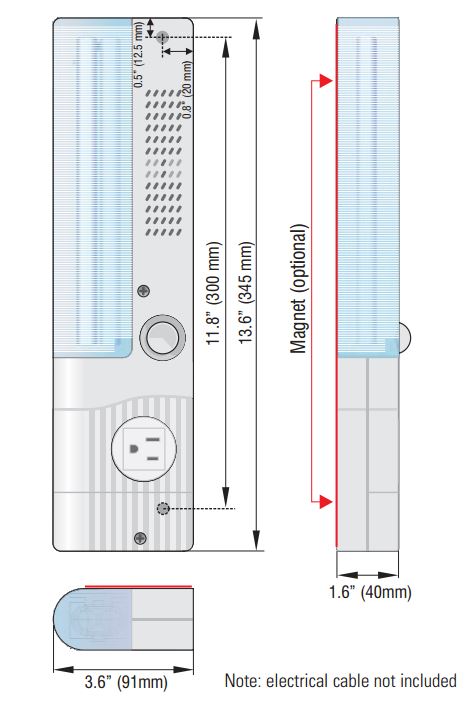

• Dimensions (H x W x D): 3.6 In x 1.6 In x 13.6 In

• Weight: 13.6 Oz

Model Numbers

• 02530.1-00 - DE/RU 250 V 16 A
• 02531.1-00 - F 250 V 16 A
• 02532.1-00 - CH 250 V 10 A
• 02533.1-00 - GB/IRE 250 V 13 A

• 02534.1-00 - USA 125 V 15 A
• 02535.1-00 - IT 250 V 16 A
• 02536.1-00 - OFF 240 V 10 A
