SD 035 DIN Rail Enclosure Outlet

The DIN rail mounted electrical receptacle can be quickly fitted and connected in enclosures allowing the use of auxiliary products such as hand lamps and power tools. The unit is available with and without fuse, and in many world outlet standards.

Features

Quick Connections
Available with or without fuse
DIN rail mountable

Specifications

Device Type: Sockets
Protection Class: I (Grounded)
Protection Type: IP20
Casing: Plastic to UL94 V‑0, light grey
AC/DC: AC
Frequency: 50;60 Hz
Operating Temperature: -49 °F - 158 °F (-45 °C - 70 °C)
Operating Humidity: ≤90 % RH
Storage Humidity: ≤90 % RH
Storage Temperature: -49 °F - 158 °F (-45 °C - 70 °C)
Connection: 3 x pressure clamps for stranded wire and rigid wire 0.5 - 2.5 mm²
Mounting: Clip for 35 mm DIN rail, EN 60715
Dimensions (H x W x D): 3.6 in (92 mm) x 2.4 in (62 mm) x 1.9 in (48 mm)
Weight: 7.1 oz (≈ 200 g)

*With Fuse: Microfuse Ø 5 x 20 mm

Model Types

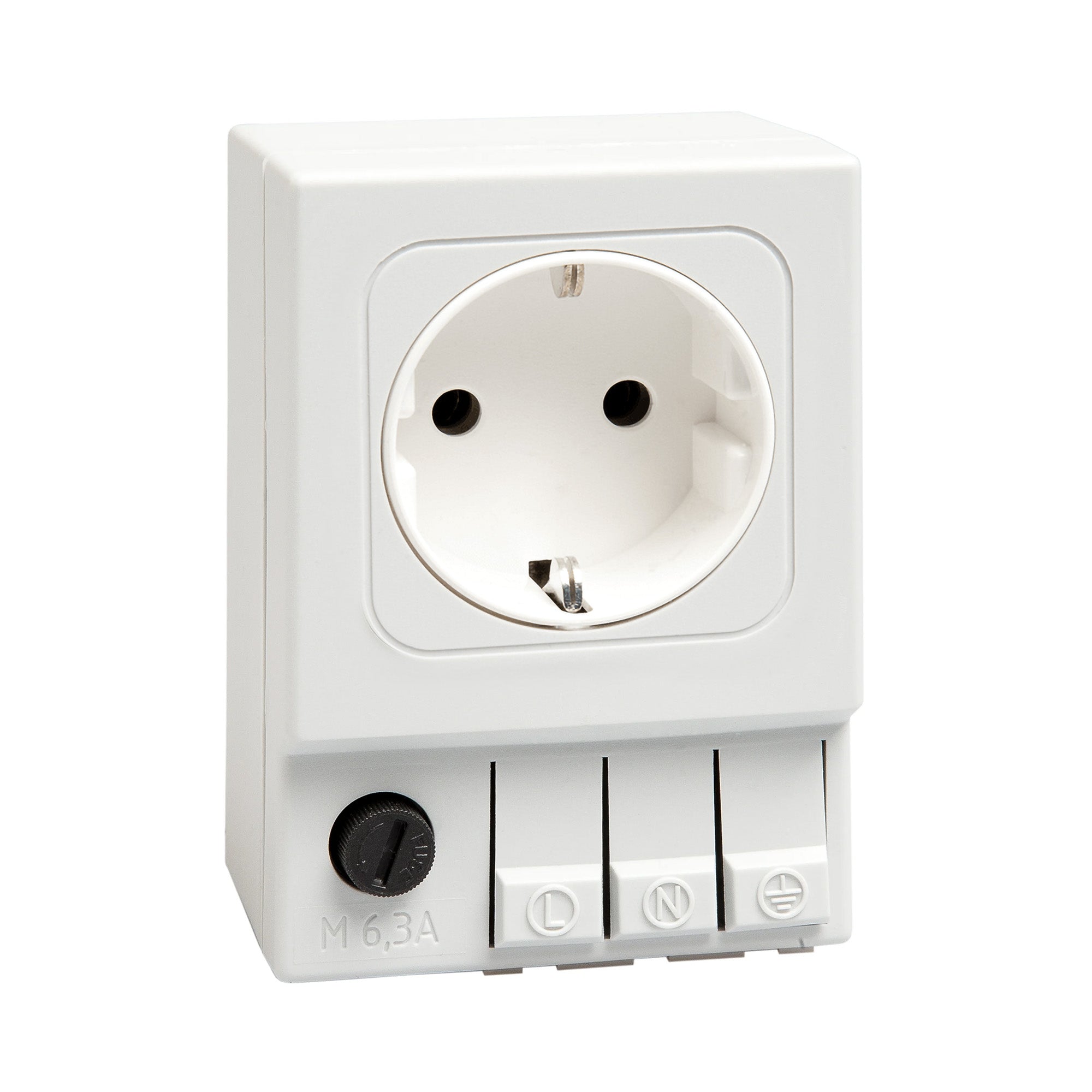

03500.0-00 250VAC, Germany/Russia with fuse, 6.3A Current

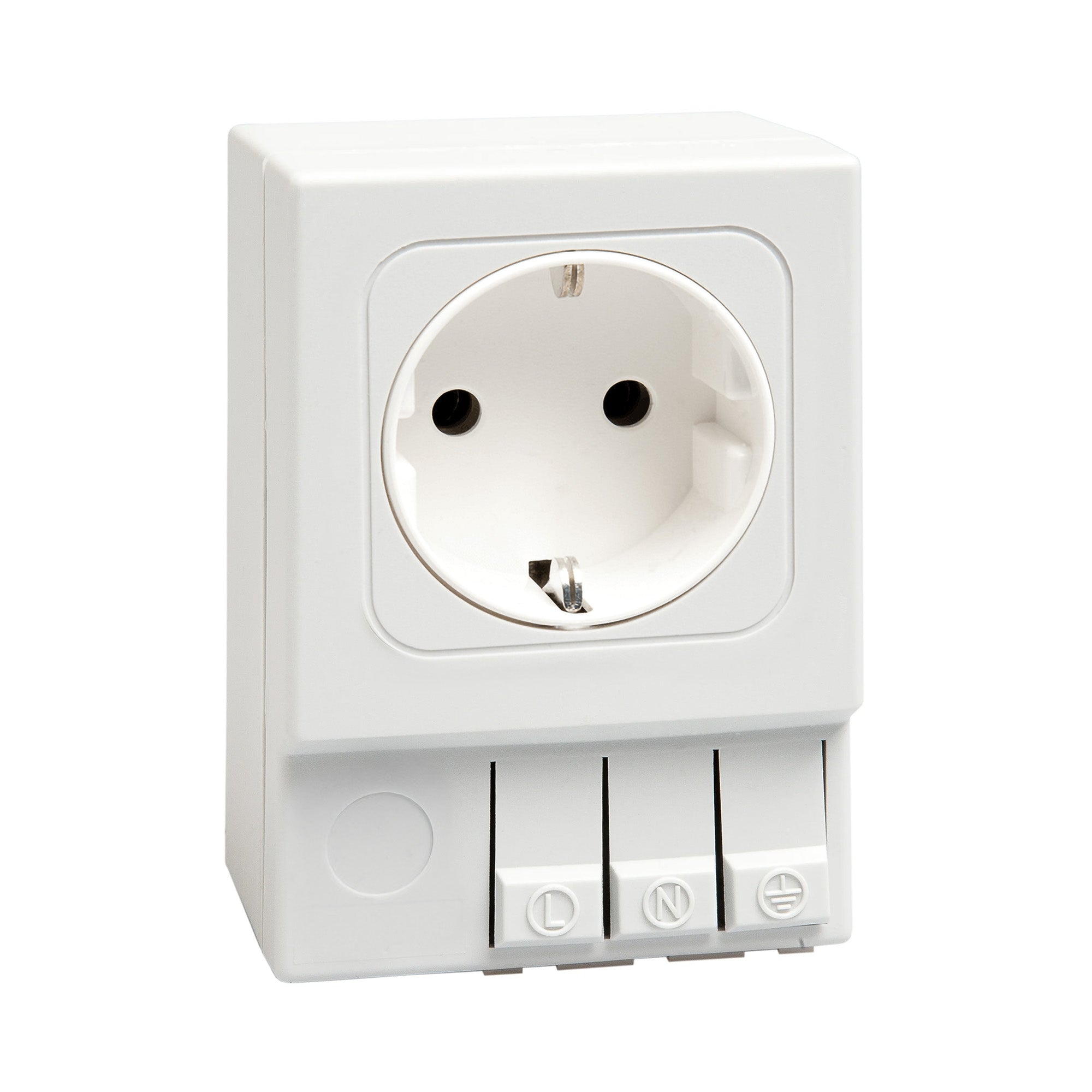

03500.0-01 250VAC, Germany/Russia, 16.0A Current

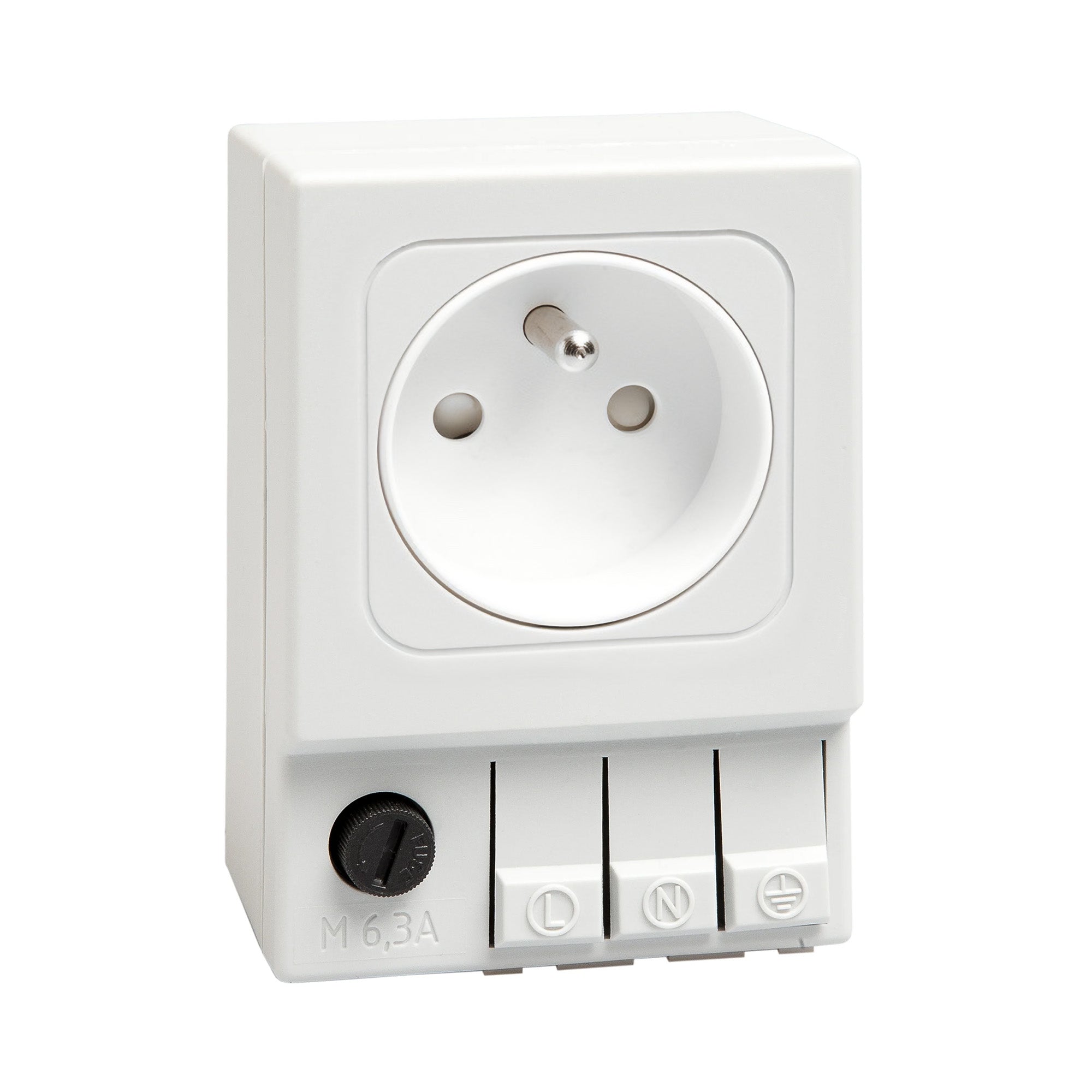

03501.0-00 250VAC, France/Poland with fuse, 6.3A Current

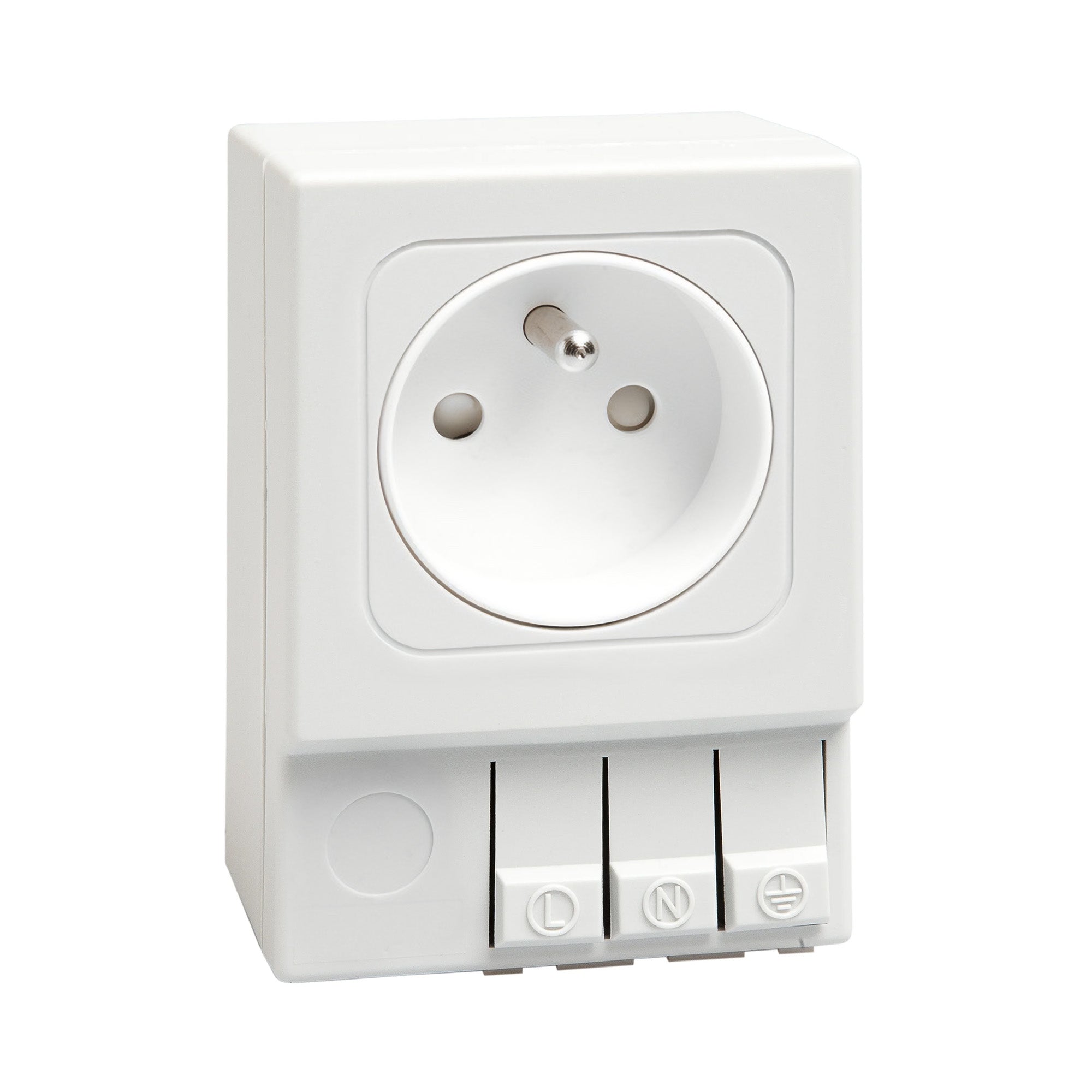

03501.0-01 250VAC, France/Poland, 16.0A Current

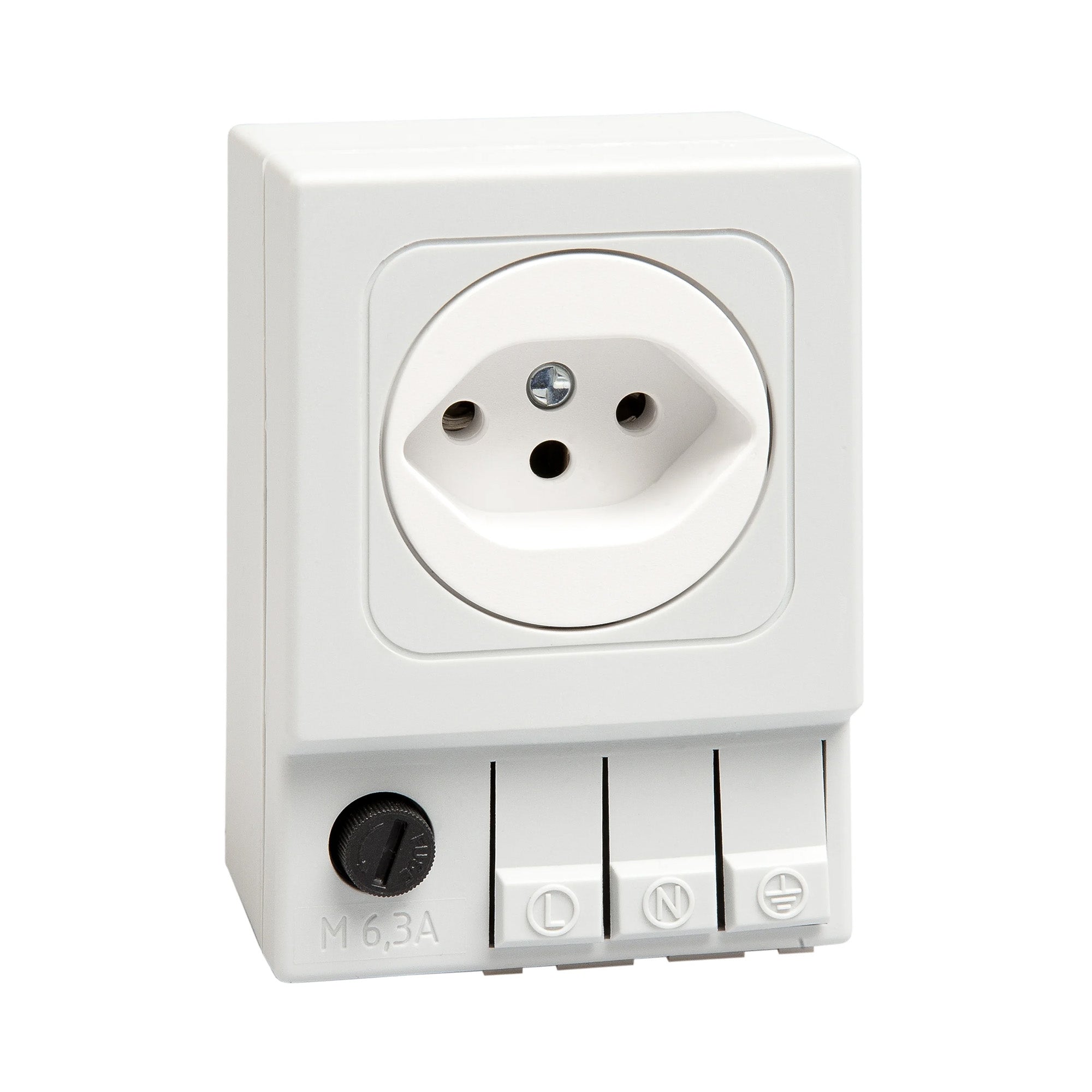

03502.0-00 250VAC, Switzerland with fuse, 6.3A Current

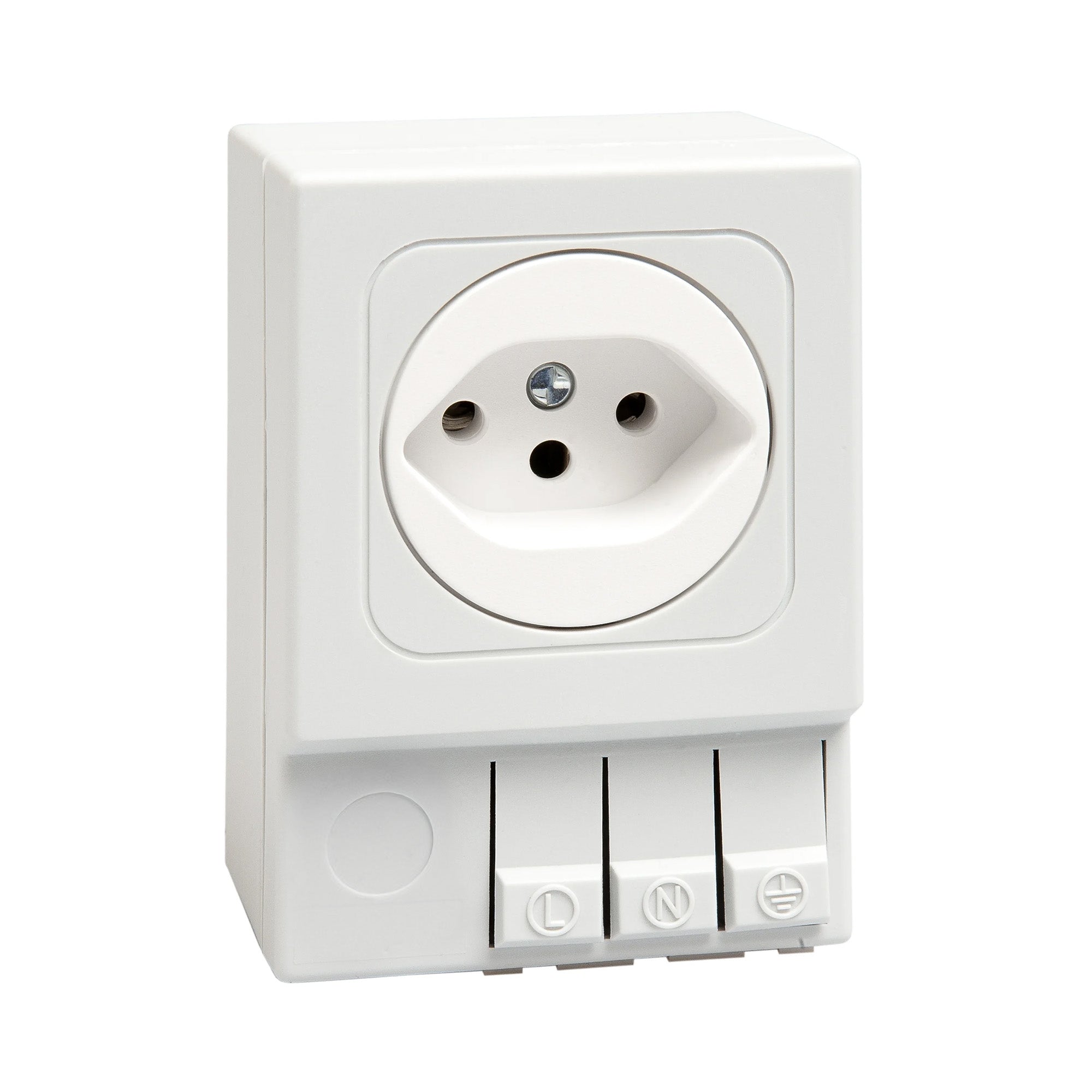

03502.0-01 250VAC, Switzerland, 10.0A Current

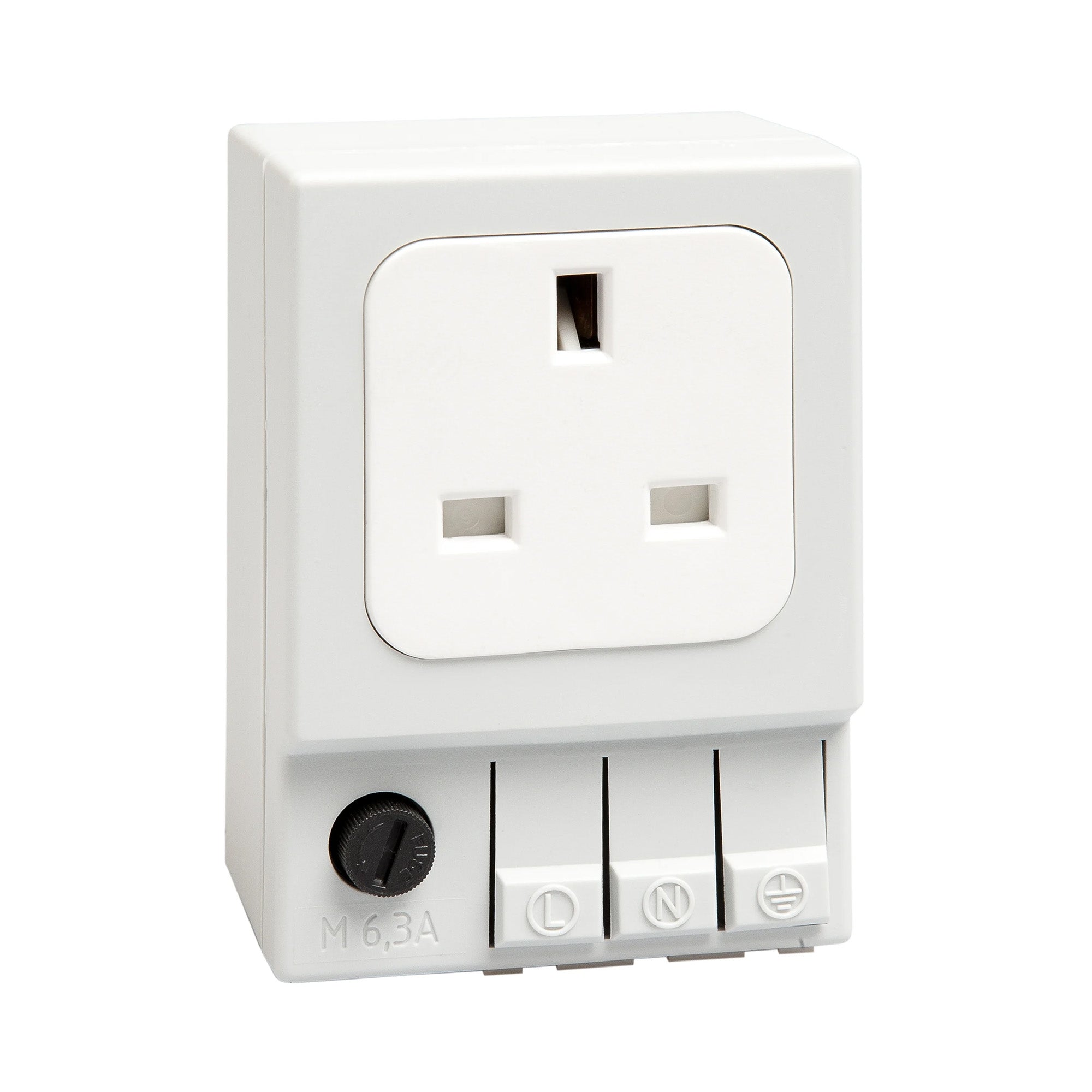

03503.0-00 250VAC, UK/Ireland with fuse, 6.3A Current

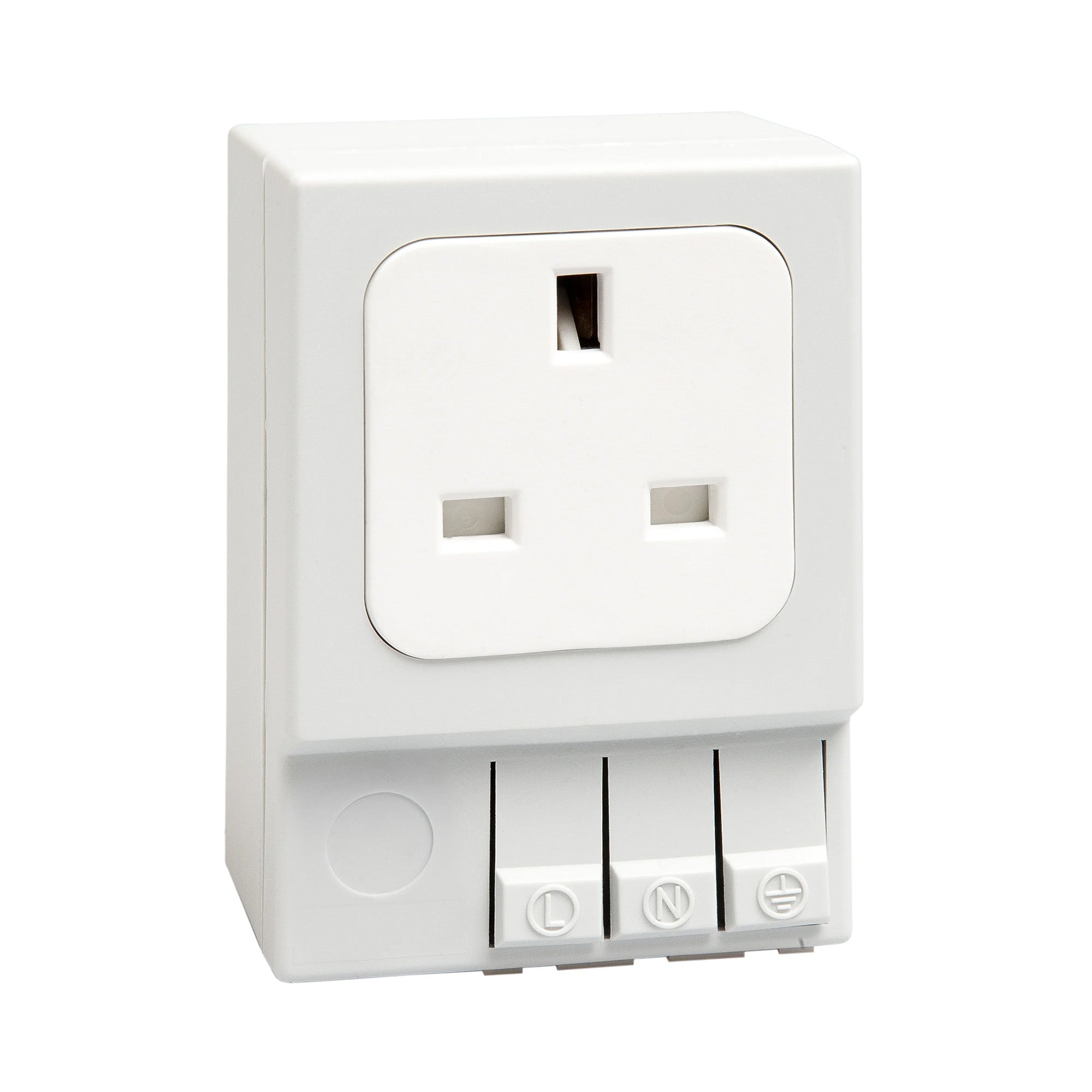

03503.0-01 250VAC, UK/Ireland 13.0A Current
03504.0-00 125VAC, USA/Canada with fuse, 6.3A Current
03504.0-01 125VAC, USA/Canada, 15.0A Current

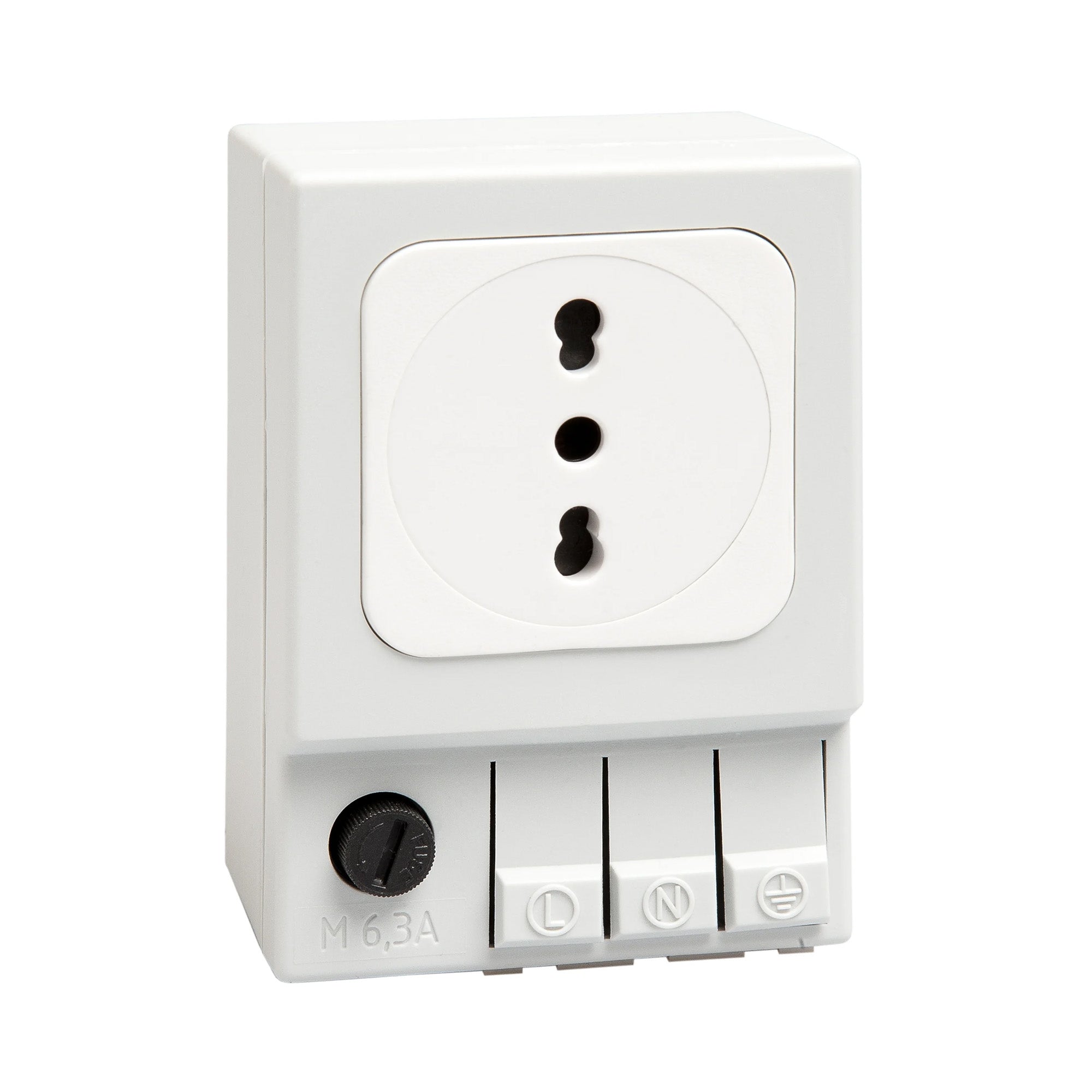

03505.0-00 250VAC, Italy with fuse, 6.3A Current

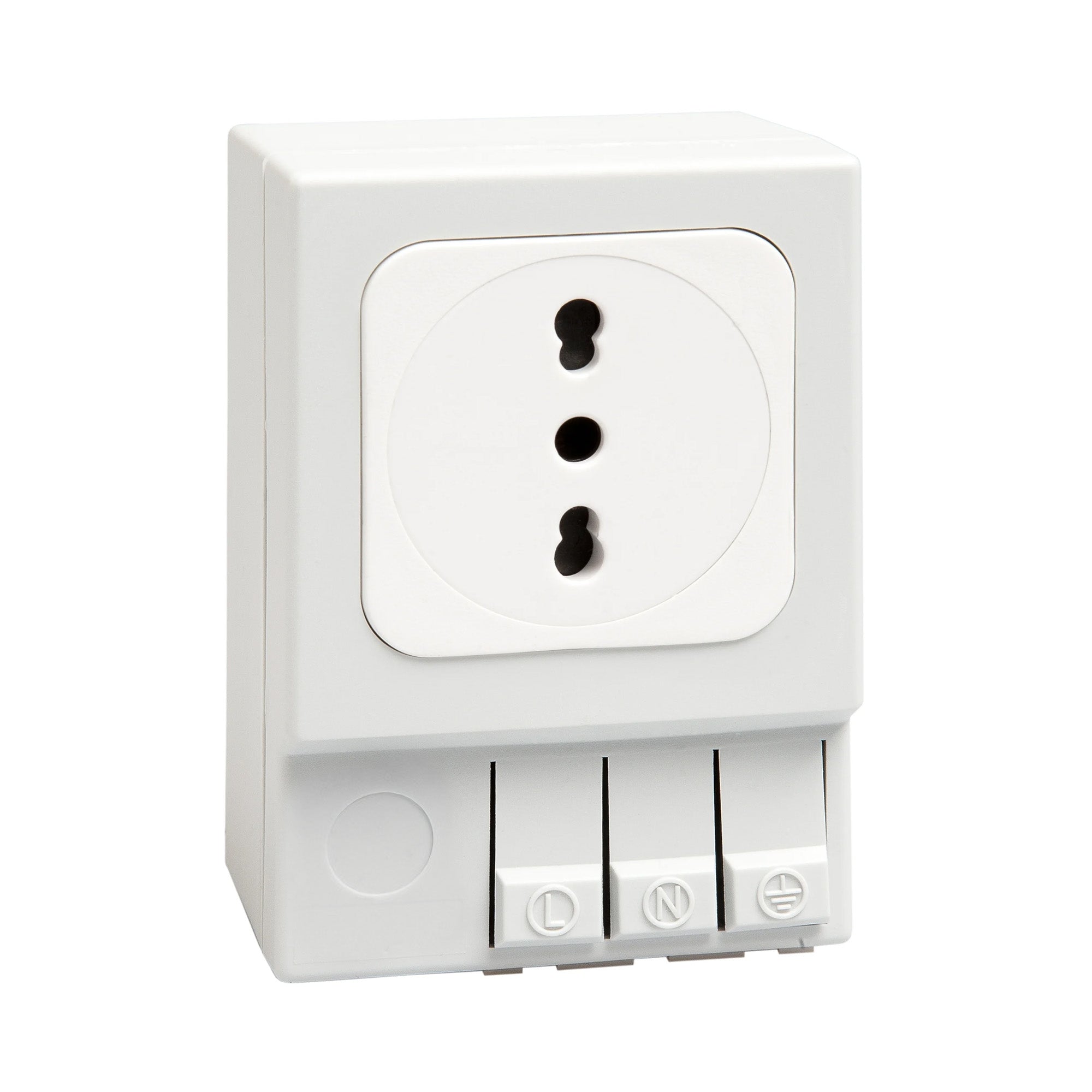

03505.0-01 250VAC, Italy, 16.0A Current
