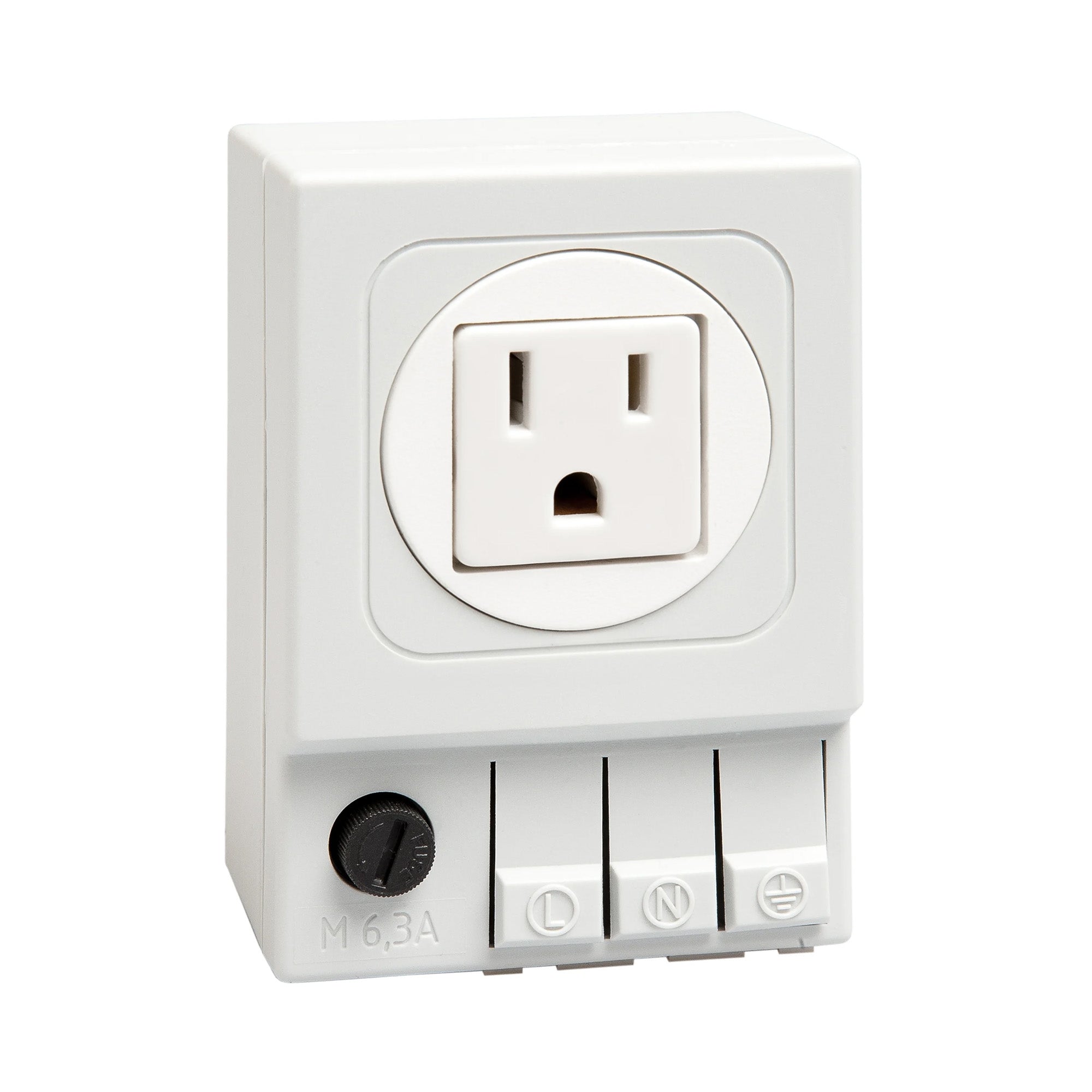

SD 035 DIN Rail Enclosure Electrical Receptacle Outlet US and Canada

• The DIN rail mounted electrical receptacle can be quickly fitted and connected in enclosures allowing the use of auxiliary products such as hand lamps and power tools. The unit is available with and without fuse, and in many world outlet standards.

Features

• Quick Connections
• Available with or without fuse
• DIN rail mountable

Specifications

• Product:  SD 035 | 03504.0‑00

• Device Type:  Sockets :content

• Socket Version:  US/CA NEMA 5‑15R

• Protection Class:  I (Grounded)

• Protection Type:  IP20

• Casing:  Plastic, UL 94 V‑0, light grey

• AC/DC:  AC

• Frequency:  50/60 Hz

• Nominal Current (Socket):  6.3

• Operating Voltage Rating:  125 V AC

• Operating temperature:  -49 °F to 158 °F (-45 °C to 70 °C)

• Operating Humidity:  ≤90 % RH

• Storage Temperature:  -49 °F to 158 °F (-45 °C to 70 °C)

• Storage Humidity:  ≤90 % RH

• Connection:  3 x pressure clamps for stranded and rigid wire (AWG 20‑16 / 0.5‑1.5 mm²)

• Design:  With fuse, fuse size Ø 5 x 20 mm, rated 6.3 A

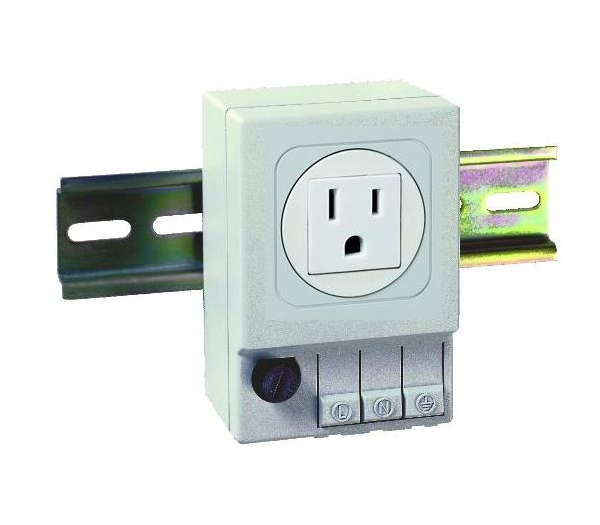

• Mounting:  Clip for 35 mm DIN rail (EN 60715)

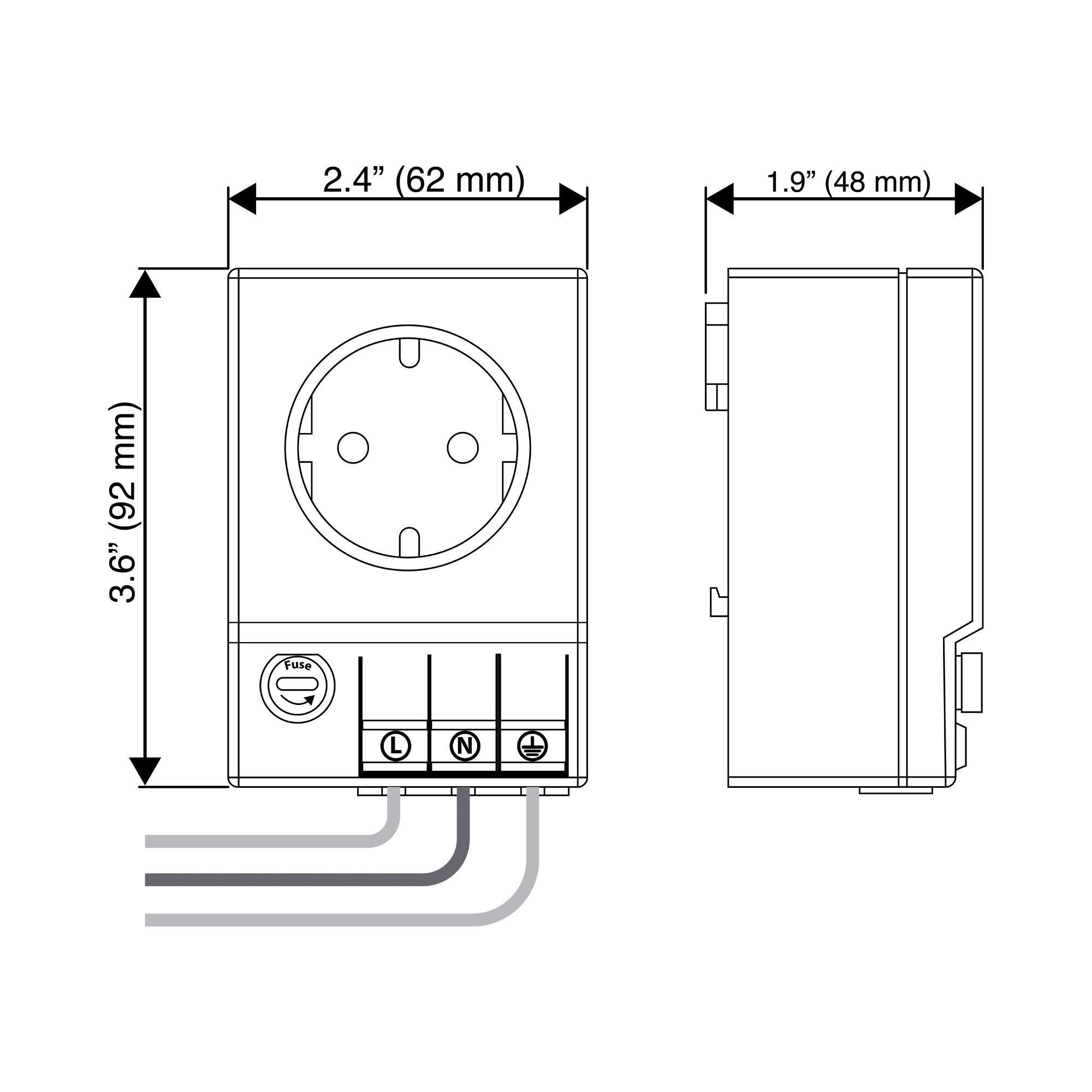

• Dimensions: (LxWxD)  3.6 in (92 mm, L 2.4 in (62 mm x1.9 in (48 mm)

• Weight:  Approx. 7.1 oz (≈ 0.2 kg)


*Earth terminal provided

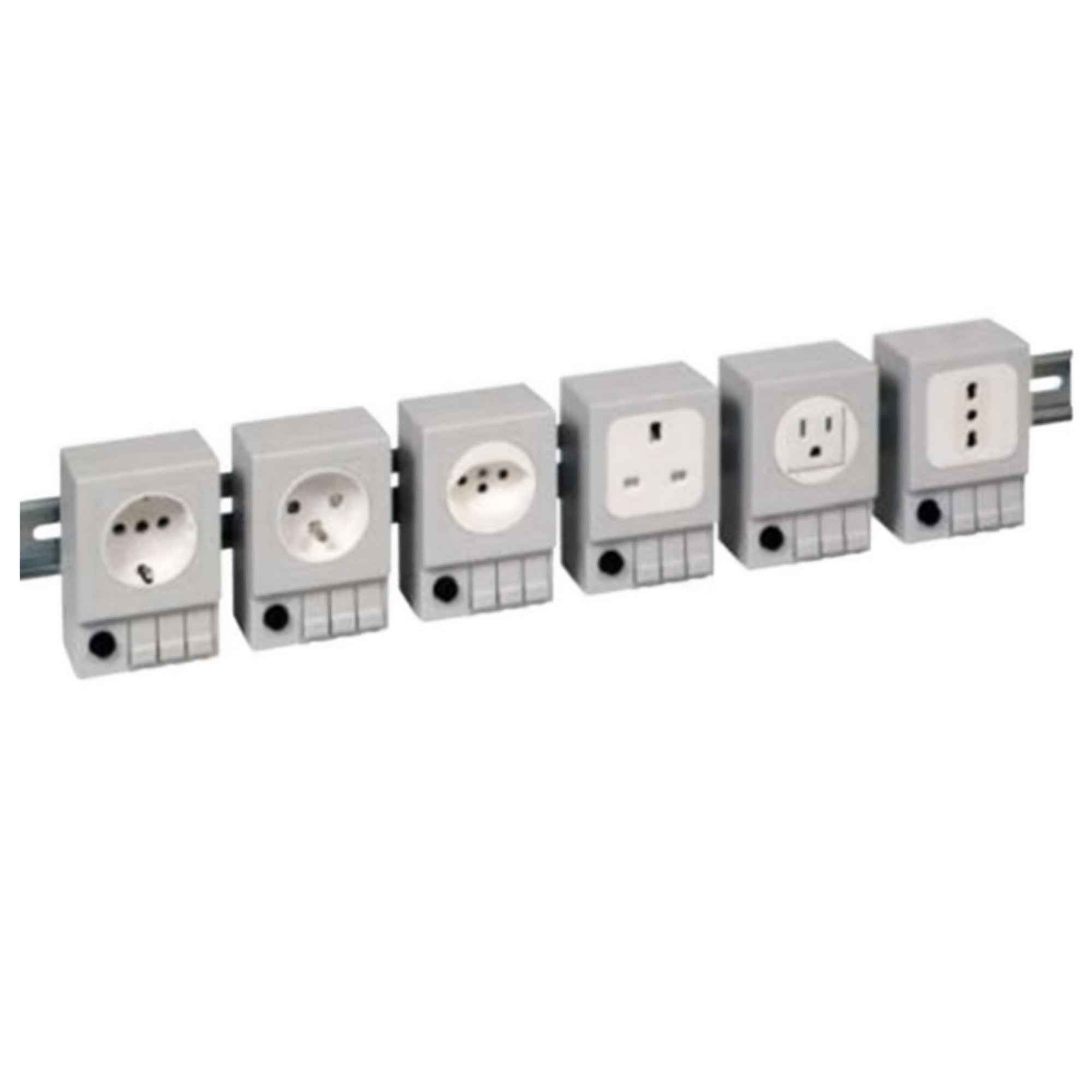

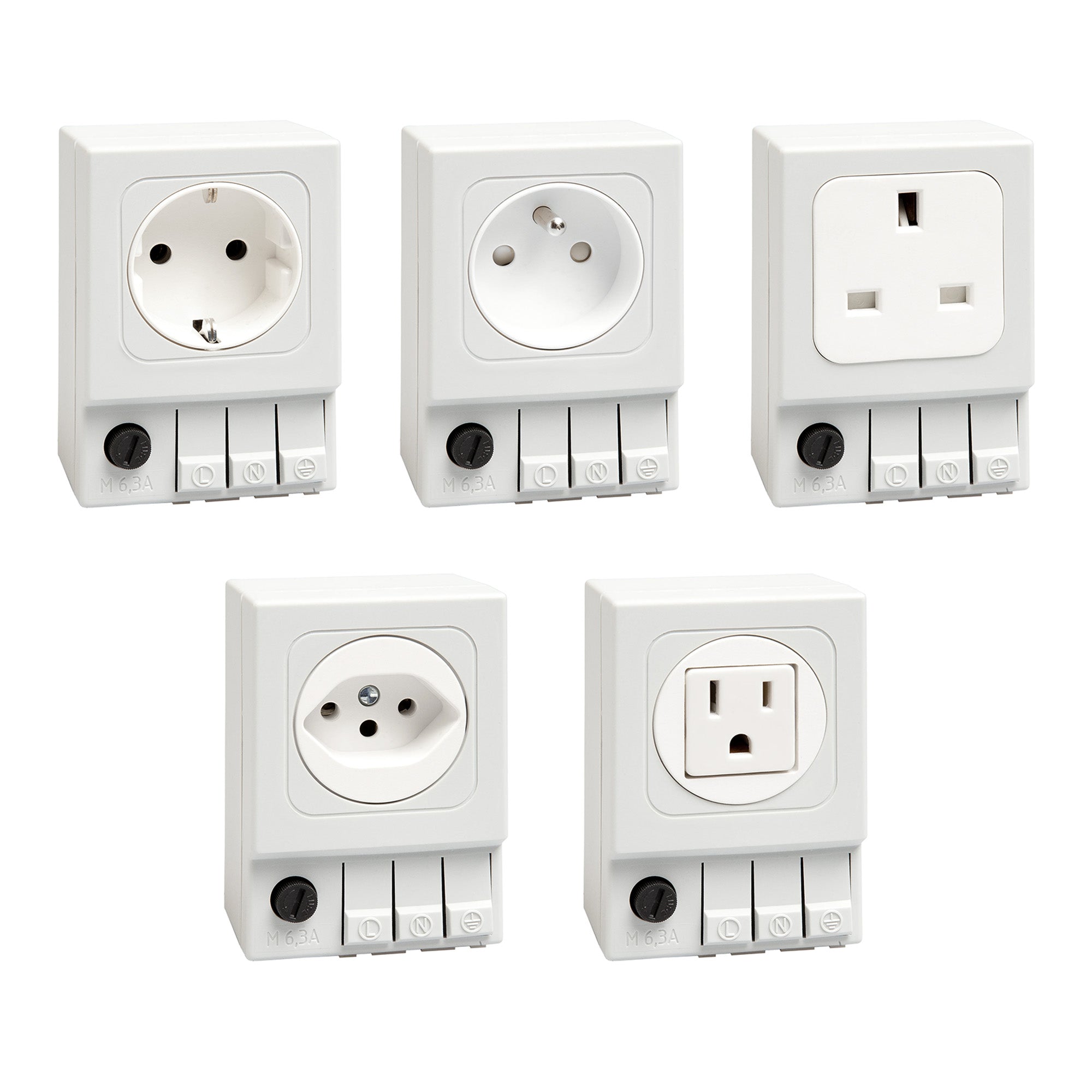

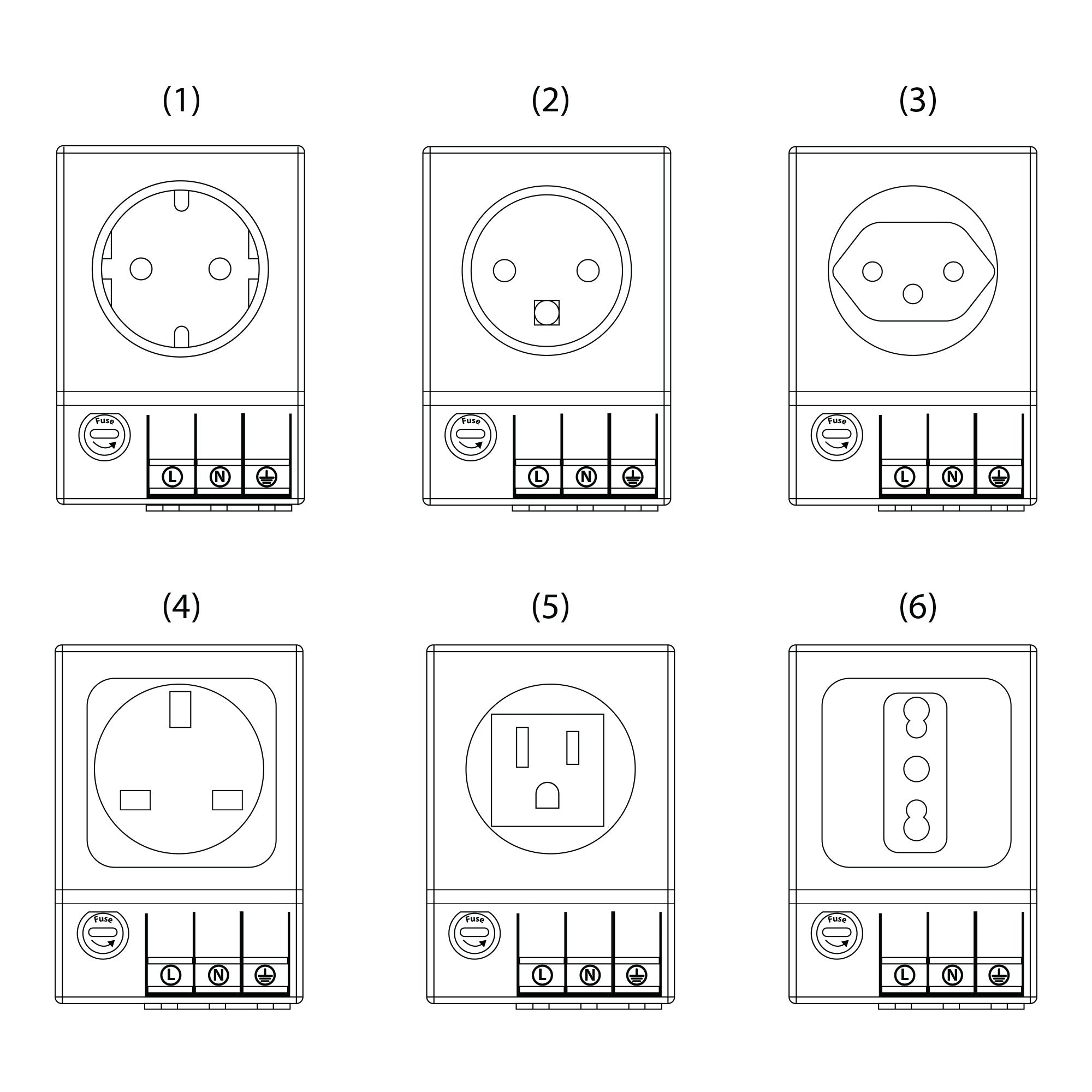

Model Numbers

• 03500.0-00     250VAC, Germany/Russia with fuse, 6.3A Current

• 03500.0-01     250VAC, Germany/Russia, 16.0A Current

• 03501.0-00     250VAC, France/Poland with fuse, 6.3A Current

• 03501.0-01     250VAC, France/Poland, 16.0A Current

• 03502.0-00     250VAC, Switzerland with fuse, 6.3A Current

• 03502.0-01     250VAC, Switzerland, 10.0A Current

• 03503.0-00     250VAC, UK/Ireland with fuse, 6.3A Current

• 03503.0-01     250VAC, UK/Ireland 13.0A Current

• 03504.0-00     125VAC, USA/Canada with fuse, 6.3A Current

• 03504.0-01     125VAC, USA/Canada, 15.0A Current

• 03505.0-00     250VAC, Italy with fuse, 6.3A Current

• 03505.0-01     250VAC, Italy, 16.0A Current
