SD 035 DIN Rail Enclosure Electrical Receptacle Outlet Italy

The DIN rail mounted electrical receptacle can be quickly fitted and connected in enclosures allowing the use of auxiliary products such as hand lamps and power tools. The unit is available with and without fuse, and in many world outlet standards.

Features

• Quick Connections
• Available with or without fuse
• DIN rail mountable

Specifications

• Product:  SD 035 | 03505.0‑0x

• Device type:  Sockets

• Socket:  Italian

• Protection Class:  I

• Protection Type:  IP20

• Casing:  Plastic to UL94 V‑0, light grey

• AC/DC:  AC

• Frequency:  50/60 Hz

• Nominal Current (Socket):  6 A

• Operating Temperature:  -49 °F to 158 °F (-45 °C to 70 °C)

• Operating Humidity:  ≤90 % RH

• Storage Humidity:  ≤90 % RH

• Storage Temperature:  -49 °F to 158 °F (-45 °C to 70 °C)

• Connection:  3 x pressure clamps for stranded wire and rigid wire 0.5‑2.5 mm²

• Design:  With fuse

• Mounting:  Clip for 35 mm DIN rail, EN 60715

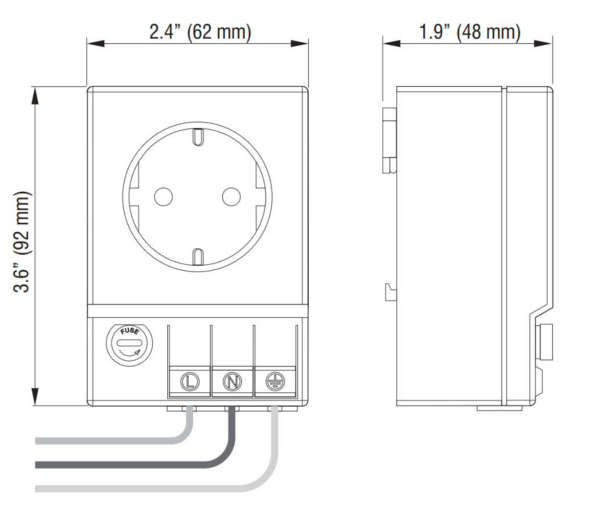

• Dimensions (L x W x D):  3.6 in (92 mm) x2.4 in (62 mm) x 1.9 in (48 mm)

• Weight:  7.1 oz (≈ 0.2 kg)

• Operating Voltage Tolerance:  250 V

* Note:  With fuse: Microfuse Ø 5 x 20 mm

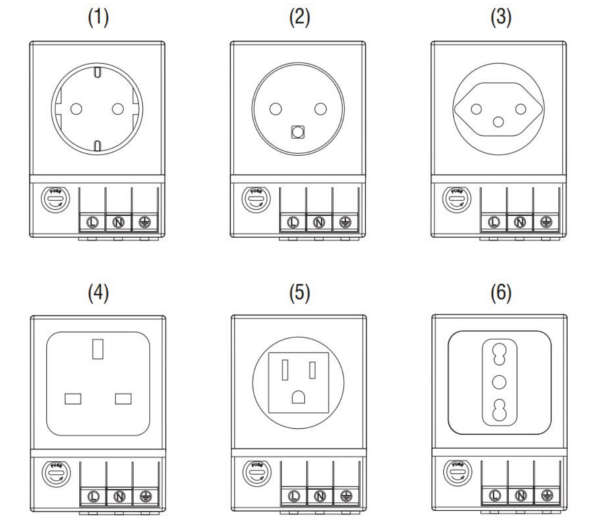

Model Numbers

• 03500.0-00     250VAC, Germany/Russia with fuse, 6.3A Current

• 03500.0-01     250VAC, Germany/Russia, 16.0A Current

• 03501.0-00     250VAC, France/Poland with fuse, 6.3A Current

• 03501.0-01     250VAC, France/Poland, 16.0A Current

• 03502.0-00     250VAC, Switzerland with fuse, 6.3A Current

• 03502.0-01     250VAC, Switzerland, 10.0A Current

• 03503.0-00     250VAC, UK/Ireland with fuse, 6.3A Current

• 03503.0-01     250VAC, UK/Ireland 13.0A Current

• 03504.0-00     125VAC, USA/Canada with fuse, 6.3A Current

• 03504.0-01     125VAC, USA/Canada, 15.0A Current

• 03505.0-00     250VAC, Italy with fuse, 6.3A Current

• 03505.0-01     250VAC, Italy, 16.0A Current
