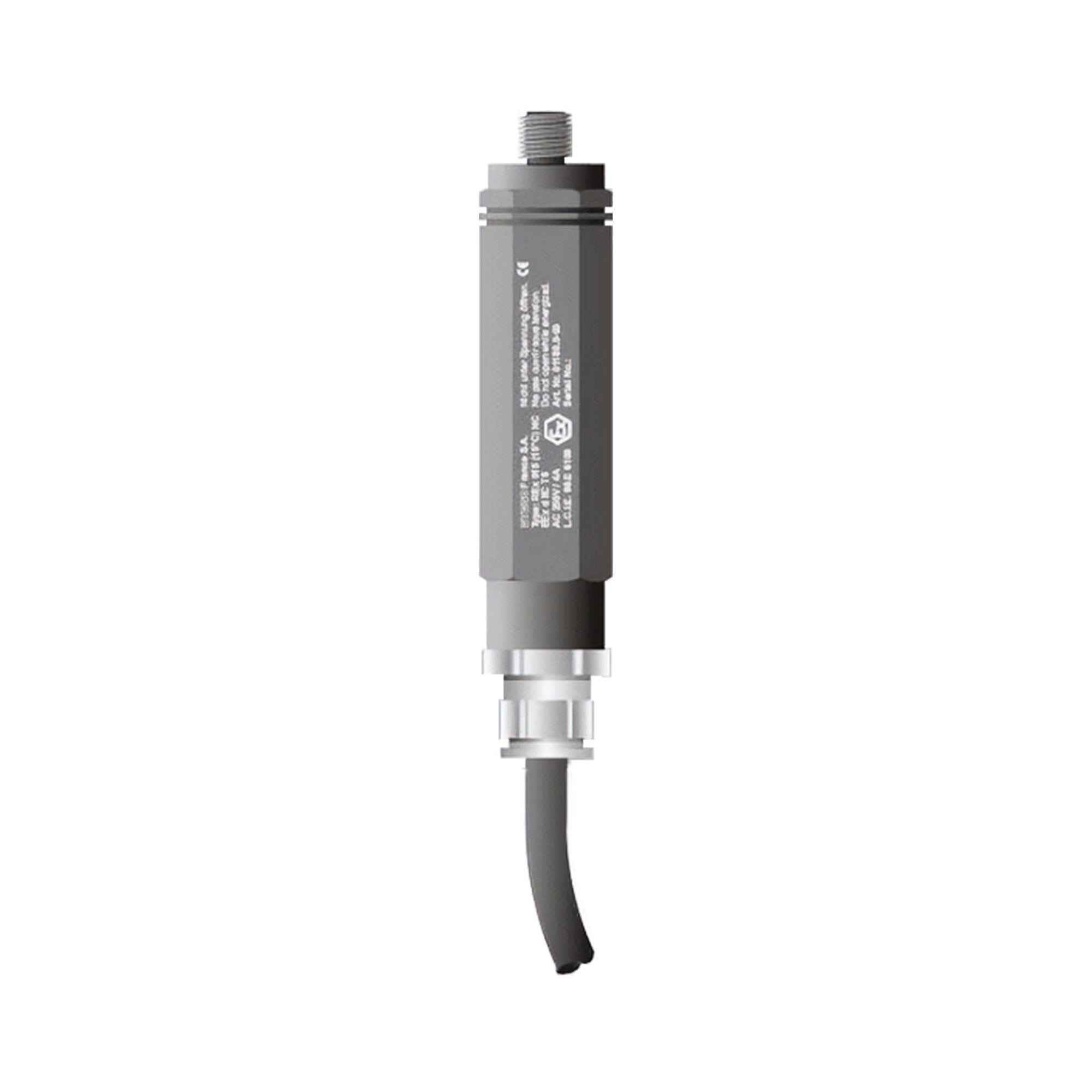

REx 011 Explosion Proof Thermostat

Features

• DIN Rail Mountable
• Fixed Setpoints
• Service Life > 100,000 cycles
• Wire Harness 3-wire 3ft cord
• Black Anodized Aluminum body
• Compact Design
• Hysteresis: 7 ± 2°F
• Voltage: 250VAC
• Operating Range -4 to 104°F (-20 to 40°C)
• IP 65 Protection
• ATEX Certified Protection EEx d IIc T6

Specifications

• Contact Type: NC / Open on rise

• Operating Voltage: 100 VDC max. / 250 VAC max.

• Switch-Off Temperature: 59 °F (15 °C)

• Switch-On Temperature: 52 °F (11 °C)

• Explosion Proof According to EN: LCIE (Laboratoire Central des Industries Electriques)

• Conformity Certificate: 01 ATEX 6074/02, LCIE No.06 ATEX Q8011, IECEx LCI 07.0021

• Ex Protection Type: II 2 G D – EEx d IIC T6 IP6x T 85 °C

• Switching Capacity: 4 A resistive / 1 A inductive at 250 VAC

• Sensor Element: Thermostatic bi-metal

• Service Life at Max. Load: > 100,000 cycles

• Switching Difference (Hysteresis): 7 °F ± 2 °F (4 °C ± 1 K)

• Tolerance: ± 7 °F (± 4 K)

• Connection Cable: Si HF-JZ 3 × AWG 18 × 3.3 ft (3 × 0.75 mm² × 1 m)

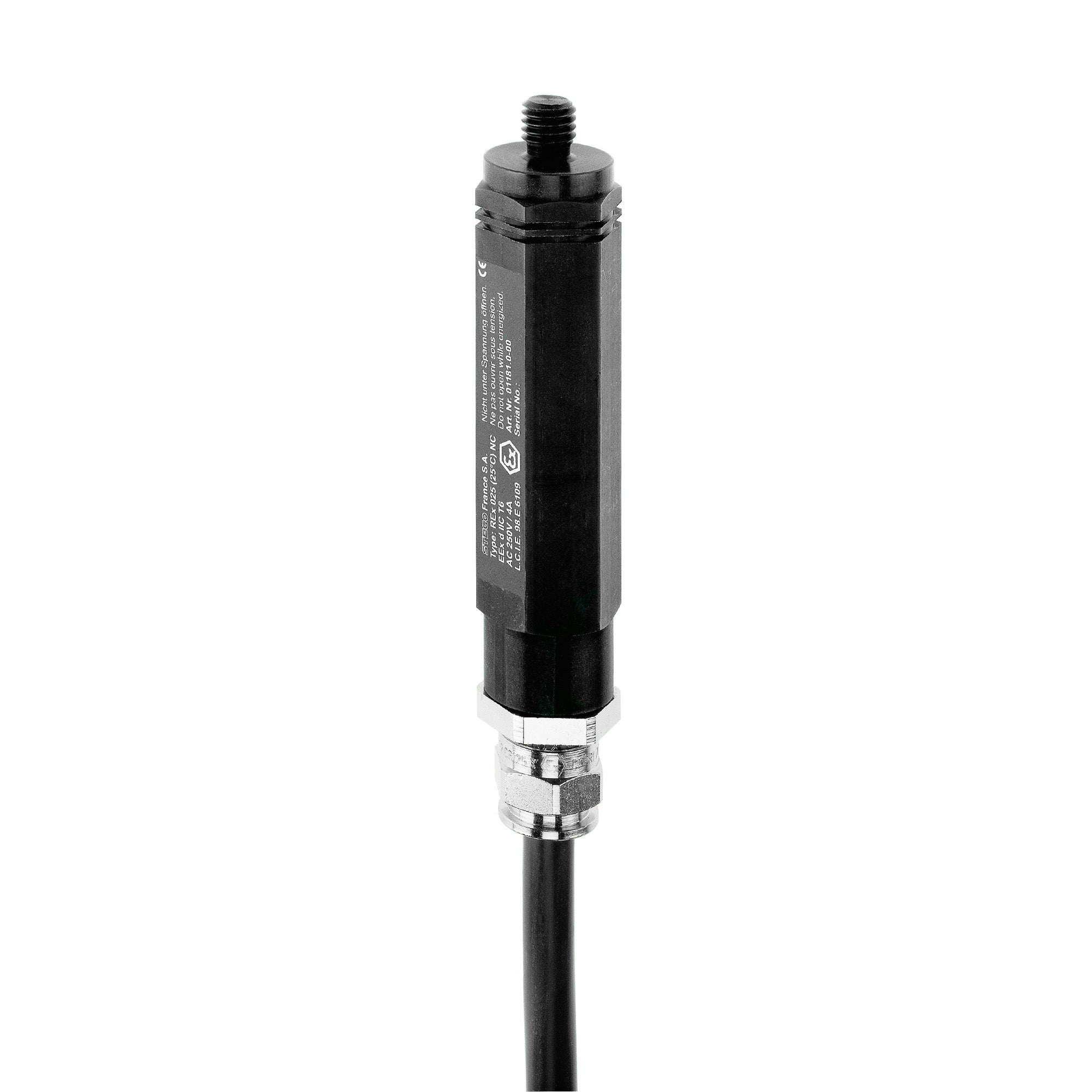

• Housing: Aluminum, black anodized

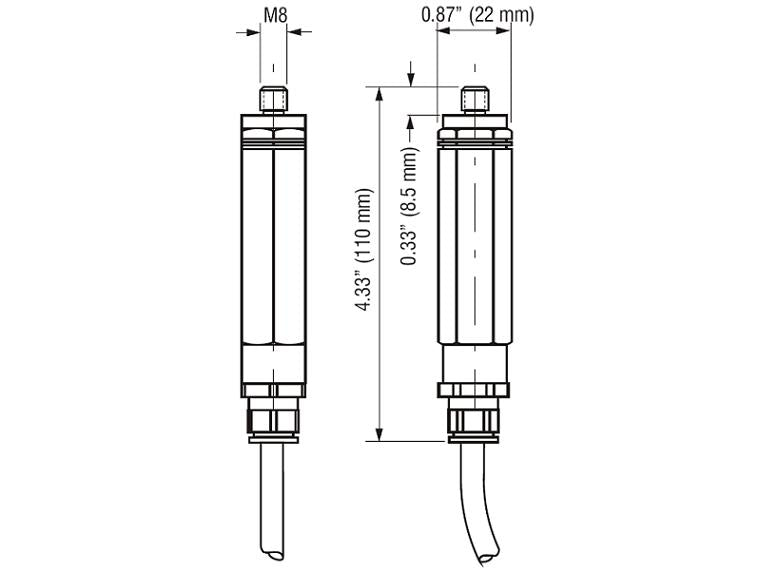

• Mounting: Mounting bracket with M8 nut and DIN clip for 35 mm DIN rail mounting

• Weight: 7 Oz (200 g)

• Operating/Storage Temperature: -49 to 158 °F (-45 to 70 °C)

• Protection Class: I (Grounded)

Model Numbers

• 01180.0-00    Ex Heating Thermostat, On 52°F, Off 59°F
• 01180.0-00    Ex Heating Thermostat, On  70°F, Off 77°F
