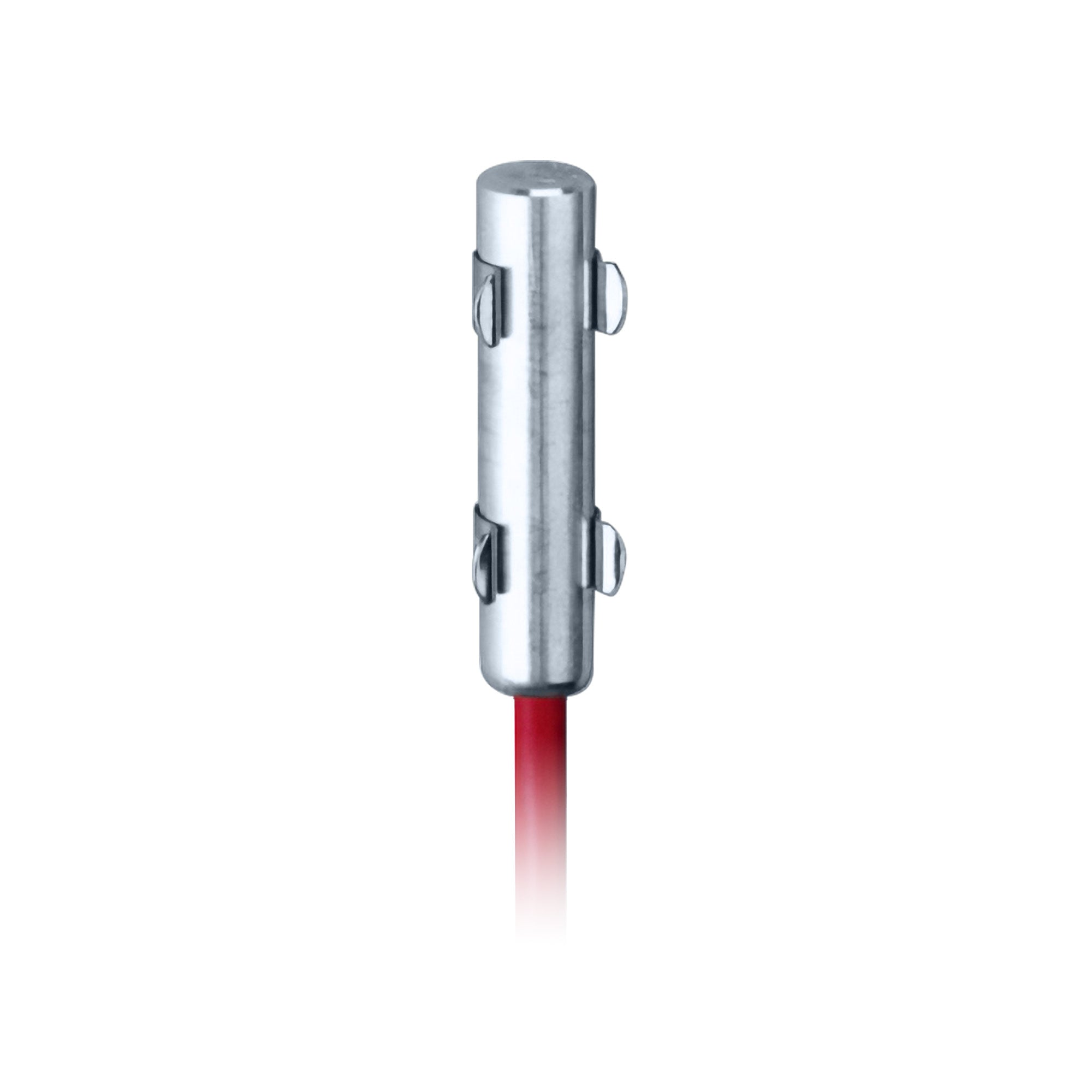

RCE 016 Small PTC Enclosure Heater 5W to 9W

Features

• DIN Rail Mount Spring Clip
• PTC Technology with self regulating characteristics
• High Power to Size Ratio
• Wide Voltage Range
• Heating power adjusts to ambient temperature
• Energy Saver
• Protection Class 2 (IP32)
• Approvals UL, CE, VDE, RoHS

Specifications

• Nominal Operating Voltage: 48 VDC

• Max. Switching Capacity: 16 A at DC 56 V

• Agency Approvals: VDE intended

• Operating Voltage Range: 38 – 56 VDC

• Contact Type: Snap-action contact, normally open (Relay/MOSFET)

• Contact Resistance: < 10 mΩ

• Service Life: > 100,000 cycles

• EMI/EMC Compliance: EN 55014-1-2, EN 61000-3-2, EN 61000-3-3

• Connection: 6-pole terminal for AWG 14 max. (2.5 mm²)

• Mounting: Clip for 35 mm DIN rail (EN 60 715)

• Housing: Plastic, UL 94V-0, light gray

• Dimensions (H × W × D): 2.6 × 2.0 × 1.8 inches (67 × 50 × 46 mm)

• Weight: 3 Oz (85 g)

• Mounting Position: Vertical

• Operating/Storage Temperature: -49 to 158 °F (-45 to 70 °C)

• Protection Type: IP20

Model Numbers

• 01622.0-03    5 Watt, AC/DC 120-250 Voltage, 2.0A Current PTC Heater
• 01623.0-01    9 Watt, AC/DC 120-250 Voltage, 2.5A Current PTC Heater
• 01624.0-03    5 Watt, AC/DC 12-30 Voltage, 5.8A Current PTC Heater
• 01625.0-02    9 Watt, AC/DC 12-30 Voltage, 2.4A Current PTC Heater
