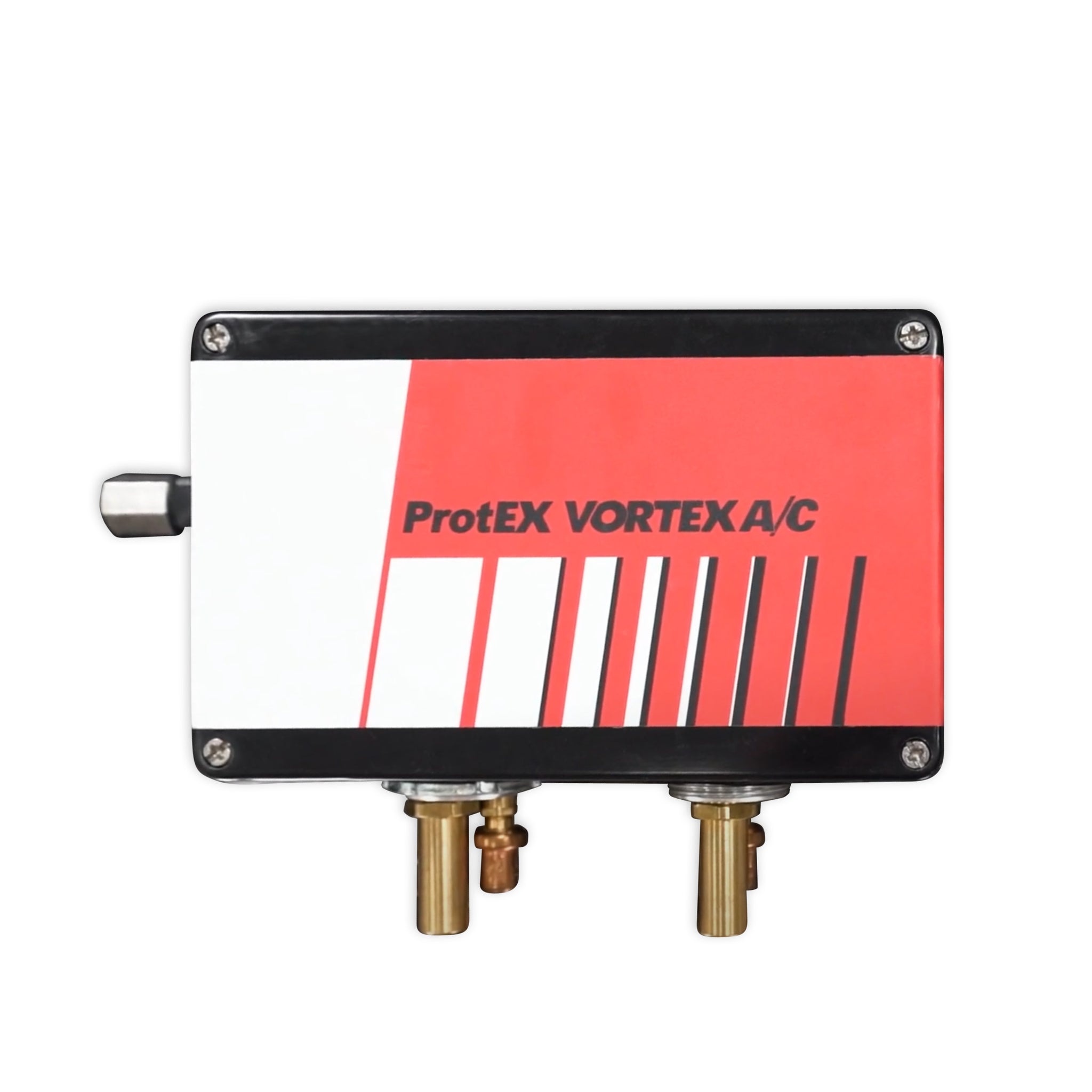

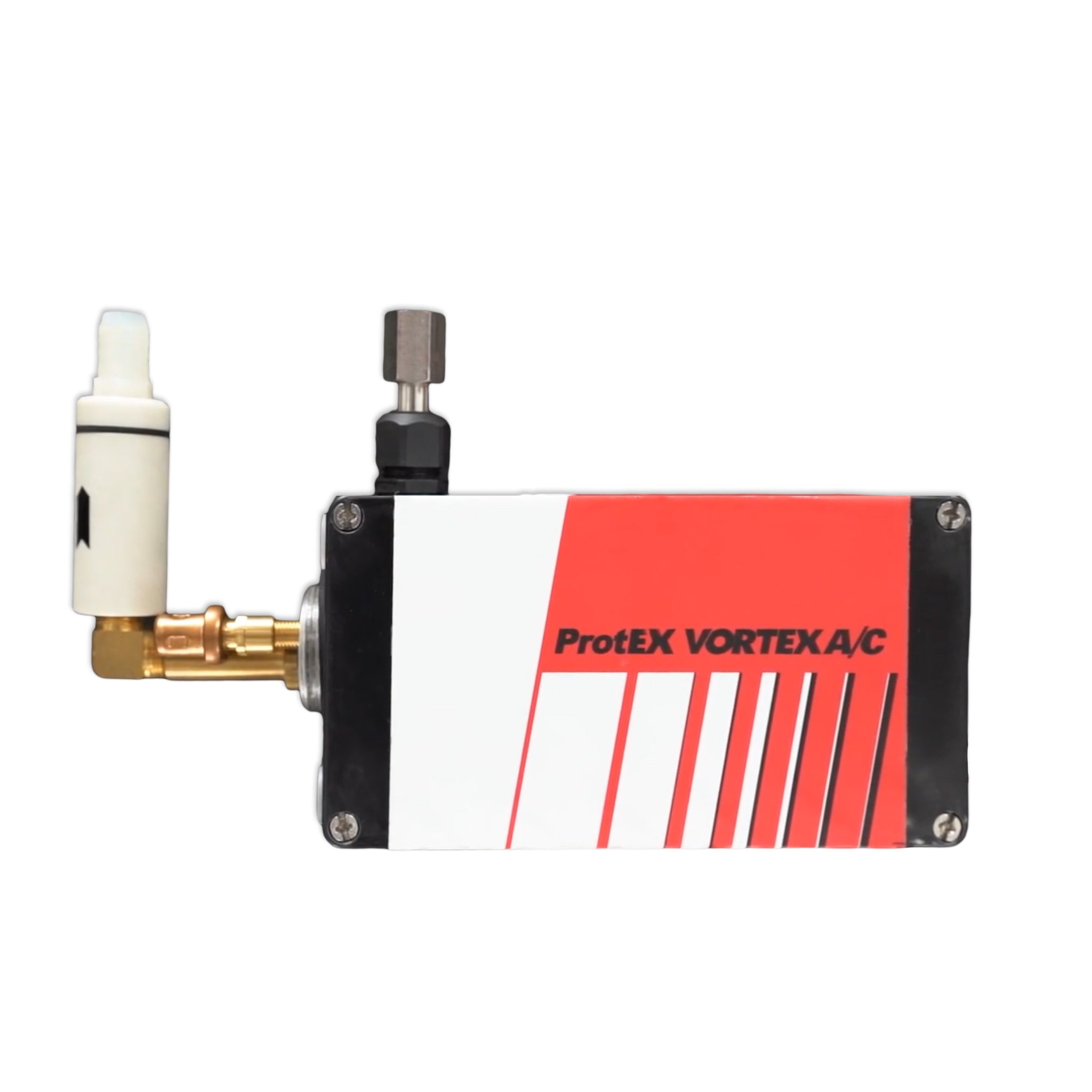

Protex Vortex A/C Enclosure Cooler ATEX and Hazardous Locations

ProtEX Vortex A/C Coolers are designed specifically for purged * Electrical Enclosures in IECEx, ATEX Zones 1 and 21, UL Class I, Div. 1 (Groups A,B,C and D), Class II, Div. 1 (Groups F and G), Class III and Temperature Class T3 areas. The ProtEX Vortex A/C incorporates the most up-to-date features into Vortec’s line of highly reliable, cost-effective enclosure coolers.

The ProtEX Vortex A/C is available in 4 different cooling capacities; 900,1500,2500 and 5,000 BTU/hr.

Features

IECEx Certified for Explosive Atmospheres
ATEX Certified Ex II 2 GD T3
UL Classified Class I Div. 1, Class II Div. 1 and Class III
Ex h llC T3 Gb
Ex h lllC T200C Db
Ta +10 to 80C
Tamb 10°C to 80°C (50°F to 175°F)
3 year warranty
Small footprint to fit on all enclosures and in confined areas
Top, side or front (Door) mount models available
Maintain temperature between 75 - 100 deg F

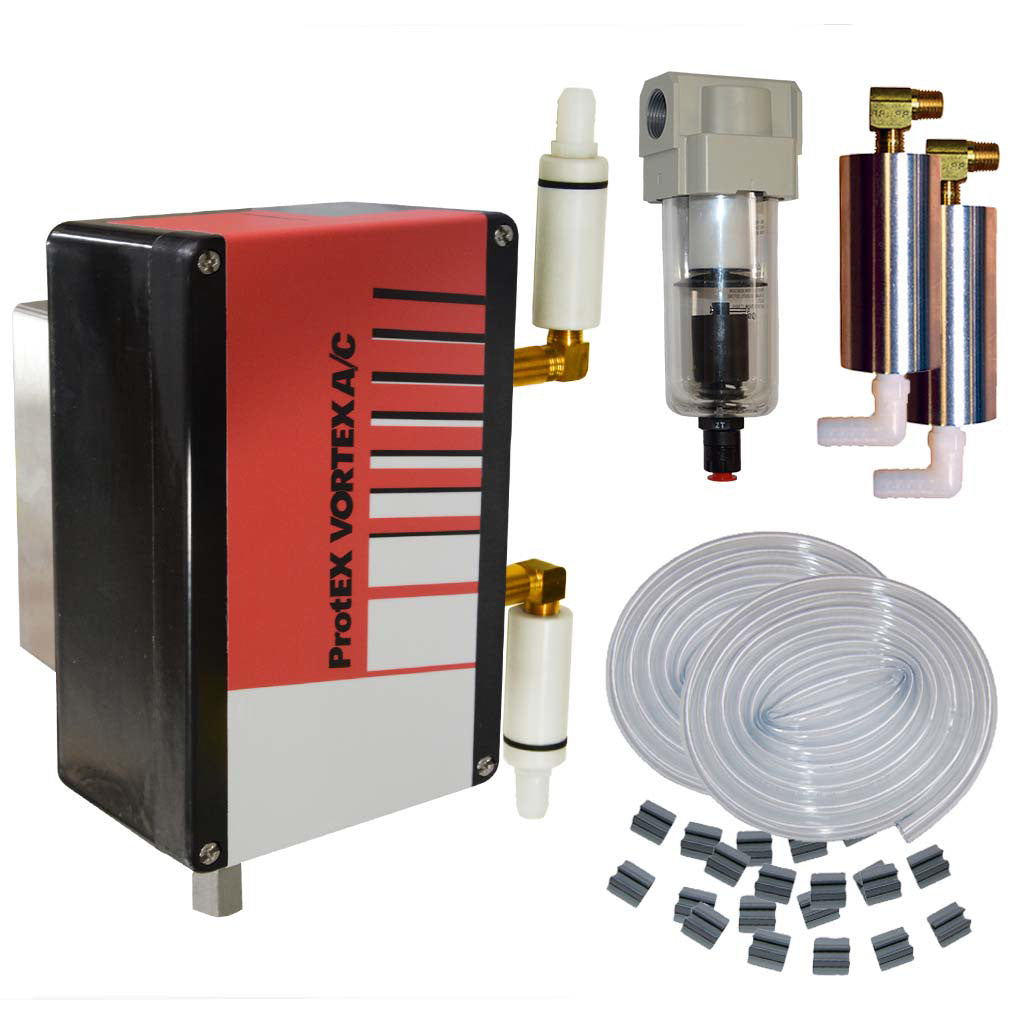

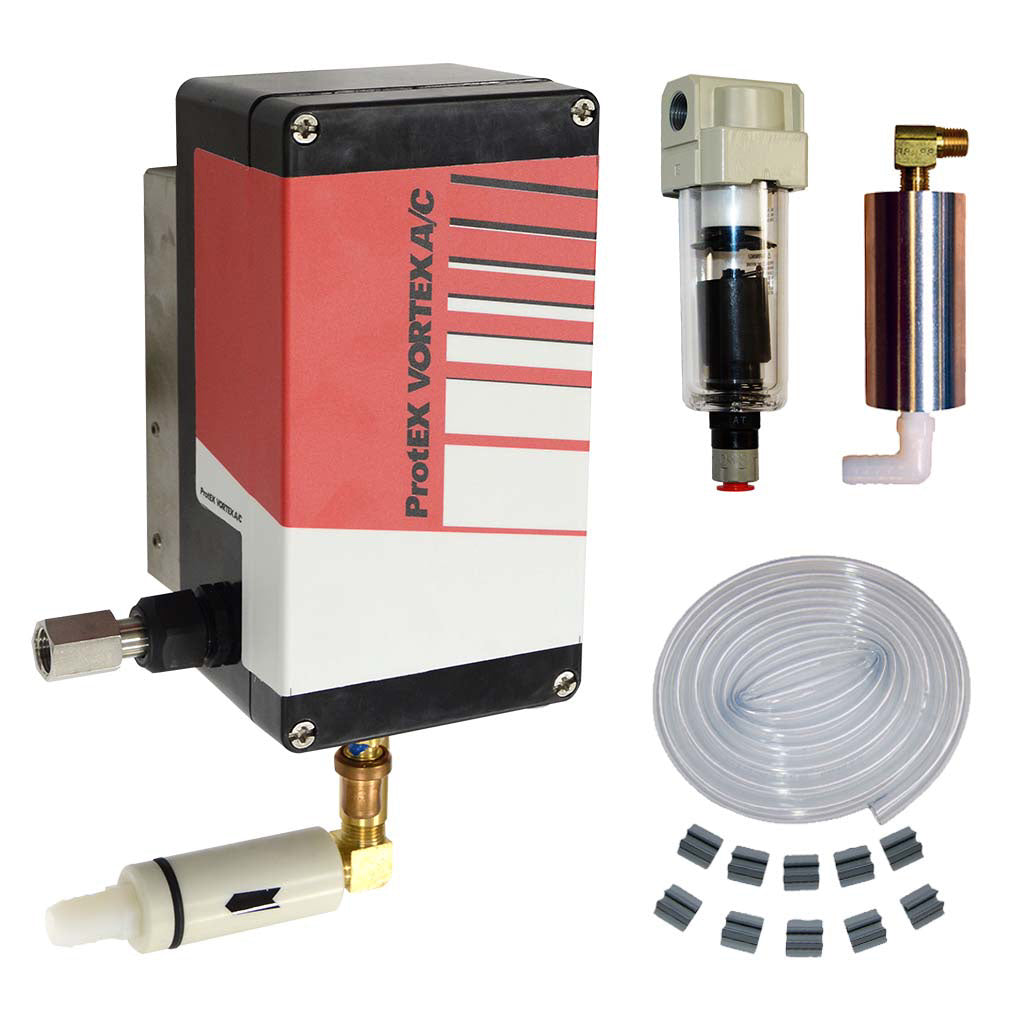

Supplied with air filter and ducting kit
Maintains slight pressurization in the enclosure

Benefits

Easy to install, takes about 5 minutes
No wiring required to install
ATEX Certified for Zones 1 and 21
UL Classified for Class I Div. 1 (Groups A,B,C and D), Class II, Div. 1 (Groups F and G) and Class III
Thermostatically controlled to maintain enclosure temperatures within ideal range
Filter contains pressure dop indicator notifying you of needed filter changes
Highly reliable, with full 3 year warranty
No ambient, dirty or humid air enters the cabinet
Can be used on all cabinets, even in tight spaces
Operates in environments up to 175 deg F
Significantly lower cost, compared to explosion proof Freon air conditioners
Reduce operating cost with mechanical thermostat turning the unit on only when necessary
Very quiet, 62 dBA operation, 78% quieter than typical vortex coolers
Multiple cooling capacities available, to optimize performance and operating cost
Little maintenance required, as compared to Freon A/C and fans
Use no refrigerants
Sleek, modern design

Specifications

Product Series: ProtEX Vortex A/C
Product Type: Compressed-air-powered enclosure cooler system
Cooling Method: Vortex tube cooling (No refrigerants, no electrical power required)
Application: Hazardous location enclosure cooling (ATEX Zones 1 & 21, UL Class I Div. 1, Class II Div. 1, Class III)
Cooling Capacity: 900 to 5000 BTU/hr (Varies by model)
Cooling Capacity (Watts): 264 to 1465 W (Varies by model)
Compressed Air Consumption @ 100 psig: 15 to 70 scfm (Varies by model)
Thermostat Type: Mechanical thermostat
Sound Level: 60 to 75 dBA (Varies by model)
Installation Orientation: Top, side, or front mount
Compressed Air Requirement: Clean, dry compressed air
Maximum Ambient Operating Temperature: +80 °C (175 °F)
Mechanical Filter: Included with pressure drop indicator
Purge/Pressurization: Maintains slight pressurization in enclosure
Housing Design: Compact enclosure cooler with integrated mount hardware
Certification: ATEX Ex II 2 GD T3; UL classified for hazardous locations
Typical Applications: Electrical enclosures in explosive or hazardous environments
Cooling Capacity (BTU/hr): 900 / 1500 / 2500 / 5000 (Varies by model)
Air Consumption (scfm @ 100 psig): 15 / 25 / 35 / 70
Sound Level: 60 / 66 / 72 / 75 dBA
Rating: ProtEX system type with mechanical thermostat

Model Numbers

8115 - 900 BTU 15 SCFM 60 dBA
8125 - 1500 BTU 25 SCFM 66 dBA
8135 - 2500 BTU 35 SCFM 72 dBA
8170 - 5000 BTU 70 SCFM 75 dBA
