Outdoor Enclosure Filter Fan Lockable Door Weather Resistant 14 CFM

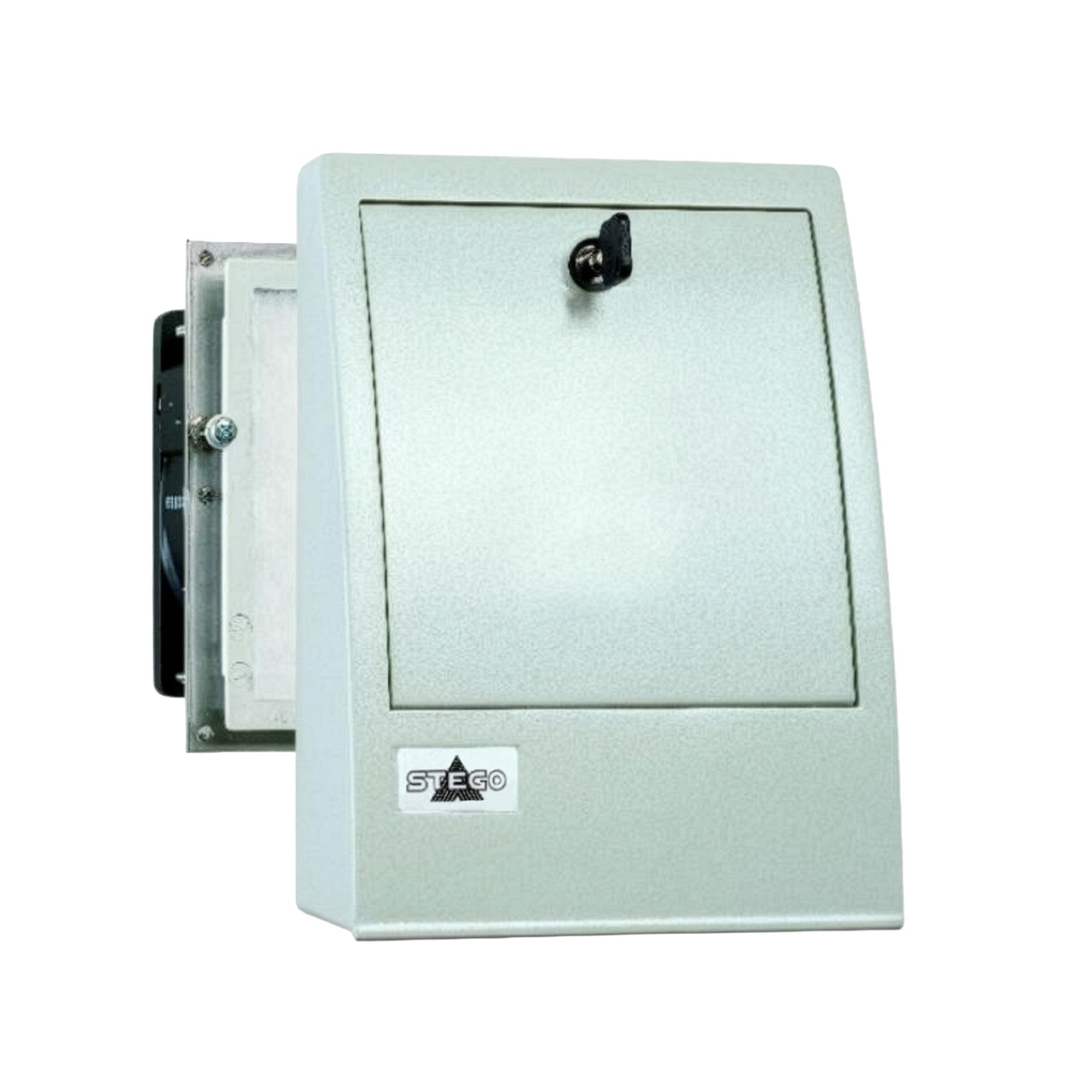

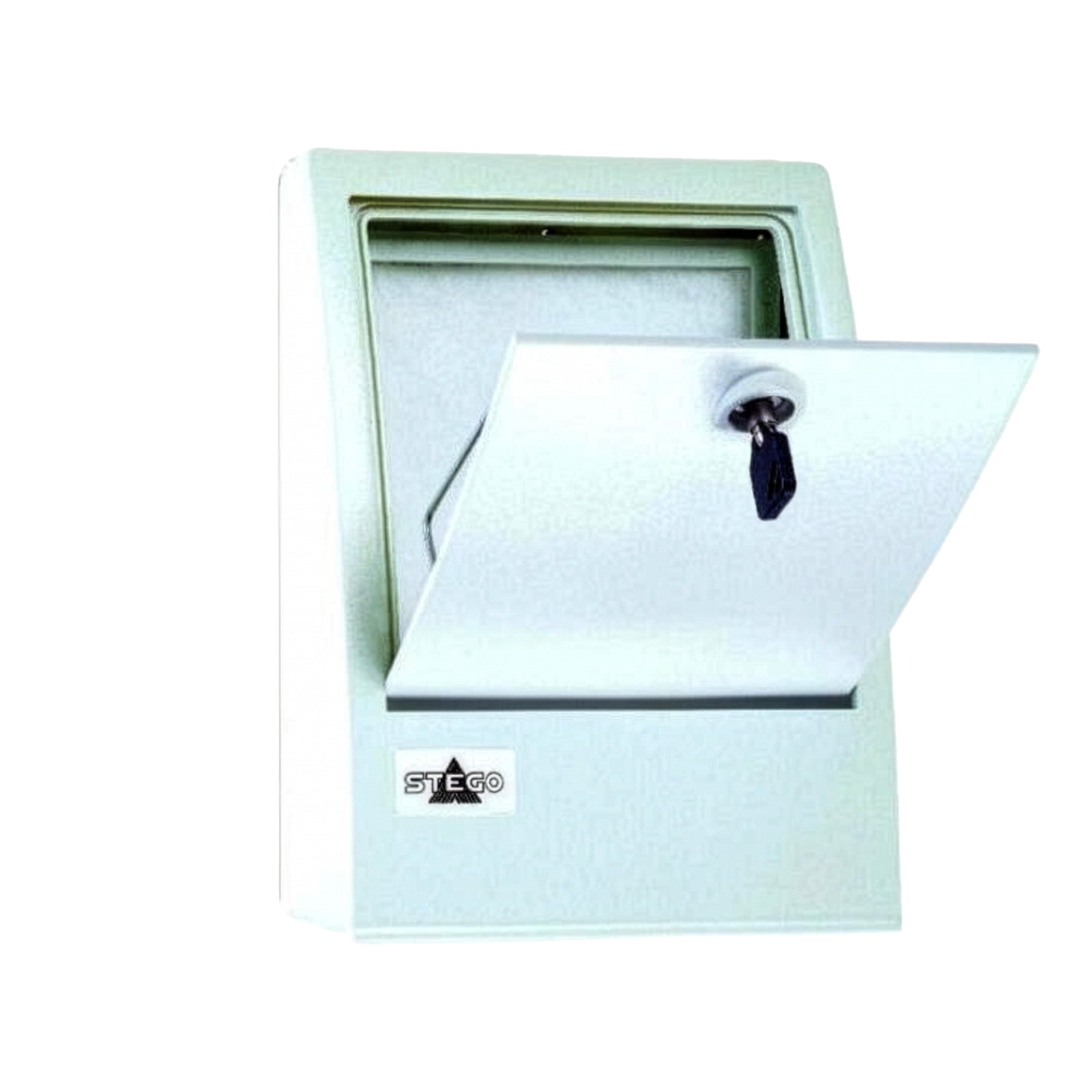

The outdoor filter fan is used in outdoor enclosures where warm air needs to be dissipated. To clean and exchange the filter mat, simply open the lockable door of the outdoor hood. This simple access for cleaning eliminates the need for allowing interior access to the enclosure. A protection type of IP55 is achieved thanks to the special design of the hood and fine filter mats. The plastic used in the construction of this fan is highly resistant to weather and UV light. Flow rate of 12 cfm.

Features

Quick and easy filter change
Lockable outer door
Impact resistant
Weather and UV resistant

Specifications

Free Blowing Air Flow: 12 cfm (20 m³/h)
Voltage: 230 VAC
Environmental Ratings: UL Type 12 / IP55
Agency Approvals: UL
Version: Standard
Power Consumption: 15 W
Current Consumption: 100 mA
Average Noise Level at 3 ft (DIN EN ISO 4871): 40 dB(A)

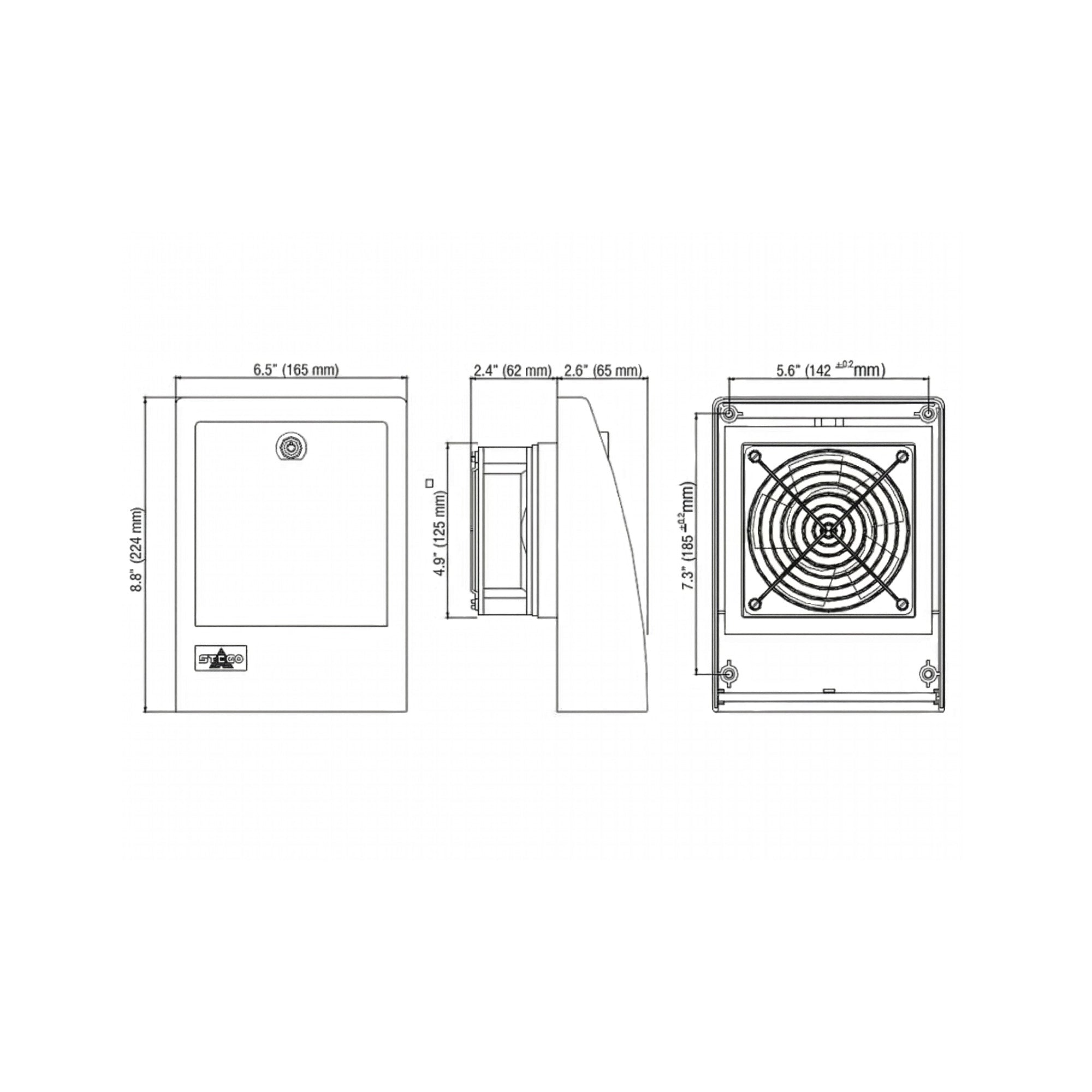

Enclosure Cut‑Out: 4.9 × 4.9 inches (125 × 125 + 0.4 mm)
Mounting Depth: 2.4 inches (62 mm)
Weight: 2.6 lb. (1.2 kg)
Filter Fan & Exhaust Filter Housing: Plastic, high impact ASA, light gray, weather proof and UV light resistant, burning behavior UL 94H‑B
Mounting Frame: With double‑sided industrial adhesive band for affixing to the outside of enclosure; screws may be required in certain circumstances
Filter Mat: Fine grade 360 g/m², filtering degree 98 % for particle Ø > 10 µm, F5 (EN 779)
Filter Material: Synthetic fiber with progressive construction, temperature resistant to 212 °F, self‑extinguishing class F1, moisture resistant to 100 % RH, cleanable/reusable
Axial Fan, Ball Bearing: Aluminum frame, plastic impeller UL 94V‑0; operational life min. 50,000 h at 77 °F (RH 65 %) with 2 lead wires and pressure clamps (AWG 14 max)
Connection: 2 wires with cage clamps, AWG 14 (2.5 mm²), length 4″ (100 mm)
Operating Temperature: 14 to 158 °F (‑10 to 70 °C)
Storage Temperature: ‑40 to 158 °F (‑40 to 70 °C)
Protection Type: IP55
Protection Class: I (grounded)

Model Types

01821.0-00 AC 230 V, 50 Hz - 12 cfm (20m3/h)
01821.0-02 AC 120 V, 60 Hz - 14 cfm (23m3/h)
011821.0-00 Exhaust Filter
