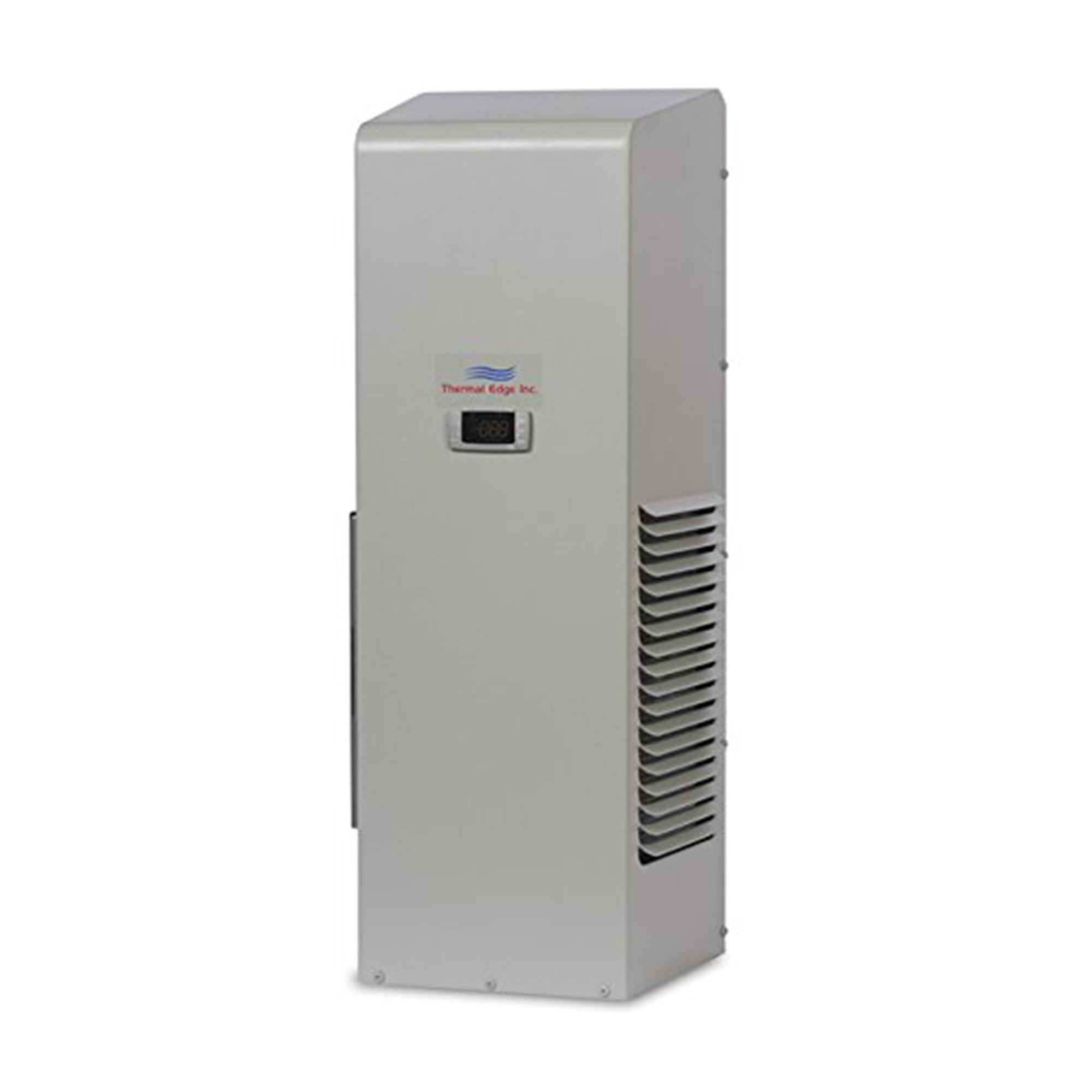

NE020 Narrow Edge Series Closed-Loop Enclosure Air Conditioner 2000 BTU

The NE020 is the Narrow Edge Series 2,000 BTU Closed-loop Enclosure Air Conditioner engineered & manufactured to endure the most difficult of environments and applications. Thermal Edge air conditioners will exceed environmental requirements in applications like Steel, Food Processing, Petro-Chemical, Cement, Paper & Pulp and Plastics.

Features

• Digital Temperature Controller
  • Programmable set point and temperature controls
  • Visible Error and/or alarm messaging
  • System status indication & keypad lockout function
• Active Condensate Evaporation System
  • Constant elimination of condensate
  • Increases unit efficiency by pre-cooling refrigerant
• Unit Efficiency
  • Temperature operated condenser fan reduces power inrush and saves energy
  • Highly efficient rotary compressor
  • Fully insulated & sealed cabinet
  • Thermal Expansion Valve to maintain cooling capacity over a broad ambient temperature range

Specifications

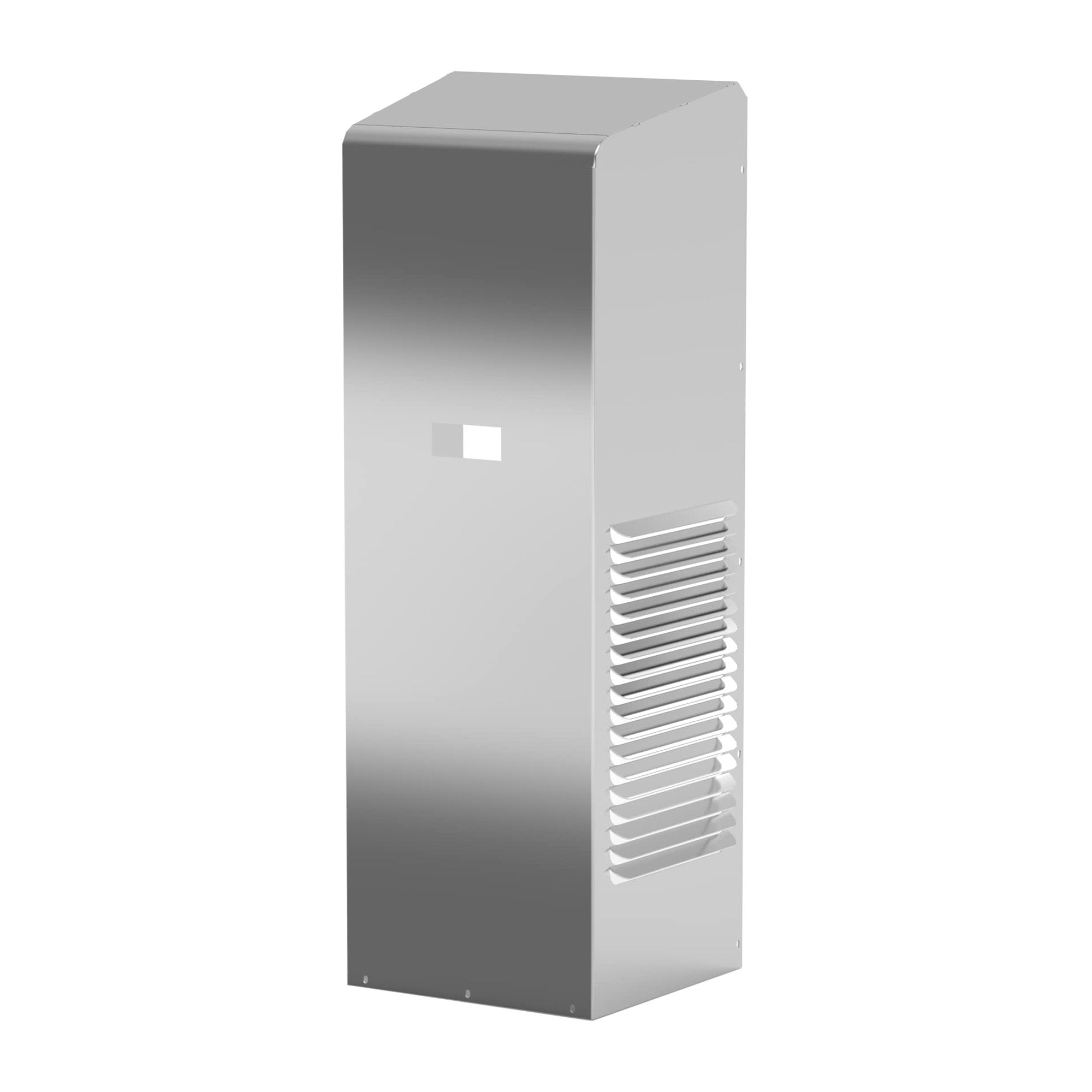

• Material: 304 Stainless steel

• Running Amps: 3.3
• Max. Ambient Temp.: 134°F
• NEMA Type: 4X

• Unit Weight (lbs): 60
• Shipping Weight (lbs): 79
• Product Series: NE Compact Series
• Product Type: Enclosure-mounted air conditioner
• Cooling Capacity: 2000 BTU/hr
• Application: Indoor / Outdoor enclosure cooling
• Mounting Type: Wall-mounted enclosure installation
• Power Supply: 115 V AC
• Phase: Single-phase
• Frequency: 60 Hz
• Rated Current: 3.3 A
• Cooling Technology: Compressor-based refrigeration
• Compressor Type: High-efficiency rotary compressor
• Temperature Control: Digital temperature controller
• Controller Features: Programmable set point, alarm messaging, system status indication, keypad lockout
• Maximum Ambient Temperature: 134 °F (56.7 °C)
• Condensate Management: Active condensate evaporation system
• Airflow: Forced internal and external airflow
• Cabinet Design: Fully insulated and sealed cabinet
• Expansion Device: Thermal expansion valve
• Unit Efficiency Features: Temperature-operated condenser fan for reduced power inrush
• Compressor Protection: High and low refrigerant cutouts, anti–short-cycle protection, thermal overload protection
• Housing Design: Rigid chassis with seam-welded shroud
• Body Style: Narrow body design
• Installation Orientation: Vertical
• Enclosure Protection Rating: UL Type 4X
• Housing Material: 304 stainless steel

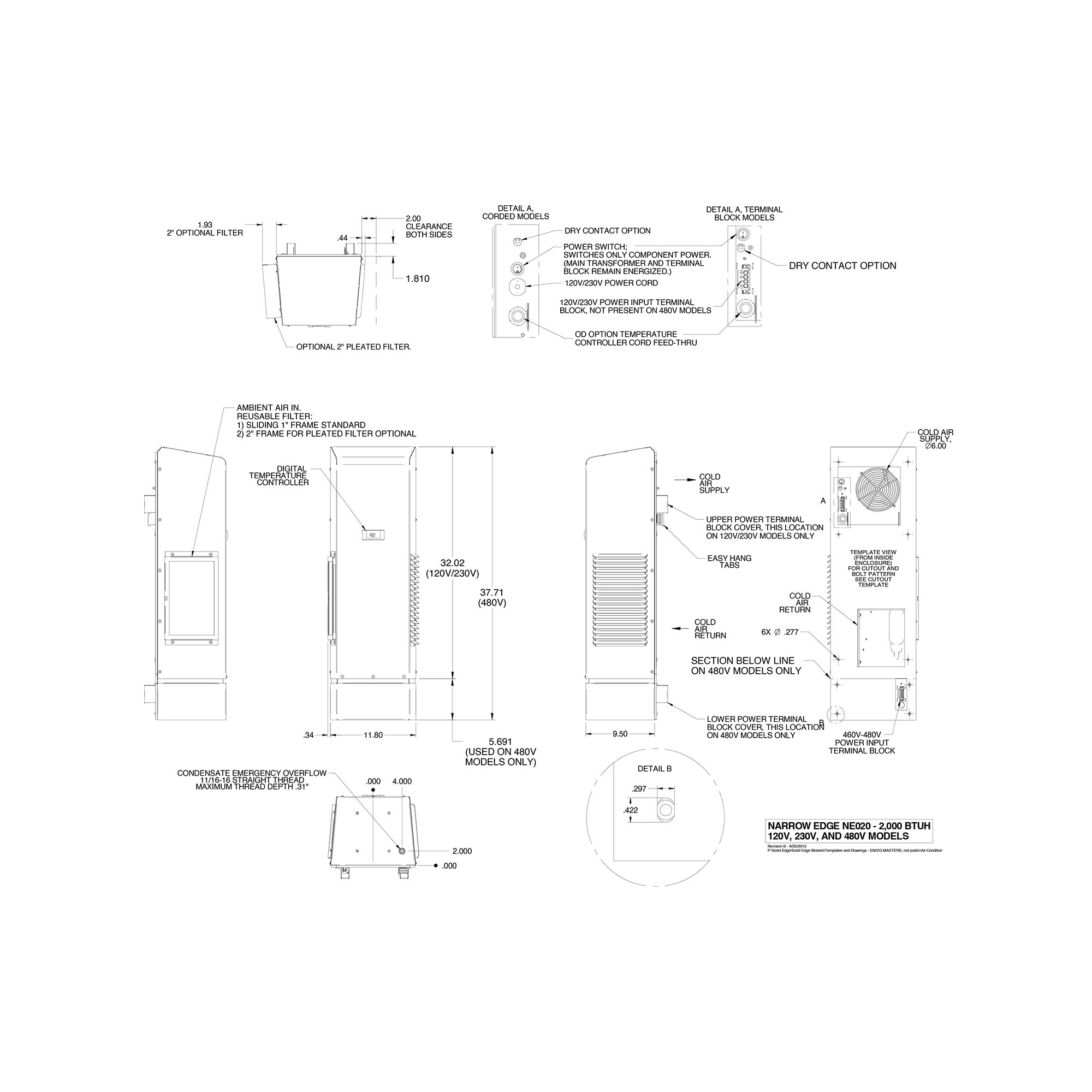

• Unit Dimensions (H × W × D): 32 in × 11.8 in × 9.5 in
• Unit Weight: 60 lb
• Certifications: UL Listed (File #SA32252)
• Warranty: 5-year warranty
• Typical Applications: Industrial control panels, harsh environment enclosures, food processing, petrochemical, steel, plastics
