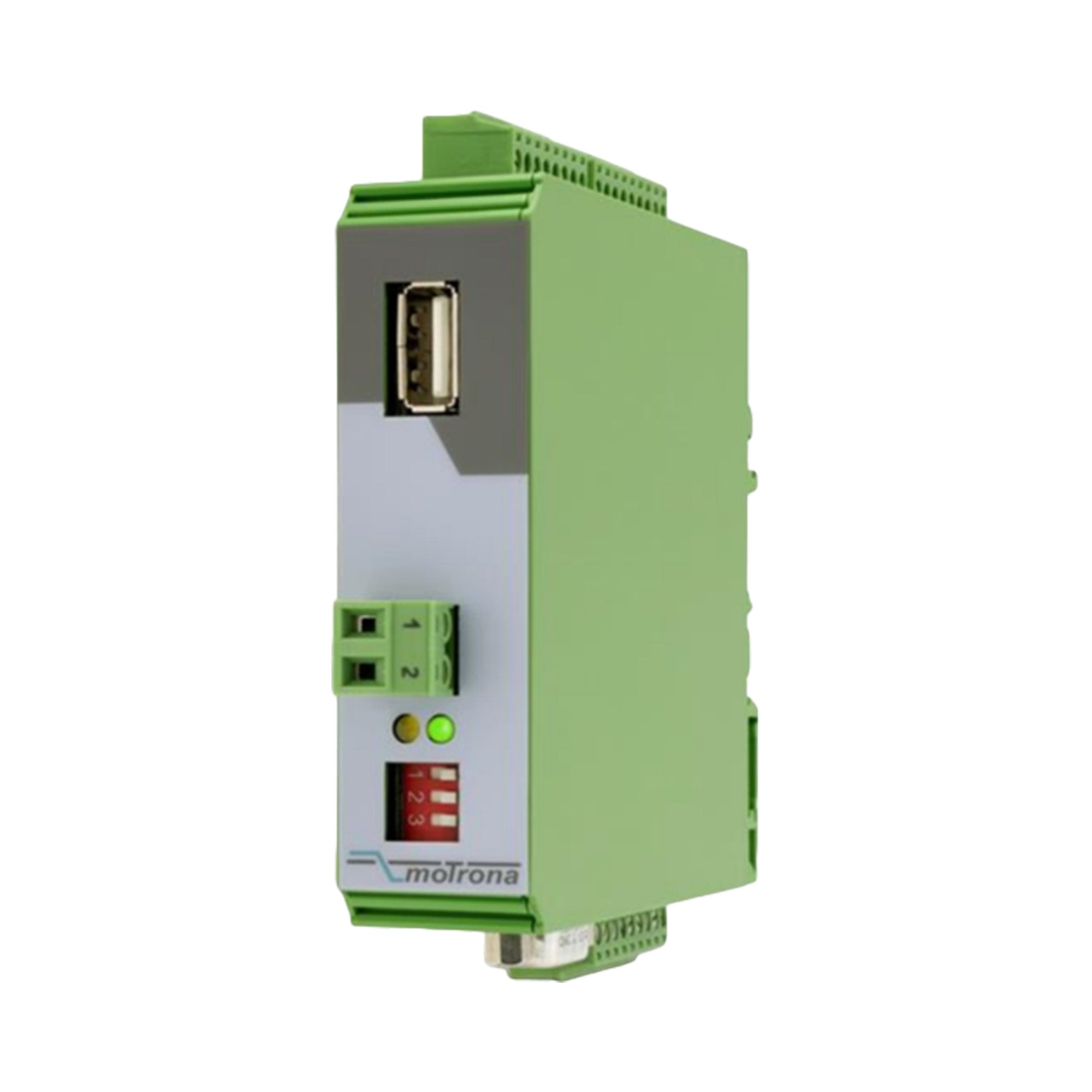

Motrona UZ210 Analog to Frequency Signal Converter

The UZ210 is an analog-to-frequency signal converter. This makes it ideal for use as a frequency generator. The input voltage can be variably adjusted using a potentiometer. This makes it possible to generate various frequencies with the UZ210.

The ability to use the UZ210 as a frequency generator is particularly suitable for a simple and quiet setup in laboratory experiments or for maintenance. The major advantage is that it can replace an entire drive unit consisting of a motor, motor controller, and encoder.

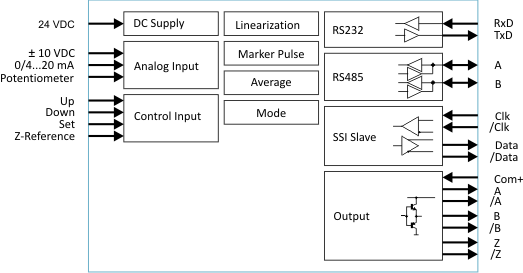

These small, cost-effective, yet extremely powerful f/I and f/U converters are designed for control cabinet installation. They convert standard analog signals (V or mA) into an incremental (HTL, RS422/TTL), absolute (SSI), or serial (RS232/RS485) output format. The converters shown below can be quickly and easily mounted on a DIN rail in the control cabinet using snap-on mounting.

Features

• Scalable 14-bit analog input for ±10 V or 0/4 ... 20 mA
• 4 control inputs for PNP signals [10 ... 30 VDC]
• Pulse output in format A, B, 90° [HTL] or A, /A, B, /B, Z, /Z [RS422]
• SSI output in format DATA+, DATA-, CLOCK+, CLOCK- up to 25 bits
  Power supply 12 ... 30V DC
• Compact housing for mounting on 35 mm DIN rail
  (According to EN 60715)
• Various operating modes: freely programmable V/f characteristic, options for generating repetitive frequency sequences, and motor potentiometer function
• USB, RS232 / RS485 interface for programming and serial reading of voltage, frequency and other internal registers
• Programmable filter function and specification options for any linearization characteristics
• Printer mode for automatic data transfer of the internal registers to a data logger or PC

Specifications

• Power Supply: 12 … 30 VDC

• Power Supply: Reverse polarity protection

• Power Supply: ≤ 10 % ripple at 24 VDC

• Power Supply: Approx. 50 mA (Unloaded)

• Power Supply: Screw terminal, 1.5 mm² / AWG 16

• Analog Input: Voltage input -10 … +10 V / 0 … 10 V

• Analog Input: Current input 0 … 20 mA / 4 … 20 mA

• Analog Input: Internal resistance Ri ≈ 120 kΩ (Voltage), 100 Ω (Current)

• Analog Input: Resolution 14 bit

• Analog Input: Accuracy 0.1 %

• Analog Input: Update-time 100 μs

• Analog Input: Max input frequency 1 kHz

• Analog Input: VREF ≈ 4.8 V, Ri ≈ 240 Ω

• Control inputs: Number of inputs 4

• Control Inputs: PNP, active high

• Control Inputs: Signal levels LOW 0 … 3 V, HIGH 10 … 30 V

• Control Inputs: Input current approx. 2 mA

• Incremental Output: Channels A, /A, B, /B, Z, /Z

• Incremental Output: Signal levels 5 … 30 V or TTL/RS422

• Incremental Output: Frequency range 0.01 Hz … 1 MHz

• Incremental Output: Output current max. 30 mA

• Incremental Output: Push-pull, short circuit proof

• Incremental Output: Reaction time < 260 µs

• SSI interface: 10 … 25 bit, binary or Gray, max. 1 MHz

• Serial Interface: RS232 or RS485, various baud rates up to 115200

• USB Interface: USB 2.0

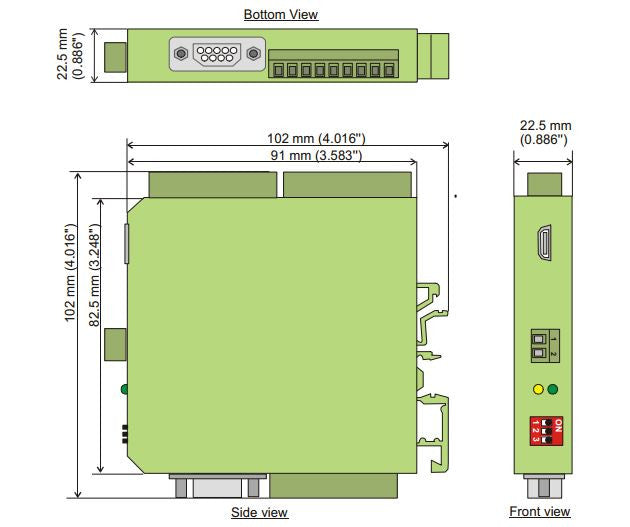

• Housing: Plastic, 22.5 x 102 x 102 mm, IP20, 35 mm DIN rail mount

• Weight: Approx. 100 g

• Temperature Range: Operation 0 … 45 °C, Storage -25 … 70 °C

• Standards: EMC 2014/30/EU, RoHS 2011/65/EU & 2015/863, EN 61326‑1, EN 55011, EN IEC 63000
