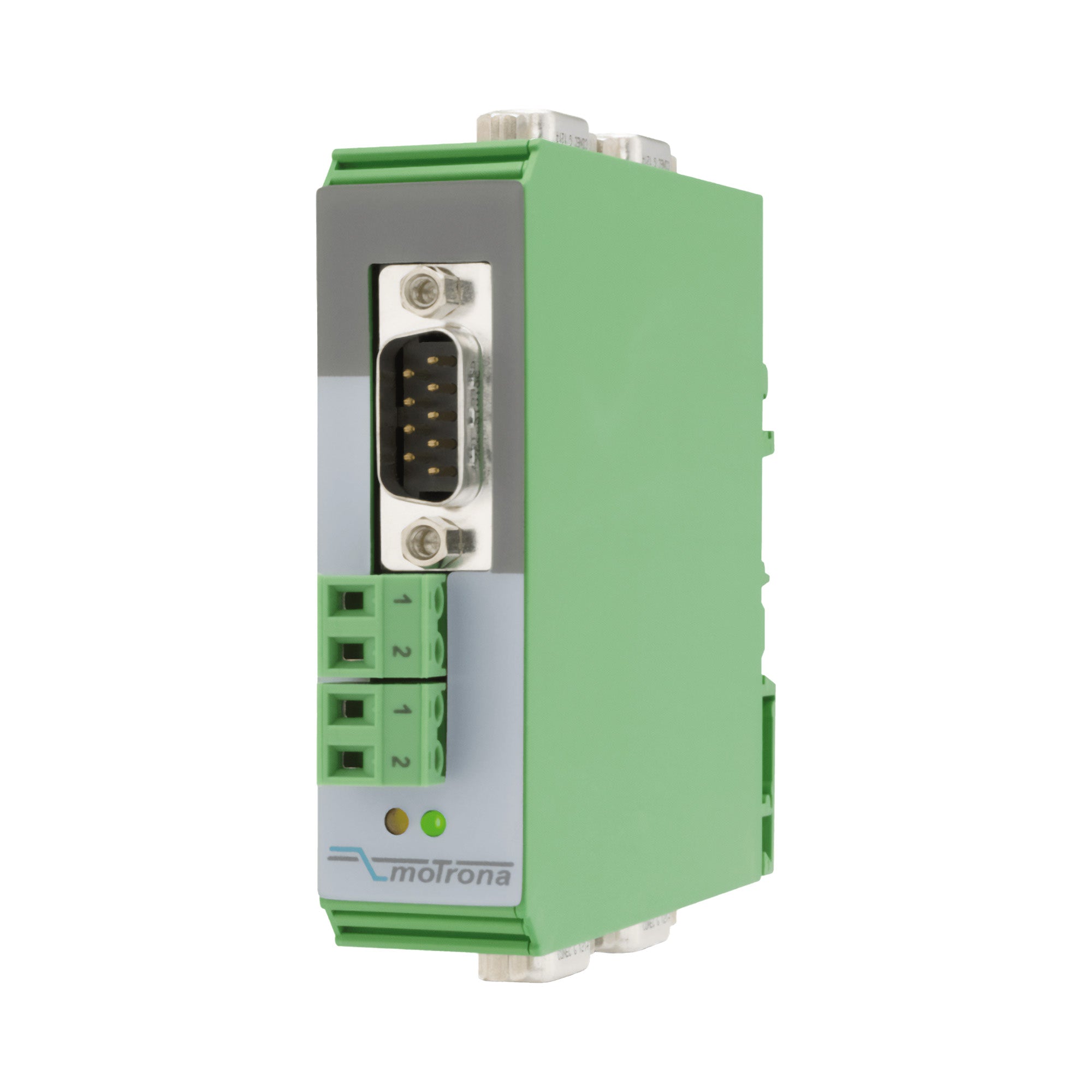

Motrona SV211 Signal Splitter for Absolute Encoders 1 Input 4 Outputs

The SV211 quadruple pulse distributor is used to distribute the signals from encoders and measuring systems with sine-cosine output cleanly and reliably to up to four end devices with SinCos input.

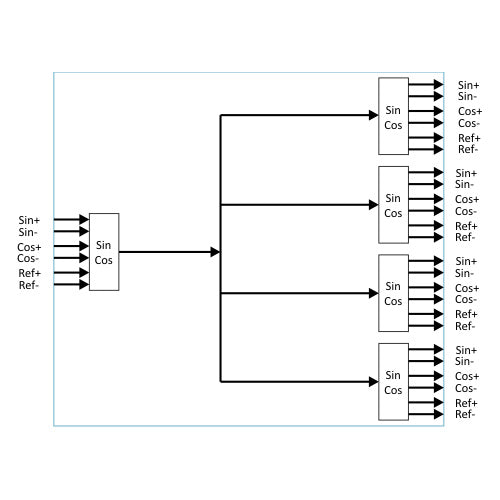

The distributor delivers SinCos signals to all four outputs that correspond to those at the input. This also includes the distribution of an index or reference pulse, if one is available on the encoder side. Both input and output signals use the 1 Vpp voltage format common to commercially available SinCos encoders.

Features

• 1 encoder input in the format SIN+, SIN-, COS+, COS-, REF+, REF- [1 Vpp]
• Maximum sine input frequency 500 kHz with conversion time of max. 200 ns
• 4 signal outputs in the format SIN+, SIN-, COS+, COS-, REF+, REF- [1 Vpp]
• Power supply 17 ... 30 VDC
• Compact housing for mounting on 35 mm DIN rail (according to EN 60715)
