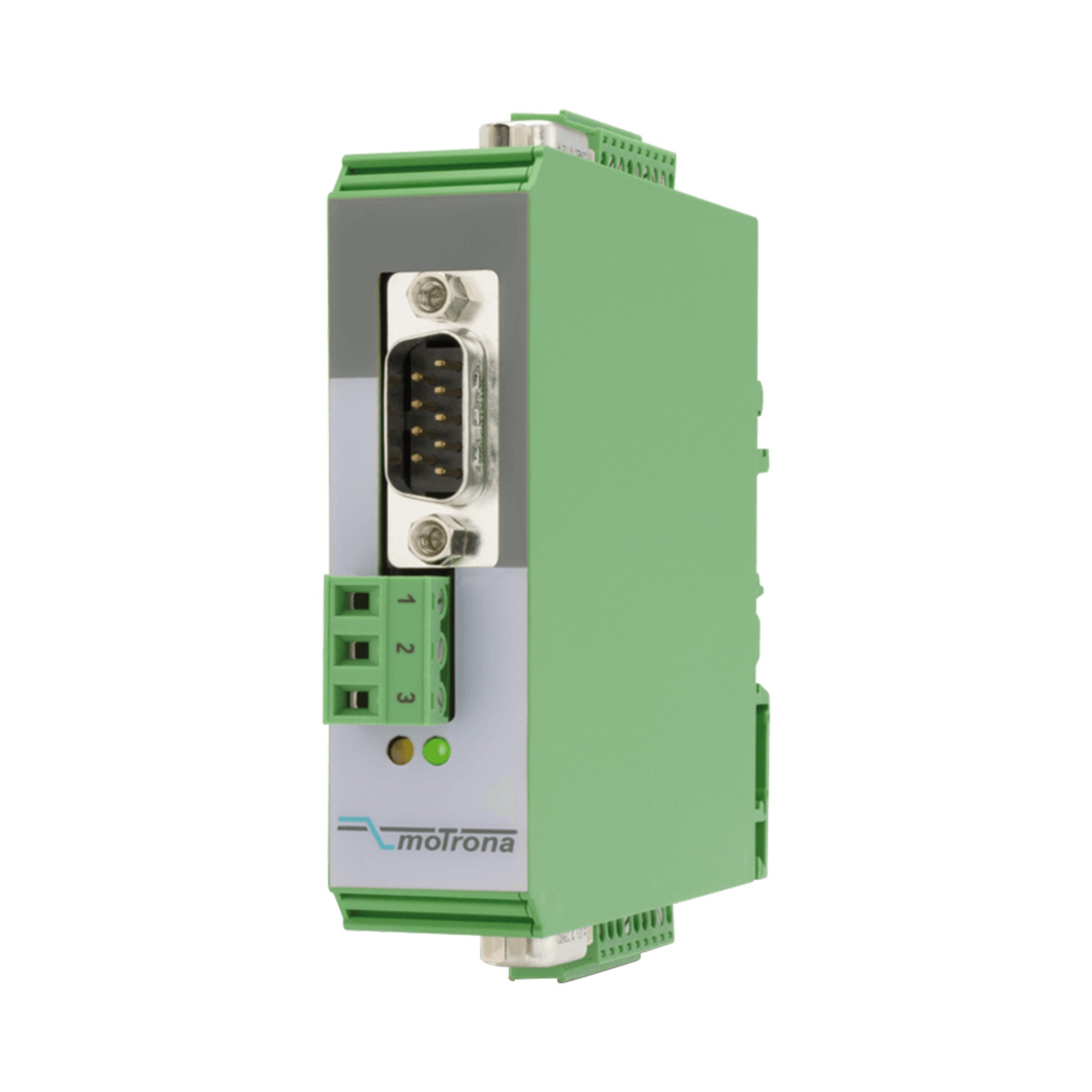

Motrona SV210 Signal Converter Absolute Encoder Input with Absolute or Pulse Output

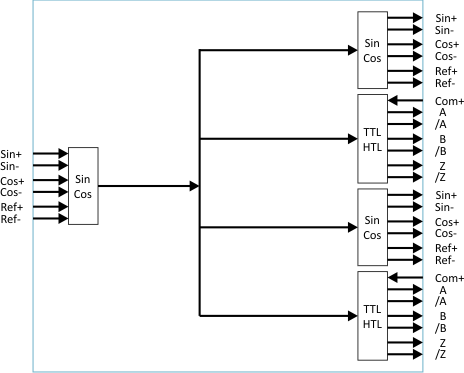

The SV210 signal converter is used to quickly and precisely convert the signals of so-called SinCos encoders and measuring systems into incremental signals. Since the SV210 features two SinCos outputs and two incremental outputs (HTL or TTL/RS422), the connected devices can be controlled either with SinCos signals or with incremental pulses.

Features

• 1 encoder input in the format SIN+, SIN-, COS+, COS-, REF+, REF- [1 Vpp]
• Maximum sine input frequency 500 kHz with conversion time of max. 200 ns
• 2 signal outputs in the format SIN+, SIN-, COS+, COS-, REF+, REF- [1 Vpp]

• Compact housing for mounting on 35 mm DIN rail (according to EN 60715)


Specifications

• Product Type: Signal splitter and incremental converter for SinCos encoders

• Input Signal Format: SIN+, SIN-, COS+, COS-, REF+, REF- (1 Vpp)
• Sine/Cosine Outputs: 2 channels, same format as input (1 Vpp)
• Incremental Outputs: 2 channels, A, /A, B, /B, Z, /Z
• Output Signal Levels: TTL/RS422 or HTL (10–30 V) selectable
• Maximum Input Frequency: Up to 500 kHz
• Encoder Supply Output: Internally generated 5.2 VDC or externally selectable 5–30 VDC
• Encoder Supply Output Current: Max. 150 mA
• Power Supply Voltage: 17…30 VDC (Ripple ≤ 10 % @ 24 VDC)
• Protective Circuit: Reverse polarity protection
• Power Consumption: Approx. 70 mA (Unloaded)
• Sine/Cosine Input Amplitude: 0.8…1.2 Vpp
• Sine/Cosine Input Offset: 2…3 VDC
• Input Terminating Resistors: Integrated 120 Ω
• Incremental Output Logic: Push-pull
• Incremental Output Current: Max. 30 mA per channel
• Incremental Signal Delay Time: Approx. 200 ns
• Incremental Output Protection: Short-circuit proof
• Connections: SUB-D male/female and screw terminal (1.5 mm² / AWG 16)
• Housing Material: Plastic
• Mounting Type: 35 mm top-hat DIN rail (EN 60715)
• Dimensions (W × H × D): 22.5 × 102 × 102 mm
• Protection Class: IP20
• Weight: Approx. 100 g
• Ambient Operating Temperature: 0 °C … +45 °C (Non-condensing)
• Storage Temperature: -25 °C … +70 °C (Non-condensing)
• Standards / Compliance: EN 61000-6-2, EN 61000-6-3, EN 61000-6-4, EN 61326-1; RoHS compliant
• Typical Applications: Distribution and conversion of SinCos encoder signals to incremental outputs for industrial automation systems
