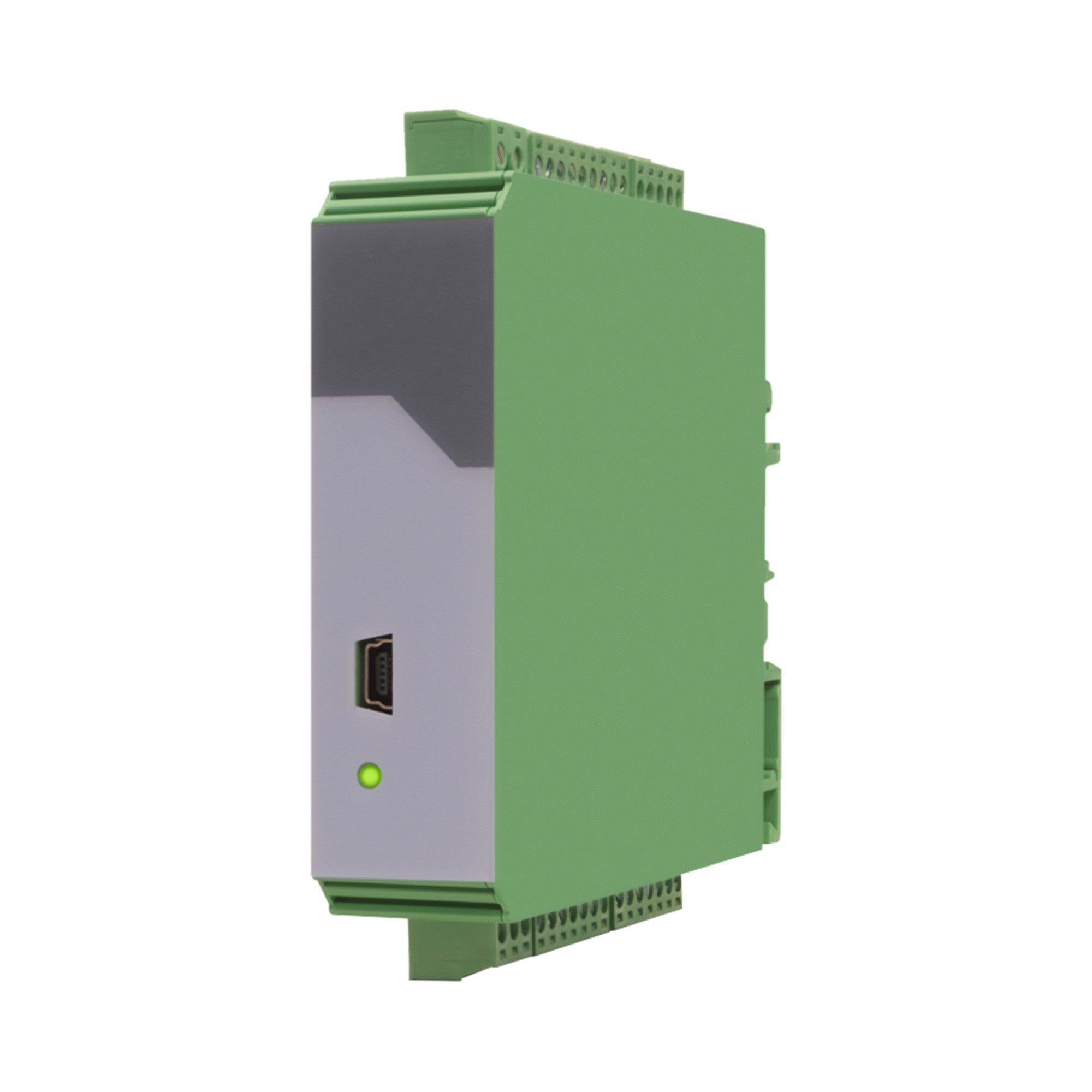

Motrona PV210 Start Stop Signal Converter for Absolute Position Transducers Analog/Serial Output

In addition to displays with start-stop interfaces, moTrona also offers signal converters for converting transsonar signals. The portfolio includes converters that convert transsonar start-stop signals into analog, serial, or parallel signals. Like all our measuring transducers, these devices ensure excellent conversion times and precise signal conversion. They combine these features in a compact and space-saving housing.

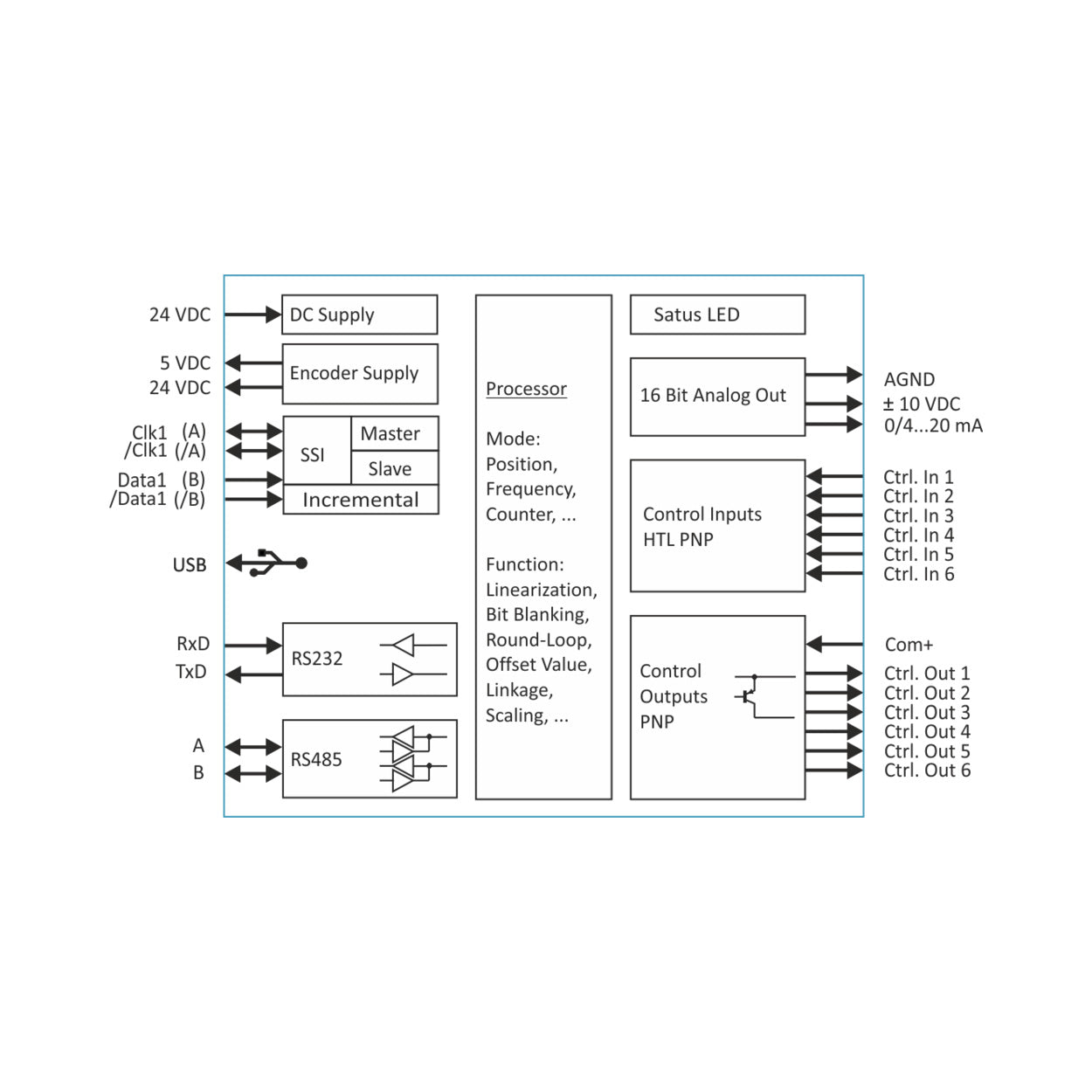

The PV210 signal converter features a start/stop input. It converts incoming transient signals extremely quickly into standard analog signals (±10 V, 0/4 ... 20 mA). The PV210 is extremely flexible in its application, as it features six control inputs and six outputs. Linearization is also possible using 24 control points.

Features

• Start-stop interface for absolute position transducers and magnetostrictive sensors
• Adjustable frequency of the init pulses from 62.5 Hz to 5 kHz
• Analog output ±10 V, 0/4 ... 20 mA, 16 bit
• Compact housing for mounting on 35 mm DIN rail (according to EN 60715)
• Simple parameterization via user interface OS6.0 Serial RS232 / RS485 interface
• Pulse inputs A, B [HTL], A, /A, B, /B [RS422, HTL]
• SSI input DATA+, DATA-, CLOCK+, CLOCK- [RS422], 32 bit
• USB interface and RS232/RS485 interface for configuration and serial readout

Specifications

• Product Model: PV210

• Function: Start-stop/transonic signal converter to analog/serial

• Power supply – Input voltage: 18 … 30 VDC

• Power consumption: approx. 50 mA

• Start-stop/Transonic input frequency: 62.5 Hz to 5 kHz

• Analog output: ±10 V, 0/4 … 20 mA, 16 Bit

• Serial interface: RS232 / RS485

• Encoder/auxiliary supply: 5 VDC and 24 VDC

• Housing – Mounting: 35 mm DIN rail (EN 60715)

• Dimensions (W × H × D): 22.5 × 102 × 102 mm

• Protection class: IP20

• Operating temperature: -20 °C to +60 °C

• Conformity: EMC 2014/30/EU, RoHS
