Motrona PU202 Level Converter Incremental HTL to Differential TTL and RS422

PU202 is a level converter that converts incremental HTL pulses (10 ... 30 VDC) into a differential TTL and RS422 format (including inverted signals). At the same time, the device is able to convert various rotation information into the standard A, B, with 2 x 90° phase shift, as required by most end devices.

Thus, for example, some encoder systems or PLC positioning cards provide single-track pulse information and a statically applied rotation information. Other systems use two separate lines to provide forward and reverse pulses. The PU202 level converter is capable of converting such position-direction information into a corresponding phase-offset A / B information. The device has no potential separation.

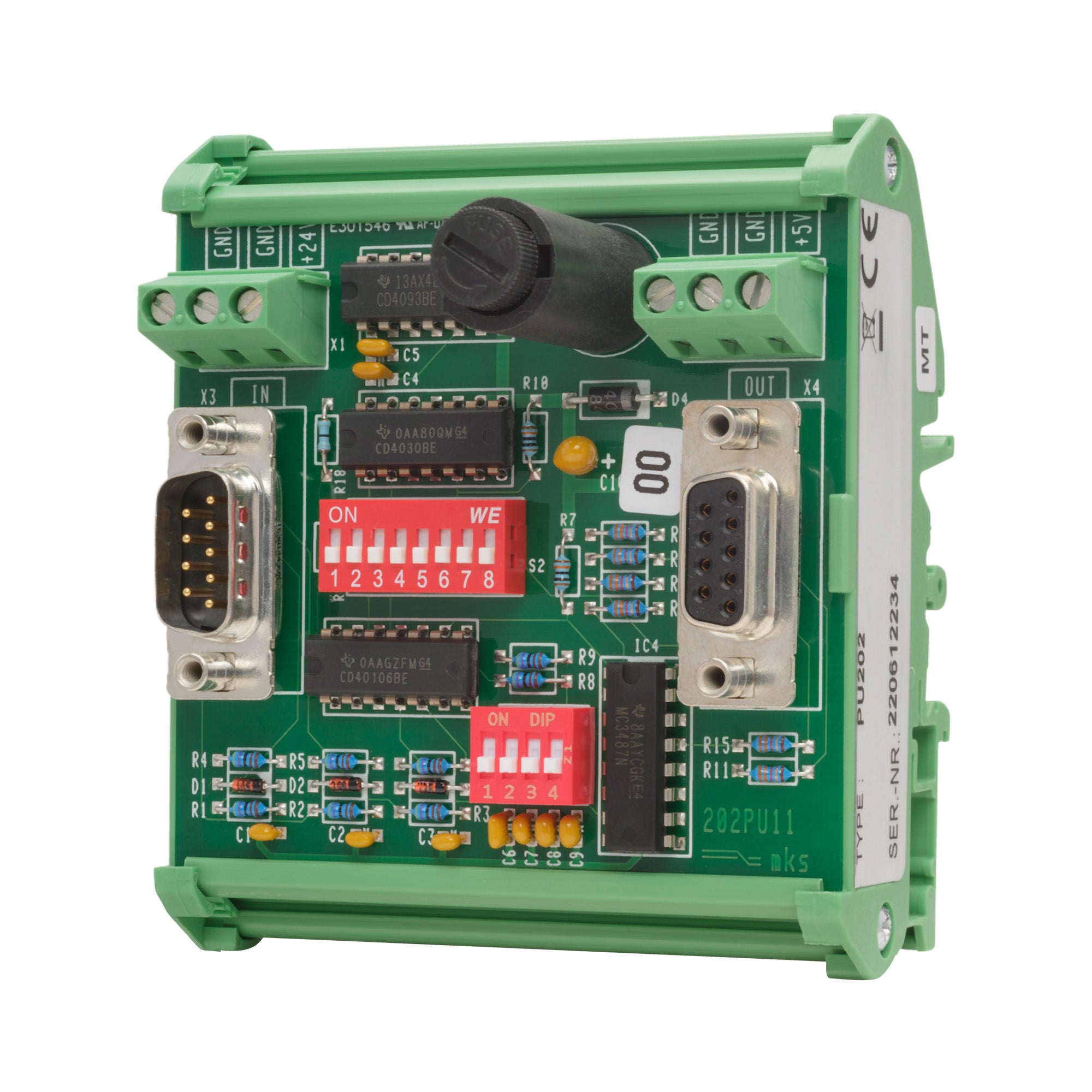

The signal converter is supplied in an open print design in the plastic frame with a snap on device for DIN rail mounting.

Features

• Pulse input with format A, B, Z [HTL] (10 ... 30 V)
• Input frequency max. 200 kHz
• Pulse output with format A, /A, B, /B, Z, /Z [RS422 / TTL]
• Power supply 5 VDC
• Converts HTL levels (A / B / Z) in TTL / RS422, incl. the inverted signals
• Converts also static / separate directional information into a dual channel A / B signal with 90° phase shift
• Open print version with plastic snap on housing for top hat rail
  (according to EN 60715)

Model Numbers
PU 202     Level Converter HTL to TTL-RS422
PU 204     Level Converter TTL-RS422 to HTL
