Motrona PS641 Single Axis Position Controller with 4 Relay Outputs

The PS641 programmable single-axis positioning controller, like the variant PS340, has a very short lag control as well as intelligent calculation algorithms. These ensure the highest precision in all single-axis applications with electrical or hydraulic 4-Q actuators with a ±10 V setpoint input. Further features are a super-smooth run with maximum protection of the mechanics by means of a self-optimizing polynomial movement profile, as well as different operating modes, eg for absolute and relative positions (chain dimension) or grinding operation.

Compared to the PS340 the PS641 is delivered in a larger standard housing (outside dimensions 96 x 96 x 140 mm / 3.78. x 3.78 x 5.51"). Thanks to its larger design, this control unit also has 4 potential-free changeover relay outputs as well as a BCD decade switch on the front for the direct specification of the chain dimension.

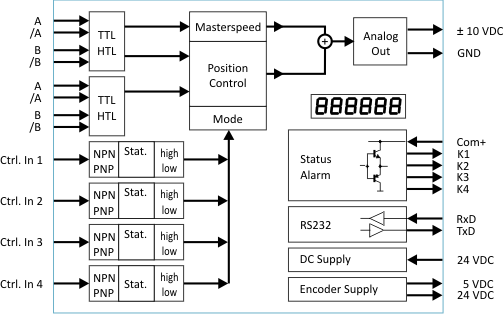

Features

• 2 pulse inputs with format A, B, 90° [HTL] or A, /A, B, /B [RS422]
• 4 control inputs for HTL / PNP / NPN / Namur signals [10 ... 30 VDC]
• Input frequency up to 300 kHz
• 4 fast transistor outputs, push-pull, short-circuit-proof [5 … 30 VDC]
• 1 scalable 14 bit analog output (±10 V or 0/4 … 20 mA)
• Loop time approx. 250 µs
• Defining incremental dimensions via keyboard or BCD decade switch on the front
• Power supply 24 VAC and 17 … 40 VDC
• Compact norm panel housing (according to EN 60715)
• Top hat rail mounting by using SM600 support brackets (option)
• Setup via keys or via PC by serial RS232 interface
• PROFIBUS connection via moTrona gateway PB251
• Dimension 96 x 96 x 140 mm (3,78 x 3,78 x 5,51")
