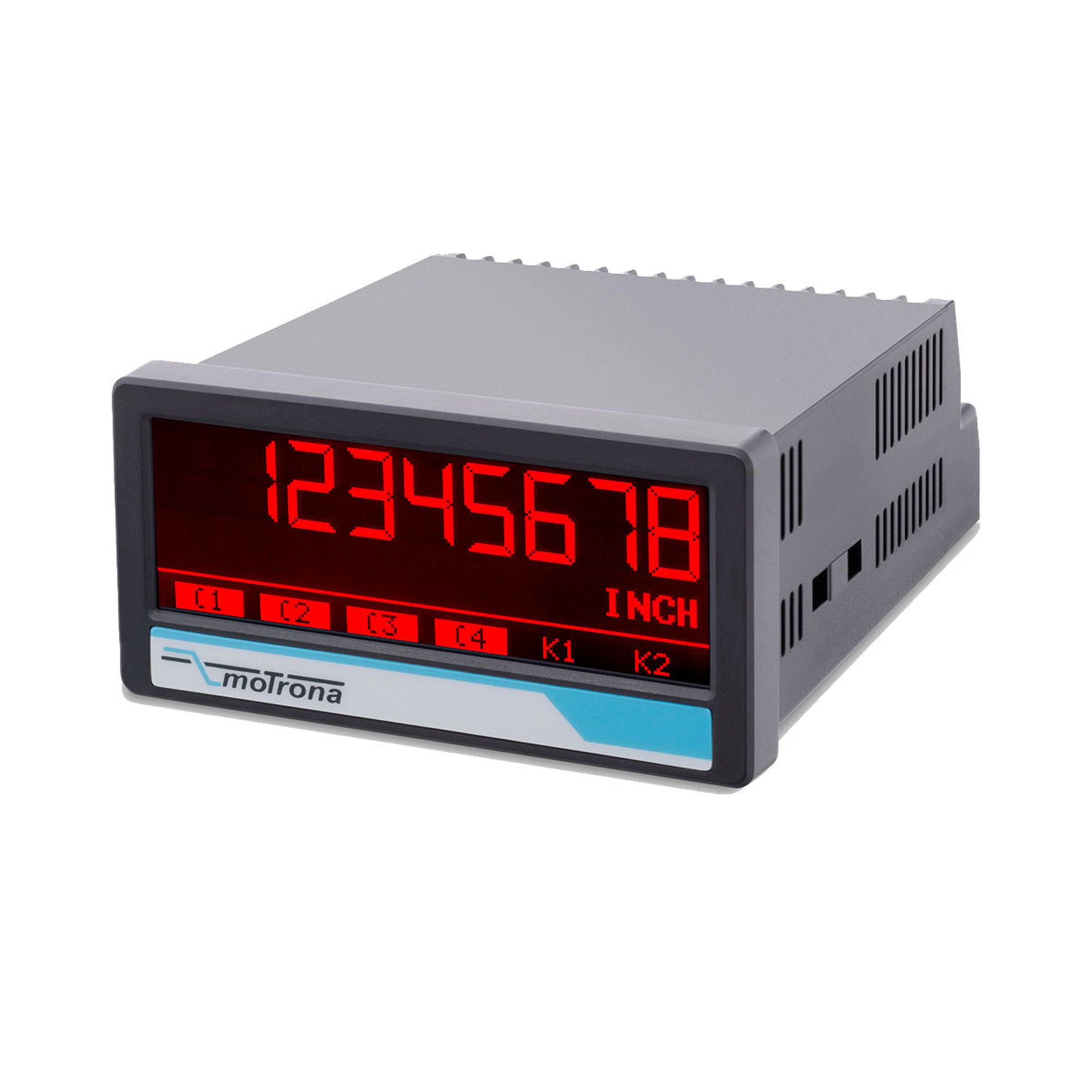

Motrona PN350 PROFINET Indicator

The PROFINET indicator PN350 can record, calculate, evaluate, display and pass on process data. The interfaces also enable the configuration and scaling of the device during the transmission of status information during operation. It is ideally suited as an on-site indicator with a resistive touchscreen and multi-color graphic display (red, green, yellow).

Also available with EtherCAT or EtherNet/IP interface on request.

Features

• PROFINET interface
• 3 control inputs for remote release
• Power supply 18 ... 30V DC
• Norm panel housing with 96 x 48 mm and protection class IP65
• Bright and high-contrast graphic display with event-dependent color variants
• Emulation of a 7-segment display with symbols and units
• Intuitive and simple parameterization through plain text and touchscreen

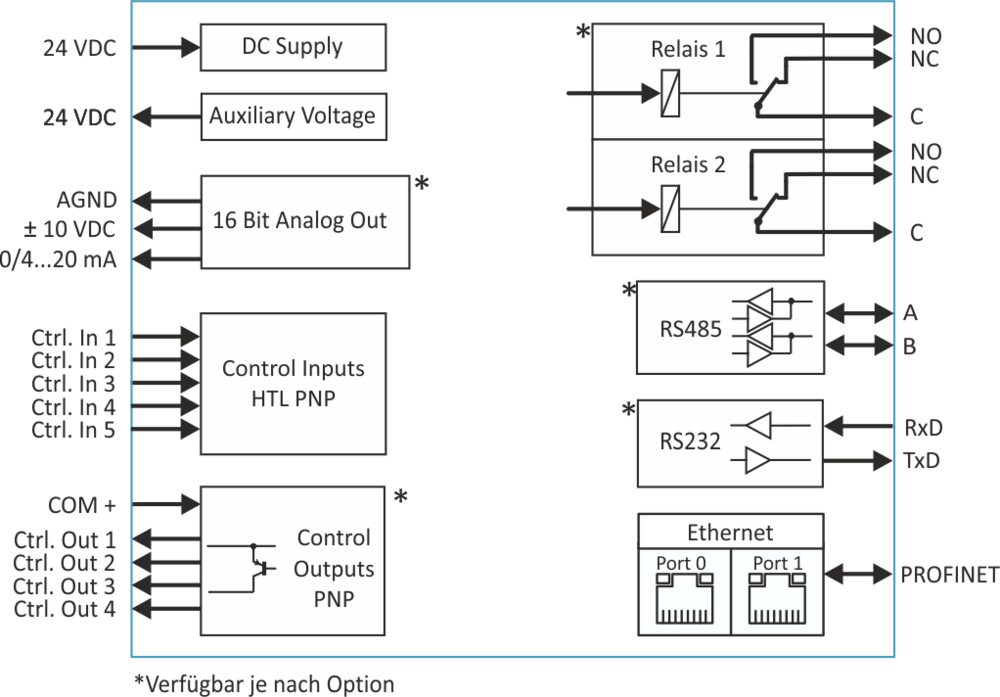

Options

Option AC:   Power supply 115 ... 230V AC
Option AO:  16 bit analog output, 4 control outputs, serial RS232 interface
Option AR:   16 bit analog output, 4 control outputs, serial RS485 interface
Option CO:   4 control outputs, serial RS232 interface
Option CR:   4 control outputs, serial RS485 interface
Option RL:    2 relay outputs
Option IO:    IO-Link Device V1.1

Options can be combined and MUST be ordered at the time of purchase.  They are custom modification made at manufacture.  PLEASE CONTACT US FOR A QUOTE.
