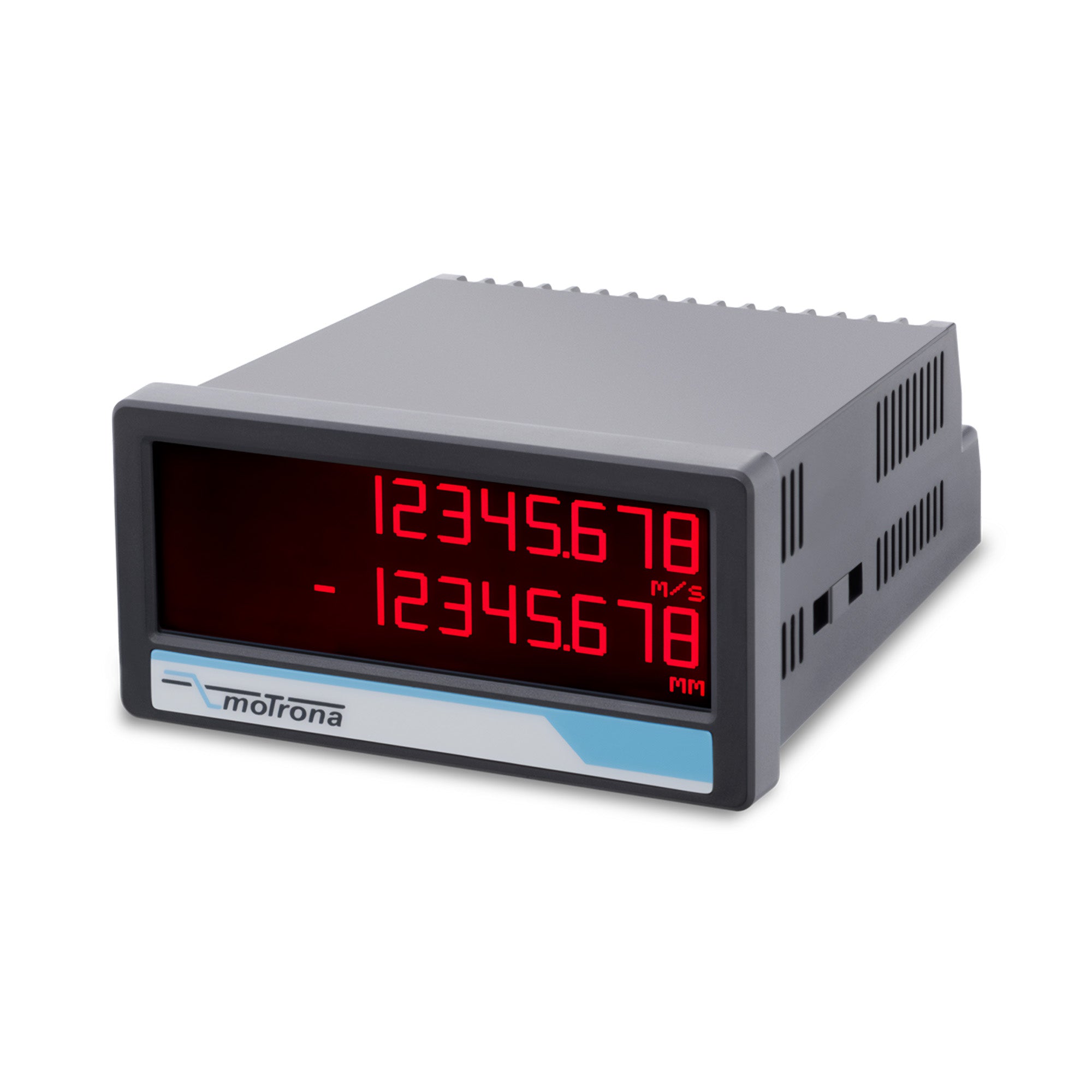

Motrona MX350 Digital Combination Indicator Speed / Length (Quantity)

The MX350 is the innovative combination of counter and frequency display. It has the ability to simultaneously display two sizes from different measurement methods. Thus, the device is usable for simultaneous acquisition and display of two factors, such as speed and length (quantity). In addition, the device can handle an input frequency up to 250 kHz. The MX350 also offers other useful functions such as linking both channels (A+B, A-B, …), linearization, scaling, filtering and start-up suppression.

The function of the double display for displaying two measured values is also integrated in the touchMATRIX® devices DX350 and AX350.

Features

• Multifunction unit with operating modes for incremental encoders (tachometer, pulse counter, position indicator)
  - Operating modes as frequency display and / or position display (pulse counter)
  - Universal incremental inputs (HTL / TTL / RS422) for NPN / PNP / NAMUR   encoders and sensors
  - Functions such as links (eg A+B, A-B, ...), scaling, filters, start-up delay,
• Bright and high-contrast display with event controlled color variations
• Emulation of a 7-segment display inclusively icons and units
• Intuitive and easy parameterization by plain text and touchscreen
• 5 / 24 V auxiliary output for encoder supply
• Input frequencies up to 1 MHz
• Linearization with 24 interpolation points
• 96 x 48 mm (3.78 x 1.89 inch) norm panel housing and IP65

Model Numbers

MX350:  Basic unit with HTL inputs (A, B), 3 control inputs
MX355: Basic unit with HTL/RS422 inputs (A, /A, B, /B), 3 control inputs

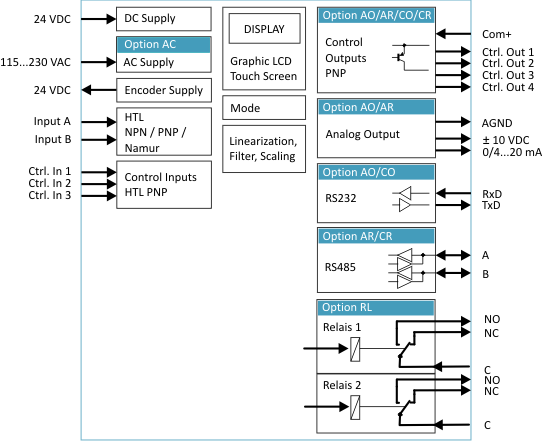

Options

Option AC:   Power supply 115 ... 230V AC
Option AO:  16 bit analog output, 4 control outputs, serial RS232 interface
Option AR:   16 bit analog output, 4 control outputs, serial RS485 interface
Option CO:   4 control outputs, serial RS232 interface
Option CR:   4 control outputs, serial RS485 interface
Option RL:    2 relay outputs

Options can be combined and MUST be ordered at the time of purchase.  They are custom modification made at manufacture.  PLEASE CONTACT US FOR A QUOTE.
