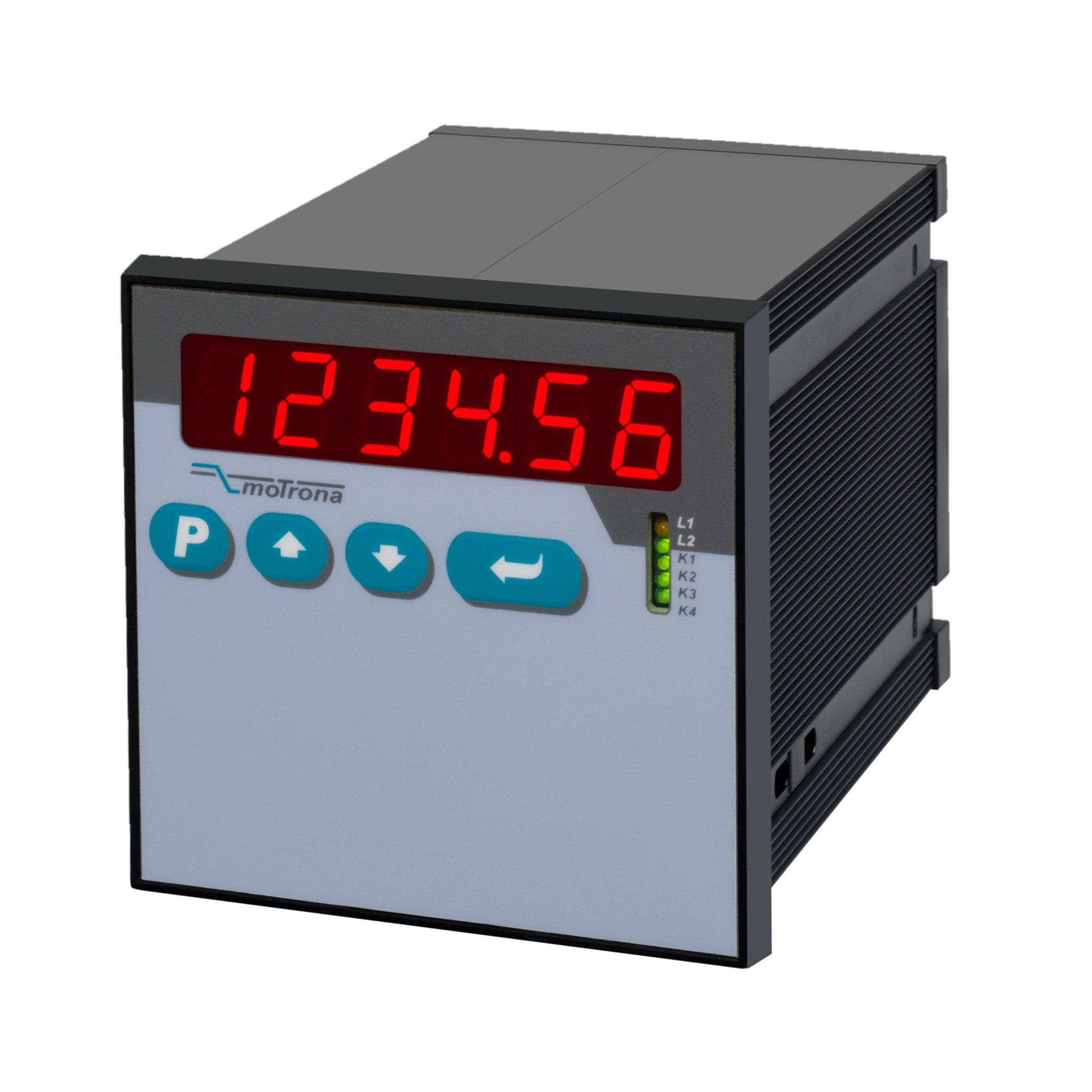

Name: Motrona MS640 Position Motion Monitor Secure Redundant Control of 2 Drive Systems
Brand: Genesis Automation
SKU: MS640
Price: 1237.00 USD
Availability: InStock

The reliable Motion Monitor MS640 provides a high degree of internal and external security. It is used for the logical and plausible monitoring of motor revolutions and the associated drive-side machine movements.

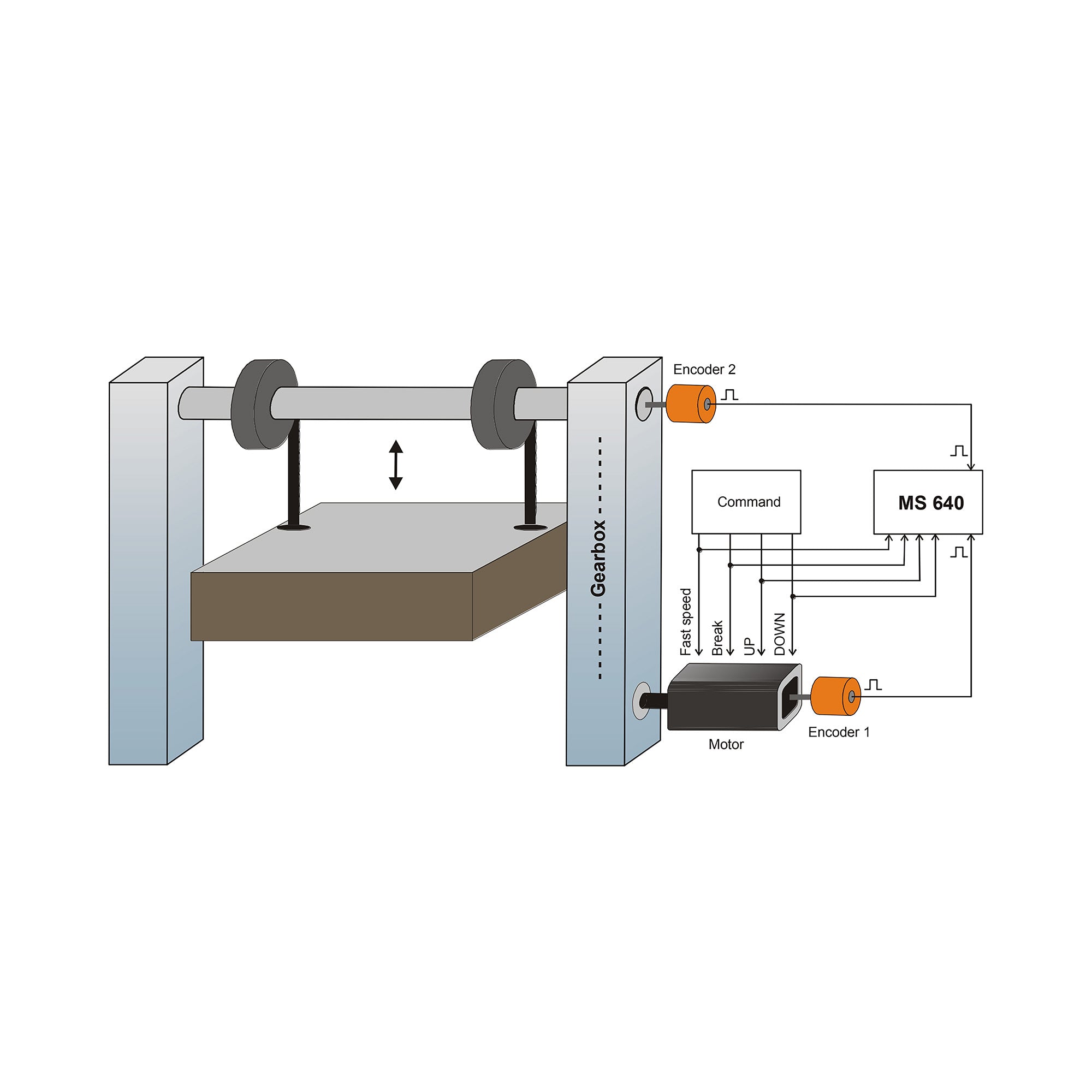

The device detects the actual states directly at the drive and at the periphery, compares these with the programmed setpoint states. If the movement is not plausible or if limit values ??are exceeded, the MS640 triggers the user-programmed fault message via the outputs. Furthermore, the monitor allows the permanent actual value detection on both rotary encoders (speed, direction of rotation, standstill, actual position and position difference).

The position monitors are able to determine actual values such as speed, direction of rotation and standstill and compare them with preset reference values. In the case of unwanted movement, the devices trigger a programmed fault message. These safety relays are thus suitable for monitoring and avoiding misalignment, shaft breakage, torsion and slippage.

The high frequency range, fast response and easy adjustability of the speed, direction and standstill parameters are some of the features that make our position monitors special.

Features

High level of external safety (Recognition of electrical or
mechanical errors in the machinery / sensor systems / wirings etc.)
High level of internal safety (detection of internal errors
and failures of the device components)

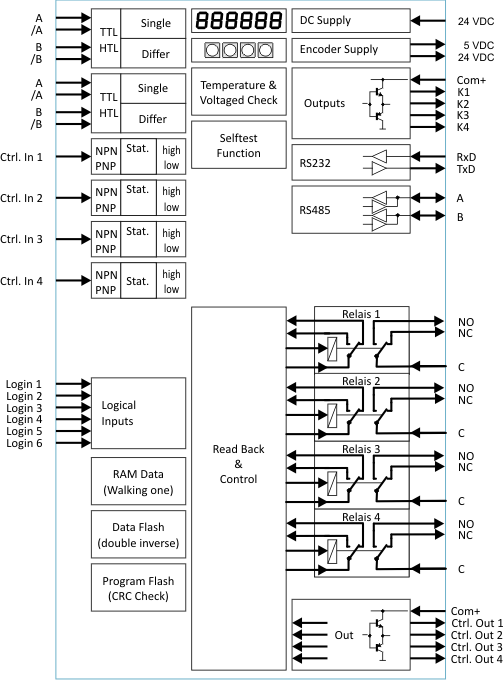

2 Pulse inputs with format A, B, 90° [HTL] or A, /A, B, /B [RS422]
4 control inputs for PNP / NPN / Namur signals [10 ... 30 VDC]
6 logical inputs for PNP signals [10 ... 30 VDC]
Input frequency up to 500 kHz
4 fast transistor outputs with push-pull characteristic, short-circuit-proof [5 ... 30 VDC]
4 forced-guided redundant output relays with potential free change-over contact
Serial interface RS232 and RS485
Power supply 24 VAC and 17 ... 40 VDC
Compact norm panel housing
6 digits LED display with 15 mm height
Display range -199999 ... 999999
Setup by keys or PC via serial RS232 Interface
Dimension B x H x T = 110 x 48 x 140 mm (4,33 x 1,89 x 5,51")
