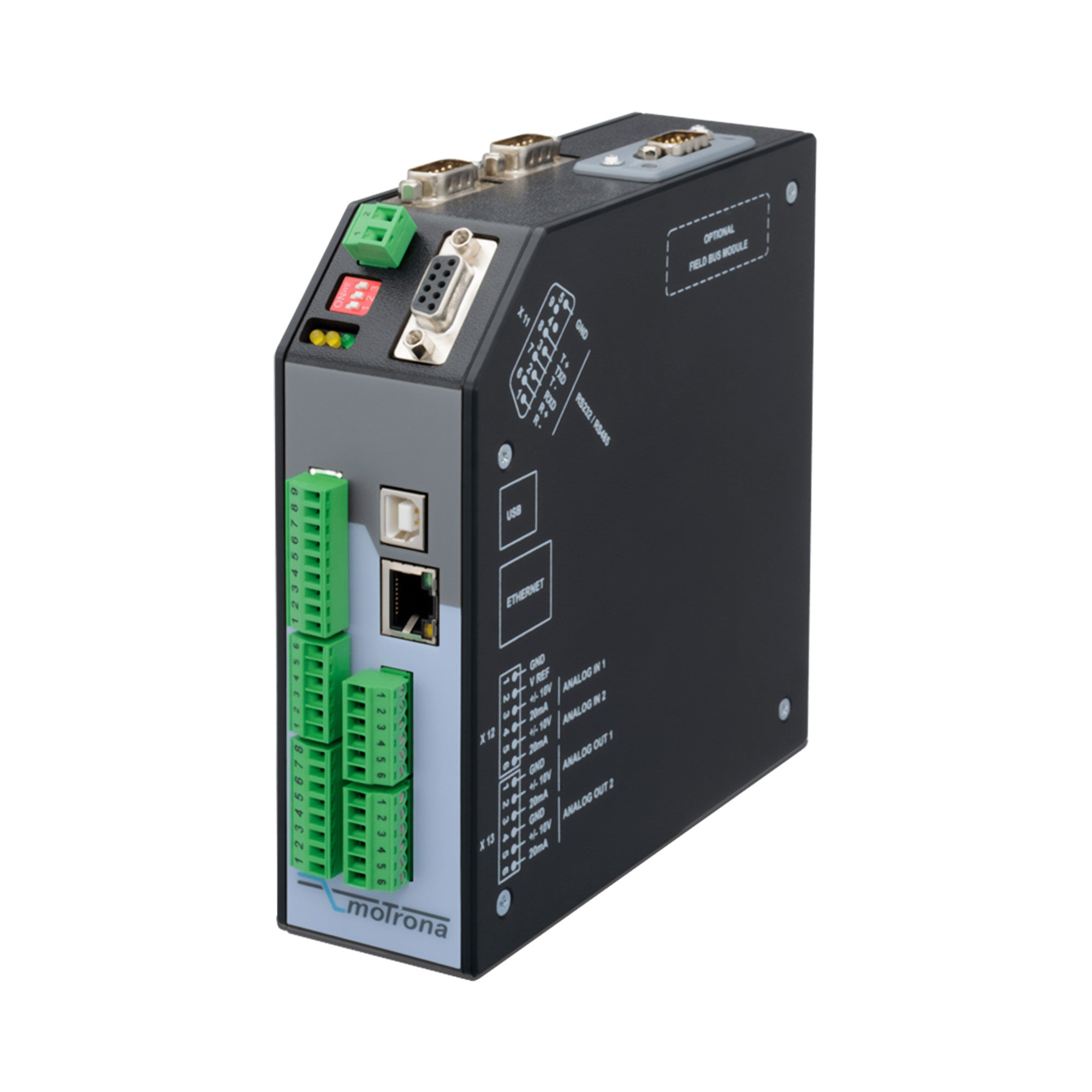

Motrona MC800 Multi-Axis Motion Controller with Integrated Tandem Drive Controller

The MC800 is a drive controller for up to 2 axes with an integrated tandem drive controller.

Application firmware offers a wide range of application possibilities, including synchronization control, index and print mark control as well as the control of rotary cross cutters and flying saws.

Thanks to optional interface modules, seamless integration into various networks such as CANopen, CC-Link, DeviceNet, EtherCAT, Modbus TCP, PROFIBUS, PROFINET and SERCOS-III is possible.

The axis dependencies can be freely assigned, allowing maximum flexibility in the control.

The control cascade extension supports control in the torque loop, whereby the tandem control ensures precise synchronization of two drives.

Features

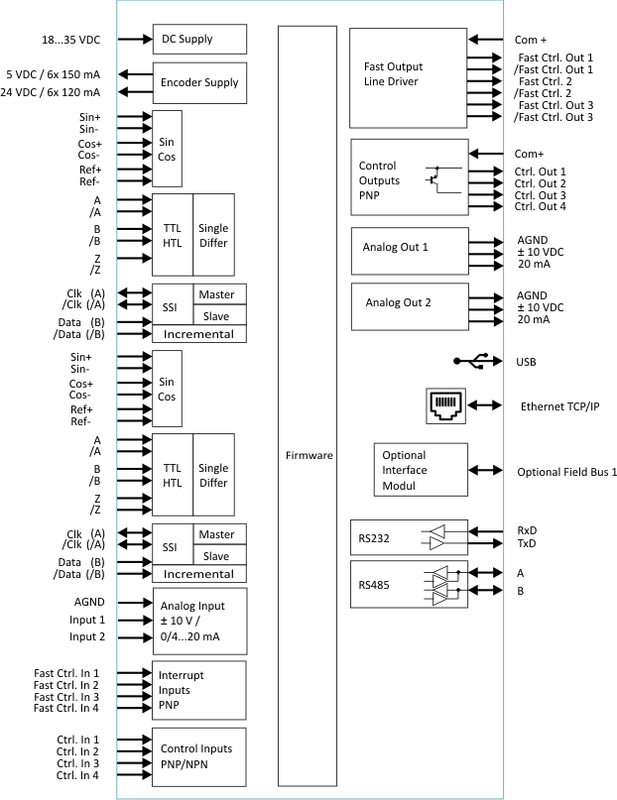

• 4 pulse inputs in format A, /A, B, /B [RS422]
• 2 scalable 14-bit analog inputs for ±10 V or 0/4 ... 20 mA
• 8 control inputs for PNP signals [10 ... 30 VDC]
• 2 scalable 14-bit analog outputs for ±10 V or 0/4 ... 20 mA
• Short position control cycles (depending on application)
• Power supply 18 … 35 VDC
• Compact housing for mounting on 35 mm DIN rail
  (according to EN 60715)
• Parameterizable using freely available Windows operating software
• Optional interfaces: CANopen, CC-Link, DeviceNet, EtherCAT, Modbus TCP, PROFIBUS, PROFINET and SERCOS-III
