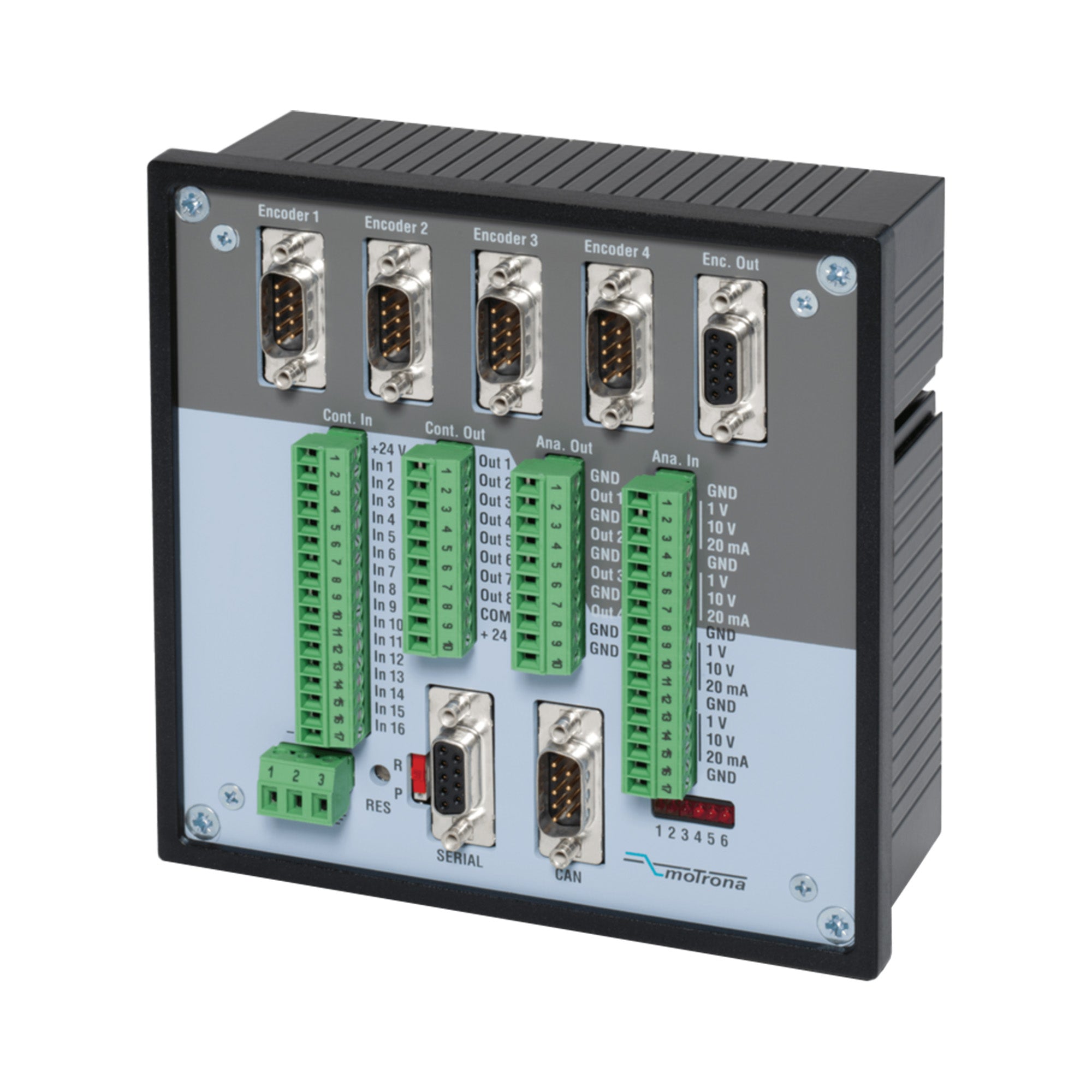

Motrona MC700 Universal Motion Controller for 1 to 4 Axes

The MC700 is a universal motion controller for 1 to 4 axes, to which numerous motion control functions can be assigned by loading appropriate firmware. moTrona has developed appropriate firmware for a wide range of applications in the areas of printing, punching, and labeling, and can therefore offer ready-made and proven solutions.

Features

• 4 pulse inputs in format A, /A, B, /B [RS422]
• 4 scalable 12-bit analog inputs for ±10 V or 0/4 ... 20 mA
• 8 control inputs for PNP signals [10 ... 30 VDC]
• 4 scalable 12-bit analog outputs for ±10 V or 0/4 ... 20 mA
• Short position control cycles (depending on application)
• Power supply 18 … 35 VDC
• Compact housing for mounting on 35 mm DIN rail
  (according to EN 60715)
• Parameterizable using freely available Windows operating software
• Onboard interfaces: RS232 and CANopen
