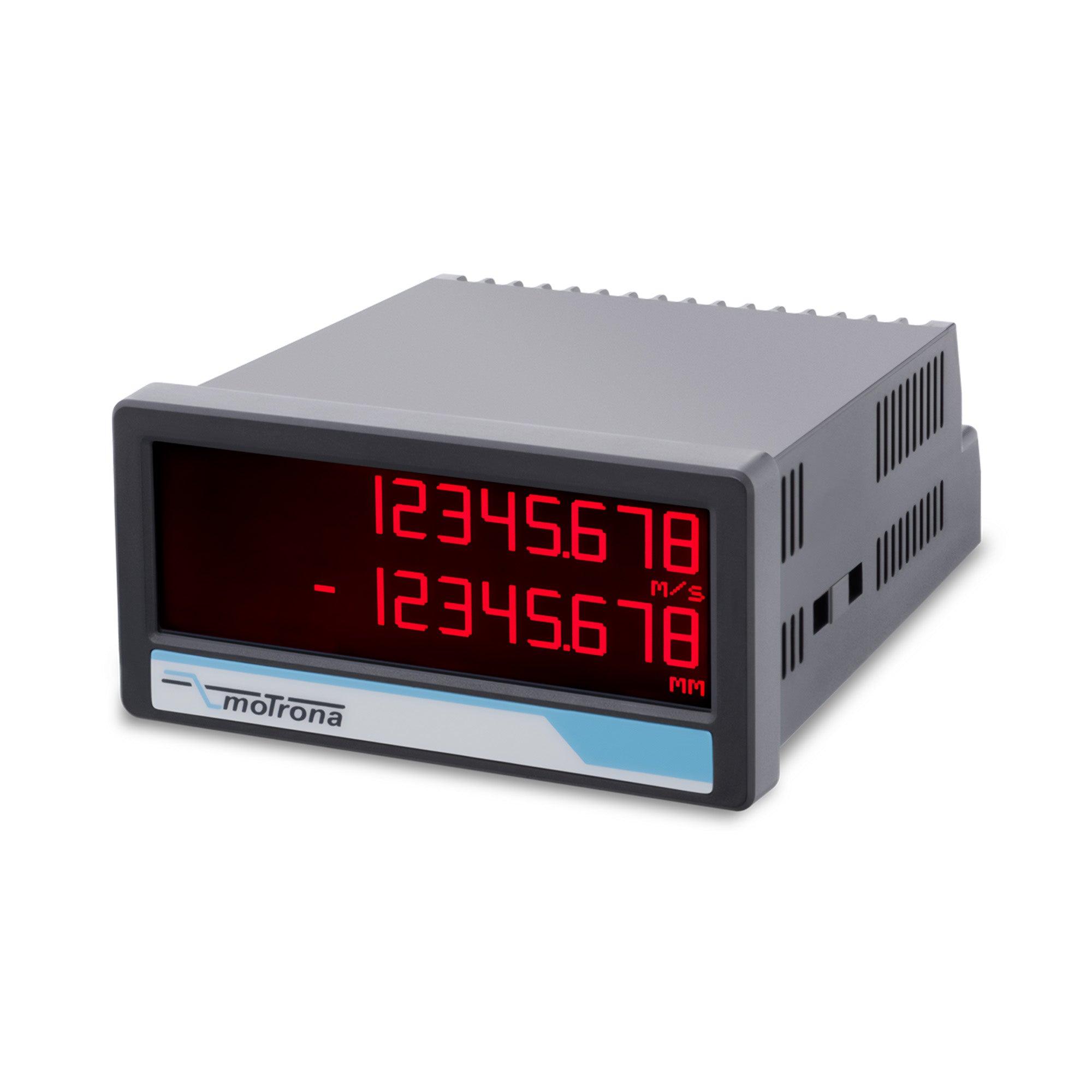

Motrona IX350 355 Absolute Position Speed Indicator

The IX-device can display two values from different measurement methods in parallel. Thus the IX350/355 can handle two units in parallel, e.g. measure and display speed and absolute position.

In conjunction with absolute encoders, absolute measuring systems or magnet sensors, the MoTrona position displays offer a cost-effective solution for displaying, recording, calculating or controlling variables such as lengths, times or numbers of units in automation and instrumentation - with all the advantages of moTrona quality.

• Master or Slave operation with clock frequencies up to 1 MHz
• For single turn and multi turn encoders with SSI formats from 10 … 32 Bit
• Bright and high-contrast display with event-dependent color variations
• Emulation of a 7-segment display inclusively icons and units
• Intuitive and easy parameterization by plain text and touchscreen
• 5 V / 24 V auxiliary output for encoder supply
• Linearization with 24 control points
• Numerous features, e. g. scaling, filtering, bit blanking etc.
• 3.78 x 1.89 inch norm panel housing and IP65 protection

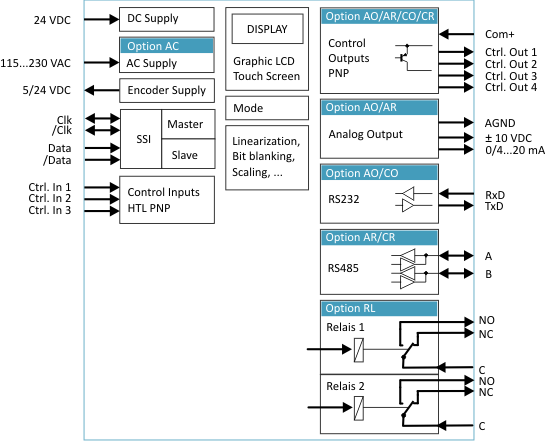

Model Numbers

• IX350: Basic unit with SSI interface, 3 control inputs, 24 VDC encoder supply
• IX355: Basic unit with open-circuit monitoring, 5 / 24 VDC encoder supply

Options

Option AC:   Power supply 115 ... 230V AC
Option AO:  16 bit analog output, 4 control outputs, serial RS232 interface
Option AR:   16 bit analog output, 4 control outputs, serial RS485 interface
Option CO:   4 control outputs, serial RS232 interface
Option CR:   4 control outputs, serial RS485 interface
Option RL:    2 relay outputs
Option IO:    IO-Link Device V1.1

Options can be combined and MUST be ordered at the time of purchase.  They are custom modification made at manufacture.  PLEASE CONTACT US FOR A QUOTE.
