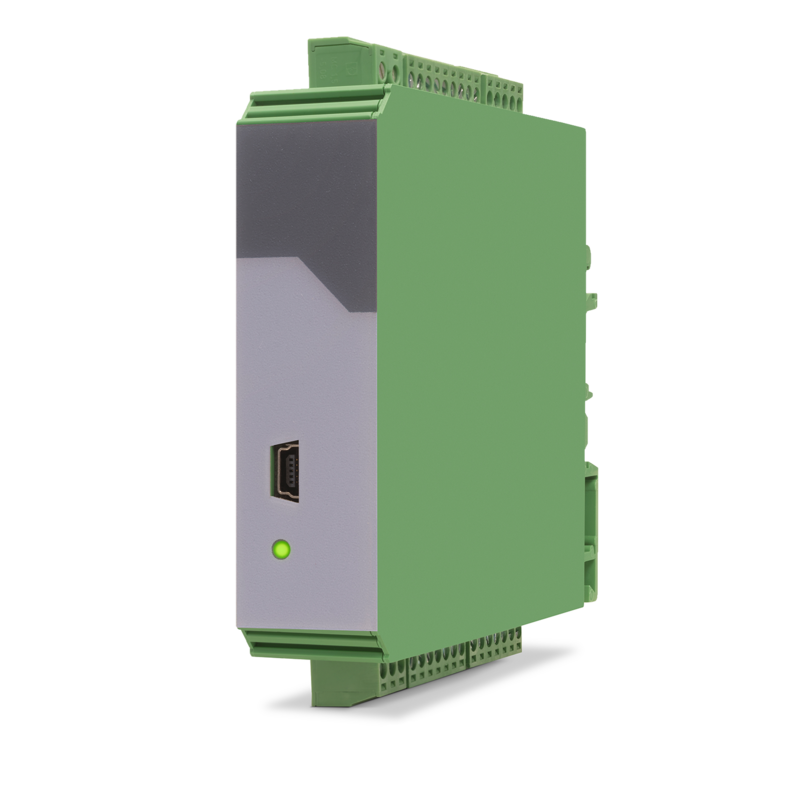

Motrona IV210 Signal Converter SSI Input to Analog and Serial RS232 RS485 Output

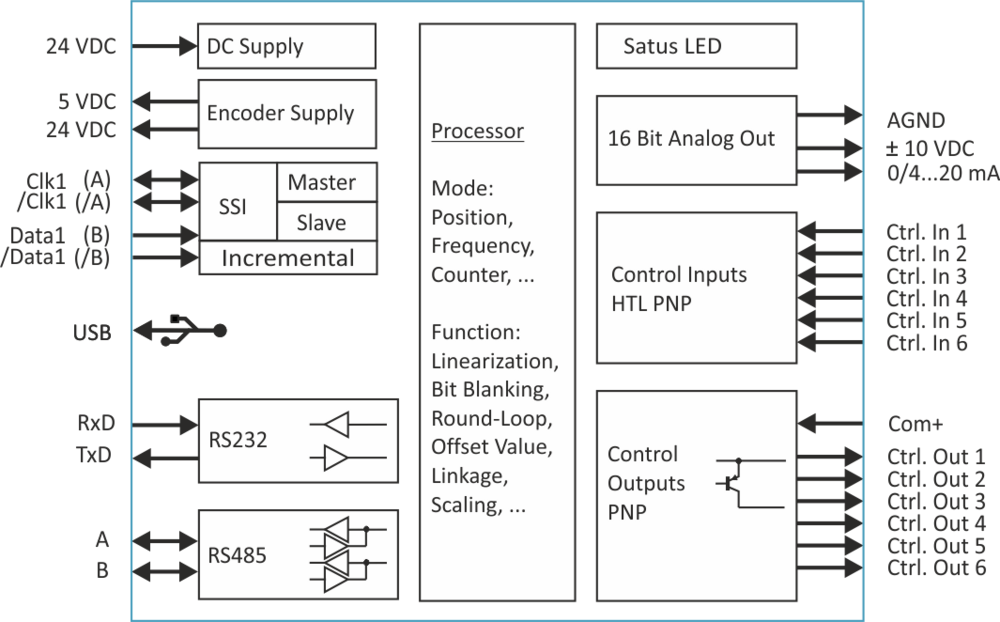

With its SSI interface, the IV210 converts absolute position values into a highly precise current or voltage value in fractions of a millisecond. Fluctuating input frequencies can be smoothed using a switchable average value. This signal converter also converts linked signals (A, B) such as sum, difference, product, or ratio. It is suitable for connecting 10- to 32-bit SSI absolute encoders in binary or Gray format. Optional SSI master or slave operation with a wide range of functions such as runout functions, bit suppression, wire-break monitoring, and scaling.

The IV210 is the functionally compatible and more powerful successor to our proven signal converter IV251.

Features

• SSI input DATA+, DATA-, CLOCK+, CLOCK- [RS422], 32 bit
• SSI clock frequency up to 1 MHz
• Analog output ±10 V, 0/4 ... 20 mA, 16 bit

• Compact housing for mounting on 35 mm DIN rail (according to EN 60715)
• Simple parameterization via OS6.0 user interface
• Serial RS232 / RS485 interface
• Pulse inputs A, B [HTL], A, /A, B, /B [RS422, HTL]
• Start-stop interface for absolute position transducers and magnetostrictive sensors
• USB interface and RS232/RS485 interface for configuration and serial readout

Specifications

• Product Model: IV210

• Function: SSI absolute encoder to analog/serial

• Power supply – Input voltage: 18 … 30 VDC

• Power consumption: approx. 50 mA

• SSI input: DATA+, DATA-, CLOCK+, CLOCK- (RS422), up to 1 MHz, 10-32 Bit

• Analog output: ±10 V, 0/4 … 20 mA, 16 Bit

• Serial interface: RS232 / RS485

• Incremental auxiliary inputs: A/B pulse inputs (HTL/RS422)

• Encoder/auxiliary supply: 5 VDC and 24 VDC

• Housing – Mounting: 35 mm DIN rail (EN 60715)

• Dimensions (W × H × D): 22.5 × 102 × 102 mm

• Protection class: IP20

• Operating temperature: -20 °C to +60 °C

• Conformity: EMC 2014/30/EU, RoHS
