Motrona IT210 DIN Rail Mount Level Converter Directional Decoder and Programmable Pulse Divider

The Pulse Divider IT210 is the functionally compatible and more powerful successor to our proven signal converter IT251.

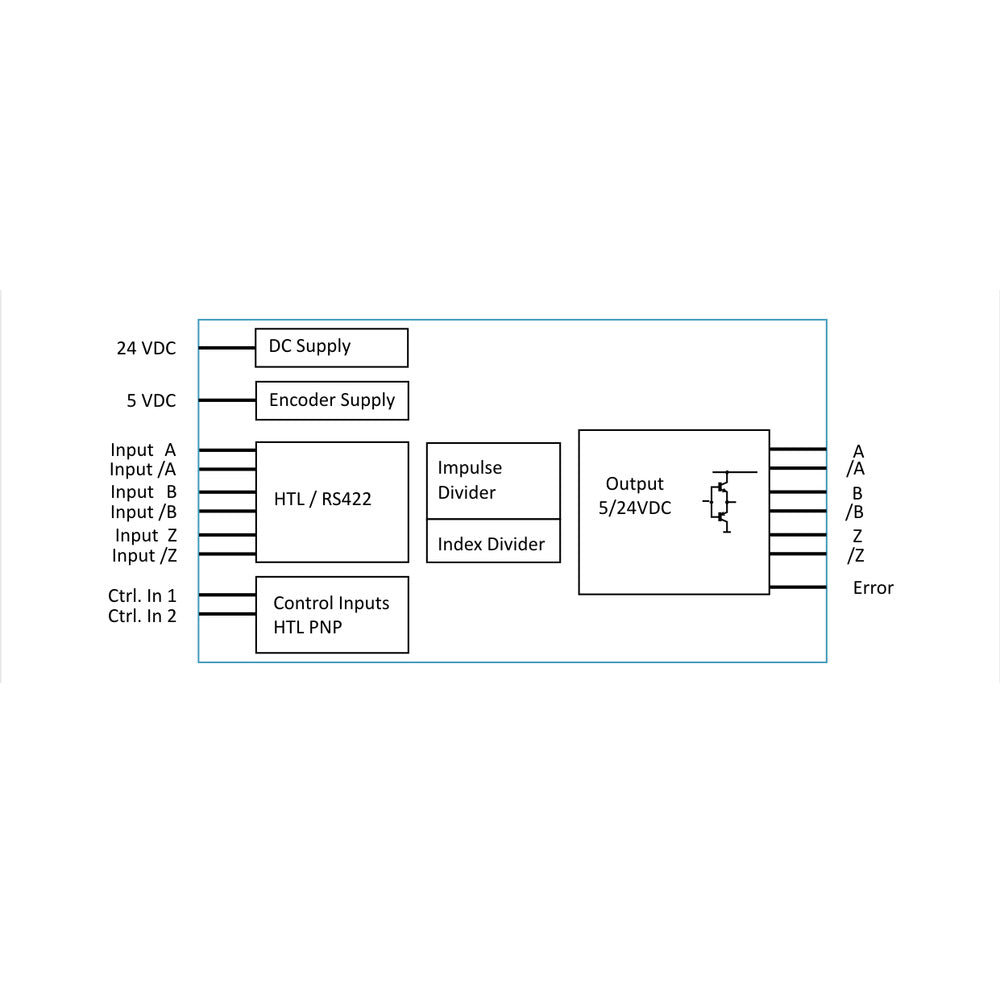

The IT210 is a universal interface using with incremental measuring systems with diverse functions, such as: Level conversion (RS422, HTL single ended, HTL differential, TTL and vice versa), Division of two-track A / B pulses with adjustable ratio 1: 1 to 1: 4096, Division of the Z pulse with adjustable ratio 1: 1 to 1: 256, External HTL signals for various functions, Implementation between the two types of representations for the direction of rotation (A/B 90 °, A/B Direction and vice versa, Division possible).

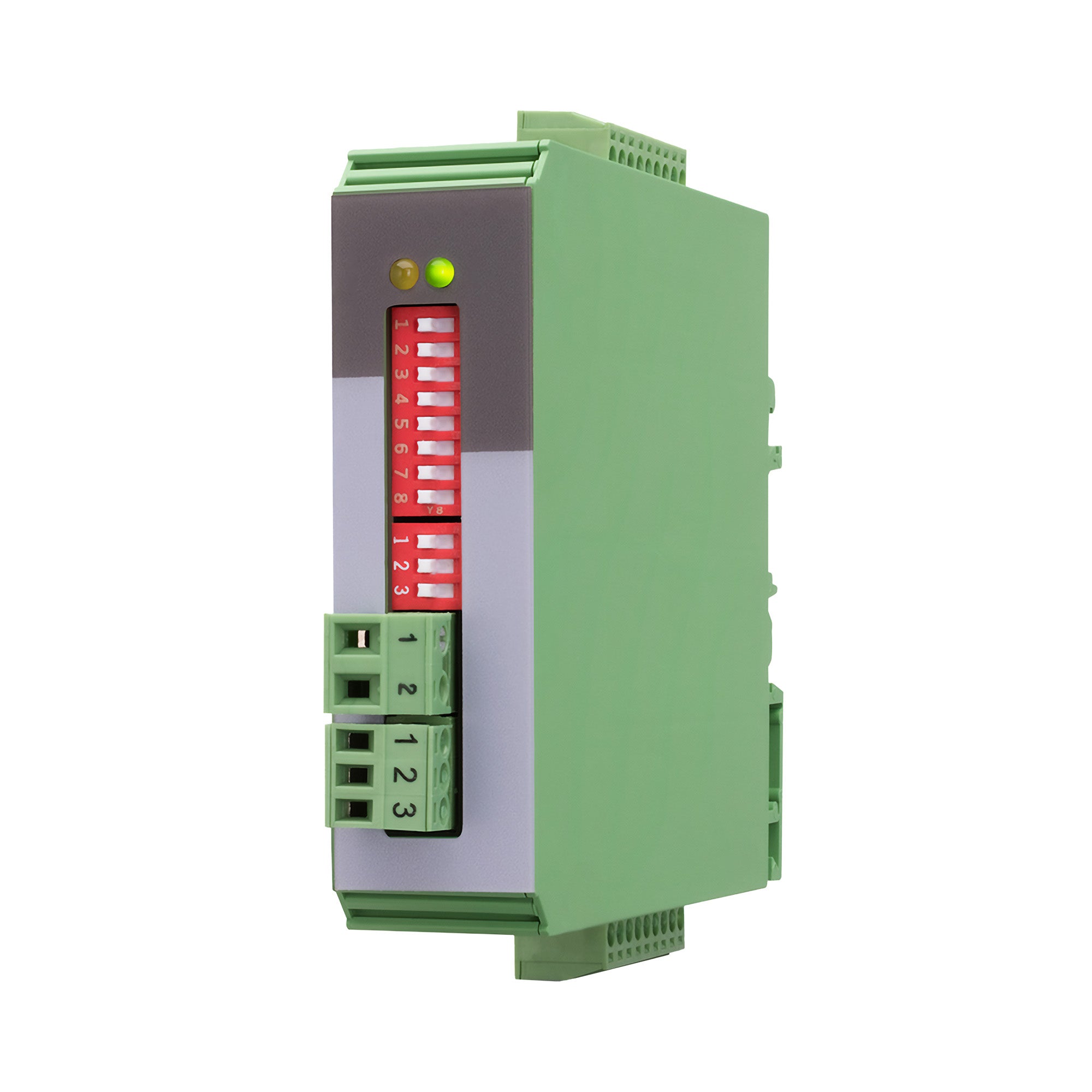

All settings are made on the DILL switches on the housing. The device consists of a compact housing with screw terminals and can be mounted on a DIN rail.

Features

• Pulse input in format A, /A, B, /B, Z, /Z [RS422, HTL]
• Pulse input in format A, B, Z [HTL]
• Input frequency up to 1 MHz
• Pulse output in format A, /A, B, /B, Z, /Z [RS422, HTL]
• Pulse output in format A, B, Z [HTL]
• Power supply 9 ... 30 VDC
• Settings via DIL switches
• Level conversion (RS422, HTL single ended, HTL differential, TTL and vice versa)
• Division of two-track A / B pulses with adjustable ratio 1: 1 to 1: 4096
• Division of the Z pulse with adjustable ratio 1: 1 to 1: 256
• External HTL signals for various functions
• Implementation between the two types of representations for the direction of rotation (A / B 90 °, A/B Dir and vice versa, Division possible)
• Snap-on housing for top hat rail
  (acc. EN 60715)


Specifications

• Product Model: IT210

• Function: Level converter, directional decoder, programmable pulse divider

• Power consumption (unloaded): approx. 30–40 mA

• Sensor supply – Output voltage: +5.5 VDC

• Sensor supply – Output current: max. 250 mA

• Incremental input frequency: up to 1 MHz

• Incremental output level: HTL (8 … 29 V) or RS422 (5 V)

• Response time: approx. 600 ns

• Housing – Mounting: 35 mm DIN rail (EN 60715)

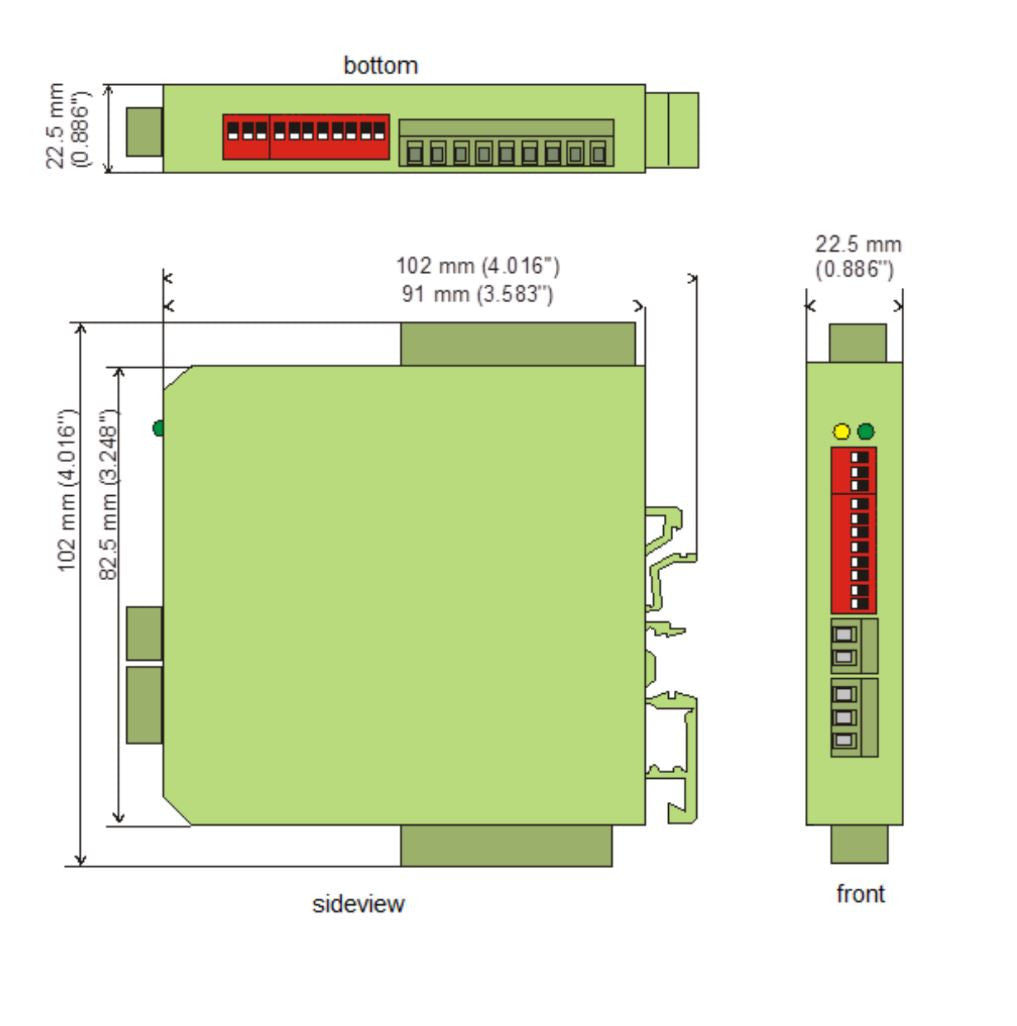

• Dimensions (W × H × D): 22.5 × 102 × 102 mm

• Protection class: IP20

• Operating temperature: 0 °C to +60 °C

• Conformity: EMC 2014/30/EU, RoHS
