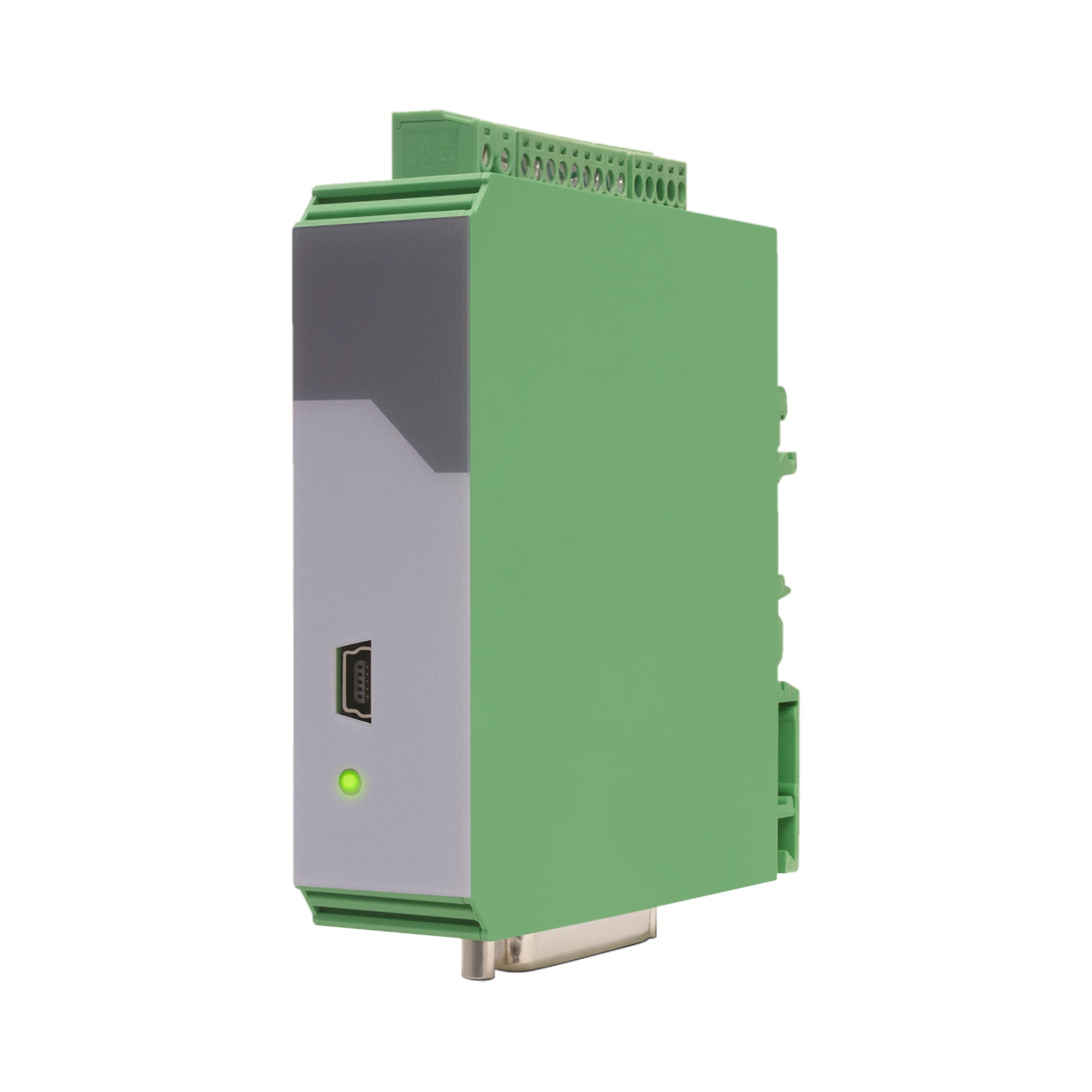

Motrona IP210 Signal Converter SSI Input to Parallel Output

The signals recorded via the SSI input are converted precisely and quickly into a parallel binary, Gray code or BCD format by the IP210 converter.

The IP210 is the functionally compatible and more powerful successor to our proven IP251 signal converter.

Features

• SSI input in format DATA+, DATA-, CLOCK+, CLOCK- up to 32 bit
• Pulse inputs A, B [HTL], A, /A, B, /B [RS422, HTL]
• 3 control inputs (Hold) for PNP signals [10 ... 30 VDC]
• Start-stop interface for absolute position transducers and magnetostrictive sensors
• Input frequency up to 1 MHz
• 25-bit parallel output push-pull in BCD, binary or Gray code format
• Power supply 18 ... 30 VDC
• Compact housing for mounting on 35 mm DIN rail (according to EN 60715)
