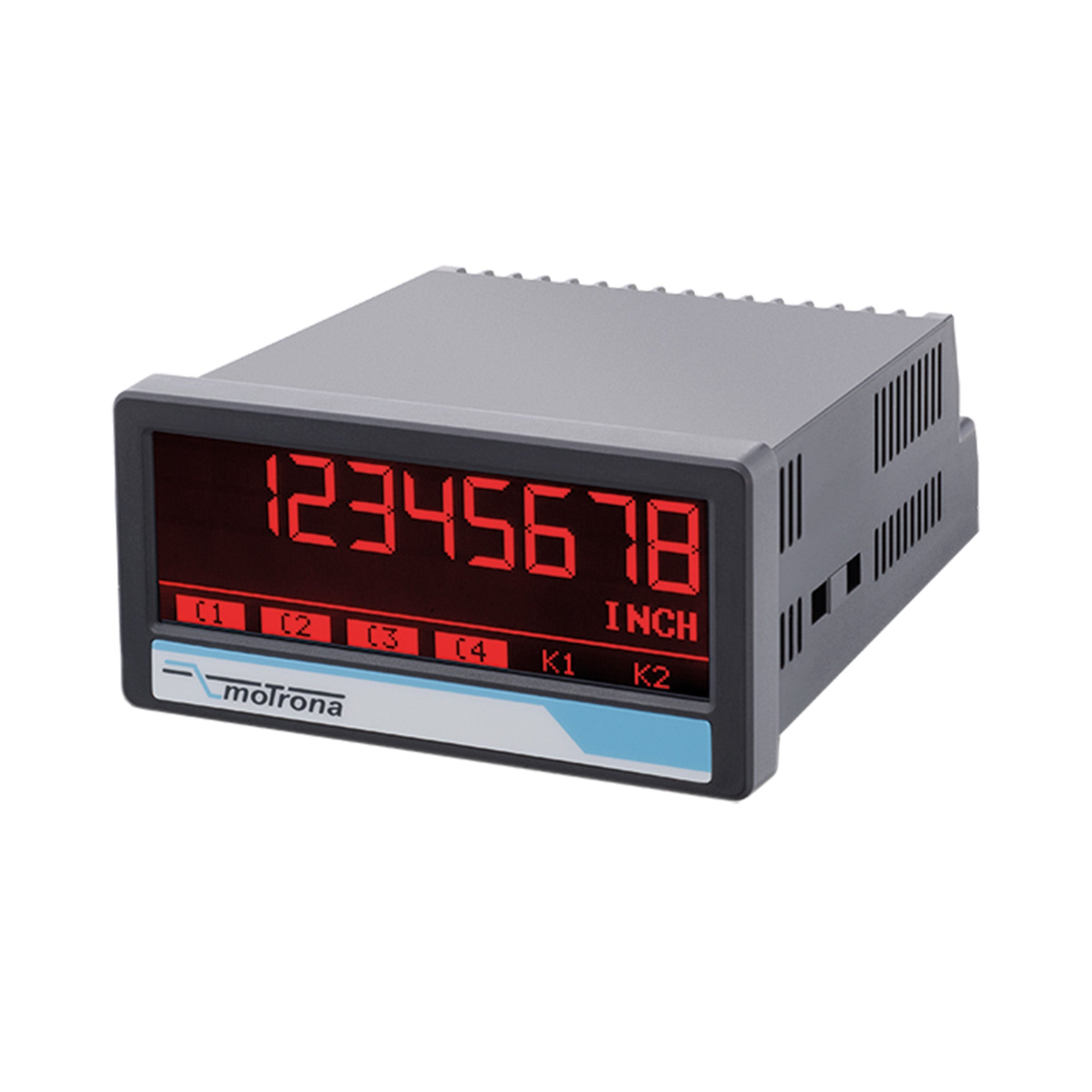

Motrona IO-Link Indicator

With regard to Industry 4.0, the process indicator with IO-Link device enables e.g. the digitization of conventional analog sensors. This results in a variety of innovative features for standard sensors such as the transmission of status information, the configuration of the devices during operation or the digital evaluation and scaling of analog sensors. This saves retooling and commissioning costs. Thanks to extensive monitoring, weak points can be detected and repaired even before a machine downtime occurs.

Features

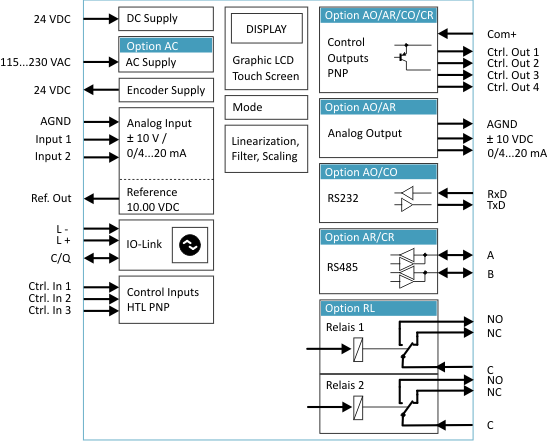

• 2 universal 16 bit analog inputs for ±10 V or 0/4 … 20 mA
• 3 control inputs for HTL / PNP signals
• Power supply 18 ... 30 VDC
• 24 V auxiliary output for encoder supply
• High accuracy reference output 10 V for potentiometers > 1 kOhm
• 3.78 x 1.89 inch norm panel housing and IP65 protection
• Bright and high-contrast display with event-dependent color variations
• Emulation of a 7-segment display inclusively icons and units
• Intuitive and easy parameterization by plain text and touchscreen
• Operating modes for visualization of INPUT 1, INPUT 2 or combinations of IN1 + IN2, IN1 - IN2, IN1 x IN2, IN1: IN2
• Numerous features, e. g. Ttara, filters, averaging
• Linearization with 24 control points
