Motrona GV480 Pulse Distributor Splitter for Incremental Encoder Complete Electrical Isolation 8 Channel

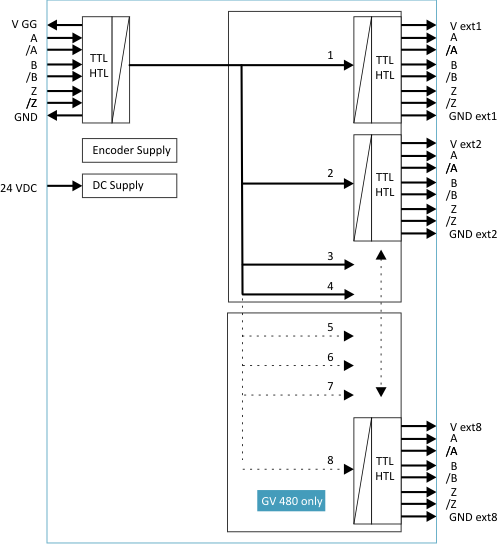

This compact and versatile pulse splitter / signal distributor has 1 input terminal and 8 output terminals and is suitable for connecting incremental encoder types and measurement systems. The device has a short-circuit-proof auxiliary voltage for the encoder supply and distributes the input signals on up to 8 devices. As a special feature, the variant GV480 offers a complete electrical isolation of all input and output circuits against each other (including the supply). This feature, in general, can be most advantageous with impulse distribution among expanded production lines with adverse conditions of EMC / grounding / potential shift etc.

The GV4xx series is was discontinued on December 1st, 2023. For new projects we recommend the device GT228 from the new modular GV/GT2xx series.

Features

• 1 pulse input with format A, B, Z [HTL] or A, /A, B, /B, Z, /Z [RS422]
  Select input for PNP signals [10 ... 30 VDC]

• 8 push-pull outputs

• Extended temperature range -20°C ... +60°C

• LEDs for indication of the input pulses

• Current consumption (Unloaded) approx. 40 mA
• Input level for HTL asymmetrical (Without inverted track) Low: < 4 V, High: > 10 V
• Input level "Select" Input Low: < 4 V, High: > 10 V
• Cascading-in  A, B, Z, level 5 V [CMOS, Low < 0,8 V, High > 3,5 V]


Specifications

• Product Series: Motrona GV4xx Encoder Splitters
• Product Type: Incremental encoder impulse distributor / signal splitter
• Supported Input Signals: A, /A, B, /B, Z, /Z (TTL / RS422 / HTL Selectable)
• Input Compatibility: Differential RS422 / TTL; HTL asymmetrical or symmetrical (10…30 V)
• Input Supply Voltage: 10…30 VDC
• Protection Circuit: Reverse polarity protection
• Power Consumption: Approx. 40 mA (Without encoder supply)
• Ripple (At 24 VDC): ≤ 10 %
• Auxiliary Encoder Supply Voltage: 5.5 VDC
• Auxiliary Encoder Supply Current: Max. 200 mA (Galvanically connected to main supply)
• Auxiliary Supply Protection: Short-circuit proof
• Maximum Input Frequency (RS422 / TTL): Up to 500 kHz
• Maximum Input Frequency (HTL): Up to 200 kHz
• Output Logic: Push-pull driver outputs
• Output Signal Voltage Range: 5…30 V
• Output Current Capability: Up to ~30 mA per channel
• Signal Delay Time: Approx. 400 ns
• Cascading Support: Input and output cascade ports (CMOS-level 5 V)
• Potential Separation: Yes — Partial galvanic separation between input and outputs
• Galvanic Isolation: Yes — Galvanic isolation between power supply, inputs, and outputs
• Ambient Operating Temperature: –20 °C … +60 °C
• Storage Temperature: –30 °C … +75 °C
• Protection Class: IP20
• Housing Material: Plastic enclosure
• Mounting Type: Snap-on 35 mm DIN rail (EN 60715)
• Dimensions (W × H × D): 72 × 144 × 60.5 mm
• Weight: Approx. 400 g
• LED Indicators: Input pulse and status LEDs
• Compliance: EN 61000-6-2, EN 61000-6-3 EMC; RoHS compliant
• Typical Applications: Distribution and splitting of incremental encoder signals in industrial automation systems
