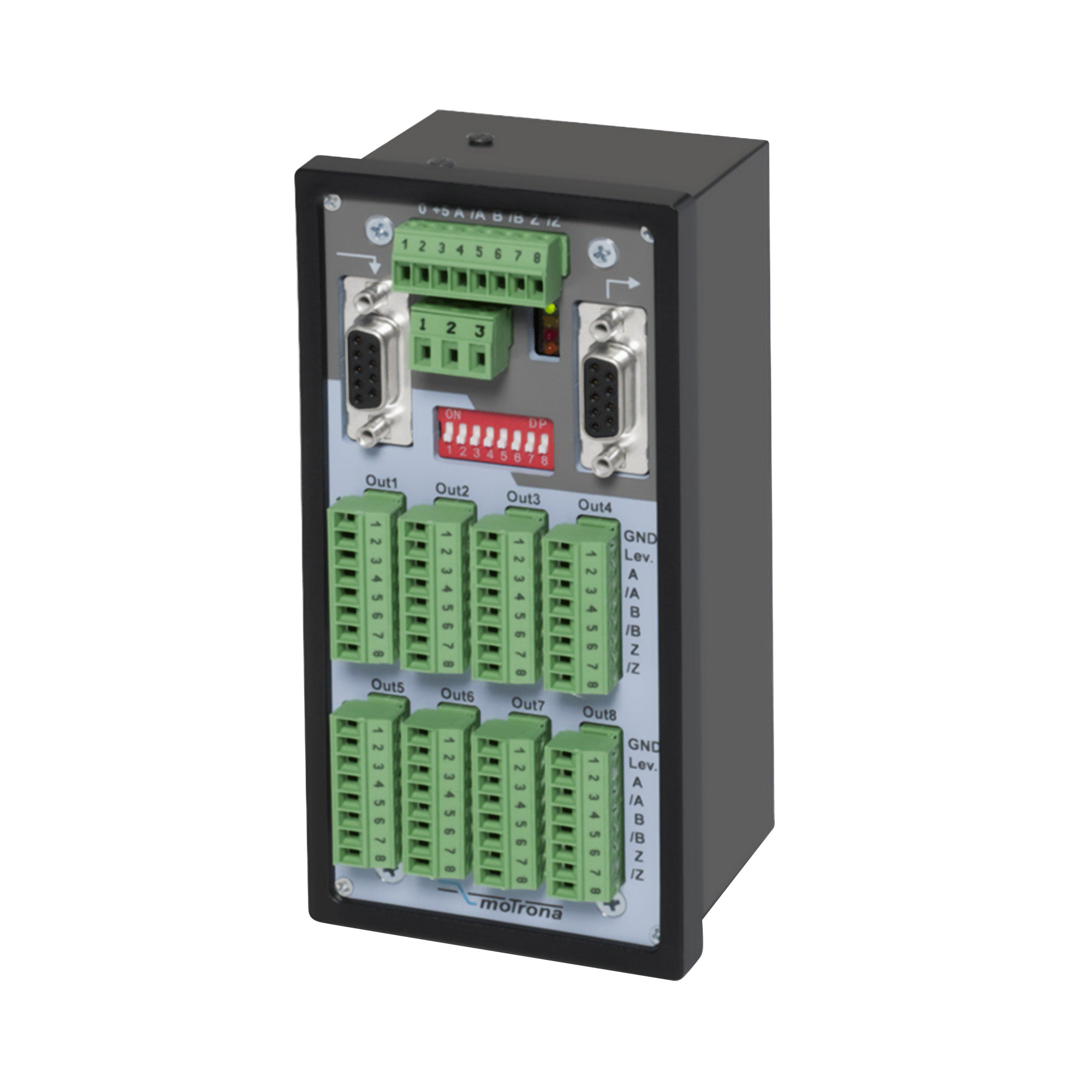

Motrona GV471 Pulse Distributor for Incremental Encoder 4 Outputs

This compact and versatile pulse splitter / signal distributor has 1 input terminal and 8 output terminals and is suitable for connecting incremental encoder types and measurement systems. The device has a short-circuit-proof auxiliary voltage for the encoder supply and distributes the input signals on up to 8 devices. As a special feature, the variant GV480 offers a complete electrical isolation of all input and output circuits against each other (including the supply). This feature, in general, can be most advantageous with impulse distribution among expanded production lines with adverse conditions of EMC / grounding / potential shift etc.

The GV4xx series was discontinued on December 1st, 2023. For new projects we recommend the device GV224 from the new modular GV/GT2xx series.

Features

• 1 pulse input with format A, B, Z [HTL] or A, /A, B, /B, Z, /Z [RS422]
• Select input for PNP signals [10 ... 30 VDC]
• Input frequency up to 200 kHz for HTL or 500 kHz for RS422 / TTL
• 4 push-pull outputs, formats corresponds to the input signals, but with individual assignment for each output
• Power supply 10 ... 30 VDC
• Industrial temperature range +32° ... 122° F (0°C ... +50°C)
• Snap-on housing for top hat rail (according to EN 60715)
• LEDs for indication of the input pulses
• Dimensions W x H x D = 72 x 144 x 61 mm (2.83 x 4.89 x 2.38'')
• Consumption (without encoder supply) approx. 40 mA
• Input level HTL asymmetrical (no inverted track) Low: < 4 V, High: > 10 V
• Input level "Select"-Input Low: < 4 V, High: > 10 V
• Cascader-input  A, B, Z, Pegel 5 V [CMOS, Low < 0,8 V, High > 3,5 V]
• Signal delay 400 ns
• Weight approx. 400 g
• Storage -22° F ... +167° F (-30° ... +75° C)C
• Conformity and standards: EMV 2004/108/EG: EN 61000-6-2, EN 61000-6-3

Specifications

• Product Type: Incremental encoder impulse distributor / signal splitter
• Supported Input Signals: A, /A, B, /B, Z, /Z (TTL / RS422 / HTL selectable)
• Input Compatibility: Differential RS422 / TTL; HTL asymmetrical or symmetrical (10…30 V)
• Input Supply Voltage: 10…30 VDC
• Protection Circuit: Reverse polarity protection
• Power Consumption: Approx. 40 mA (Without encoder supply)
• Ripple (at 24 VDC): ≤ 10 %
• Auxiliary Encoder Supply Voltage: 5.5 VDC
• Auxiliary Encoder Supply Current: Max. 200 mA (galvanically connected to main supply)
• Auxiliary Supply Protection: Short-circuit proof
• Maximum Input Frequency (RS422 / TTL): Up to 500 kHz
• Maximum Input Frequency (HTL): Up to 200 kHz
• Output Logic: Push-pull driver outputs
• Output Signal Voltage Range: 5…30 V
• Output Current Capability: Up to ~30 mA per channel
• Signal Delay Time: Approx. 400 ns
• Cascading Support: Input and output cascade ports (CMOS-level 5 V)
• Potential Separation: None (non-isolated version; see other models for isolation options)
• Galvanic Isolation: None (GV471 is not galvanically isolated)
• Ambient Operating Temperature: –20 °C … +60 °C
• Storage Temperature: –30 °C … +75 °C
• Protection Class: IP20
• Housing Material: Plastic enclosure
• Mounting Type: Snap-on 35 mm DIN rail (EN 60715)
• Dimensions (W × H × D): 72 × 144 × 60.5 mm
• Weight: Approx. 400 g
• LED Indicators: Input pulse and status LEDs
• Standards / Compliance: EN 61000-6-2, EN 61000-6-3 EMC; RoHS compliant
• Typical Applications: Distribution and splitting of incremental encoder signals in industrial automation systems
