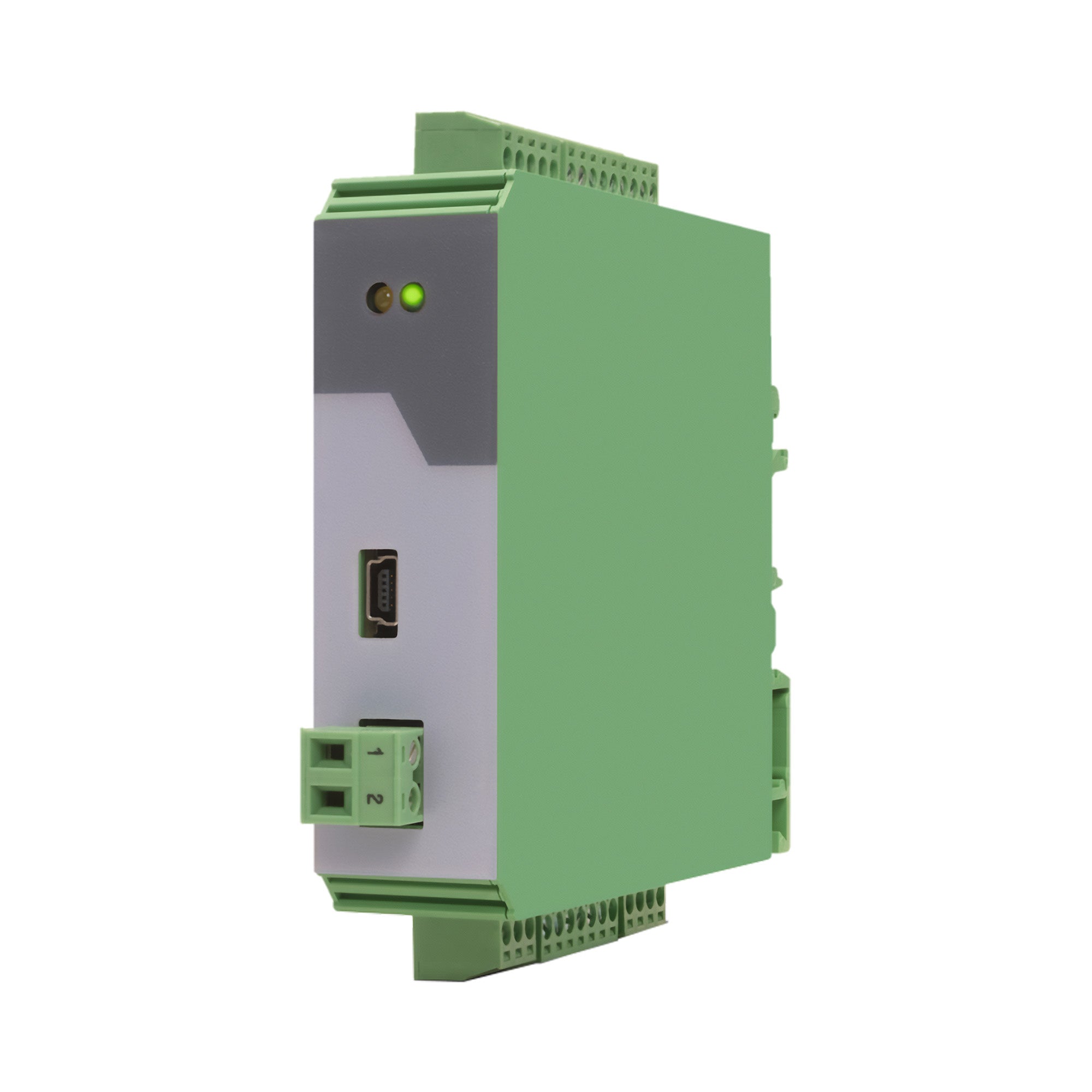

Motrona FM210 Frequency Multiplier/Divider

The fast and stable FM210 frequency multiplier operates similarly to a gearbox. The transmission ratio between the primary and secondary sides can be freely configured. Two parameters allow the dividend and divisor to be parameterized in the range of 0.0005 to 9.9999. This allows the setting of division ratios without cumulative residual errors. In addition to this accuracy, the FM210 converter offers excellent control behavior. The output signal is precisely and oscillation-free, even under dynamic frequency and speed changes. With this frequency-true and pulse-true control, the FM210 is ideally suited for synchronizing drives and camera systems.

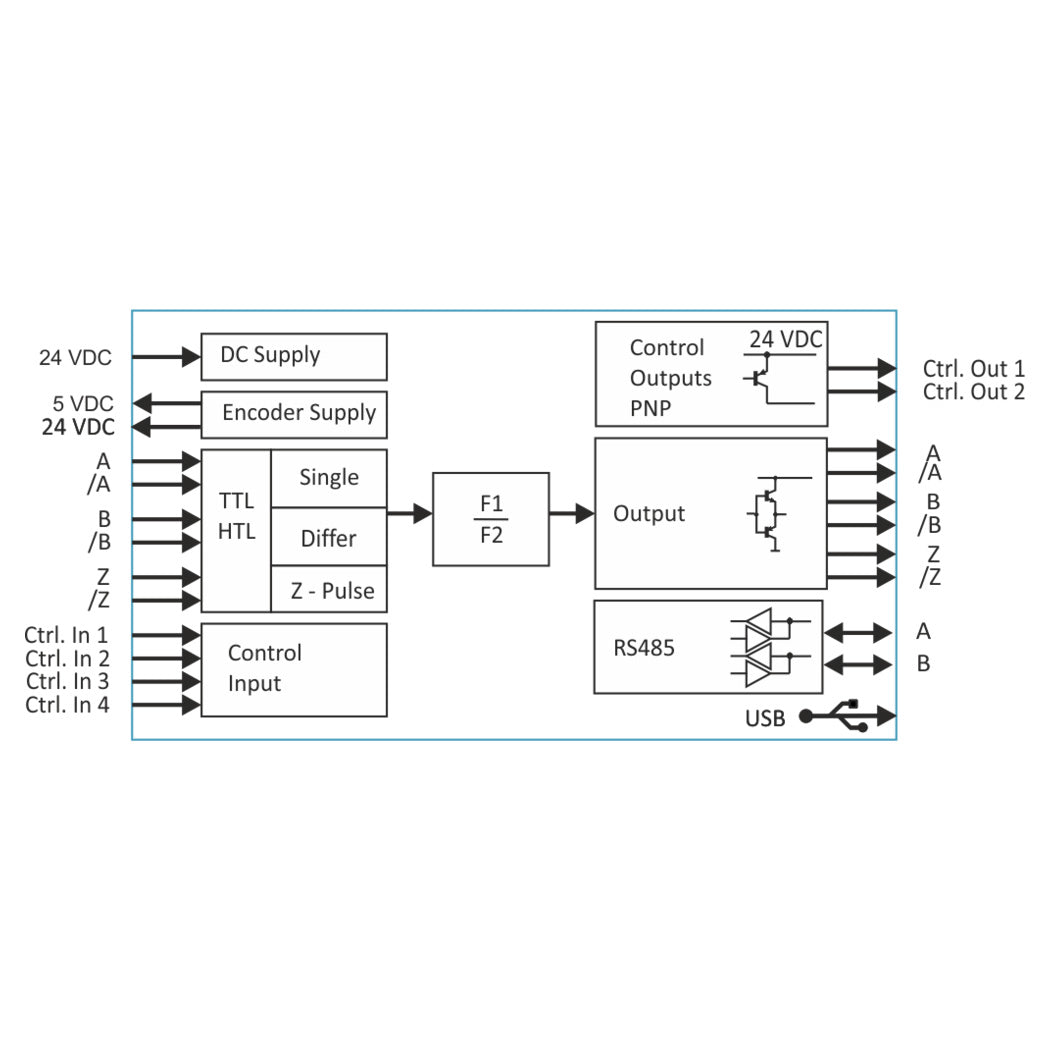

Features

• Pulse input in format A, B, Z [HTL single ended, TTL single ended] or
  A, /A, B, /B, Z, /Z [RS422, HTL differential]
• 4 control inputs for HTL, PNP signals [10 ... 30 VDC]
• Input and output frequency up to 1 MHz
• 3 incremental outputs in format A, /A, B, /B, Z, /Z, push-pull, [8 … 29 VDC]
• Power supply 9 ... 30 VDC
• Compact design for mounting on 35 mm DIN rail (according to EN 60715)
• Multiplier / divider adjustable as quotient F1 / F2
• Multiplication / division without cumulative residual errors
• Additional functions such as jog, trim, offset and reference
