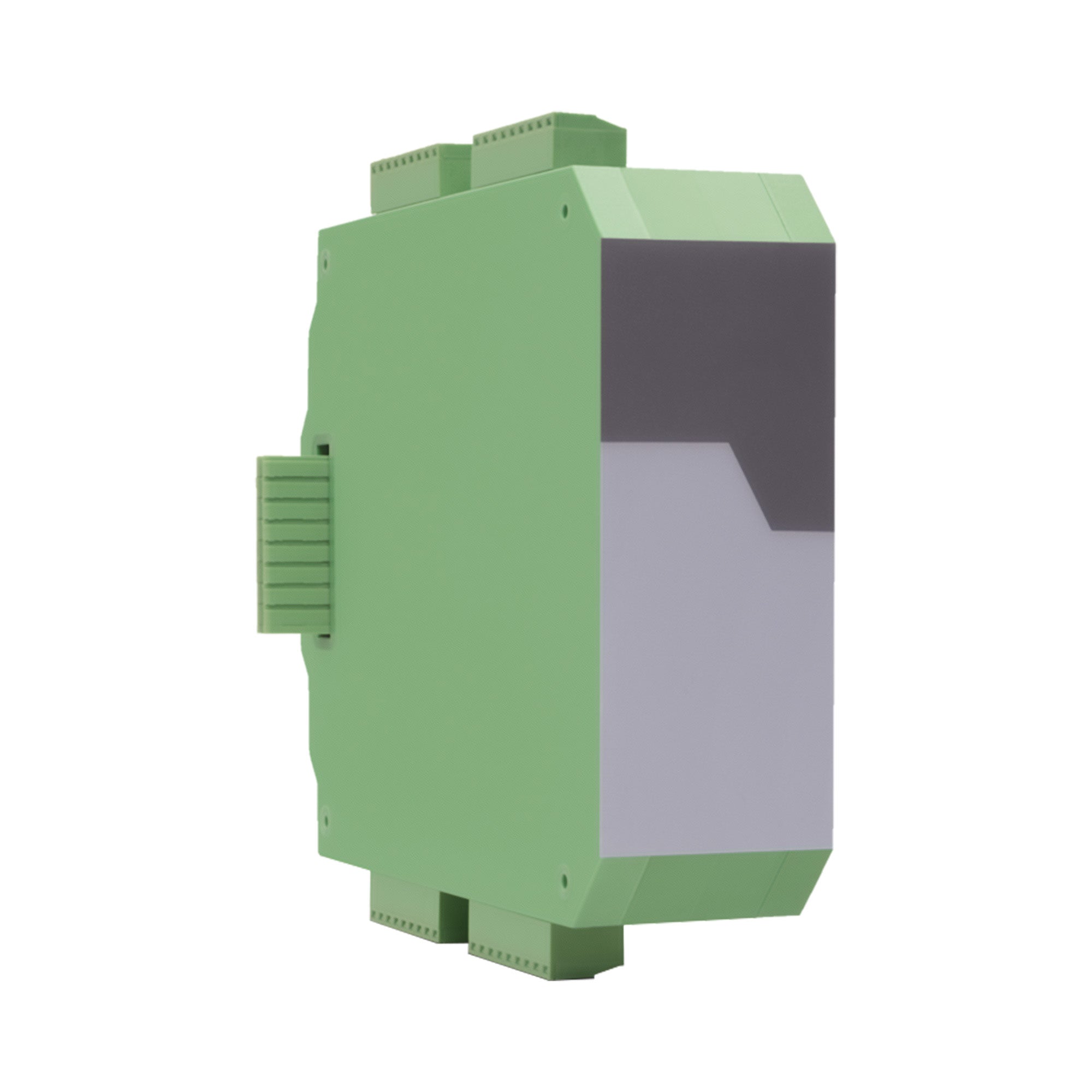

Motrona EV224 Expansion Module without Electrical Isolation 4-Channel

The EV224 expansion module is designed for combination with the  GV228/EV device variant. With the four additional outputs offered by the EV224, a total of 12 outputs can be achieved on the GV228/EV. The modules are connected via a BUS interface, which allows for easy connection of the devices.

Features

• Input frequency up to 350 kHz [SE TTL / SE HTL] or 1 MHz [RS422 / HTL differential]
• 4 pulse outputs, formats corresponding to those of the input signals, but with individual assignment of the output level for each output
• BUS interface for quick and easy connection of the modules
• Power supply 10 ... 30 VDC
• Signal propagation time max. 430 ns
• Input level for RS422 / TTL (differential voltage > 0.5 V),
• Input level at HTL differential (differential voltage > 2 V),
• Input level for HTL asymmetrical LOW: 0 ... 5 V HIGH: 9 ... 30 V
• Input level for TTL (asymmetrical) LOW: 0 ... 0.6 V HIGH: 2.2 ... 5 V
• Compact housing for mounting on 35 mm DIN rail (according to EN 60715)
• Dimensions W x H x D = 34 x 118 x 140 mm
