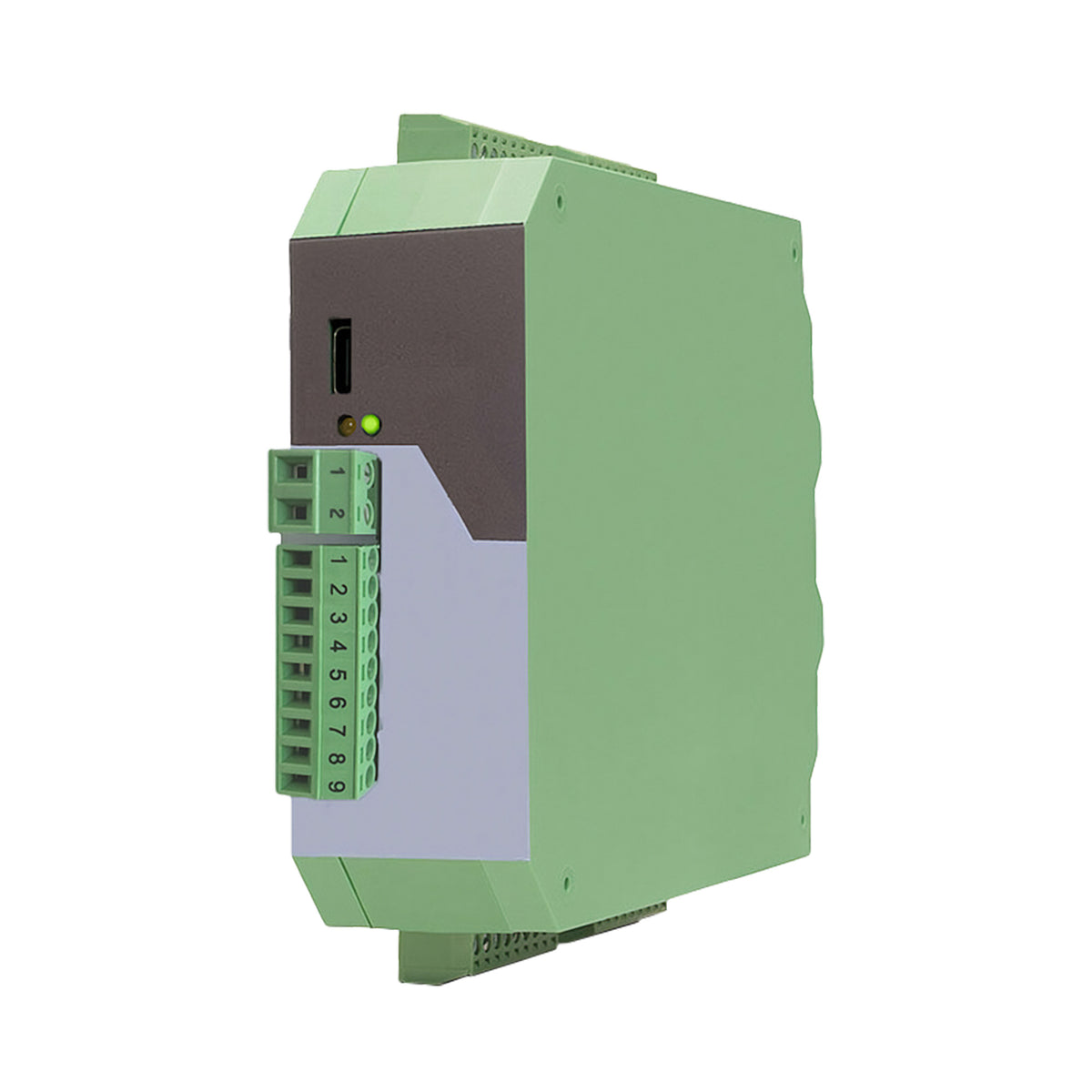

Motrona DZ220 Multifunctional Monitor 4 Outputs and Analog Output

The DZ220 multifunction device is a powerful solution for controlling and evaluating incremental and absolute encoders, as well as position transducers with a start/stop interface.

The device is also available as the DZ220/RL with four additional relay outputs.

The DZ220 is the functionally compatible and more powerful successor to our proven DZ260 series.

Features

• Incremental encoder: Supports frequency and position converters (pulse counters) with universal inputs (HTL/TTL/RS422) and input frequencies up to 1 MHz.
• SSI absolute encoder: Operates as master or slave with clock frequencies up to 2 MHz and supports SSI formats from 10 to 32 bits.
• Displacement sensor: Enables precise measurements in master or slave operation.

• Pulse input in format A, B, 90° [HTL] or
  A, /A, B, /B [RS422], also 1-track possible
• Input frequency up to 1 MHz
• SSI input/output in format CLOCK+, CLOCK-, DATA+, DATA- [RS422], 32 bit
• SSI clock frequency from 100 kHz ... 2 MHz
• Start-stop interface for absolute position transducers and magnetostrictive sensors
• 4 control outputs
• 16-bit analog output (± 10 V or 0/4 ... 20 mA)
• Power supply 18 ... 30 VDC
• Auxiliary voltage output +5 V for supplying TTL sensors

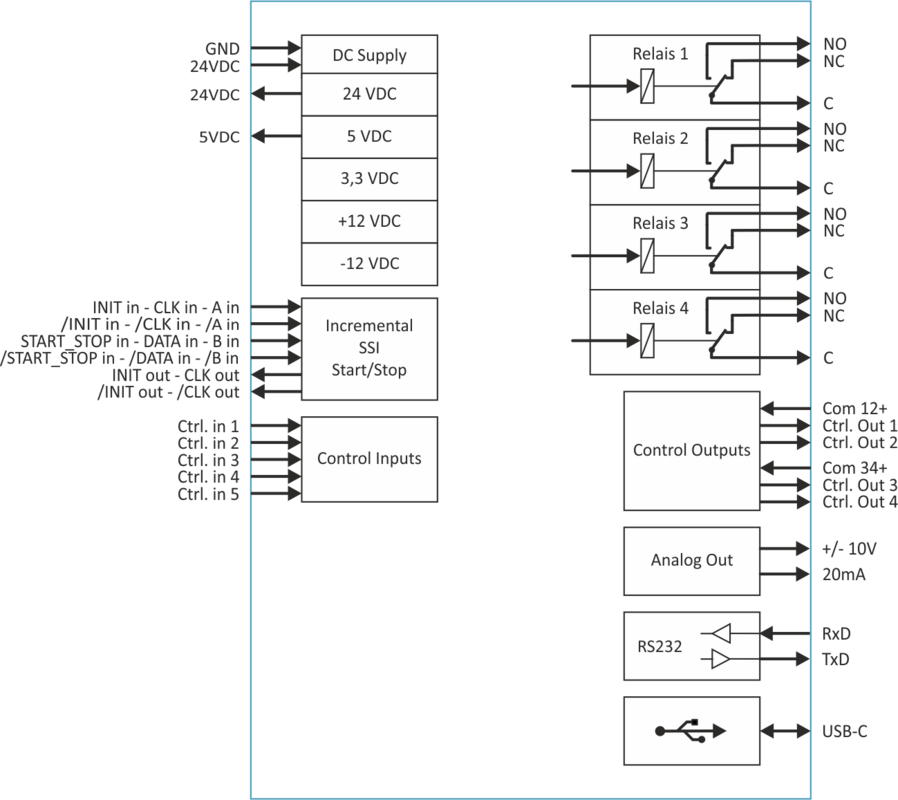

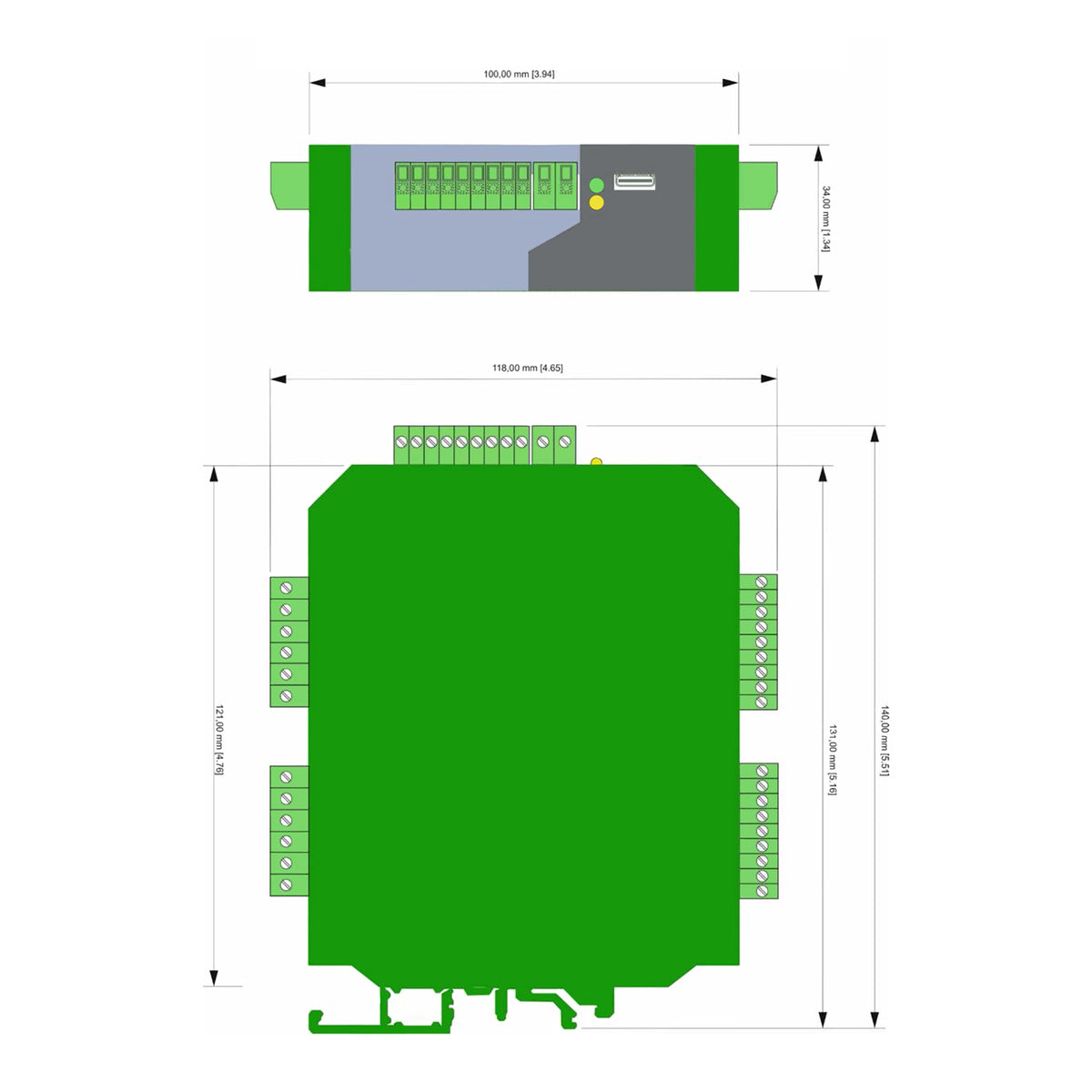

• Compact housing for mounting on 35 mm DIN rail
  (according to EN 60715)
• Simple parameterization via user interface OS (freeware)
