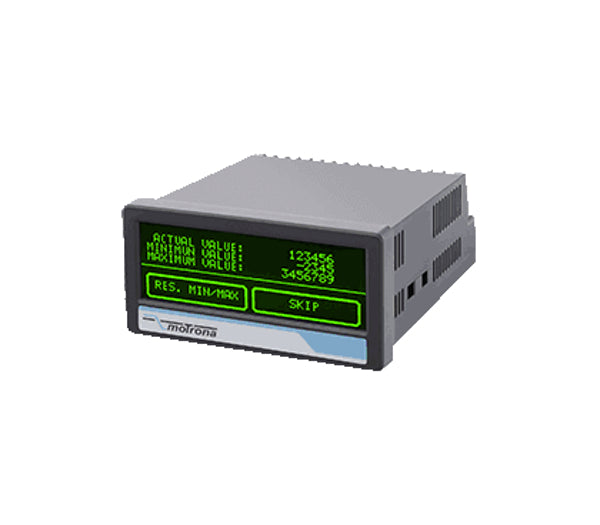

Motrona DX350 Digital Frequency Indicator for Incremental Encoders

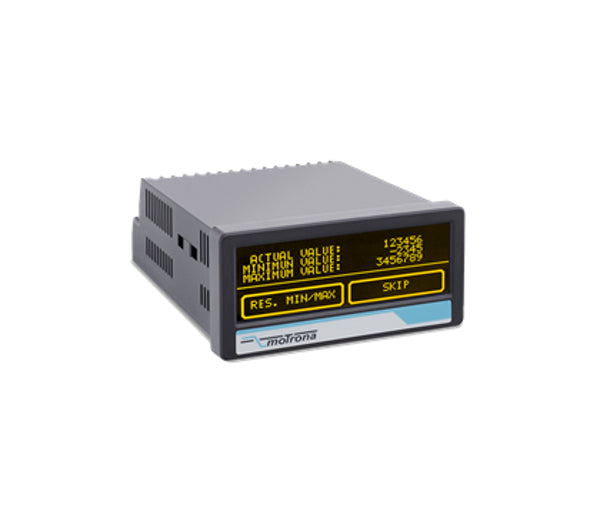

By default the display devices of the touchMATRIX® series provide a 186 x 64 pixel graphic display. Therefore plaintext, symbols and units can be displayed in a variable way. The LCD-backlight display enables the graphic representation in the colors red, green and yellow. Due to the intuitive parameterization these color variations simply can be used event-dependent (e. g. in case of limit values). Maximum flexibility in connectivity and application is proven by arbitrarily combinable, modular configuration with analog output, switching outputs, relay, serial interface (Modbus) and 115 ... 230 VAC. With the resistive touch panel and IP65 the touchMATRIX® displays are ideal for use in the food industry.

Pulse counter, tachometer and speed indicator with touchscreen and graphic display

Features

• Multifunctional unit with several operating modes, e. g. speed or position indicator,
  counter, flow time indicator, timer, stopwatch or process indicator
• Universal inputs (HTL/RS422) for encoders / sensors with NPN / PNP / NAMUR characteristic
• Bright and high-contrast display with event controlled color variations
• Emulation of a 7-segment display inclusively icons and units
• Intuitive and easy parameterization by plain text and touchscreen
• 5 / 24 V auxiliary output for encoder supply
• Input frequencies up to 1 MHz
• Linearization with 24 interpolation points
• Numerous features, e. g. scaling, filtering, start-up suppression
• 3.78 x 1.89 inch (96 x 48 mm) norm panel housing and IP65 protection

Model Numbers

DX350 -   Basic unit with HTL inputs (A, B), 3 control inputs
DX355 -  Basic unit with HTL/RS422 inputs (A, /A, B, /B), 3 control inputs
