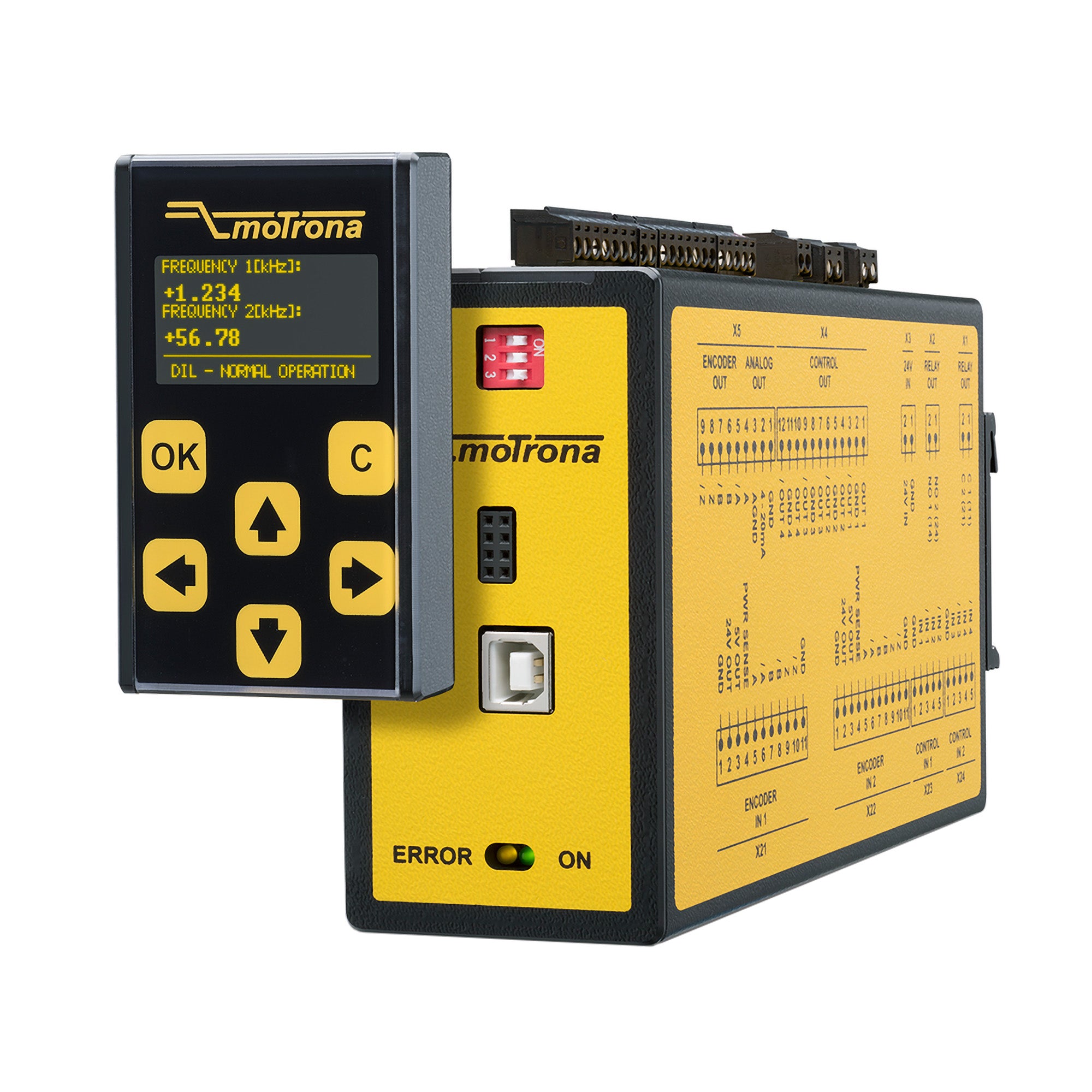

Motrona DS260 Safety Speed Monitor for Incremental Encoders 1 Input SI

Often there is a high risk to people and machinery in industrial applications. In these cases, it is necessary and required by law to fulfill certain safety criteria to reduce these risks. This is precisely where the application field of our speed monitors of the DS series is. They are used to monitor underfrequencies, overfrequencies, direction of rotation and machine standstill. With their SIL3/PLe and SIL2/PLd certifications according to the DIN 61508 and ISO 13849 standards, the safety relays ensure maximum safety and reliability.

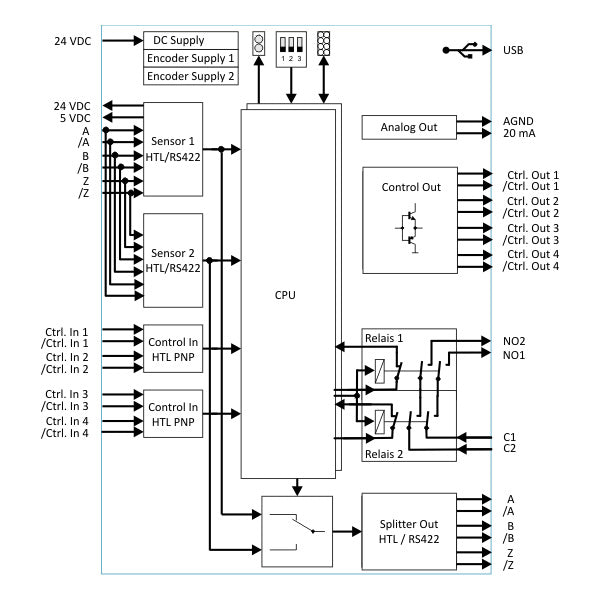

The DS260 can achieve up to SIL2/PLd. The speed monitor is equipped with one incremental input (HTL differential, HTL single ended, RS422), a signal distributor and has a cable break monitoring.

Features

SIL2 and PLd certification
Safety functions equivalent to EN 61800-5-2
(SS1, SS2, SOS, SLS, SDl, SSM, SLI, SBC, STO, SMS)
1 incremental encoder input with format A, /A, B, /B, Z, /Z
[HTL differencial, RS422]
8 control inputs [HTL / PNP]
Input frequency up to 500 kHz
2 relay outputs 5... 250 VAC / VDC (NO)
4 x 2 control outputs with push-pull characteristic, short-circuit-proof,
[HTL], antivalent or equivalent redundant or simply used
Safety related 14 bit analog output for 4 ... 20 mA (scalable)
Signal splitter
Power supply 18 ... 30 V
Wire monitoring of the sensor signals
Compact housing for 35 mm mounting top hat rail
(according to EN 60715)
USB interface in combination with the user interface OS6.0 for the parameterization of the safety speed monitor
BG200 operator panel for easy parameterization and display (optional)
