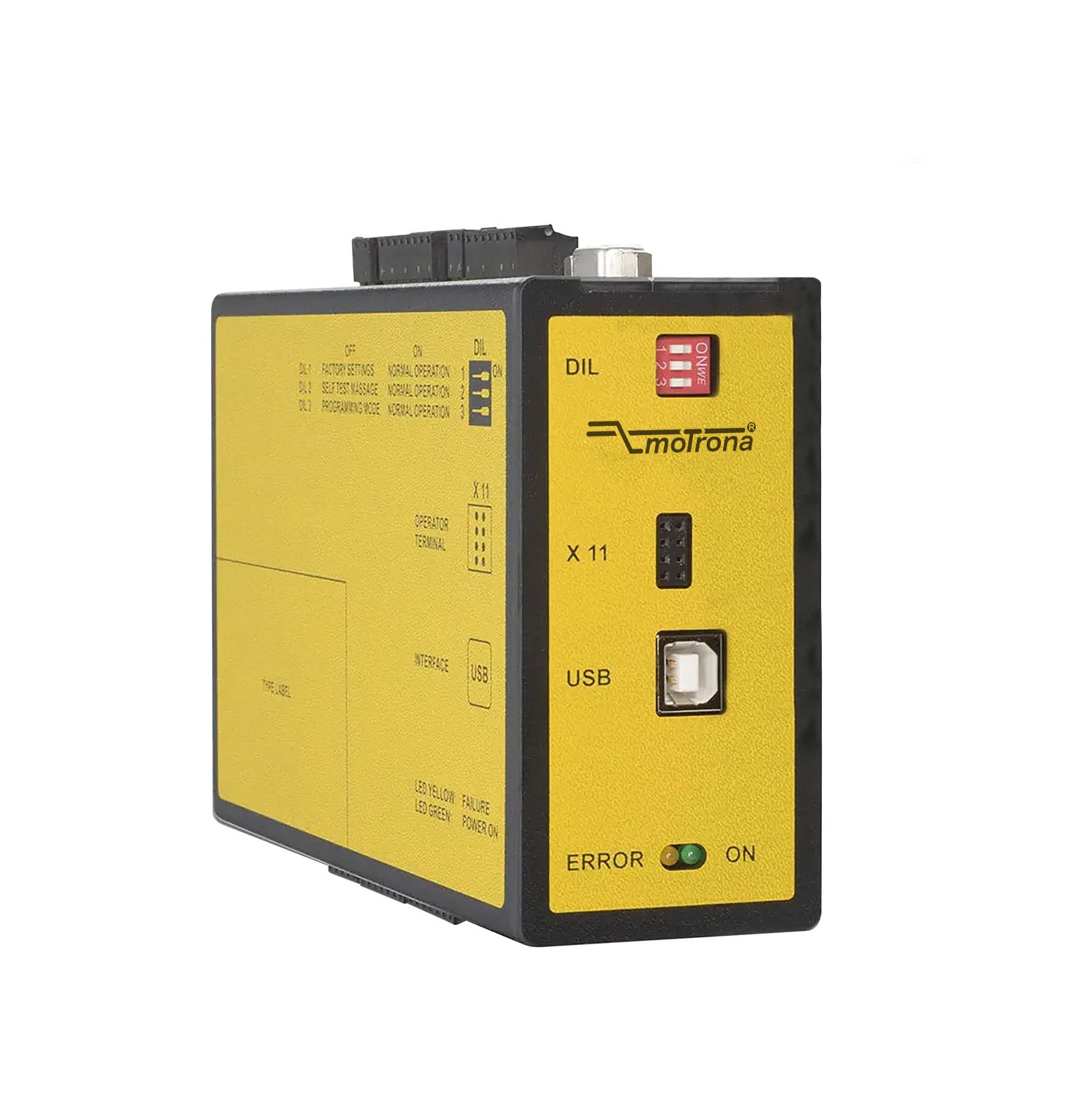

Motrona DS250 Safety Speed Monitor Incremental Encoder 2 Inputs

Often there is a high risk to people and machinery in industrial applications. In these cases, it is necessary and required by law to fulfill certain safety criteria to reduce these risks. This is precisely where the application field of our speed monitors of the DS series is. They are used to monitor underfrequencies, overfrequencies, direction of rotation and machine standstill. With their SIL3/PLe and SIL2/PLd certifications according to the DIN 61508 and ISO 13849 standards, the safety relays ensure maximum safety and reliability.

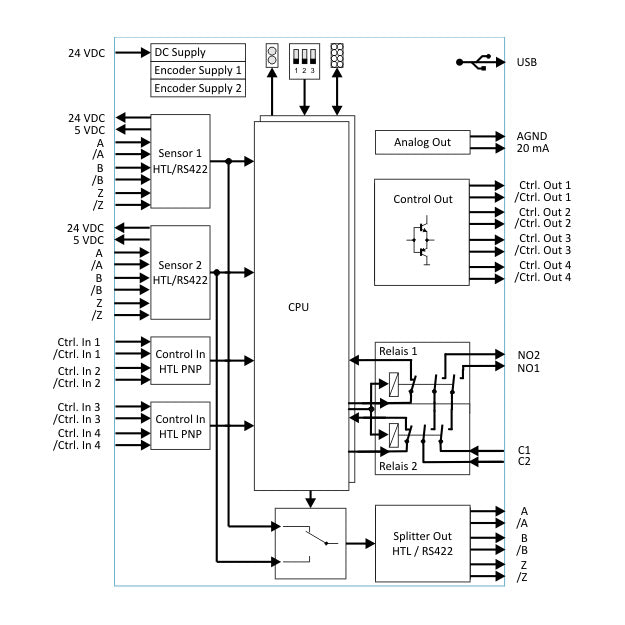

The speed monitor DS250 achieves SIL3/PLe with two non-certified sensors. It has two incremental inputs (HTL differential, HTL single ended, RS422), a signal distributor and a line break monitoring.

Features

SIL3 and PLe certification
Safety functions equivalent to EN 61800-5-2
(SS1, SS2, SOS, SLS, SDl, SSM, SLI, SBC, STO, SMS)
2 incremental encoder inputs with format A, /A, B, /B, Z, /Z
[HTL differencial, HTL single ended, RS422]
8 control inputs [HTL / PNP]
Input frequency up to 500 kHz
2 relay outputs 5... 250 VAC / VDC (NO)
4 x 2 control outputs with push-pull characteristic, short-circuit-proof,
[HTL], antivalent or equivalent redundant or simply used
Safety related 14 bit analog output for 4 ... 20 mA (scalable)
Signal splitter
Power supply 18 ... 30 V
Wire monitoring of the sensor signals
Compact housing for 35 mm mounting top hat rail
(according to EN 60715)
USB interface in combination with the user interface OS6.0 for the parameterization of the safety speed monitor

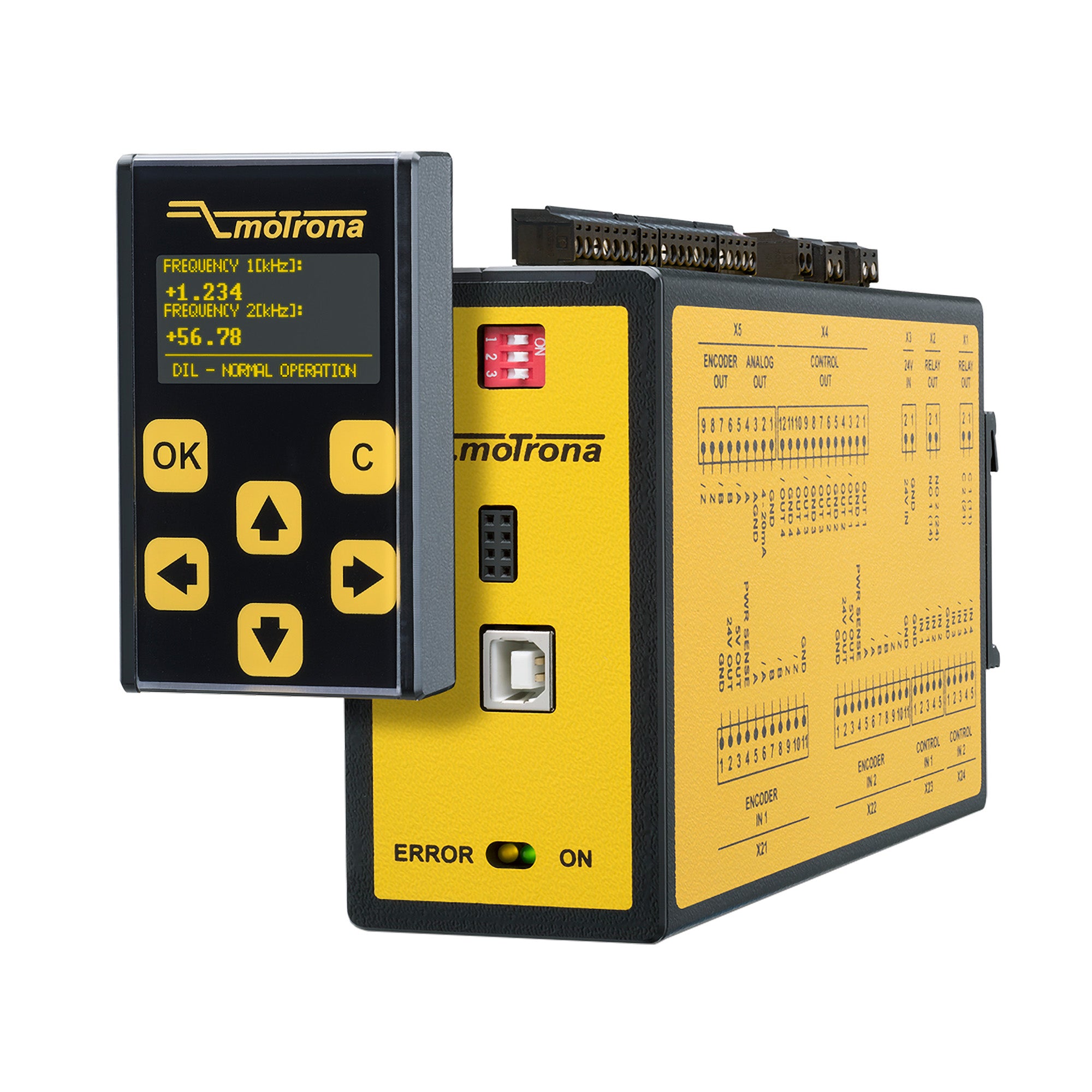

BG200 operator panel for easy parameterization and display (optional
