Motrona DS230 Safety Speed Monitor with Multifunctional Inputs and Signal Splitter

The task of a speed monitor is, as the name says, the monitoring of overspeed, underspeed, direction of rotation or standstill. The speed monitors from moTrona are used when there are high safety criteria for the safety and reliability of a system. In particular when the highest protection requirements for man and machine are needed, the safety relays of the DS series, with the double certificate according to DIN 61508 and ISO 13849, offer a high level of safety.

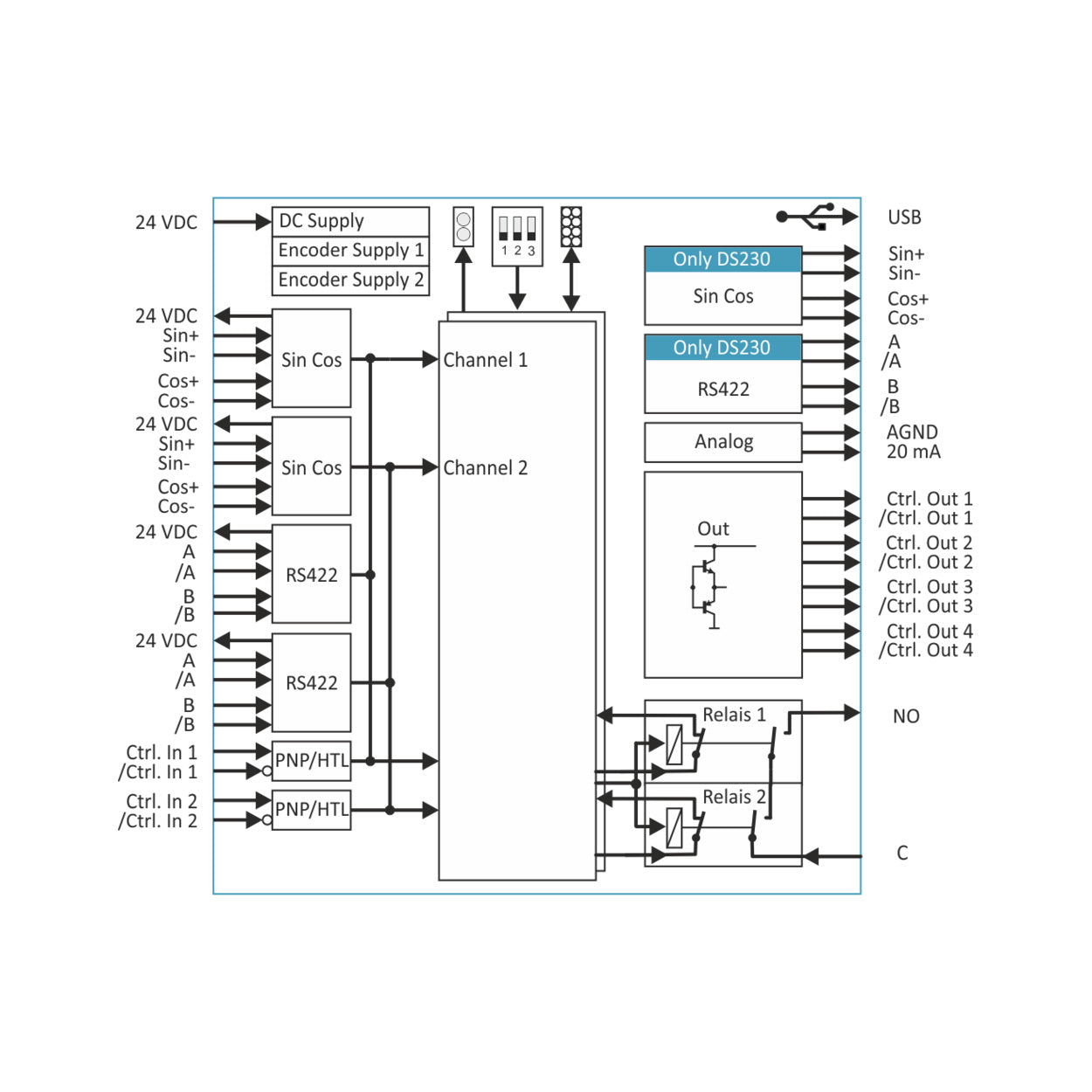

The DS230 is suitable for connecting incremental sensors with RS422 output (differential signals A, / A, B, / B), one-track HTL encoders and sine-cosine encoders. It is equipped with a relay, 4 transistor outputs, one analog output and one signal distributor.

The DS236 is an alternative version without a signal splitter.

Features

• SIL3 and PLe certification
• Safety functions equivalent to EN 61800-5-2
  (SS1, SS2, SOS, SLS, SDl, SSM, SLI, SBC, STO, SMS)
• 2 encoder inputs with format SIN+, SIN-, COS+, COS- [1 Vss]
  2 pulse inputs with format A, /A, B, /B [RS422]
• 2 pulse- or control inputs with format A, B, 90° [HTL / PNP]
  (for rotary encoder, proximity switches or commands)
• Input frequency up to 500 kHz
• Forced-guided redundant output relay (NO)
• 4 control outputs with push-pull characteristic, short-circuit-proof,
  [HTL], each inverse and redundant
• Safety related 14 bit analog output for 4 ... 20 mA (scalable)
• With signal splitter
• Power supply 18 ... 30 V
• Compact housing for 35 mm mounting top hat rail
  (according to EN 60715)

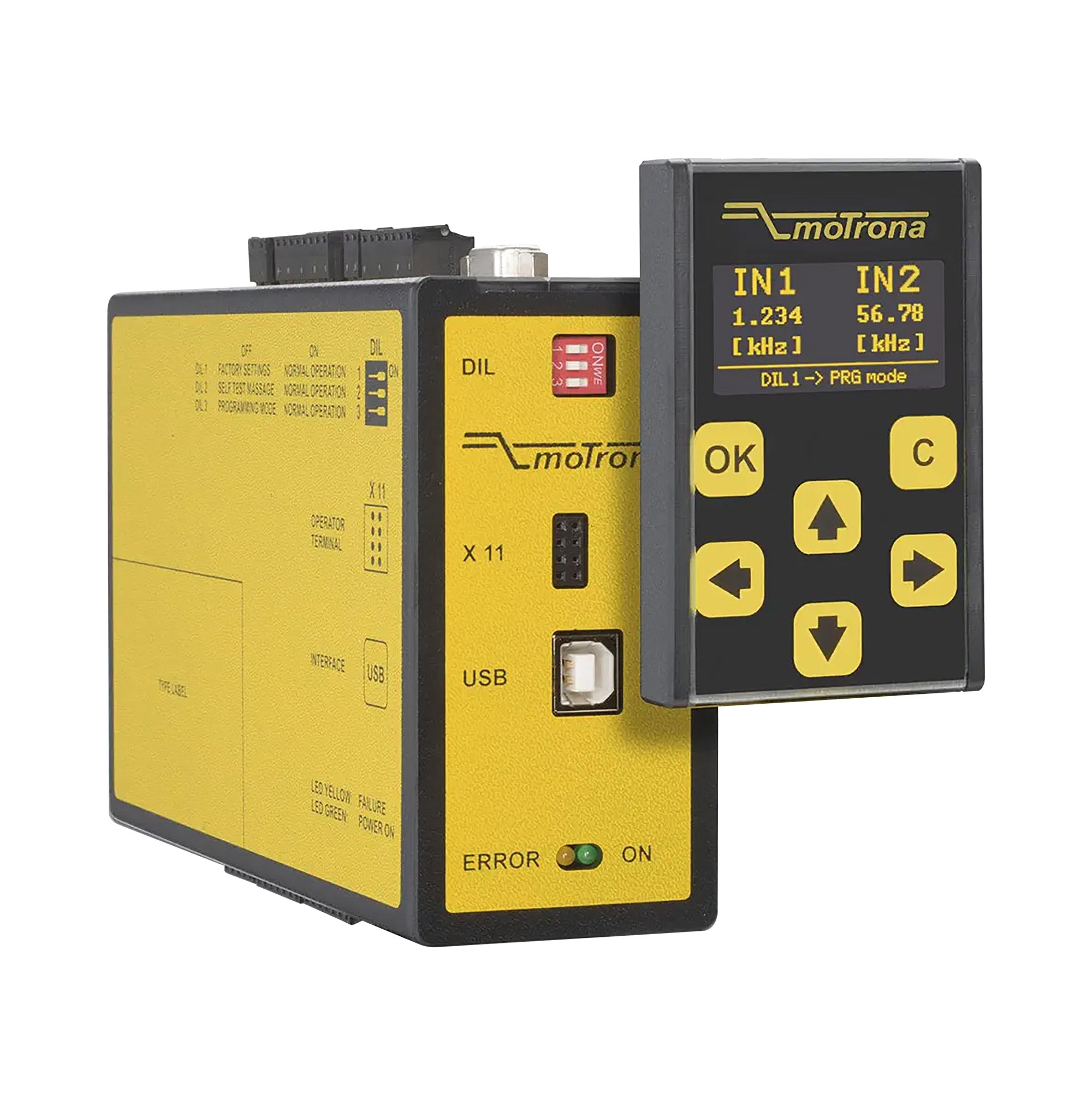

• Setup via USB port by operator software or plug-in display and
  programming unit BG230 (accessories)

Model Numbers

DS230 -  Multifunctional Inputs for HTL-, RS422-, SinCos-Sensors and Signal Splitter

DS236 -  Multifunctional Inputs for HTL-, RS422-, SinCos-Sensors without Signal Splitter
