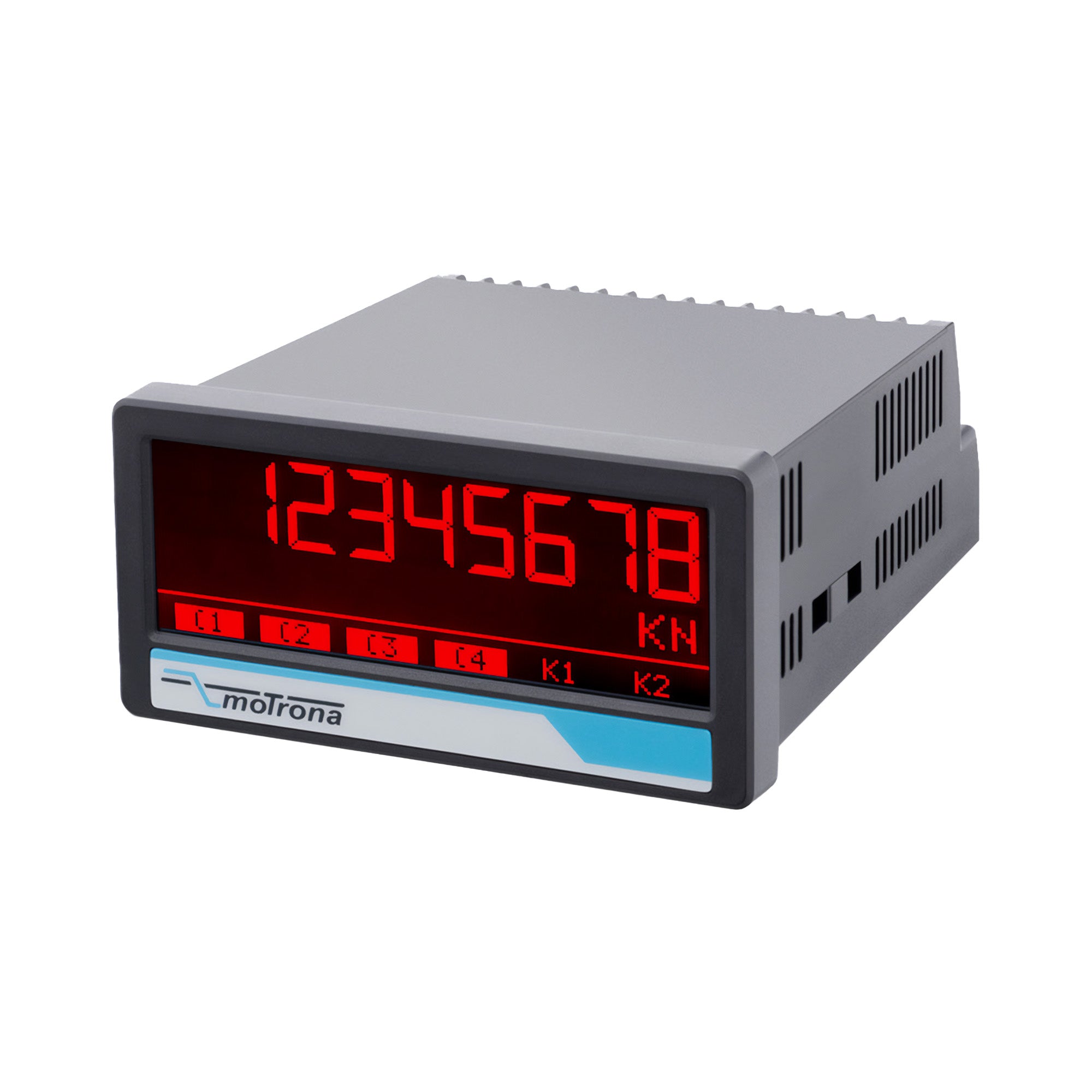

Motrona DM350 Strain Gauge Indicator for Force Sensors

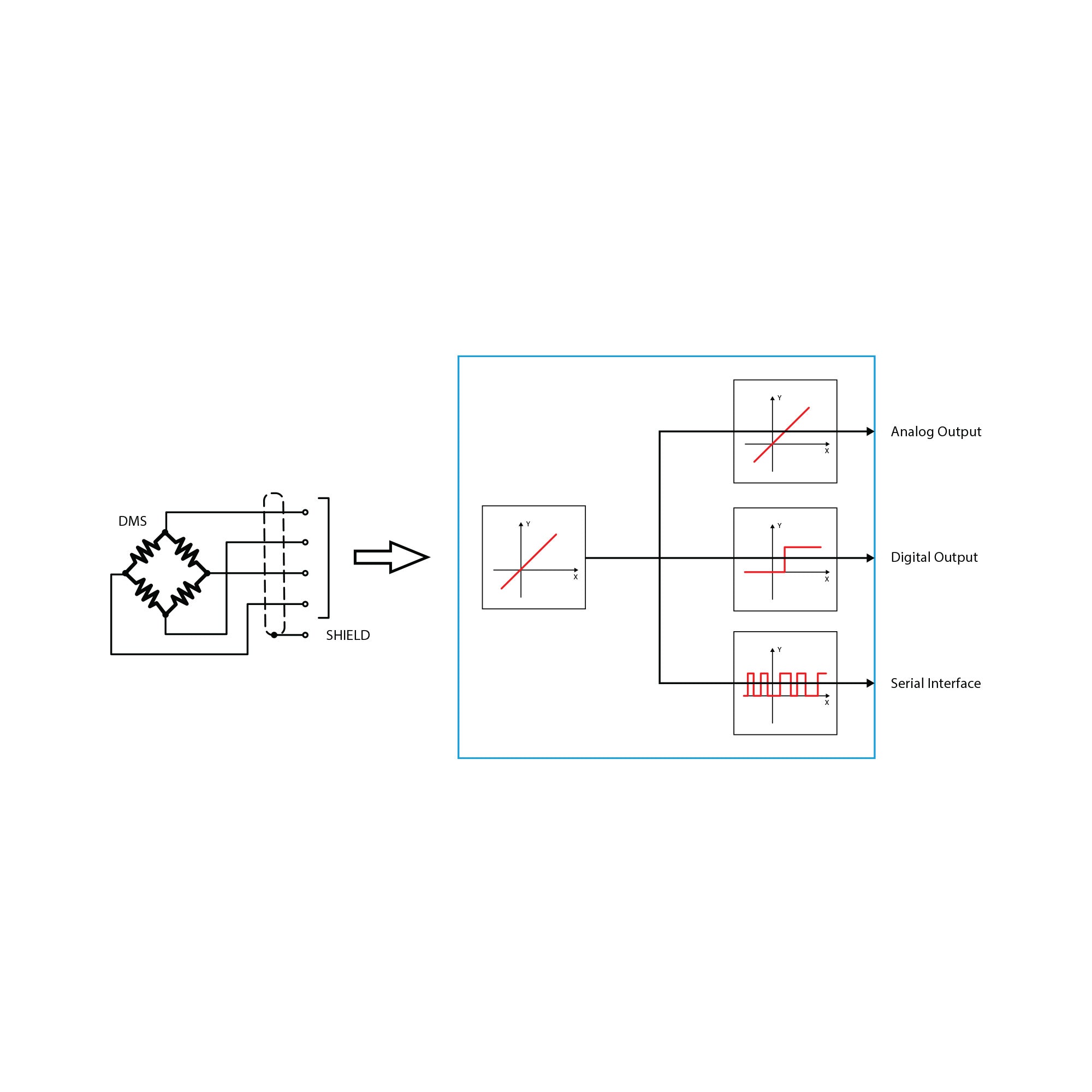

The DM350 strain gauge indicator has a 6-wire connection for a strain gauge full bridge sensor. This means that all types of tension, pressure and force sensors can be connected to the DM350. The force measurements carried out in this way are widely used in industry, for example in hydraulic presses, rolling machines, bending machines, strength testing machines and also in level measurement. Like all devices in our touchMATRIX® family, the DM350 is also equipped with a resistive touchscreen and a multicolored graphic display (red, green, yellow). Due to the modular design, there is a large number of options available like: Analog output, relays, switching outputs, serial interface (Modbus) and 115 ... 230 VAC power supply.

Features

• Strain gauge input, 6-wire connection
• 3 control inputs for HTL / PNP signals
• Power supply 18 ... 30V DC
• Adjustable bridge voltage 3V DC to 10V DC
• 1 … 10 mV sensitivity
• Standard installation housing with 96 x 48 mm and protection class IP65
• Bright and high-contrast graphic display with event-dependent color variants
• Emulation of a 7-segment display with symbols and units
• Intuitive and simple parameterization through plain text and touchscreen
• Numerous functions such as tare, filter, averaging
• Linearization with 24 support points

Options:

• Option AC:   Power supply 115 ... 230V AC
• Option AO:  16 bit analog output, 4 control outputs, serial RS232 interface
• Option AR:   16 bit analog output, 4 control outputs, serial RS485 interface
• Option CO:   4 control outputs, serial RS232 interface
• Option CR:   4 control outputs, serial RS485 interface
• Option RL:    2 relay outputs


Options can be combined and MUST be ordered at the time of purchase.  They are custom modification made at manufacture.  PLEASE CONTACT US FOR A QUOTE.
