Motrona BY641 Single-Axis Synchronous Controller with 4 Relays

This high-precision, single-axis synchronous controller is used for speed-controlled drives with analog setpoints and is characterized by outstanding control characteristics. Absolute angle-synchronous synchronization or ratio synchronization with adjustable gear factors and phase angles, as well as trim and index functions for adjusting the relative position between the axes, are just some of the numerous features offered by this series.

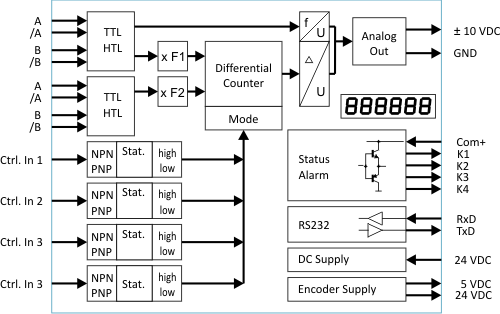

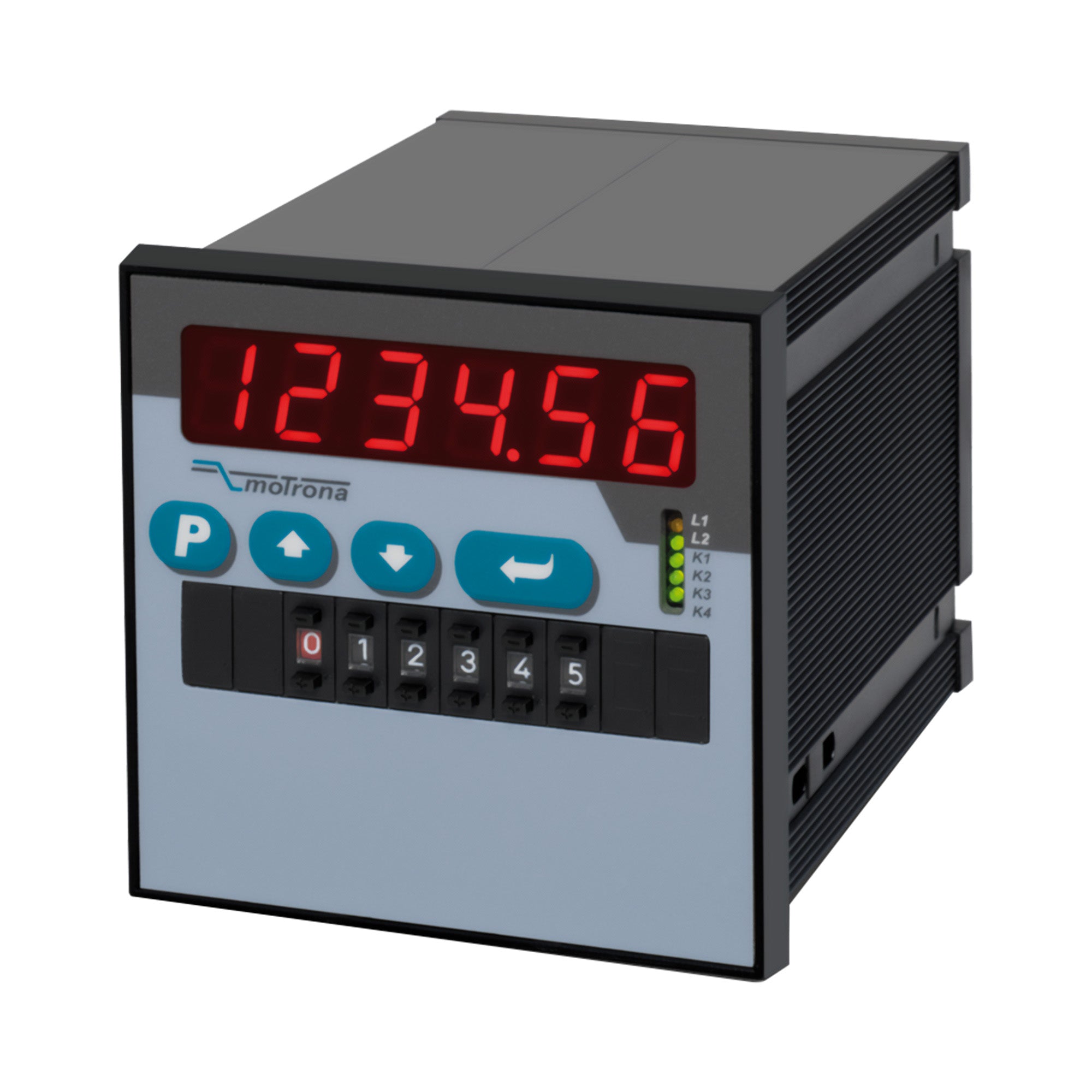

The BY641 synchronous controller is supplied in a 96 x 96 x 140 mm installation housing and is particularly suitable for controlling smaller machines and systems on a tight budget. With its preselection switches, the BY641 version enables direct adjustment of the speed control via a front-mounted BCD decade switch. In addition, the device features four programmable limit values for transistor switching outputs, four potential-free switching output relays, a 14-bit analog output (± 10 V or 0/4 ... 20 mA), and a serial RS232 interface.

Features

• 2 pulse inputs in format A, B, 90° [HTL] or A, /A, B, /B [RS422]
• 4 control inputs for HTL / PNP / NPN / Namur signals [10 ... 30 VDC]
• Input frequency up to 300 kHz
• 4 fast transistor outputs, push-pull, short-circuit proof [5 … 30 VDC]
• 4 potential-free changeover relay outputs
• 1 scalable 14-bit analog output (±10 V or 0/4 … 20 mA)
• Position control cycle approx. 250 µs
• Power supply 24 VAC and 17 … 40 VDC
• Standardized control panel housing
• DIN rail mounting (according to EN 60715) as an option with support bracket SM600
• Parameterization via front panel keypad or with PC via serial RS232 interface
• PROFIBUS connection possible via moTrona gateway PB251
