Motrona BY340 Synchronous Controller DIN Rail Mount

The BY340 allows gear ratio adjustment via keypad and features a ± 10 V or 0/4 to 20 mA analog output, four programmable limit values for transistor switching outputs, and a serial RS232 interface.

The precise single-axis controllers of the BY series boast excellent control characteristics and are suitable for use with speed-controlled drives with analog setpoint input. Absolute angle-synchronous synchronization or ratio synchronization with adjustable gear ratios and phase angles, as well as trim and index functions for adjusting the relative position between the axes, are just some of the numerous functions and features available with these devices.

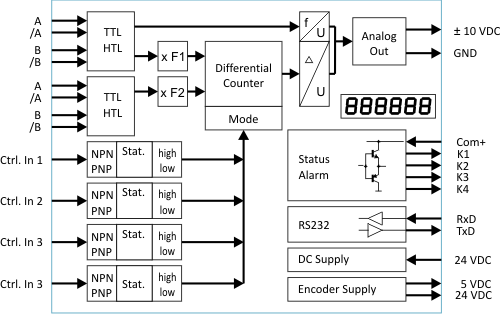

Features

• 2 pulse inputs in format A, B, 90° [HTL] or A, /A, B, /B [RS422]
• 4 control inputs for HTL / PNP / NPN / Namur signals [10 ... 30 VDC]
• Input frequency up to 300 kHz
• 4 fast transistor outputs, push-pull, short-circuit proof [5 … 30 VDC]
• 1 scalable 14-bit analog output (±10 V or 0/4 … 20 mA)
• Position control cycle approx. 250 µs
• Power supply 24 VAC and 17 … 40 VDC
• Standardized control panel housing
• DIN rail mounting (according to EN 60715) as an option with support bracket SM300
• Parameterization via front panel keypad or with PC via serial RS232 interface
• PROFIBUS connection possible via moTrona gateway PB251
