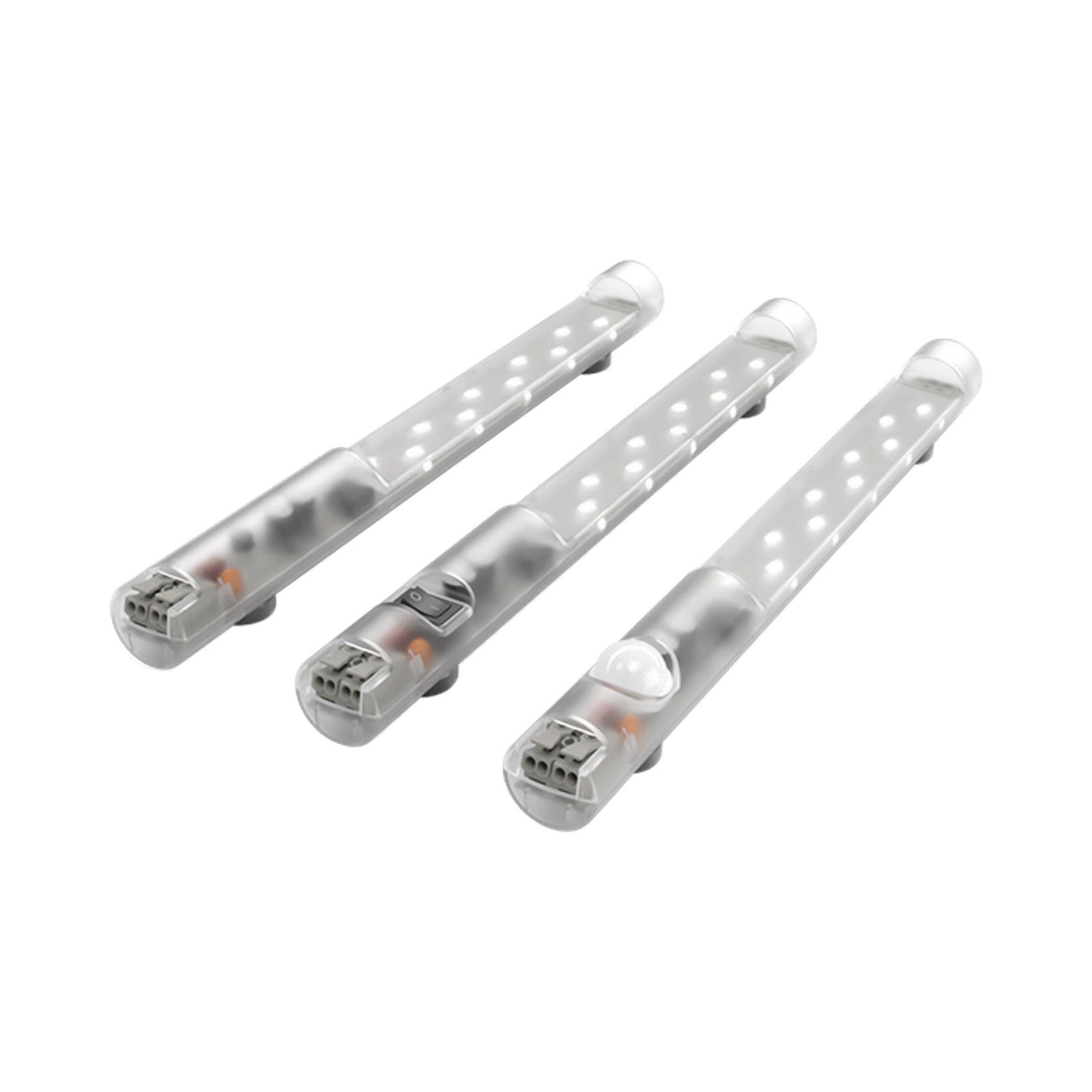

LED Enclosure Lights Multi Wide Voltage AC/DC

LED lights with Multi Wide Voltage are ideal for flexible use in enclosures and casings of different sizes. Multi Wide Voltage supports both AC and DC voltages, ensuring maximum flexibility in the application. Fewer versions mean optimized processes in procurement and materials management. The mounting kit supplied also enables simple and versatile installation.

Accessories

244359 - Extension cable 2 x AWG 16 with female and male connectors – through‑wiring, 1 m
244357 - Connection cable 2 x AWG 16 with female connector, 2 m
264057 - Separate male connector for cable connection
264058 - Separate male connector for cable connection

Features

Multi-wide-range voltage (AC, DC)
Internal power unit for easy connection
Durable and maintenance-free thanks to LED technology
Daisy chain (up to 10 lights)

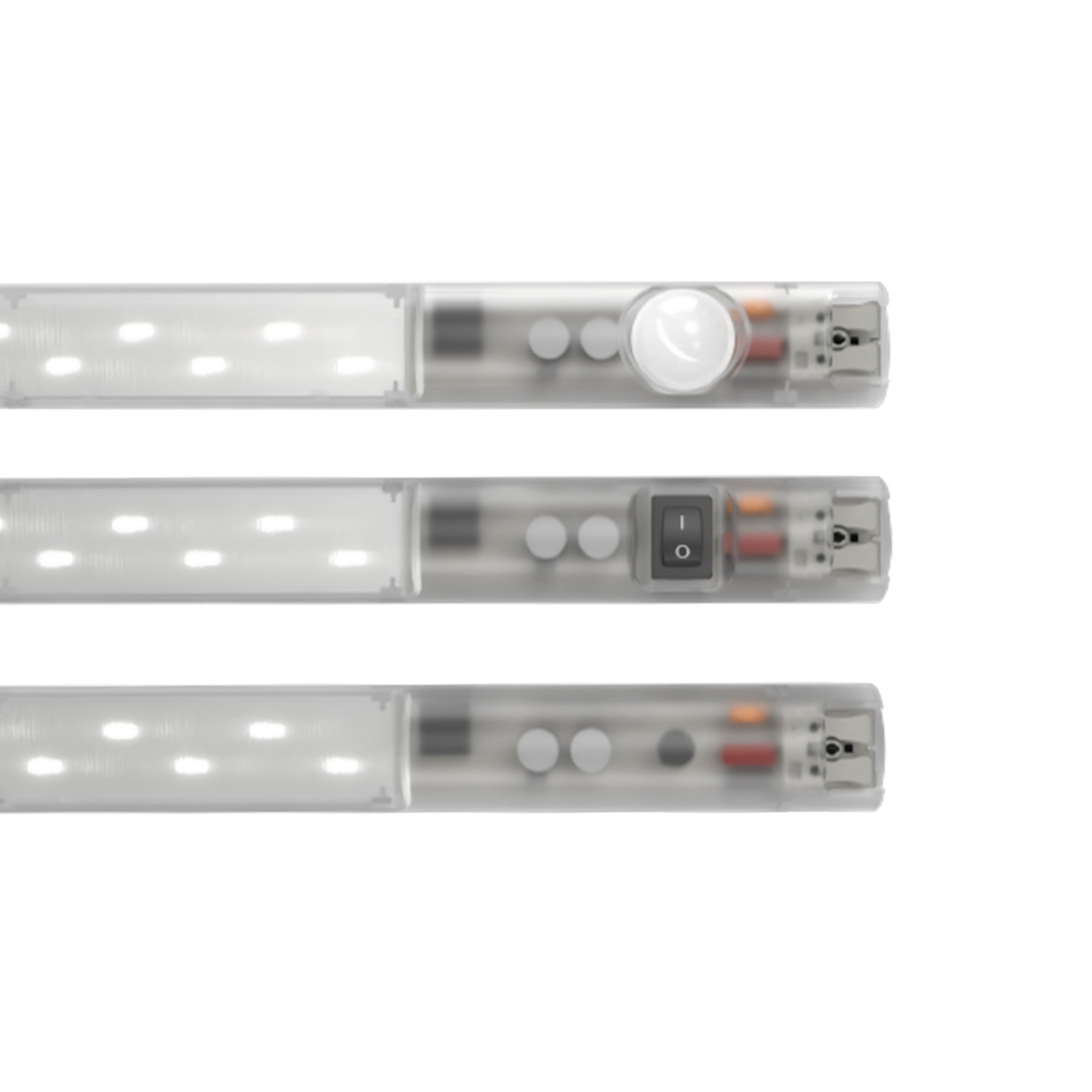

On/off switch or motion detector

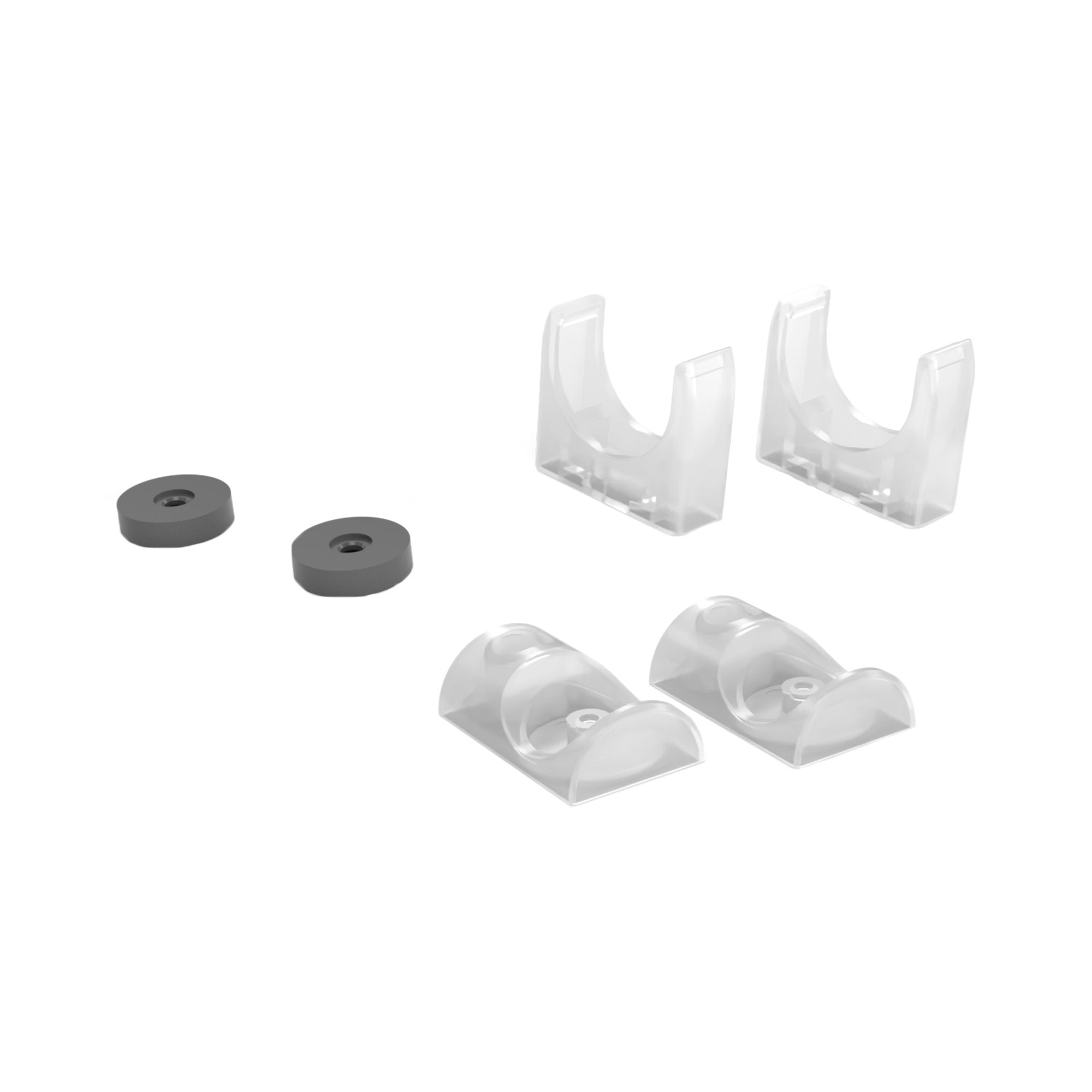

Mounting kit for magnet, screw and clip fixing

Specifications

Device Name: NEW: LED ENCLOSURE LAMP MULTI WIDE VOLTAGE
Device Type: LED enclosure lamps
Series: LED 025
Illuminant: LED
Protection Class: II
Protection Type: IP20
Casing: Plastic, transparent
AC/DC: AC DC
Operating Voltage: 24 V – 240 V
Operating Voltage Tolerance: 20 V – 265 V
Frequency: 0;50;60 Hz
Luminous Color: 6000 – 7000 K
Luminous Flux: 560 Lm
Energy Efficiency: E
Service Life: >60000 h
Operating Temperature: ‑40 to 140 °F
Operating Humidity: =90 % RH
Storage Humidity: =90 % RH
Storage Temperature: ‑40 to 185 °F
CCC: CCC approved
Power Consumption: <4,5 W
Switch: On/Off switch
Connection: 2‑pole connector with snap lock

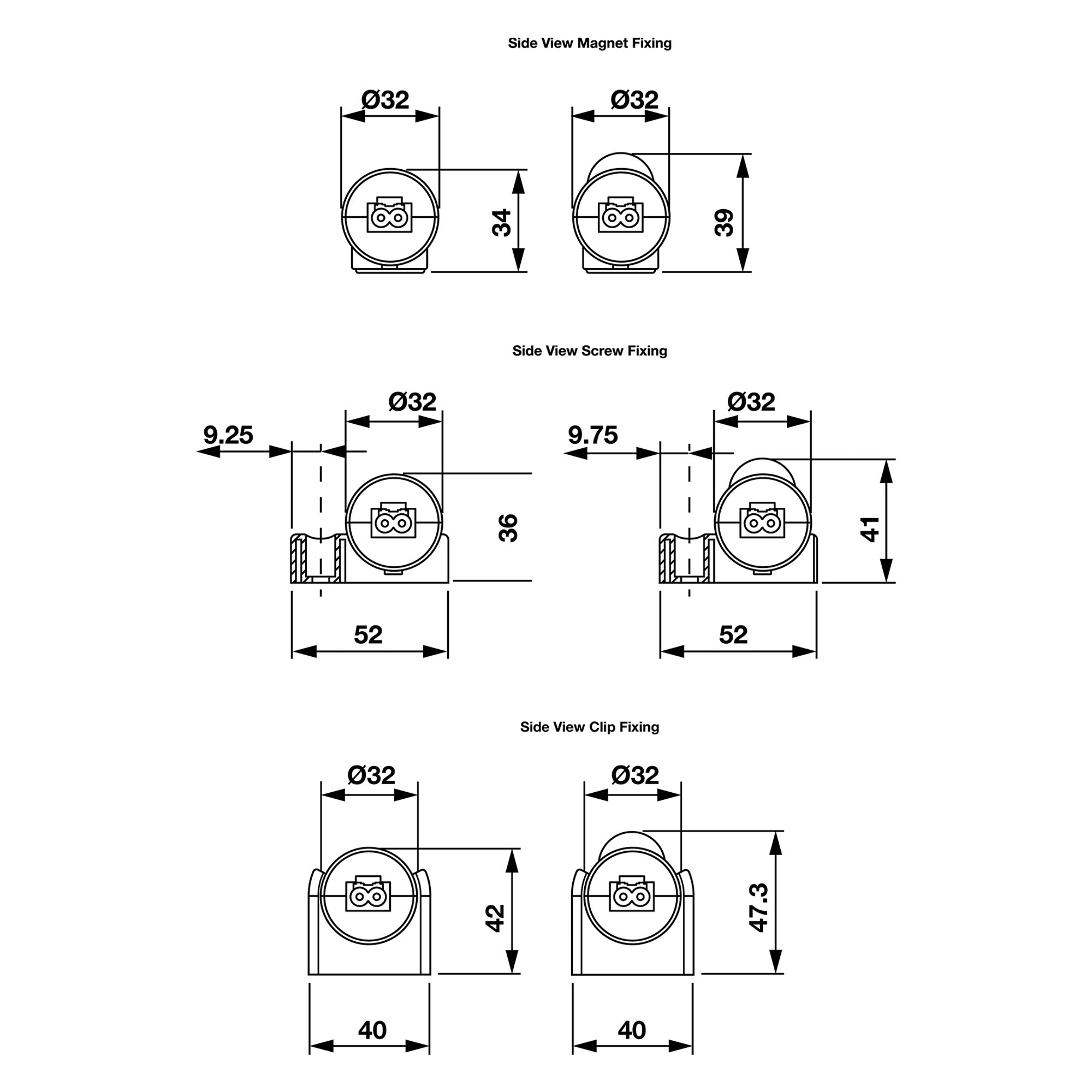

Mounting: Magnet, clip
Height: 1.7 in
Depth: 13.8 in
Weight: 7.1 Oz

*Note: The light must not be used for household lighting

Model Types

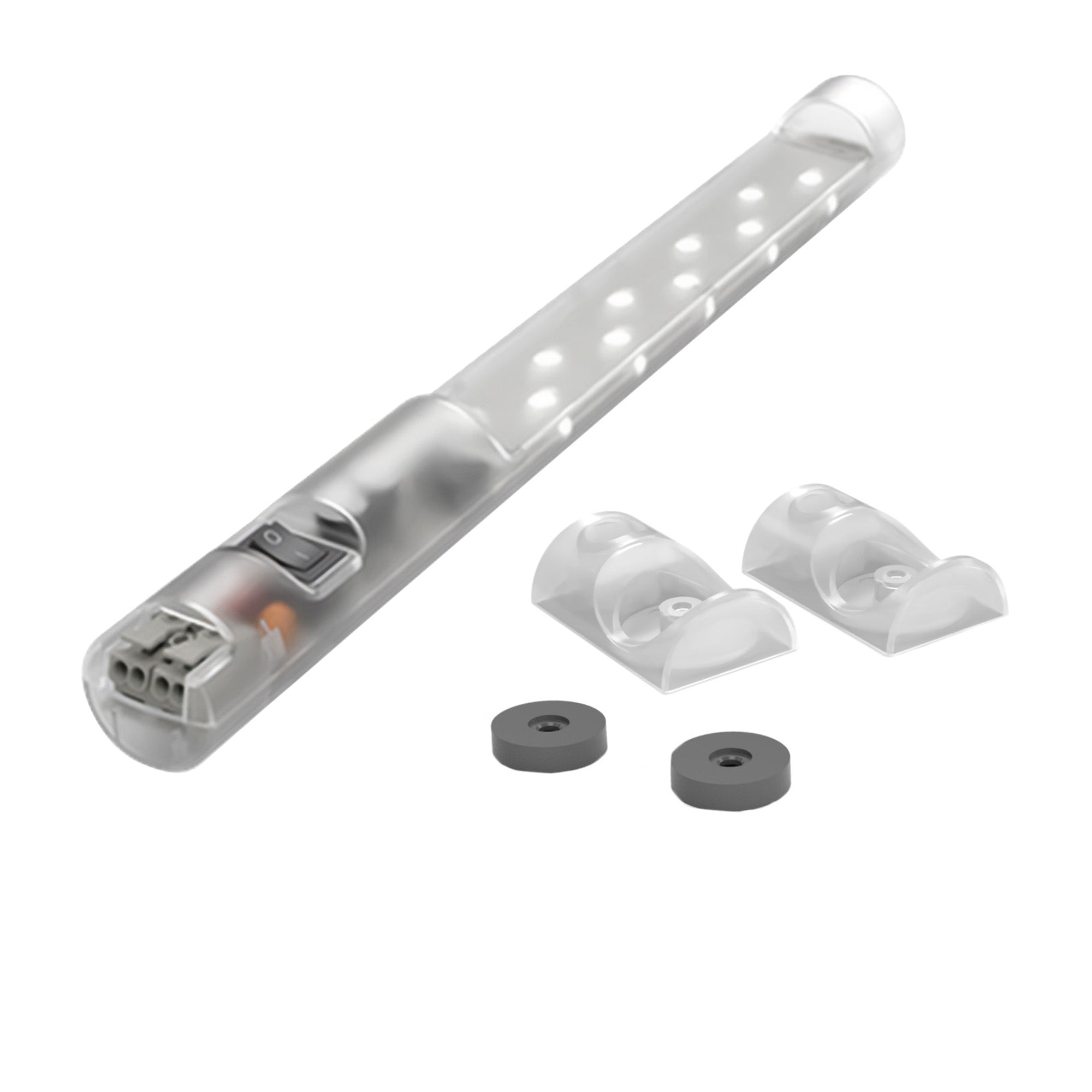

02550.0-00 2-pole connector/snap lock - magnet/clip mount - on/off switch
02550.0-01 2-pole connector/snap lock - screw/clip mount - on/off switch

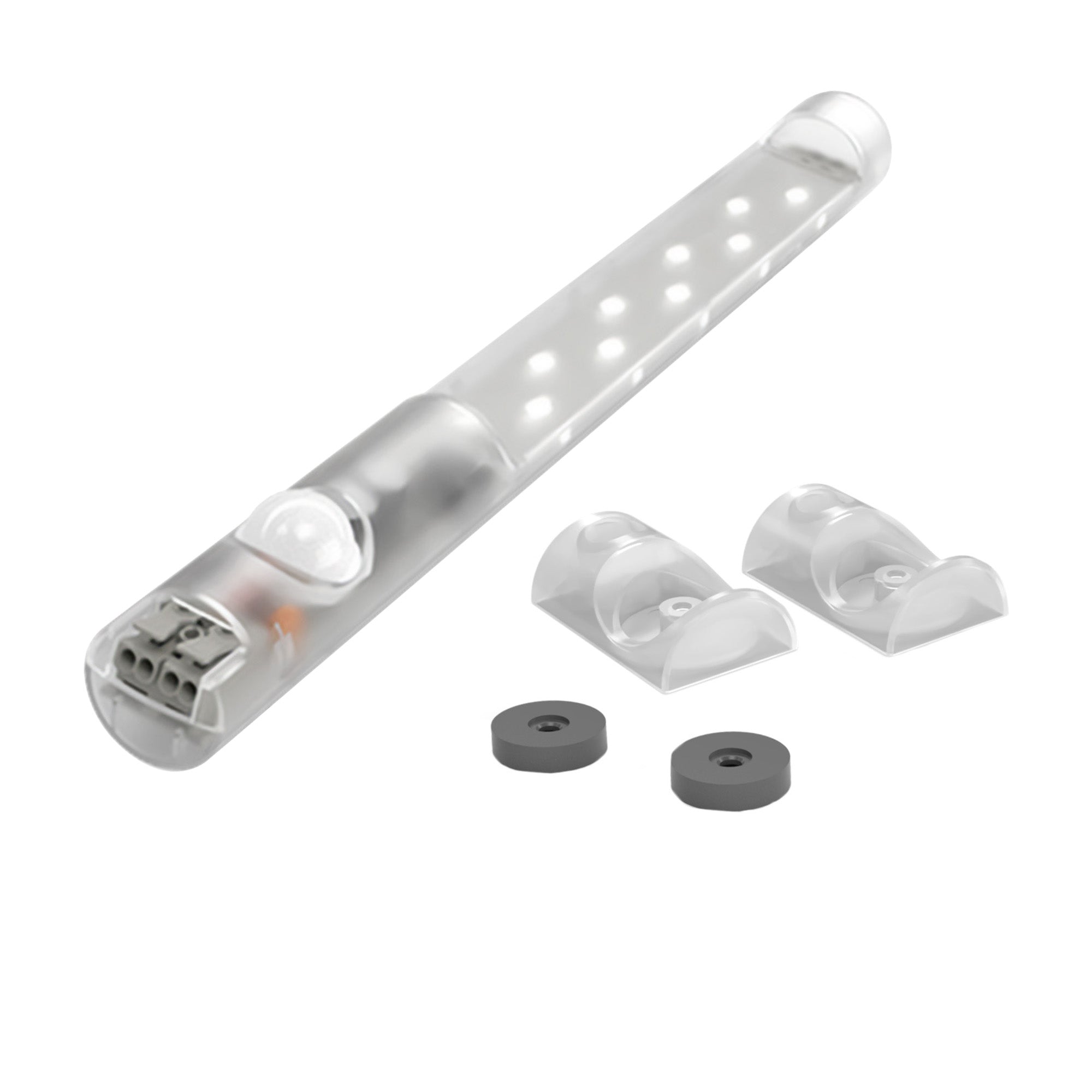

02551.0-00 2-pole connector/snap lock - magnet/clip mount - motion detector

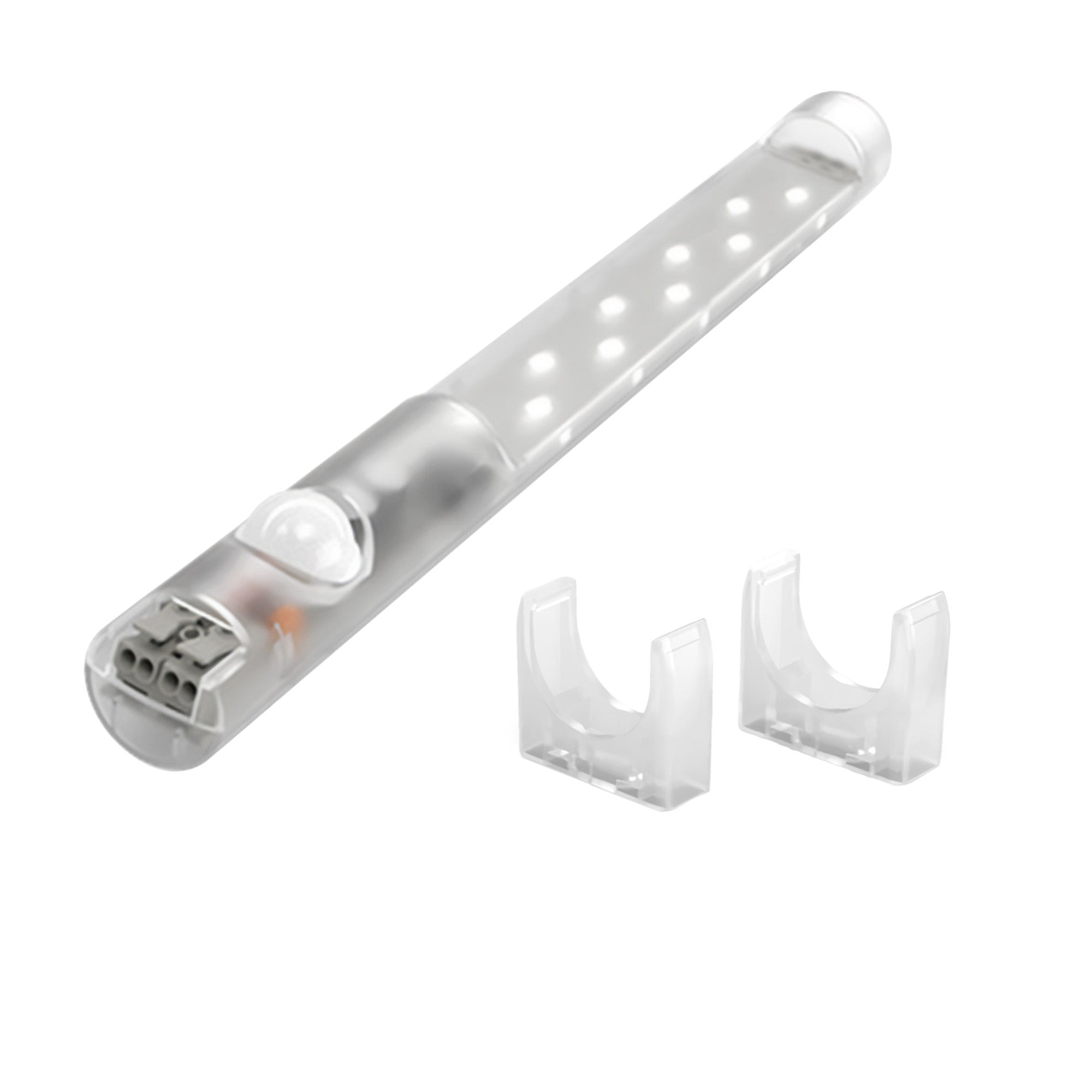

02551.0-01 2-pole connector/snap lock - screw/clip mount - motion detector
02550.0-10 2-pole dual pressure clamp - magnet/clip mount - on/off switch
02550.0-11 2-pole dual pressure clamp - screw/clip mount - on/off switch
02551.0-10 2-pole dual pressure clamp - magnet/clip mount - motion detector
02551.0-11 2-pole dual pressure clamp - screw/clip mount - motion detector
02552.0-10 2-pole dual pressure clamp - magnet/clip mount - no switch
02552.0-11 2-pole dual pressure clamp - screw/clip mount - no switch
