LED 025 Enclosure Light 120/240V AC or 24/48V DC

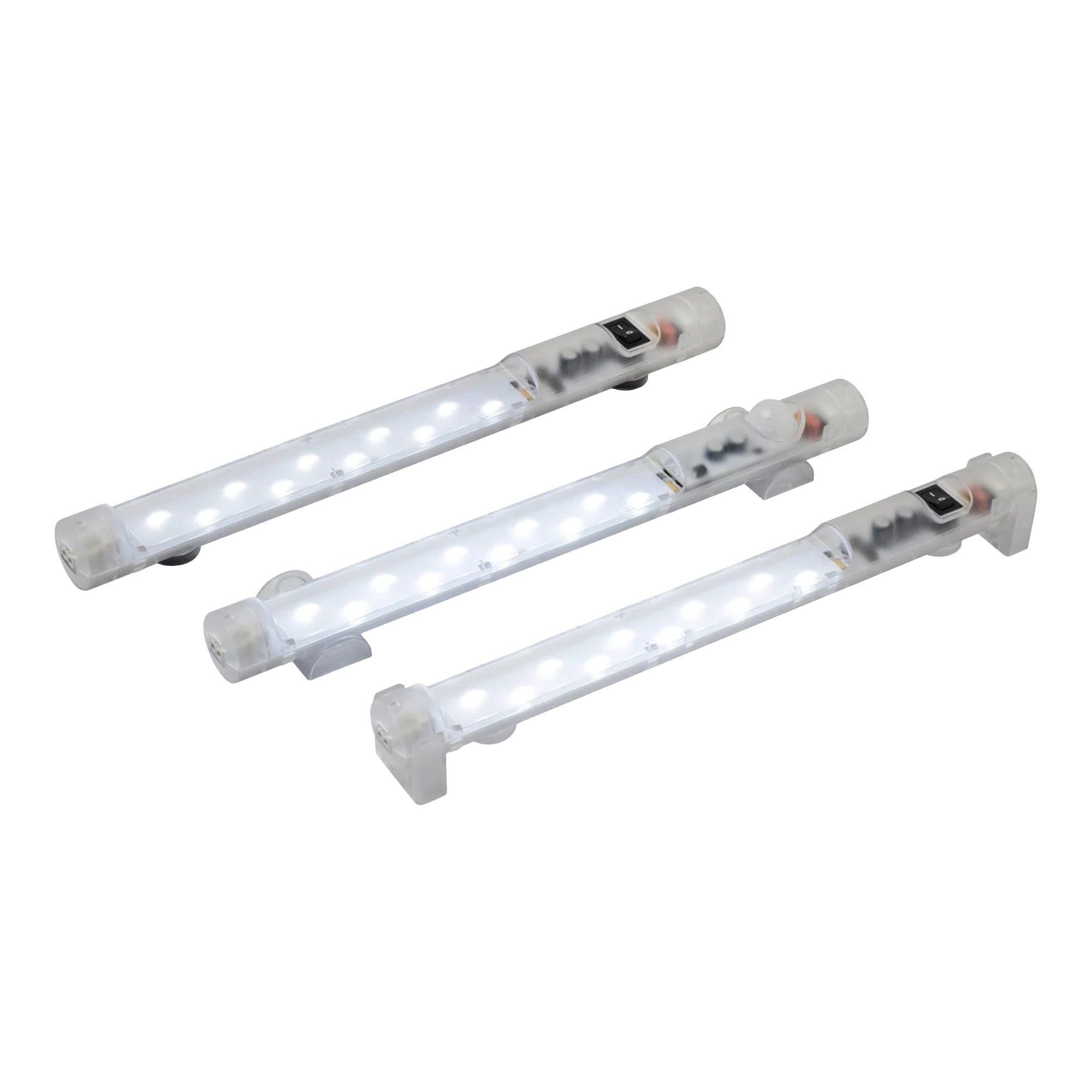

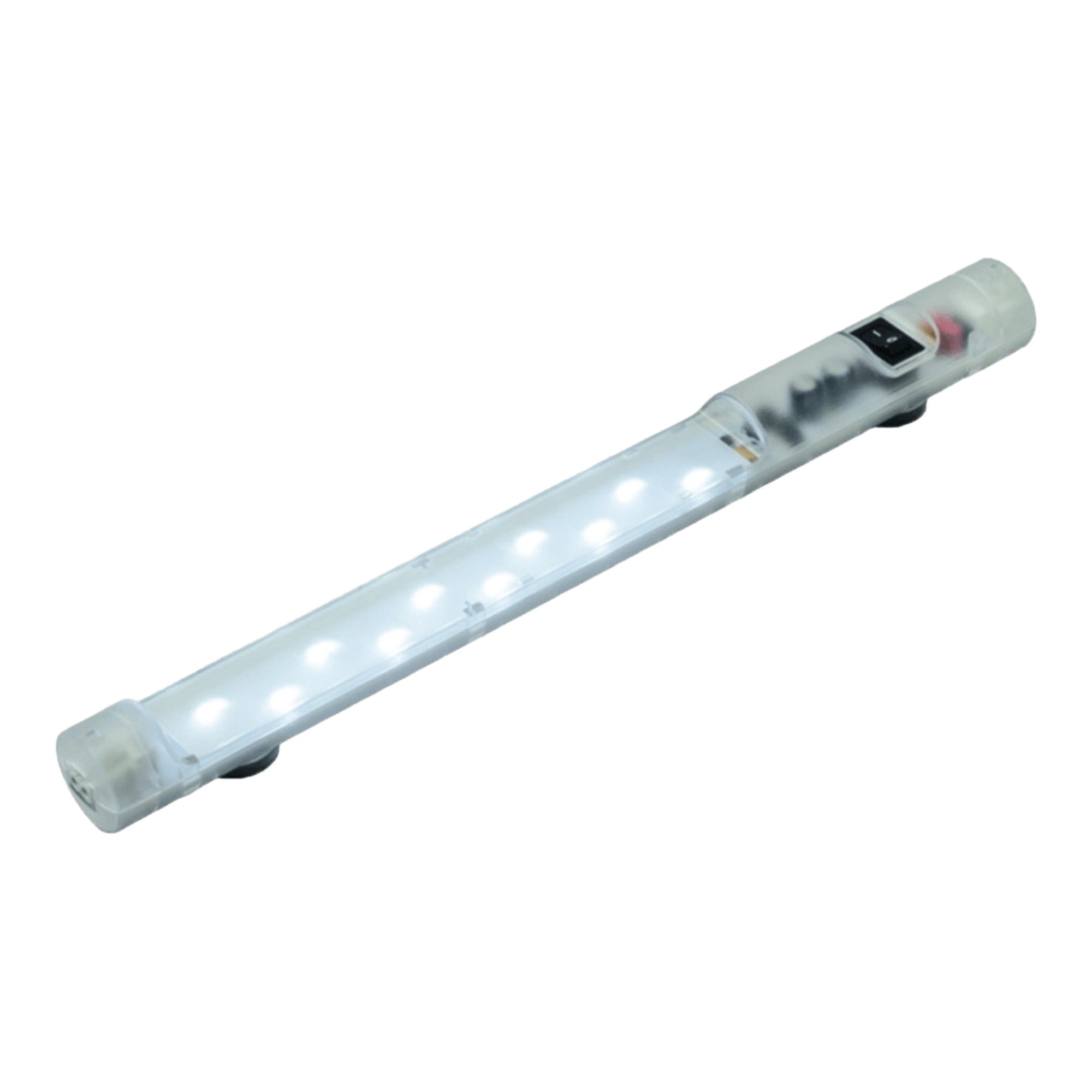

The LED 025 light series is suitable for all types of panels and enclosures, especially where space is at a premium. These lights have a very long service life due to the use of LED technology. They are available with powerful non-slip rubberized magnets allowing them to be easily positioned in any steel enclosure. Screw mounting is also available as an option. The power output allows up to 10 lights to be connected to each other (daisy chain) with both the input and output plugs snap-locking into place. Available voltages are 120V or 230V, or 24/48Vdc.

Features

Wide voltage range
Integrated power unit
Daisy chain
Long-lived, maintenance-free
Magnet or screw fixing
Energy-saving by LED technology
Quick connection
On/Off Switch
VDE, UL intended, CE, RoHS

Specifications

Operating Voltage: 100 – 240 VAC, 50/60 Hz (min. 90 VAC, max. 265 VAC)
Switch: On/Off
Mounting: Magnet
Agency Approvals: VDE, UL
Accessories: Input and output plug, cable for supply or connection

*Note: Available with a 19″ front panel

Lamp Type: LED, 120° angle of radiation; light color – daylight, color temperature 6500 K
Max. Power Consumption: 5 W
Luminosity: 900 Lm
Service Life: 60,000 Hrs at 68 °F (20 °C)
Connection: 2‑pole plug with snap lock; AC: max. 2.5 A/240 VAC (White cable); DC: max. 2.5 A/60 VDC (blue cable)
Housing: Plastic, transparent
Operating Temperature: ‑22 to 140 °F (‑30 to 60 °C)
Storage Temperature: ‑40 to 185 °F (‑40 to 85 °C)

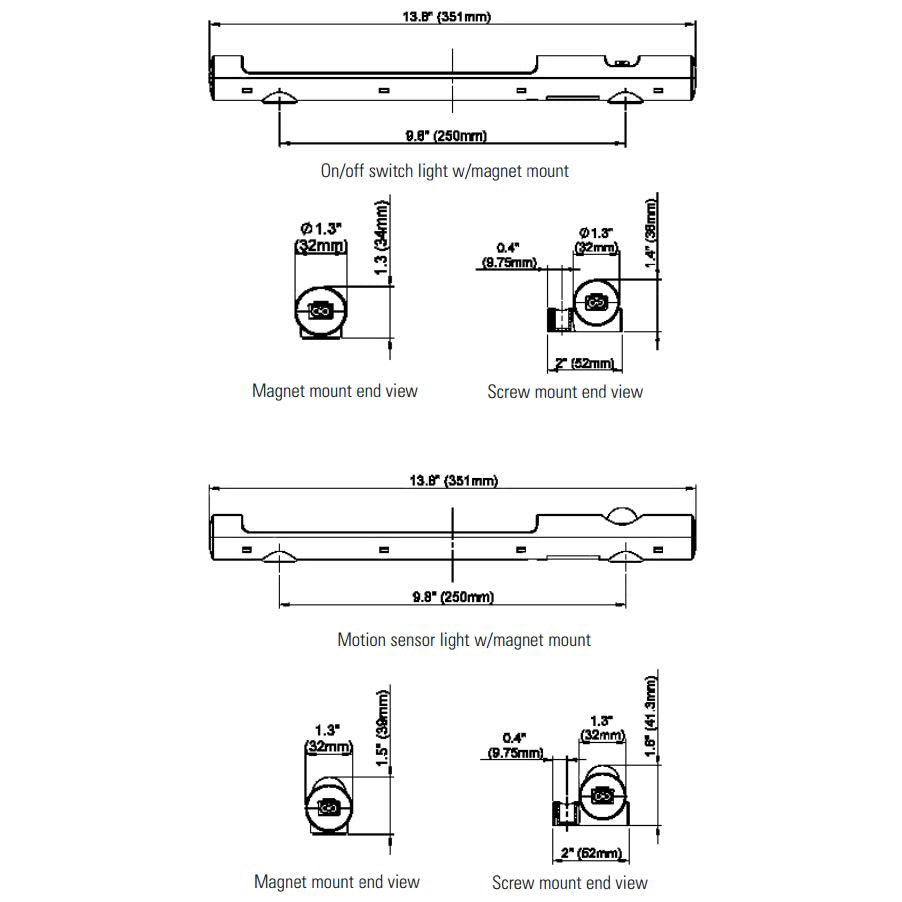

Dimensions: 13.8 × 1.3 × 1.3 inches (351 × 34 × 32 mm)
Protection Class: II (Double insulated)
Protection Type: IP20
Weight: 4.8 oz (135 g)

Model Types

02540.0-00 100-240 VAC, 50/60Hz on/off light switch w/ magnet fixing
02540.1-00 24-48 VDC on/off light switch w/ magnet fixing
02540.0-01 100-240 VAC, 50/60Hz on/off light switch w/ screw fixing
02540.1-01 24-48 VDC on/off light switch w/ screw fixing
