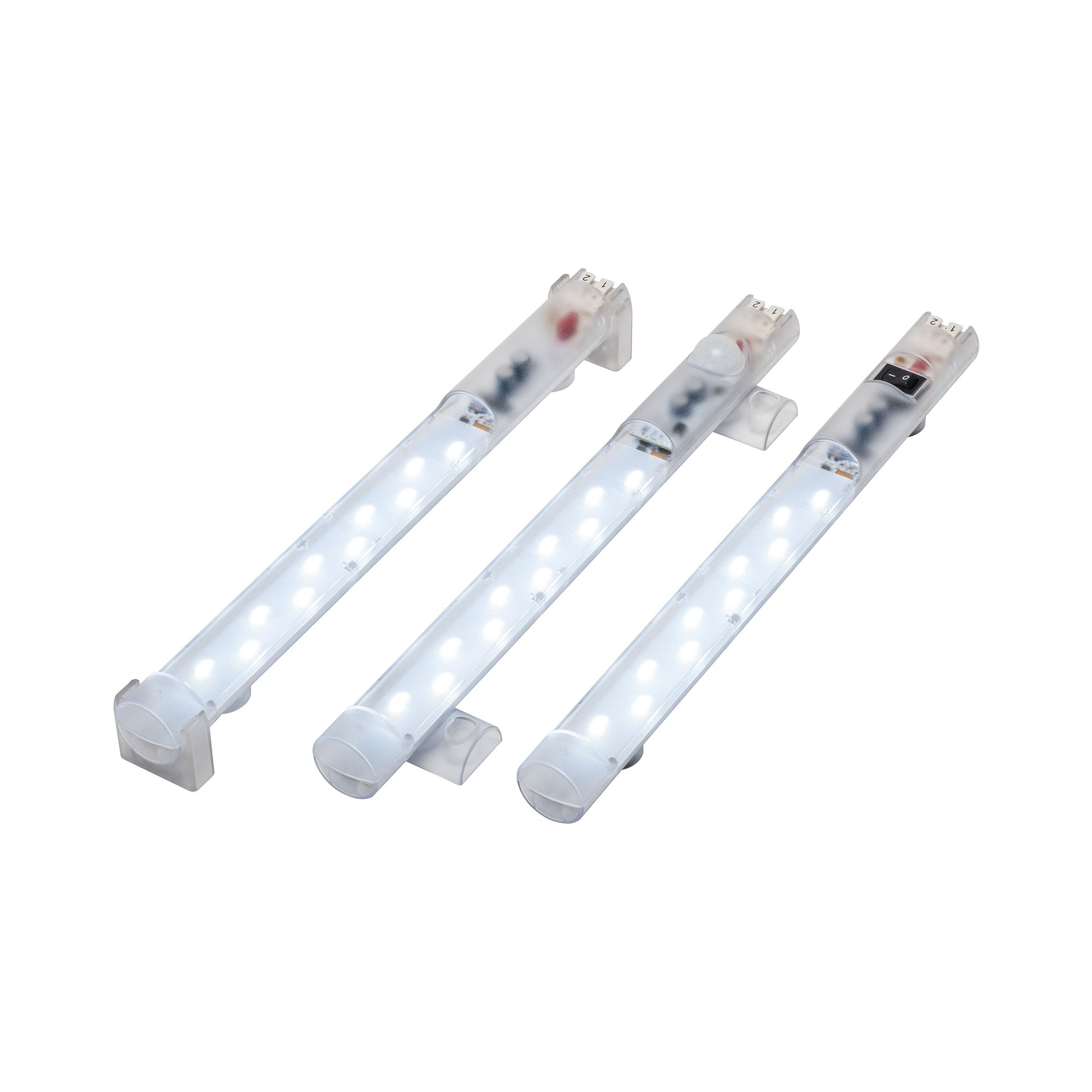

LED 025 Ecoline Enclosure Light

The LED 025 light series is suitable for all types of panels and enclosures, especially where space is at a premium. These lights have a very long service life due to the use of LED technology. They are available with powerful non-slip rubberized magnets allowing them to be easily positioned in any steel enclosure. Screw and clip mounting are also available as options. The Ecoline series is a simplified version of the standard LED 025 light and has a dual cage clamp for connection instead of connectors. Nonetheless it is suitable for daisy-chaining and allows for up to 10 lights to be connected to each other.

Features

Power consumption max. 5 W (~ 75 W incandescent bulb)
Luminosity 400 Lm at 120° (1,200 Lm at 360° or equivalent 95 W light bulb)
Lamp type LED, 120° angle of radiation
Service life 60,000 hrs. at 68°F (20°C)
Connection 2-pole dual cage clamp for solid wire AWG 14 (2.5 mm2) and stranded wire (wire end ferrule) AWG 16 (1.5 mm2)
Housing plastic, transparent
Mounting magnet, M5 screws (not included), or clip (M6 screws), torque 2 Nm max.
Operating / Storage temperature -22 to +140 °F (-30 to +60 °C ) / -40 to +185 °F (-40 to +85 °C)
Operating / Storage humidity max. 90 %RH (Non-condensing)

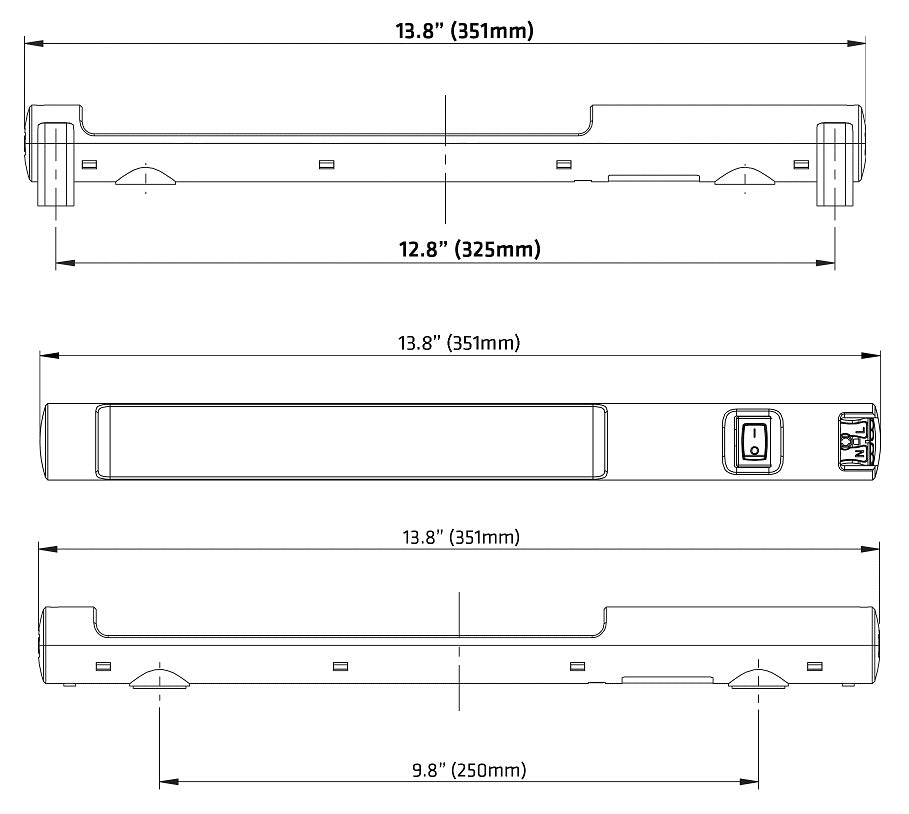

Dimensions see drawings
Weight approx. 7 oz. (200 g)
Protection type / Protection class IP20 / II (Double insulated)
light color - daylight, color temperature - 6,000 to 7,000 K

Specifications

Operating Voltage: AC 100 – 240 V, 50/60 Hz (min. AC 90 V, max. AC 265 V) / DC 90 – 110 V (min. DC 80 V, max. DC 125 V)
Switch: On/Off switch
Agency Approvals: UL File No. E234324, VDE (REG.-Nr. E788)¹, EAC
Mounting: Magnet, M5 screws (not included), or clip (M6 screws), torque 2 Nm max.
Power Consumption: max. 5 W (~75 W incandescent bulb)
Luminosity: 400 Lm at 120° (1,200 Lm at 360° or equivalent 95 W light bulb)
Lamp Type: LED, 120° angle of radiation; light color – daylight; color temperature 6,000 to 7,000 K
Service Life: 60,000 hrs at 68 °F (20 °C)
Connection: 2‑pole dual cage clamp for solid wire AWG 14 (2.5 mm²) and stranded wire (wire end ferrule) AWG 16 (1.5 mm²)
Housing: Plastic, transparent
Operating Temperature: ‑22 to +140 °F (‑30 to +60 °C)
Storage Temperature: ‑40 to +185 °F (‑40 to +85 °C)
Operating/Storage Humidity: Max. 90 % RH (non‑condensing)
Protection Type: IP20
Protection Class: II (Double insulated)
Dimensions: See drawings (Per datasheet)
Weight: approx. 7 Oz (200 g)

* Light is part of the Ecoline series, a simplified LED 025 version with dual cage clamp wiring design.

Suitable for daisy‑chaining up to 10 lights.
Not approved for household lighting.

Model Numbers

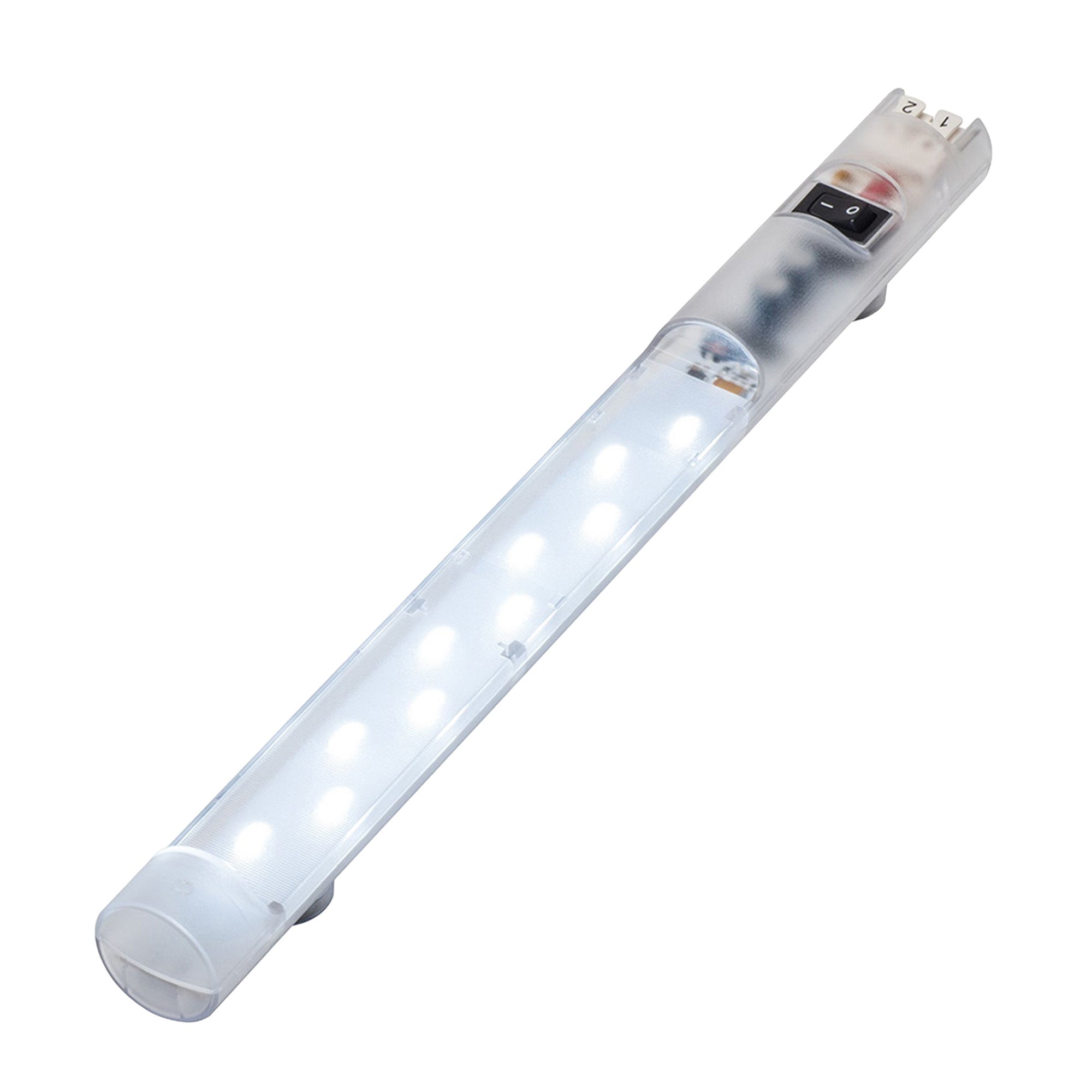

02540.3-10 100-240V AC On/Off Switch Magnetic Mount

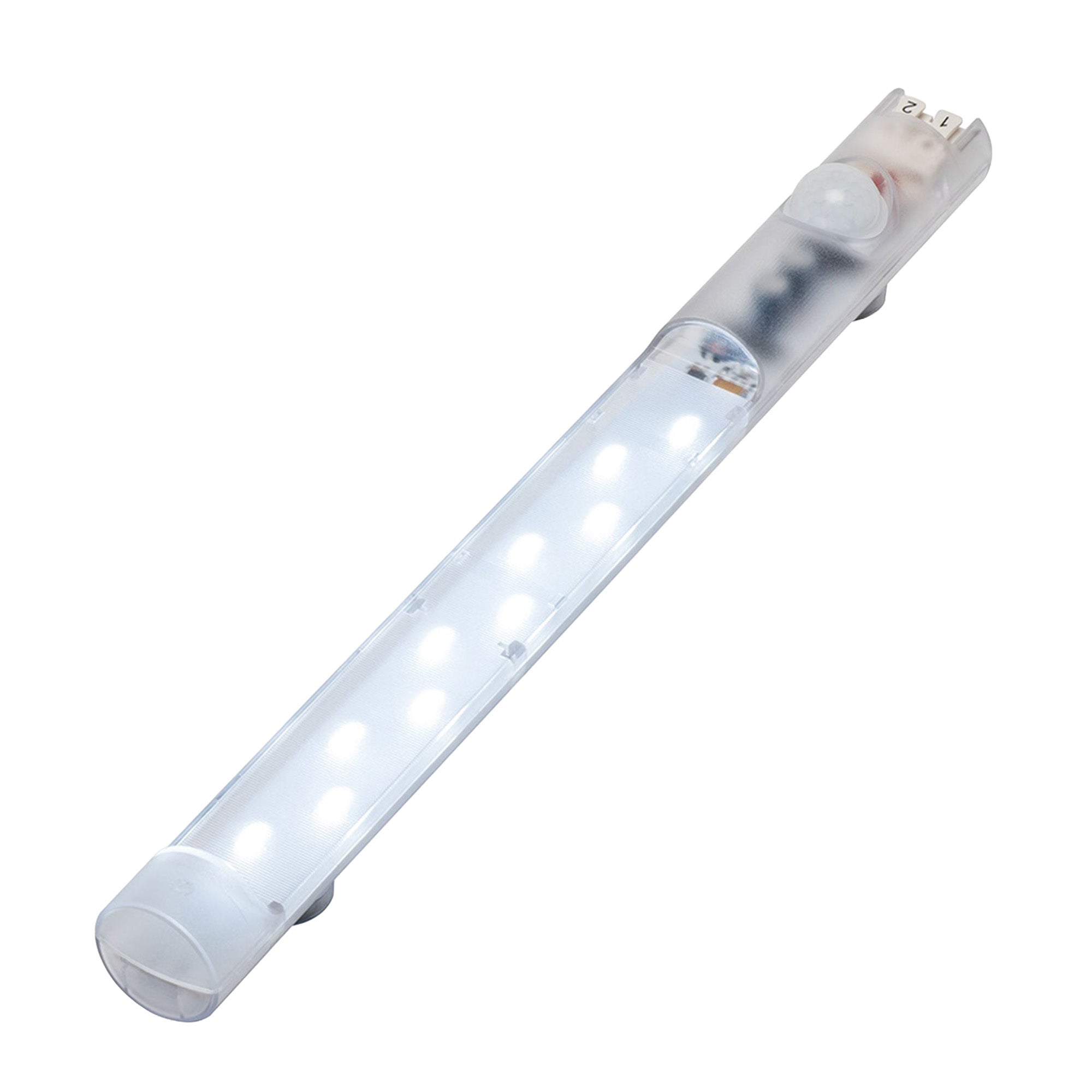

02541.3-10 100-240V AC PIR Motion Sensor Magnetic Mount
02542.3-10 100-240V AC Hard Wired Magnetic Mount

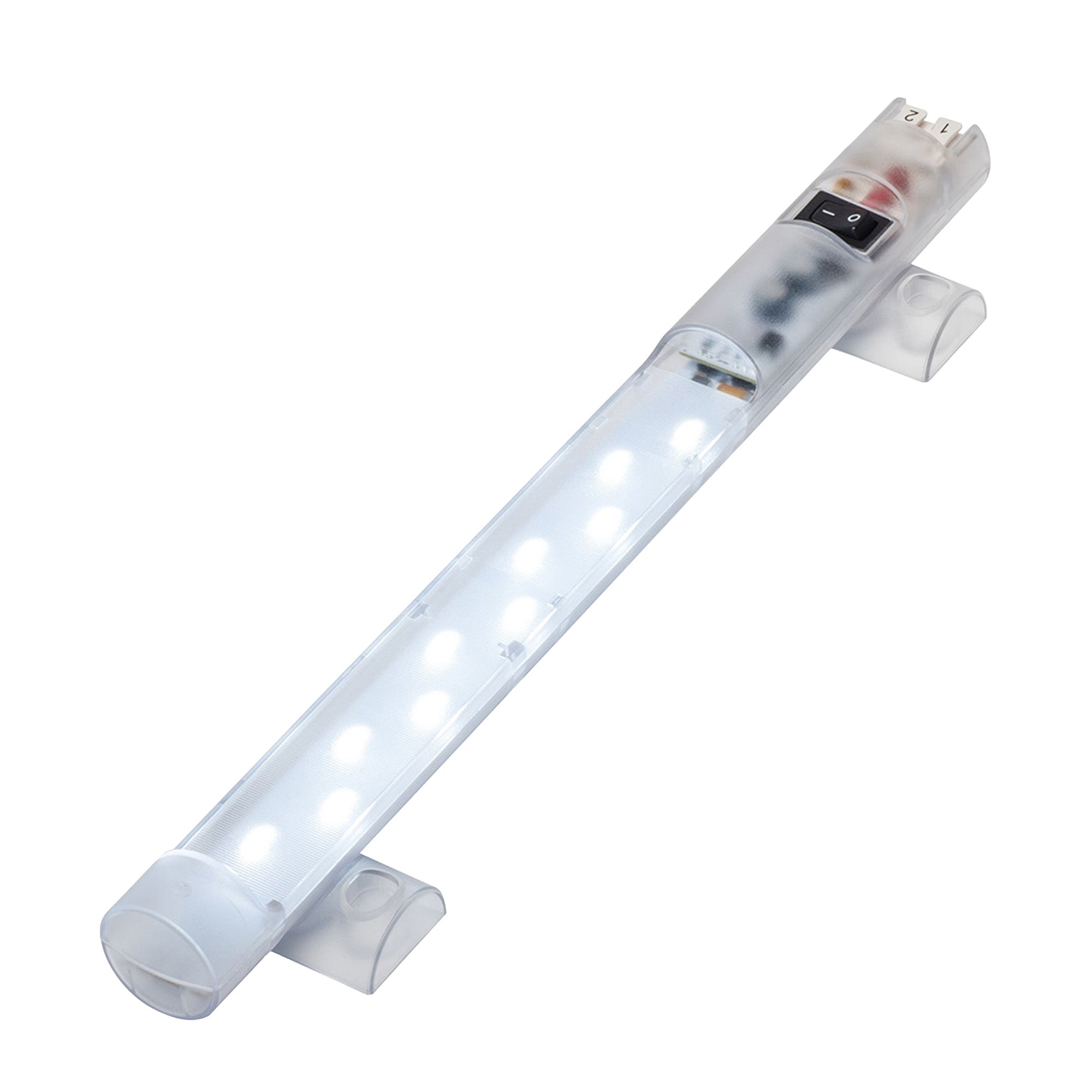

02540.3-11 100-240V AC On/Off Switch Screw Mount

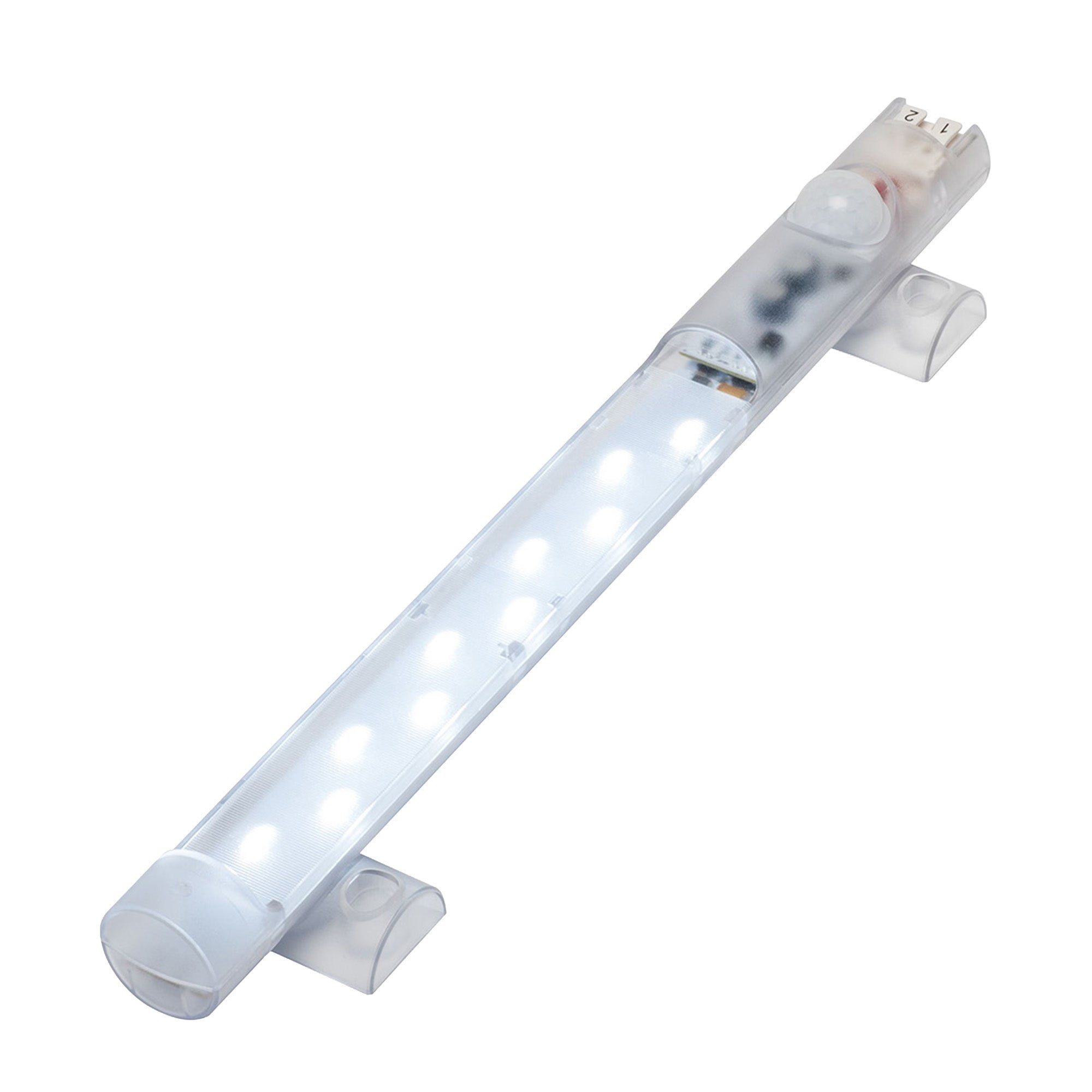

02541.3-11 100-240V AC PIR Motion Sensor Screw Mount

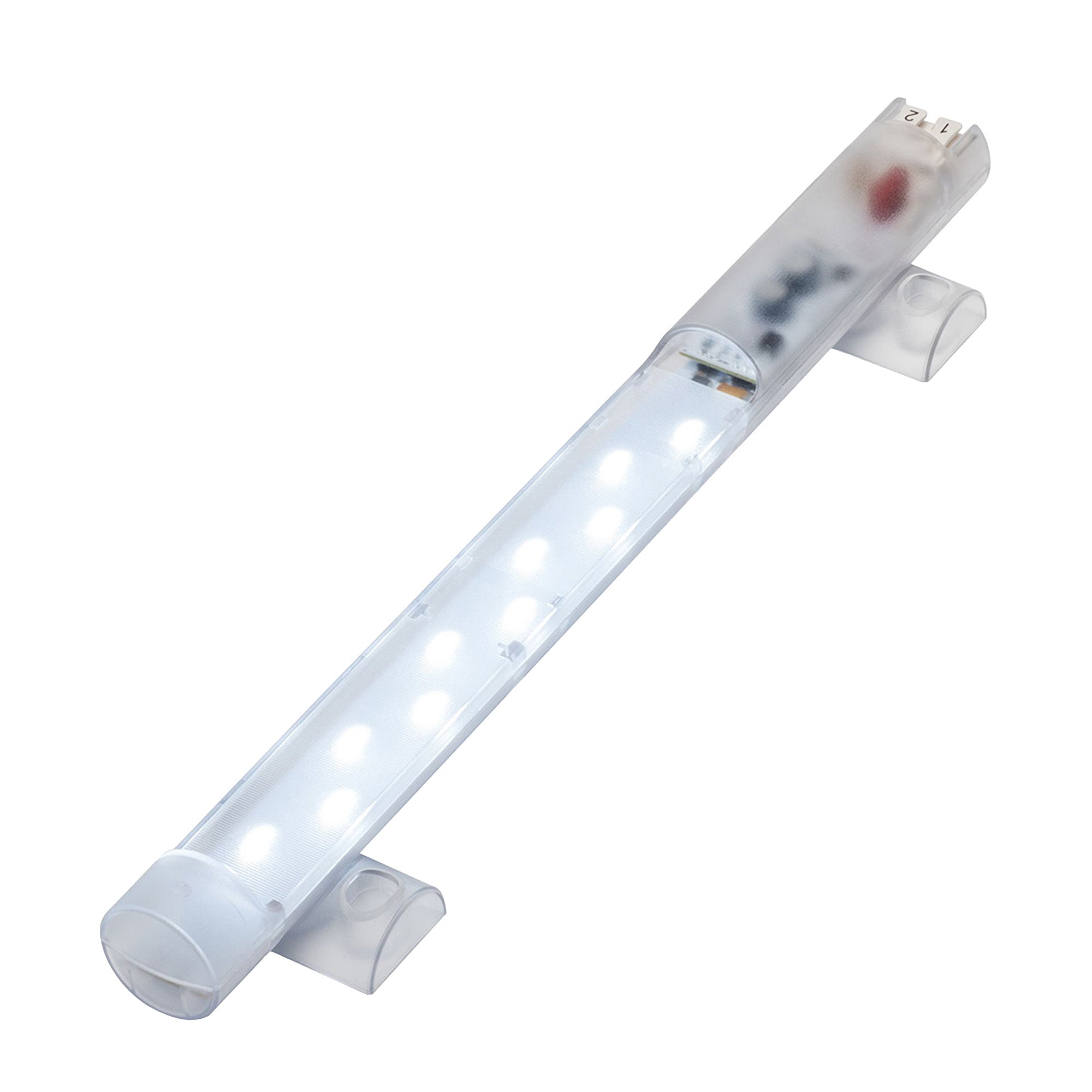

02542.3-11 100-240V AC Hard Wired Screw Mount
